SMALL FORD KIT,2.66",REAR PB,12.19",RED

SMALL FORD KIT,2.66",REAR PB,12.19",RED

WIL 140-7143-R

$1,059.43
$1,059.43

Yes, we have this item in stock and ready to ship immediately!
View full details
  • ONLY ONE SIDE SHOWN IN THE PICTURE AT THE RIGHT; MAKE SURE TO LOOK AT THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF ALL THE PARTS INCLUDED

  • WILWOOD BOLT-ON REAR PARKING BRAKE DISC BRAKE KIT FOR SMALL BEARING FORD REAR ENDS WITH A 3.336" x 2.000" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.66" FLANGE OFFSET (SEE DIAGRAMS BELOW)
  • FEATURING RED CALIPERS
  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • A FEW KITS DO REQUIRE MINOR MODIFICATIONS TO THE AXLE TO COMPLETE THE INSTALLATION
  • THIS SERIES OF FDL PRO SERIES REAR DISC KITS PROVIDES A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FORGED BILLET DYNALITE 4 PISTON CALIPERS, 12.19" ONE-PIECE DRUM/ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING
  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS

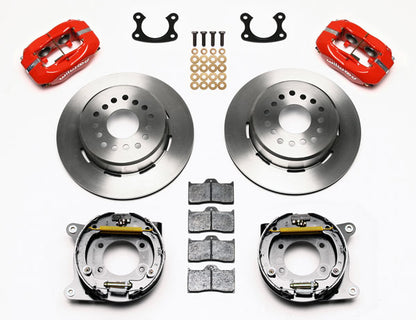

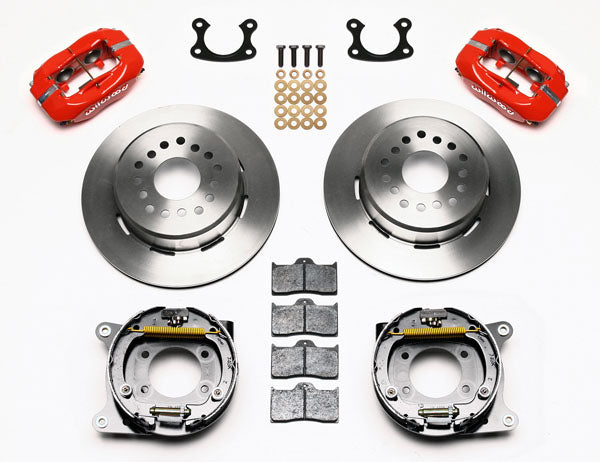

  • KIT INCLUDES:
    *.810" THICK x 12.19" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - RED,
    *CALIPER MOUNTING BRACKETS,
    *DRUM PARKING BRAKE ASSEMBLIES,
    *BP-10 BRAKE PADS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS
  • COMPLETE KIT WEIGHS APPROXIMATELY 49LBS.
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE



    • Click Picture
    For Larger View




    Click Picture
    For Larger View

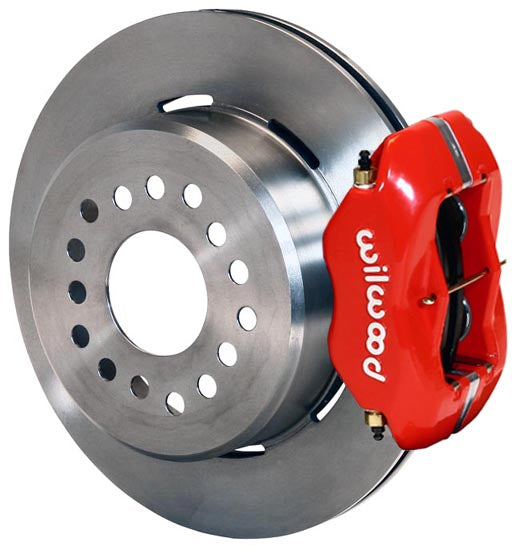

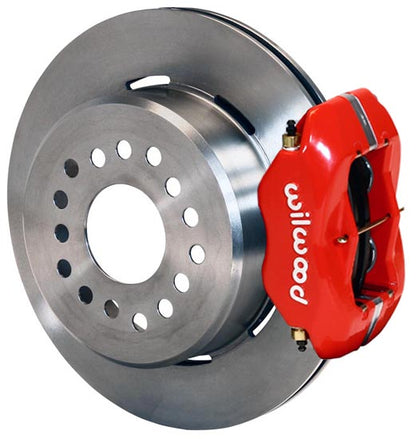

  • ONLY ONE SIDE SHOWN
