02-06 ACURA RSX,FRONT,FDL,12.19",DRILLED

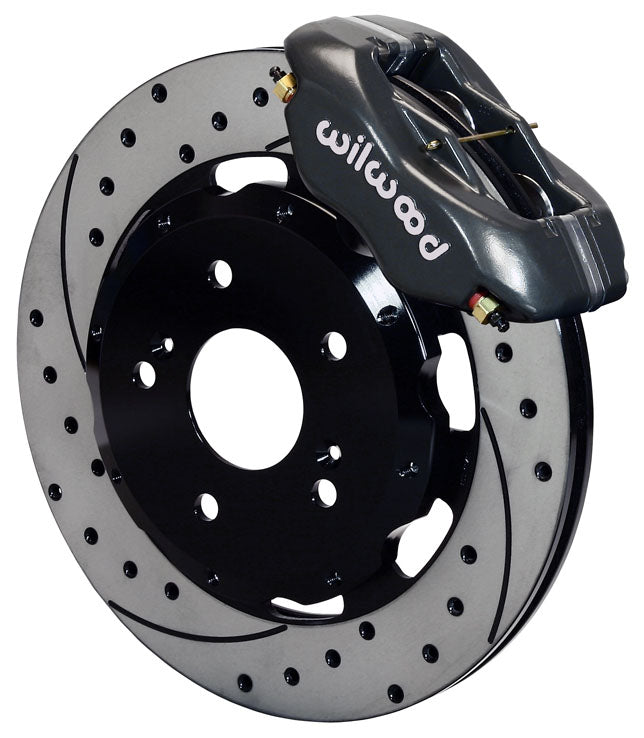

Brand New Wilwood Forged Dynalite Big Brake Kit Featuring 12.19" Drilled Rotors with Black Calipers For Both Front Wheels (Part #140-7014-D).

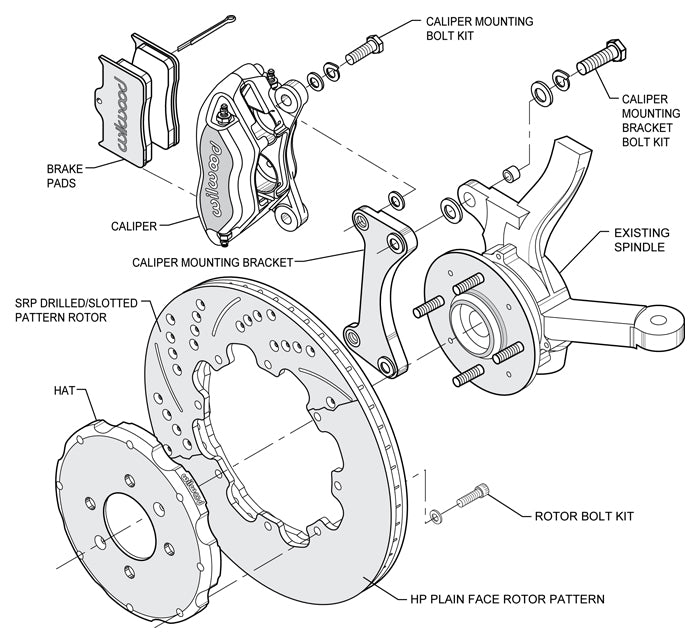

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Acura:

  • 2002-2006 RSX Except Type-S

  • 2002-2006 RSX Type-S only

• Honda:
• • 2004-2005 Civic SI
    2003-2011 Element All

Forged Dynalite ProSeries kits provide high performance, big brake stopping power by combining modern brake technology with high-tech styling to update the brakes on your front-wheel-drive sport compact vehicle. The OE calipers and rotors are replaced with forged aluminum, four-piston calipers mounted over larger diameter, certified alloy 30-vane vented iron rotors. The new two-piece rotor assemblies provide weight-saving forged aluminum mounting hats. The calipers feature an increase in effective piston volume to deliver higher clamping power with less pedal effort than stock. The thicker, vented rotor design adds cooling efficiency and durability to extend service life. BP-series SmartPads add high-response with increased resistance to fade and longer wear over typical OE replacement pads. Options for caliper colors and rotor styles are available to personalize the look on any car.

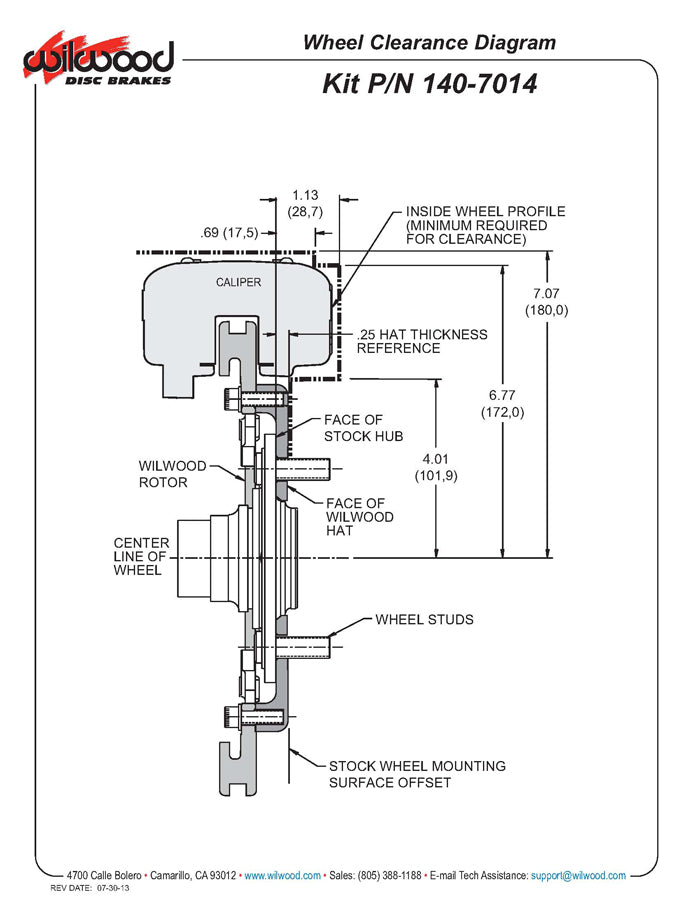

This kit require at least 15" diameter wheels.

Kit includes parts for both front wheels:

• 4 Piston Forged Dynalite Calipers
• 0.81" Thick x 12.19" O.D. Rotors
• BP-10 Compound Brake Pads
• Rotor Hat

• All brackets, bolts, washers, shims, and nuts necessary to install the kit.

Complete kit weighs approximately 35 lbs.

You can view and download the assembly/instruction booklet here.
