HONDA CIVIC KIT,FRONT,FDL,12.19",DRILLED

HONDA CIVIC KIT,FRONT,FDL,12.19",DRILLED

WIL 140-6310-D

$949.99
$949.99
View full details
  • WILWOOD FORGED DYNALITE BIG BRAKE FRONT HAT & 12.19" DISC BRAKE KIT FOR:
    HONDA:
    -1988-2008 HONDA CIVIC: HB/COUPE/SEDAN WITH 240mm DISC BRAKE SPINDLES (4 LUG)
    -1988-1991 HONDA CRX HF/DX/SI WITH 240mm DISC BRAKE SPINDLES (4 LUG)
    -1993-1997 HONDA DEL SOL WITHOUT ABS (4 LUG)

  • FEATURING DRILLED & SLOTTED ROTORS, AS WELL AS BLACK CALIPERS

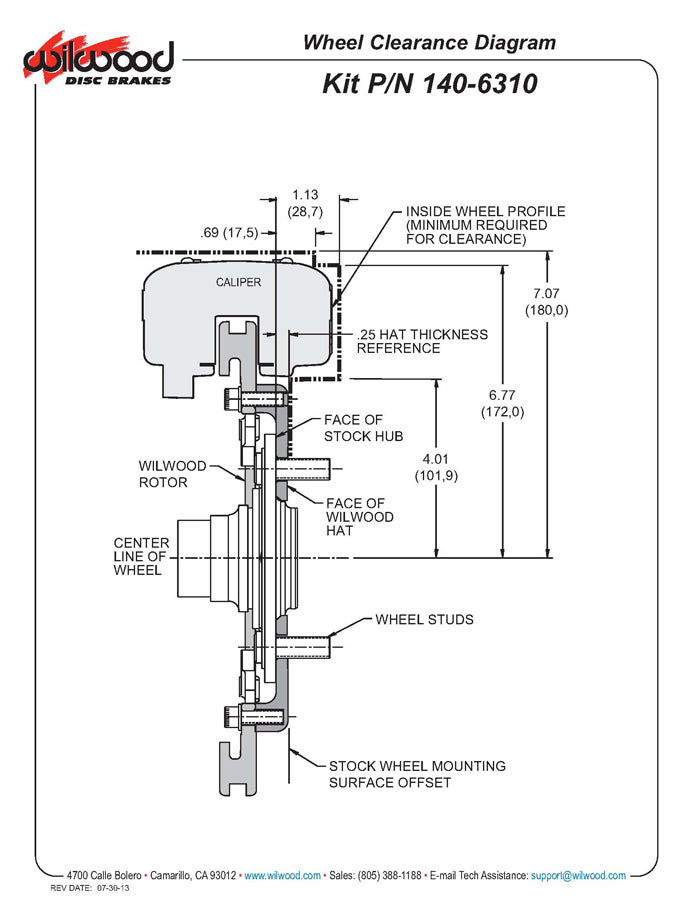

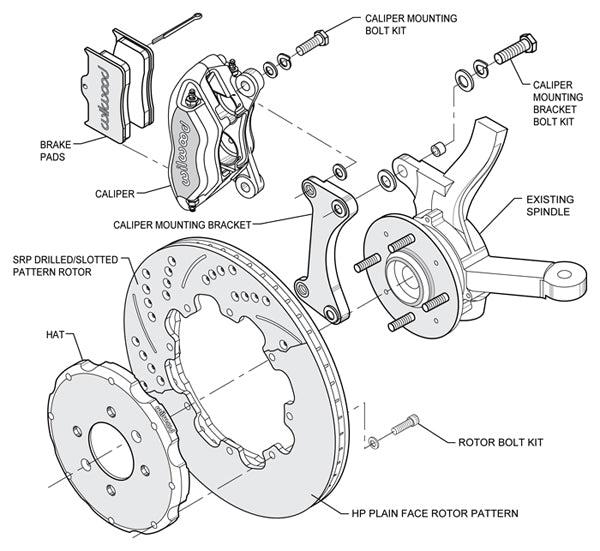

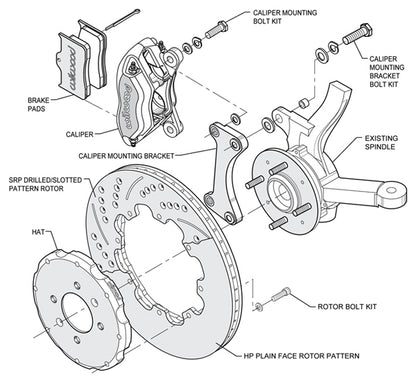

  • ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED

  • WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS
  • FORGED BILLET DYNALITE CALIPERS, OVERSIZED 12.19" ROTORS, & HIGH PERFORMANCE WILWOOD BRAKE PADS DELIVER BIG BRAKE STOPPING POWER WITH HIGH-TECH STYLE FOR FRONT WHEEL DRIVE SPORT COMPACTS
  • THESE KITS ARE THE PERFECT COMPLIMENT TO WHEEL, TIRE, & SUSPENSION UPGRADES ON ALL TYPES OF DAILY DRIVERS, RACE VEHICLES, AND ULTRA-STYLED SHOW MACHINES
  • EACH KIT IS ENGINEERED SPECIFIC FOR EACH VEHICLE
  • THEY ARE FULLY COMPATIBLE WITH OE MASTER CYLINDER OUTPUT, WHILE RETAINING THE FULL FACTORY ABS FUNCTIONS
  • MOST KITS ARE EASILY INSTALLED WITH THE COMMON HAND TOOLS USED TO PERFORM ROUTINE BRAKE SERVICE
  • THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS

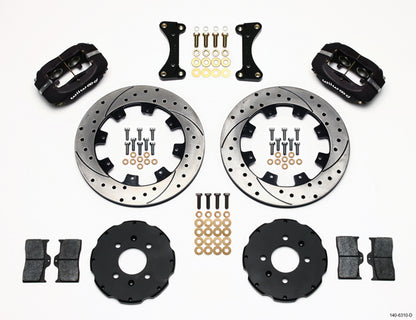

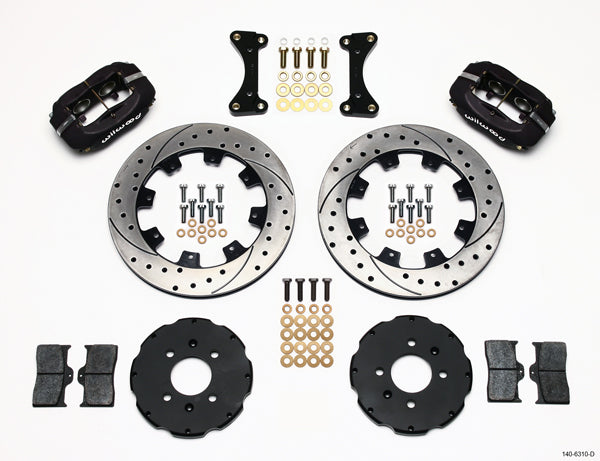

  • KIT INCLUDES:
    *DRILLED & SLOTTED, .810" THICK x 12.19" O.D. ROTORS,
    *FORGED DYNALITE CALIPERS - BLACK,
    *CALIPER MOUNTING BRACKETS,
    *BP-10 BRAKE PADS,
    *BRAKE HATS, &
    *ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
  • COMPLETE KIT WEIGHS APPROXIMATELY 36 LBS.
  • YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE

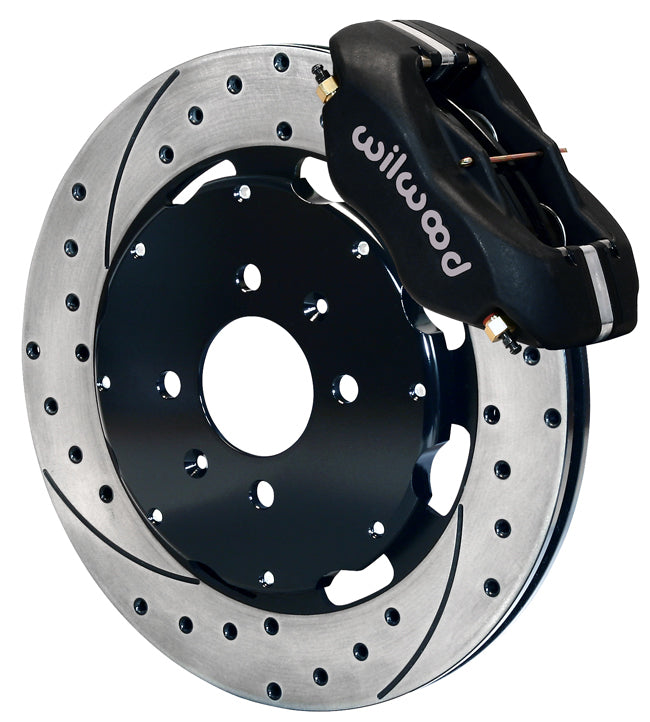

  • ONLY ONE SIDE SHOWN
    • Bolt-On Disc Brake Kits > Honda Kits > Civic Front Kits
