GM DRAG E-KIT,2.91",REAR,11.44" DRILLED ROTORS,RED

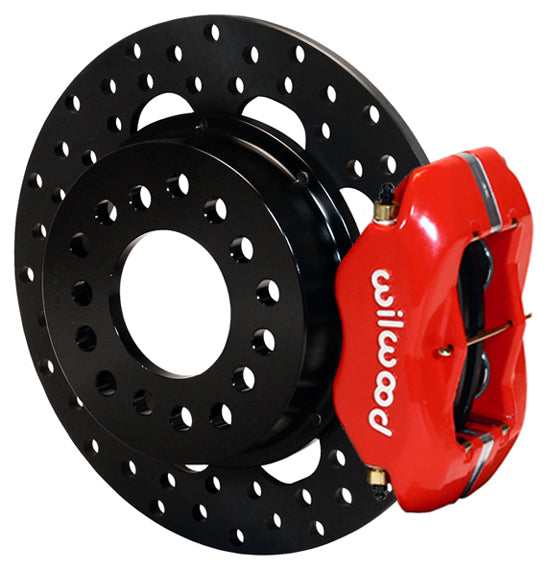

Brand New Wilwood Forged Dynalite Drag Brake Kit Featuring 11.44" Drilled Rotors with Red Calipers For Both Rear Wheels (Part # 140-4545-DR).

FDL Rear Drag kits are true bolt-on kits available for all popular muscle car rear axles and aftermarket rears built with custom axle ends. Kits in this group are purpose built for sportsman category door cars and others with full functional four-wheel disc brakes. Based on the specific style of housing end and axle offset, mounting kits securely install the four-piston forged Dynalite caliper over plate steel rotors that are mounted to the axle with an aluminum hat. Standard kits include solid face rotors, with optional drilled rotor kits available to further reduce driveline weight in classes where every weight advantage is necessary.

NOTE: This kit require at least 15" diameter wheels. Check wheel clearance diagram for proper fitment. Axle offset is 2.91".

Compatible with:

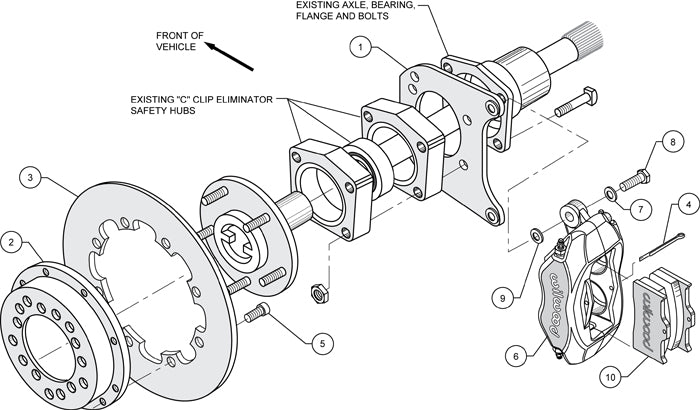

• 12 Bolt Chevy C-Clip Eliminator Rear End with 3.072"x2.404"x2.652" Mounting Pattern &  2.91" Axle Offset (See Diagram Pictures)

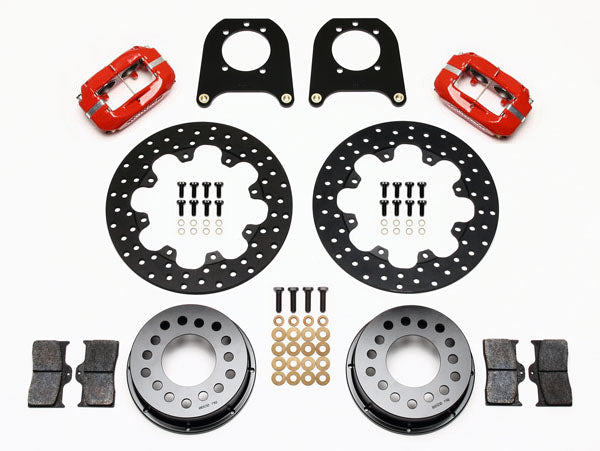

Kit includes:

• 4 Piston Forged Dynalite Calipers

• BP-10 Compound Brake Pads

• 0.35" Thick x 11.44" O.D. Rotors

• Rotor Hat
• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 28 lbs.

You can view and download the assembly/instruction booklet here.
