FORD 8.8" KIT,2.50",REAR,12.19" DRILLED ROTORS,RED

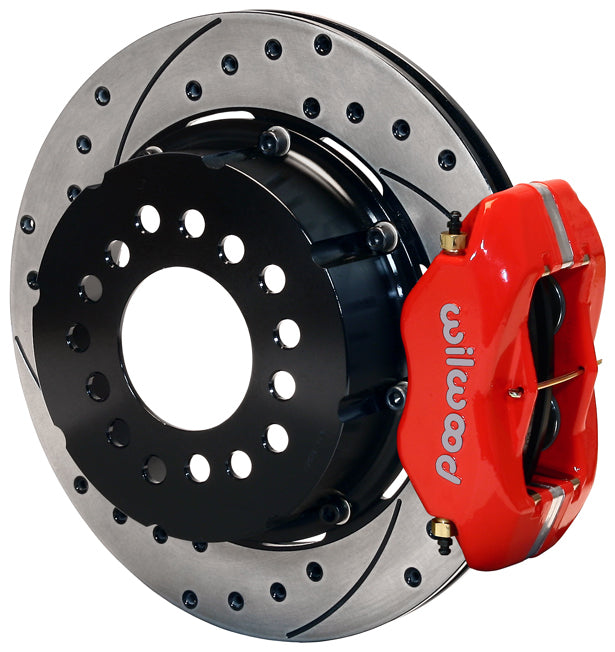

Brand New Wilwood Forged Dynalite Pro Series Rear Brake Kit Featuring 12.19" Drilled & Slotted Rotors with Red Calipers For Both Rear Wheels (Part #140-2115-DR).

FDL Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications where individual wheel parking brake assemblies are not required. Forged billet Dynalite four piston calipers, two-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of off-road, competition, and other customized applications. FDL calipers can be optioned with a full range of finishes to reflect personalized style. Rotor choices provide options for high-tech show winning style, or heavy weight durability and cooling capacity for high heat competition.

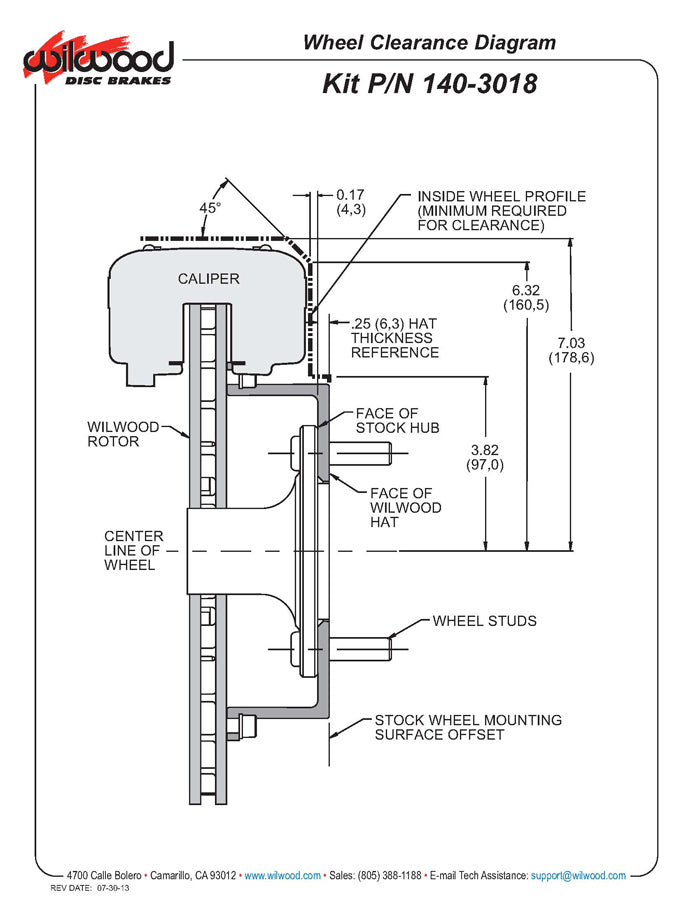

NOTE: This kit require at least 15" diameter wheels. Check wheel clearance diagram for proper fitment. Axle offset is 2.50".

Compatible with:

• Ford Rear End Kit with 8.8 Axle Flanges & 2.50" Axle Flange Offset (See Diagram)

• For 5 Lug applications without ABS

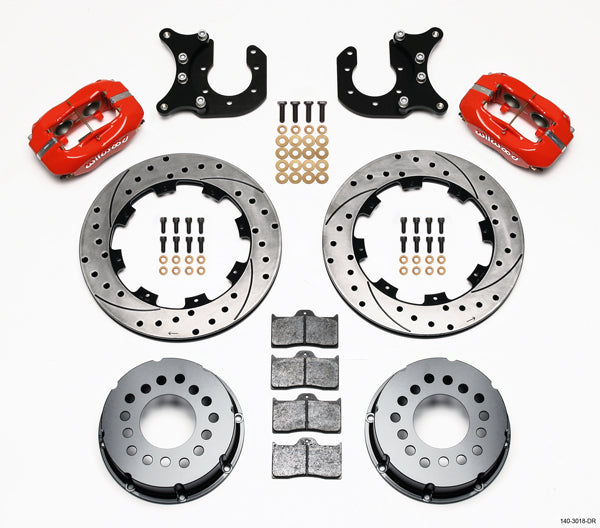

Kit includes:

• 4 Piston Forged Dynalite Calipers

• BP-10 Compound Brake Pads

• 0.81" Thick x 12.19" O.D. Rotors

• Rotor Hat
• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 35 lbs.

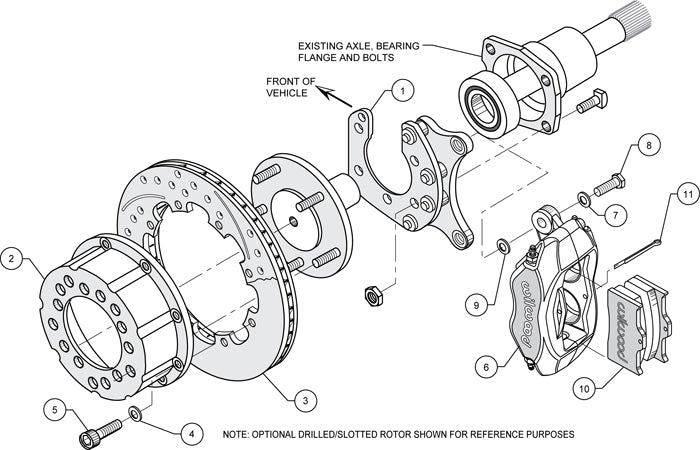

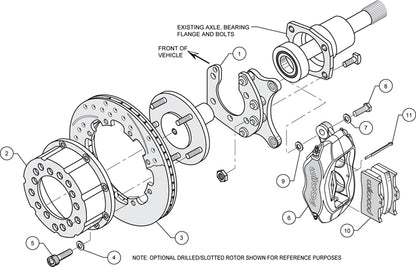

You can view and download the assembly/instruction booklet here.
