22-23 POLARIS RZR,UTV,5-LUG,REAR RACING BRAKE KIT,11.25" ROTORS,BLACK CALIPERS

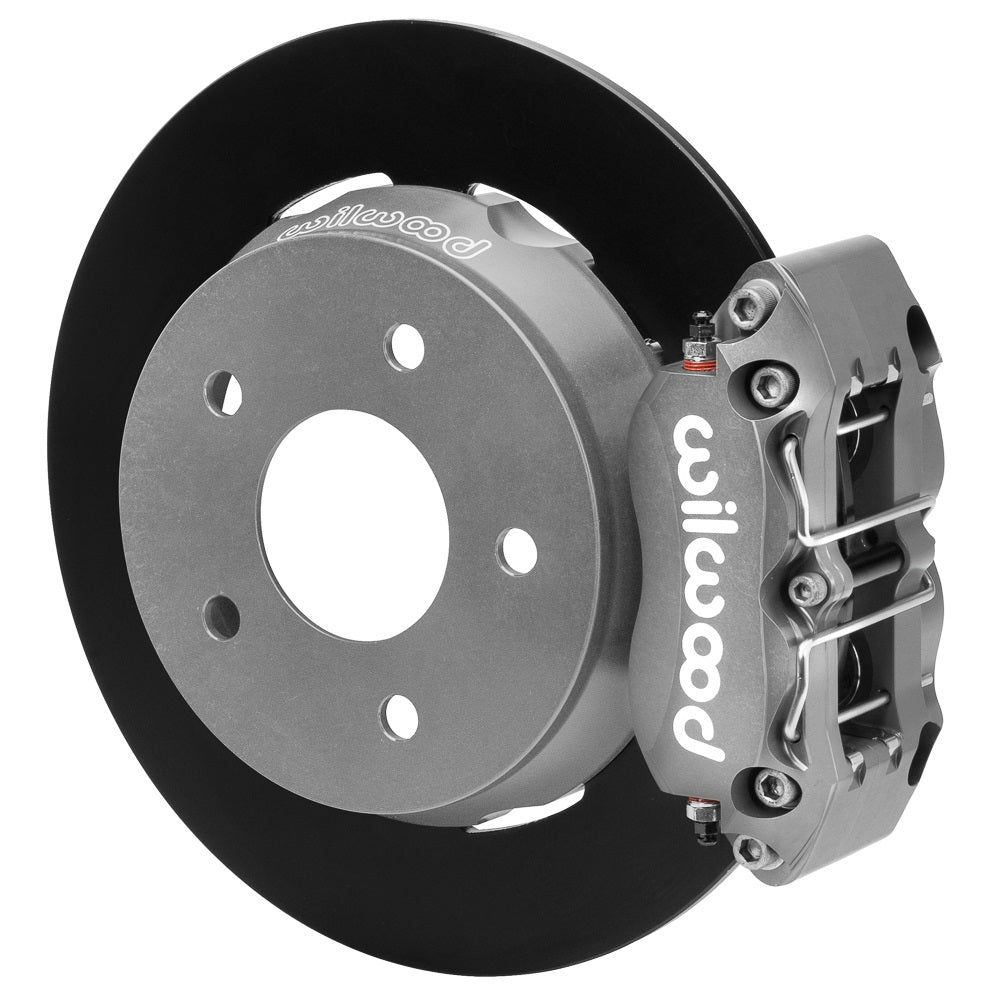

Brand New Wilwood NDPR Rear UTV Brake Kit (Race)11.25" For Both Rear Wheels Featuring Type III Anodized Grey Calipers (Part #140-17734).

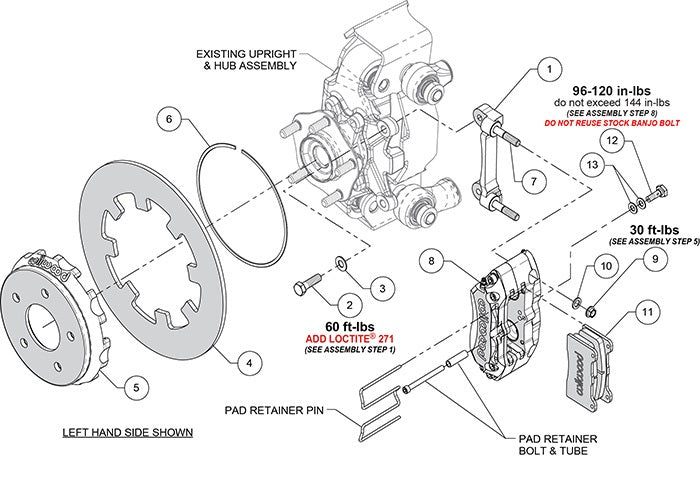

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Polaris:
  • 2022-2023 RZR Turbo

Wilwood brake kits consist of specifically engineered matched groups of components designed to provide superior brake system performance custom appeal over a wide range of applications.

Wilwood’s matched NDPR front and rear UTV brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs.

Forged aluminum four piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.

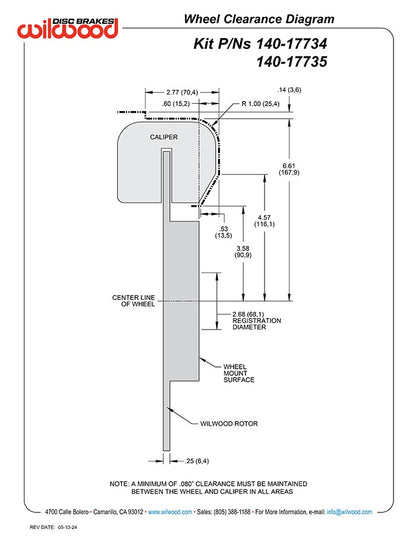

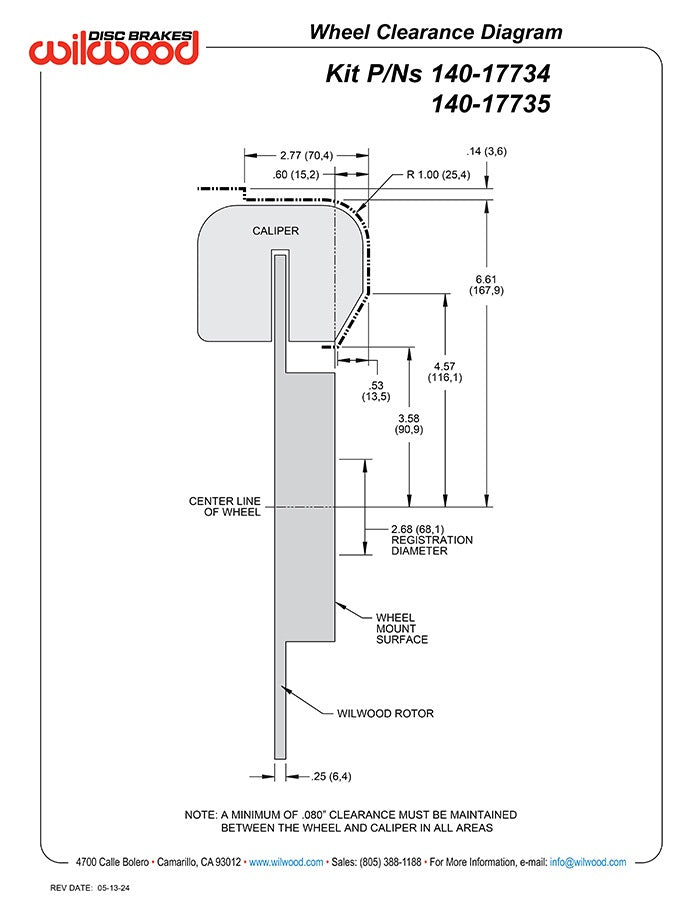

This kit require at least 14" diameter wheels.

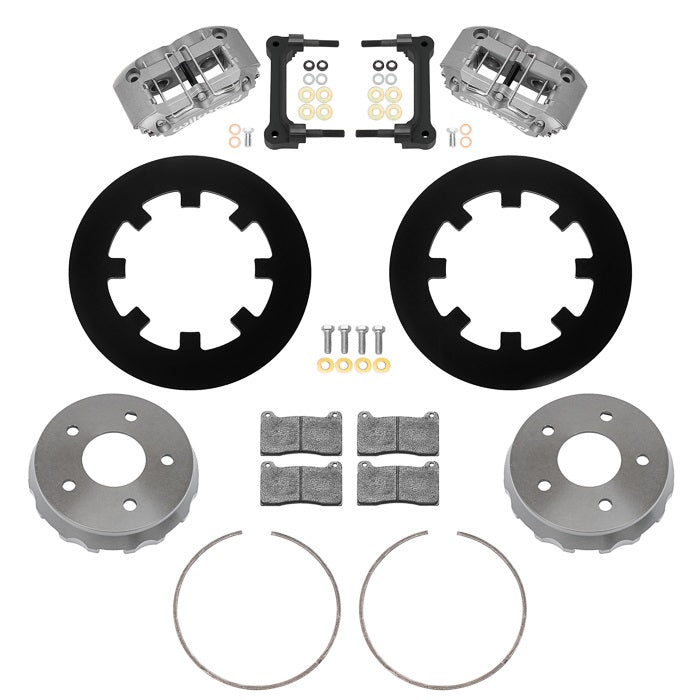

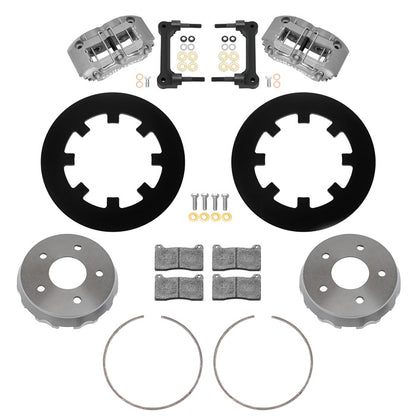

Kit includes parts for both wheels:

• .25" Thick x 11.25" O.D. Rotors
• NDPR 4 Piston Calipers
• Caliper Mounting Brackets
• BP-28 Smart Compound Brake Pads
• All bolts, washers, shims, and nuts necessary to install the complete braking system.


Complete kit weighs approximately 25 lbs.

You can view and download the assembly/instruction booklet here.
