23-26 FORD F-250,F-350 4WD FULL DISC BRAKE KIT,TX6R 6 PISTON,15" ROTORS,RED

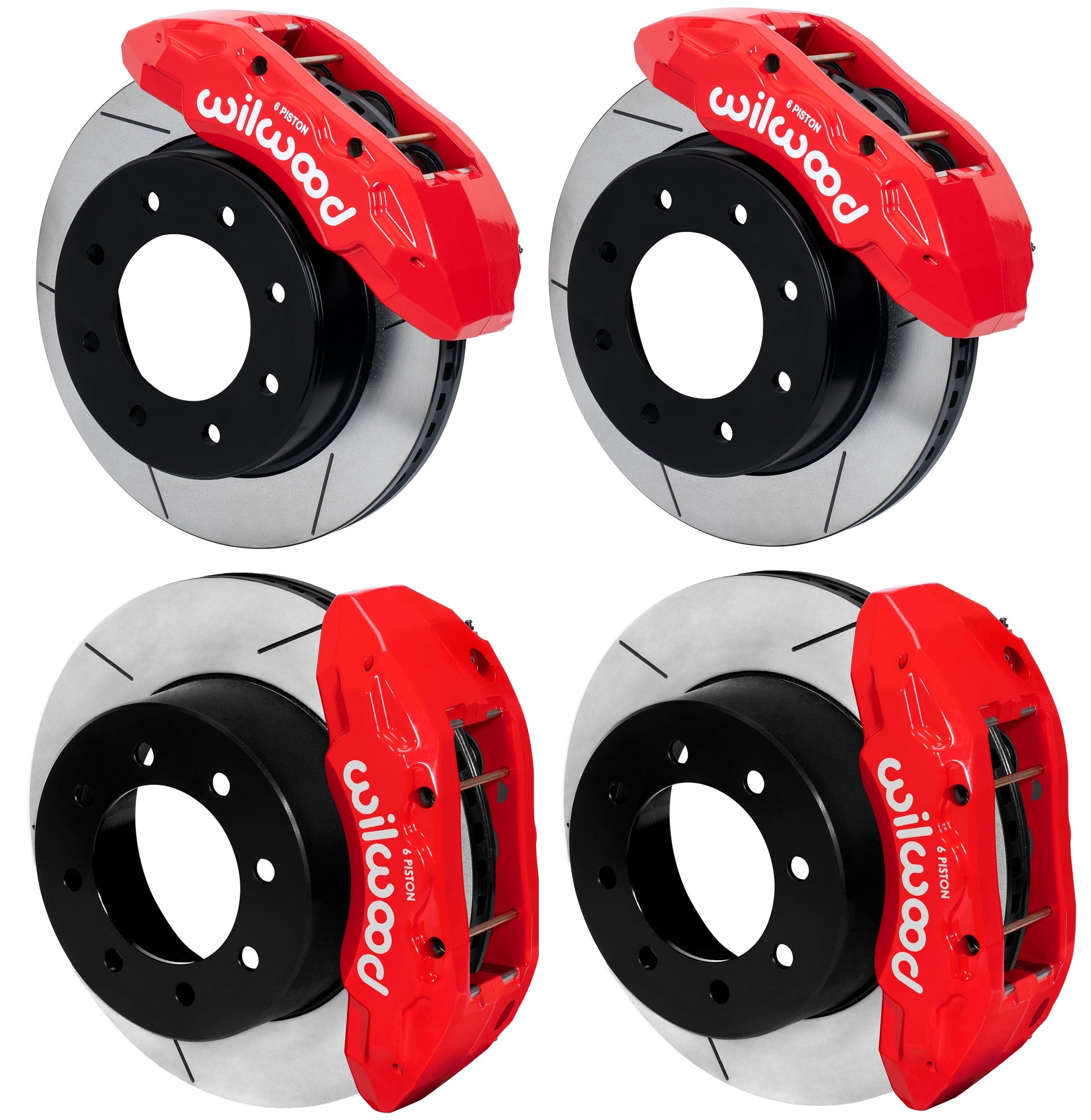

Brand New Wilwood Complete Big Brake Kit Featuring 15" Front & 15.5" Rear Slotted Rotors with Red Calipers For Both Front & Rear Wheels (Part #140-17690-R & 140-17697-R).

Complete Kit Includes:

• TX6-DM 6 Piston Bolt-On Front 15" Disc Brake Kit for Both Front Wheels
• TX6-DM 6 Piston Bolt-On Rear 15.5" Disc Brake Kit for Both Rear Wheels
• Full Line Kit for the Front with Steel Braided Lines and necessary Fittings
• Full Line Kit for the Rear with Steel Braided Lines and necessary Fittings

Fits:

• Ford:
  • 2023-2026 F-250 Super Duty 4x4
  • 2023-2026 F-350 Super Duty 4x4 -SRW

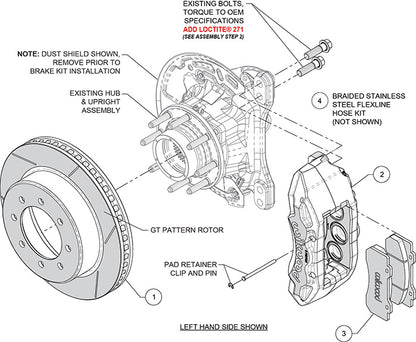

Wilwood’s Tactical Extreme TX6-DM Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6-DM direct mount six-piston calipers and massive 15.00” GT slotted alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include all the necessary hardware to complete the installation. Braided stainless steel flex lines may need to be purchased for some applications if not included in kit.

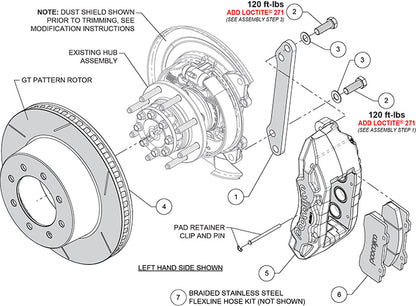

Wilwood’s Tactical Extreme TX6-DM Direct Mount Big Brake rear kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6-DM direct mount six-piston calipers and massive 15.50” GTB grooved rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. TX6-DM rear kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. Kits include all the necessary hardware to complete the installation. Braided stainless steel flex lines are included for most applications.

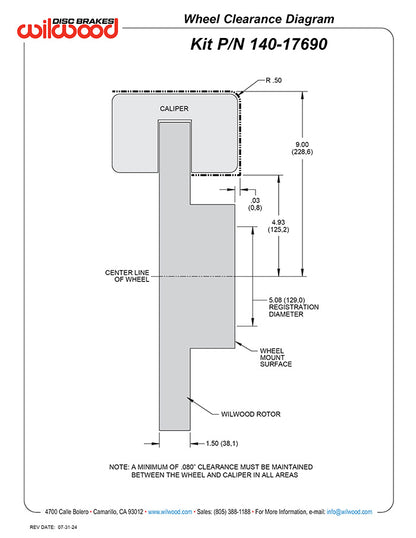

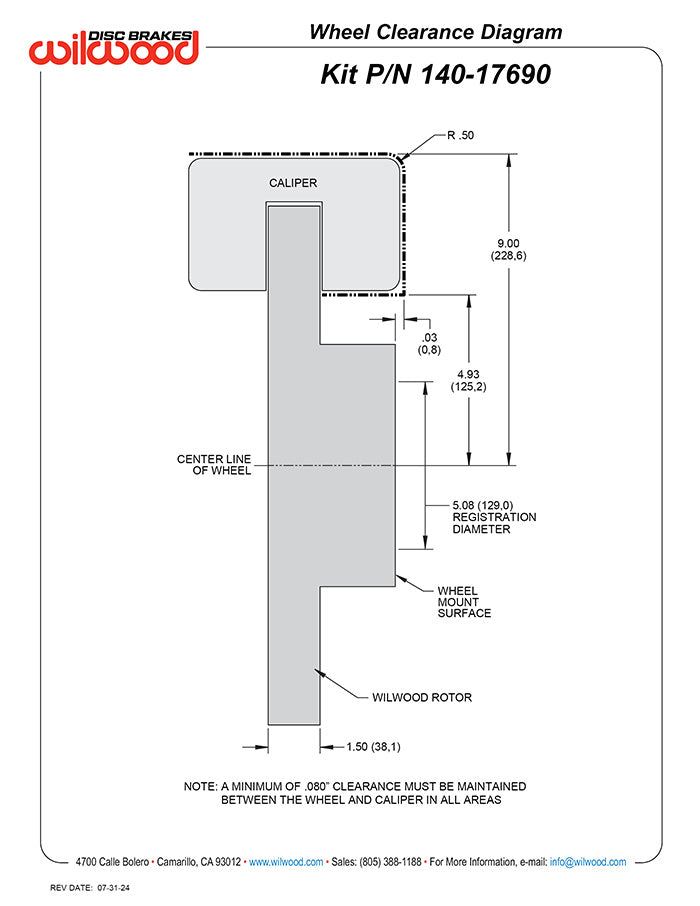

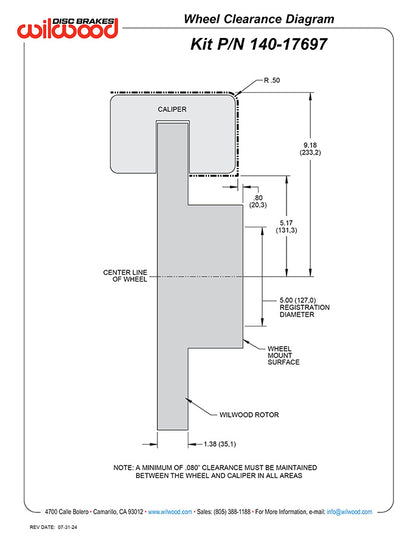

These Big Brake kits require at least 20" diameter wheels.

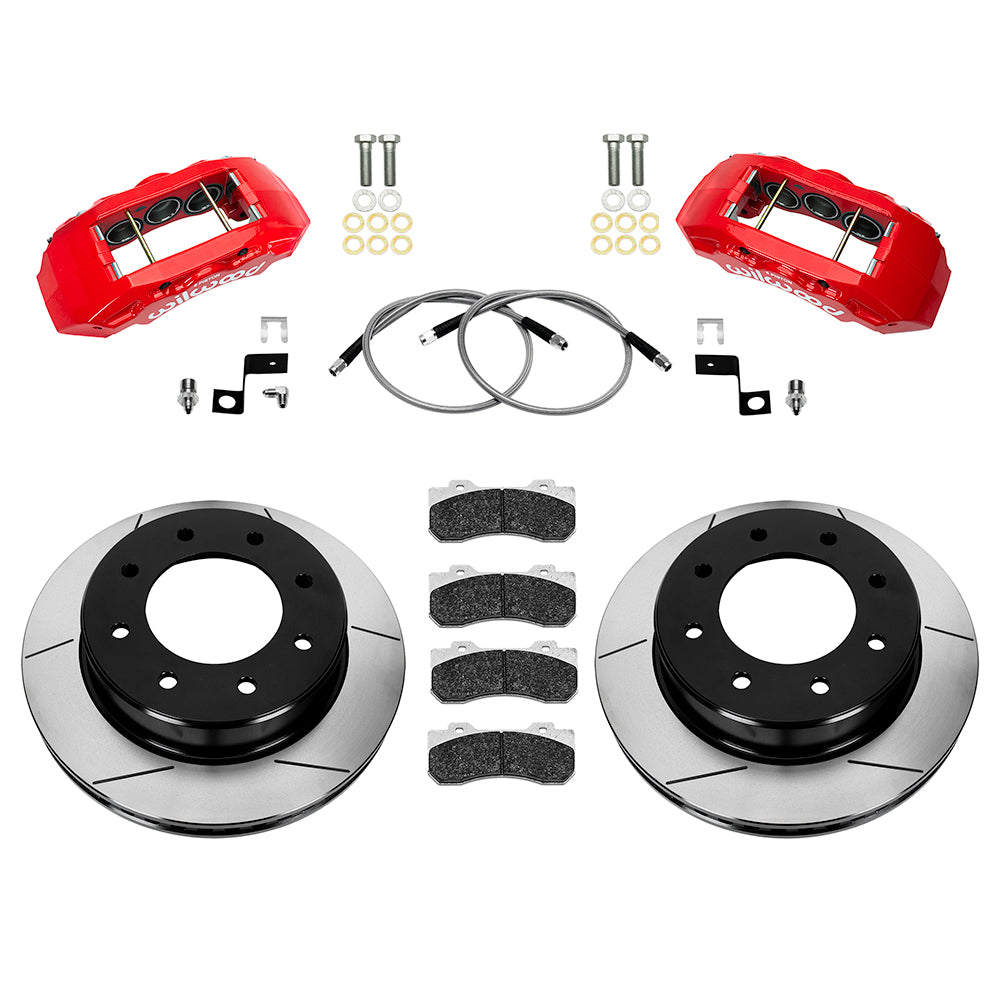

Kit includes parts for both front wheels:

• 6 Piston TX6-DM Calipers
• 1.50" Thick x 15.00" O.D. Rotors
• BP-Q Compound Brake Pads

• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.

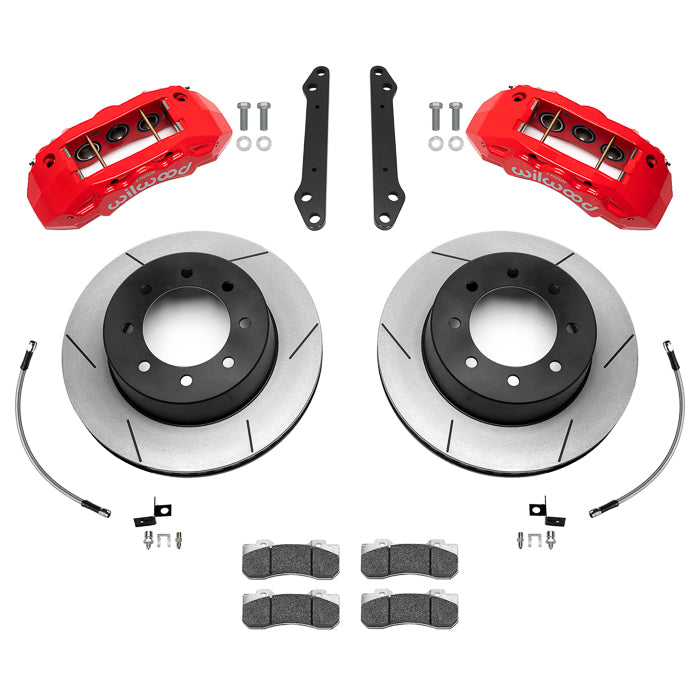

Kit includes parts for both rear wheels:

• 6 Piston TX6-DM Calipers
• 1.38" Thick x 15.50" O.D. Rotors
• BP-Q Compound Brake Pads

• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 255 lbs.

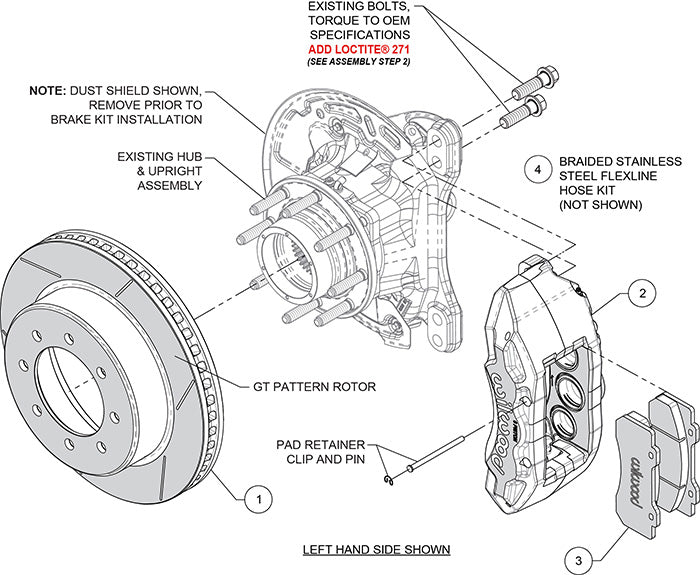

You can view and download the assembly instruction booklet for the Front Kit here.

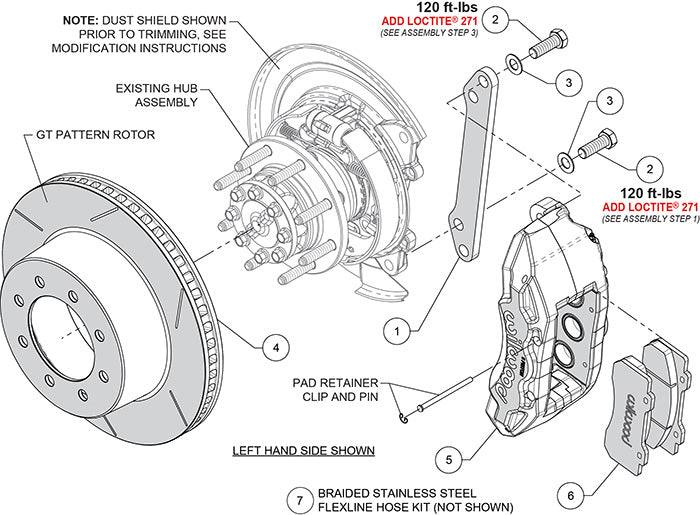

You can view and download the assembly instruction booklet for the Rear Kit here.
