23-26 FORD F-250,F-350 4WD FRONT DISC BRAKE KIT,TX6R 6 PISTON,15" ROTORS,RED

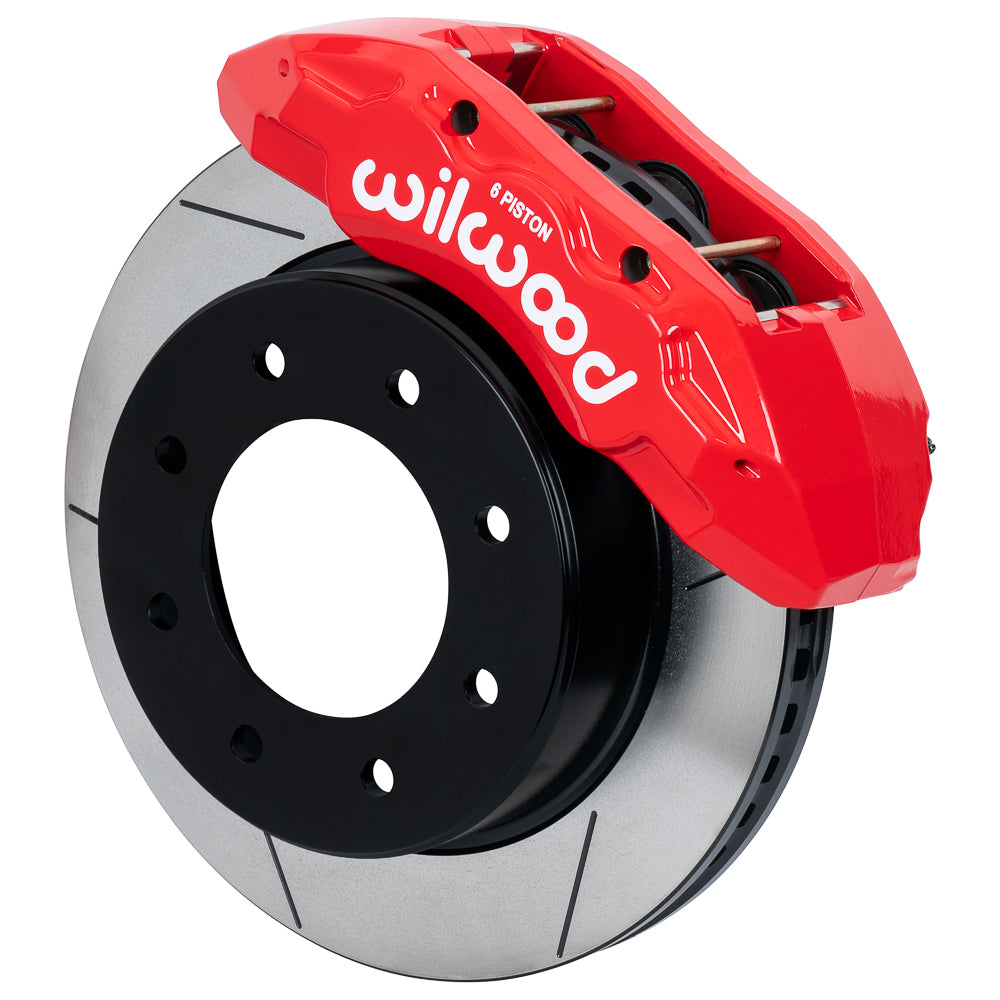

Brand New Wilwood TX6-DM Big Brake Kit Featuring 15" Slotted Rotors with Red Calipers For Both Front Wheels (Part #140-17690-R).

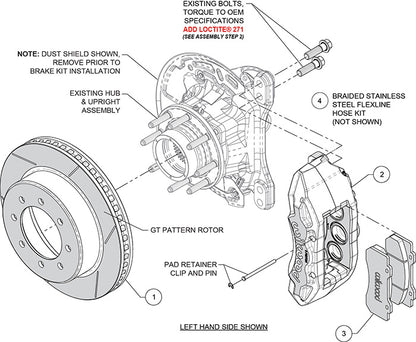

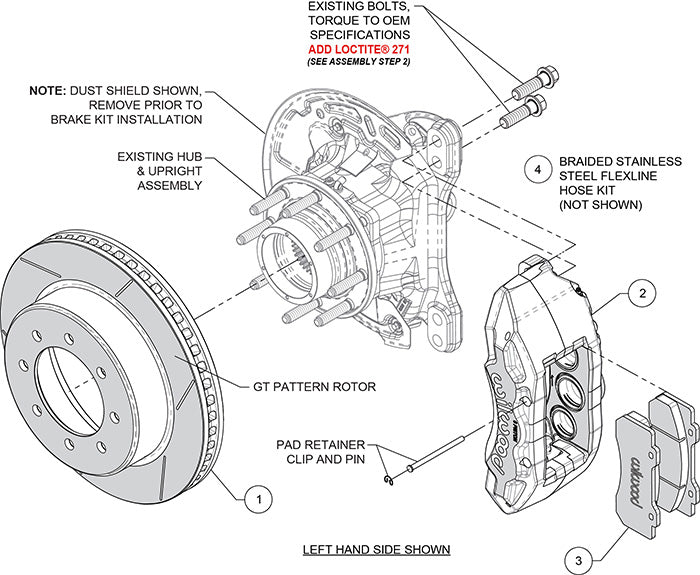

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Ford:
  • 2023-2026 F-250 Super Duty 4x4
  • 2023-2026 F-350 Super Duty 4x4 -SRW

Wilwood’s Tactical Extreme TX6-DM Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6-DM direct mount six-piston calipers and massive 15.00” GT slotted alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include all the necessary hardware to complete the installation. Braided stainless steel flex lines may need to be purchased for some applications if not included in kit.

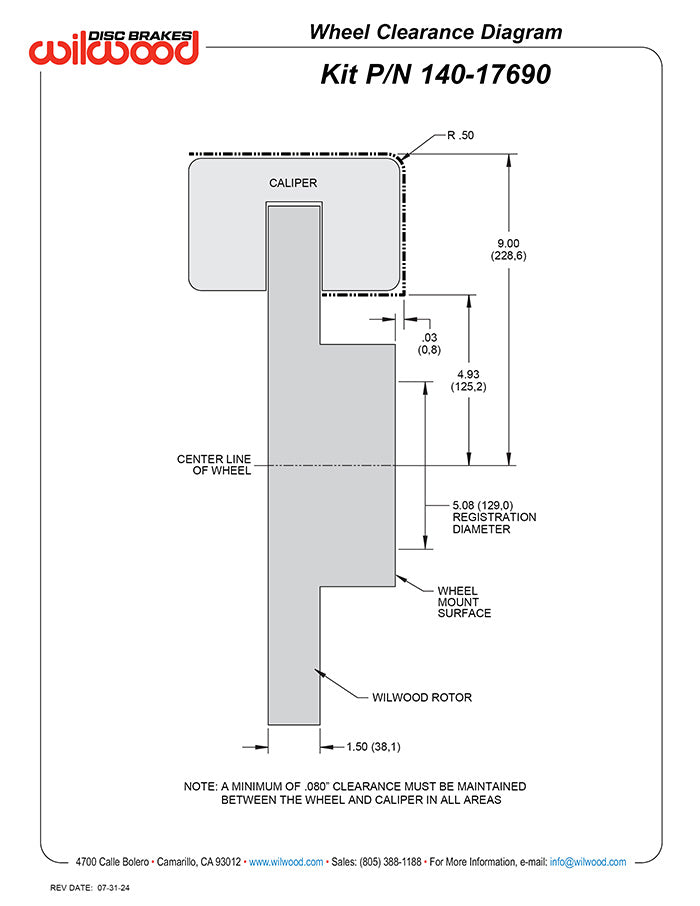

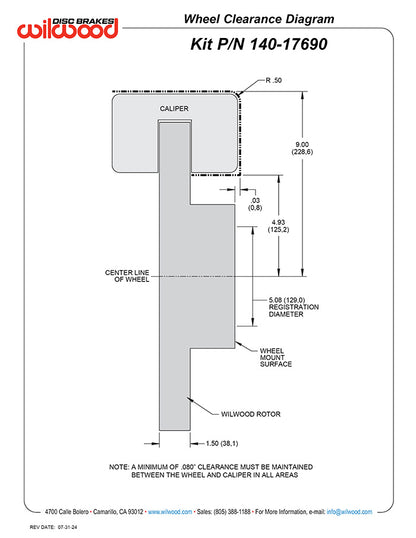

This kit require at least 20" diameter wheels.

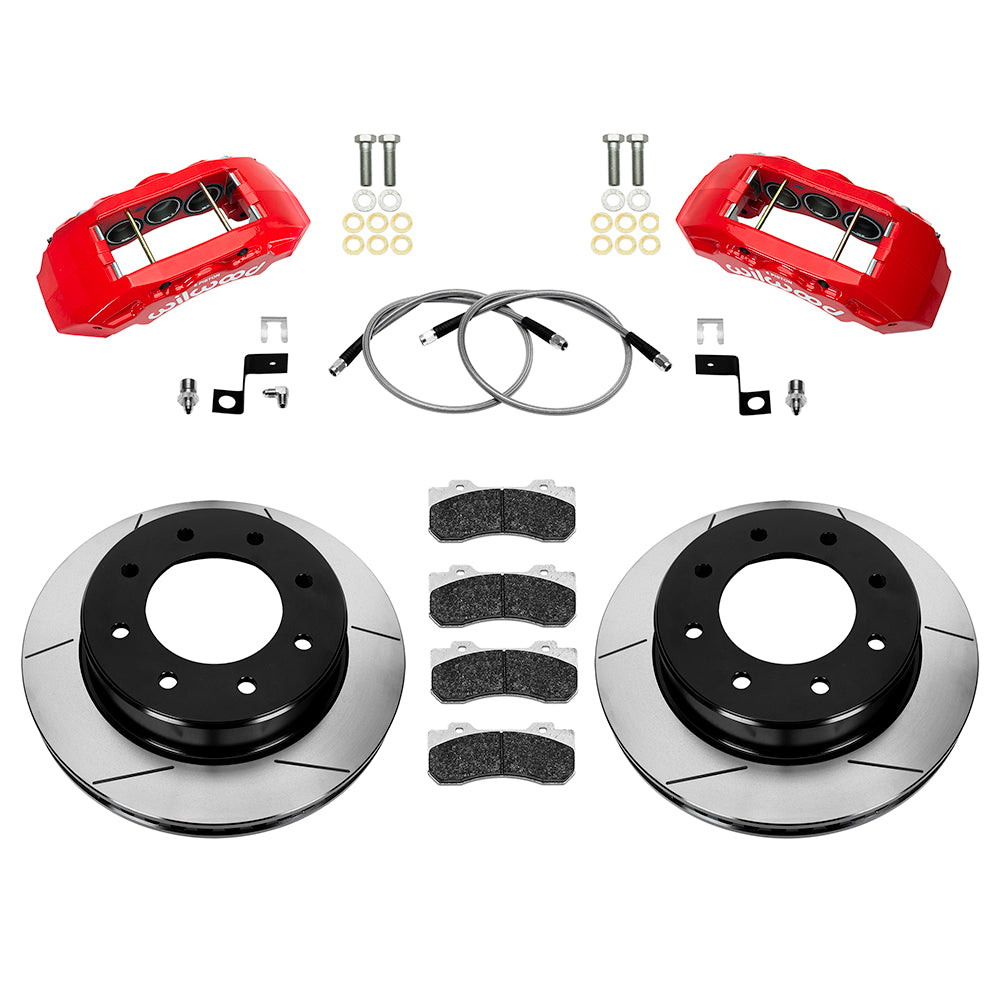

Kit includes parts for both front wheels:

• 6 Piston TX6-DM Calipers
• 1.50" Thick x 15.00" O.D. Rotors
• BP-Q Compound Brake Pads

• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 125 lbs.

You can view and download the assembly instruction booklet here.
