2014-2023 DODGE RAM 2500,3500,FRONT,TX6R 6 PISTON,15" ROTORS,RED CALIPERS

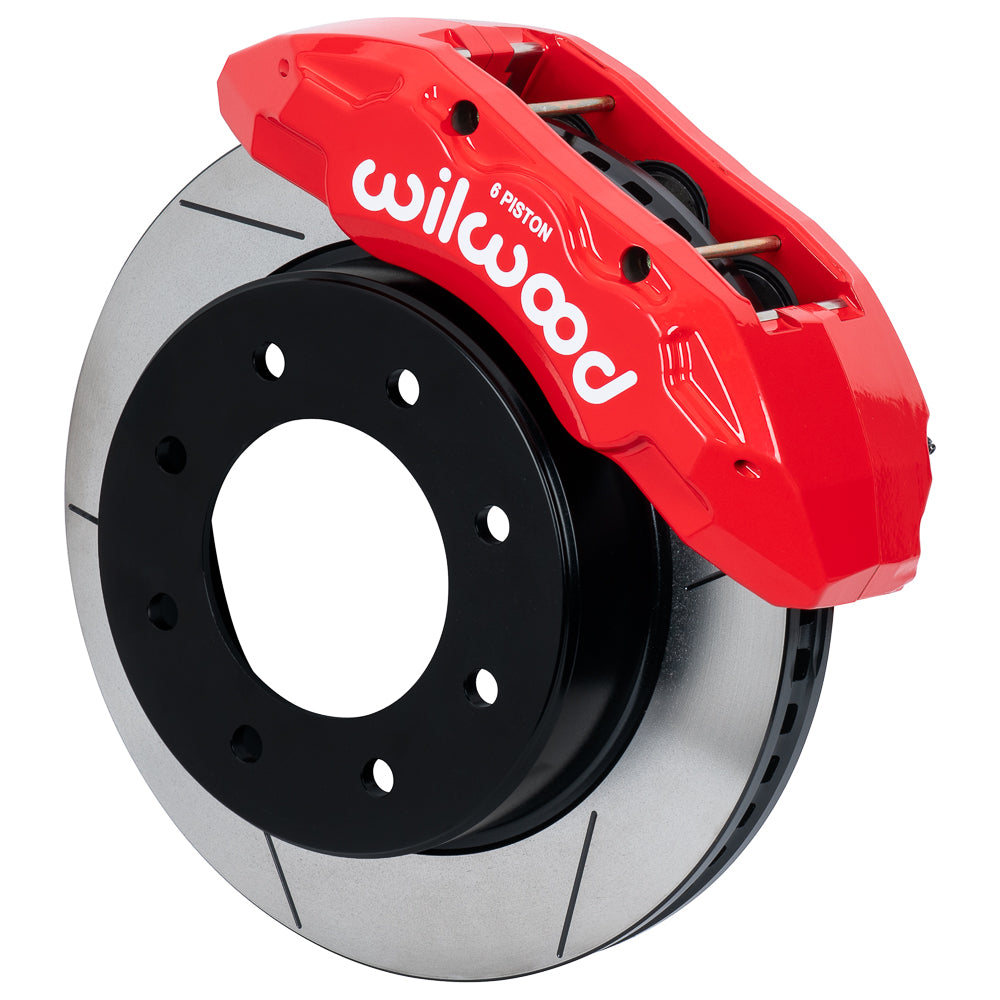

Brand New Wilwood TX6-DM Big Brake Kit Featuring 15" Slotted Rotors with Red Calipers For Both Front Wheels (Part #140-17606-R).

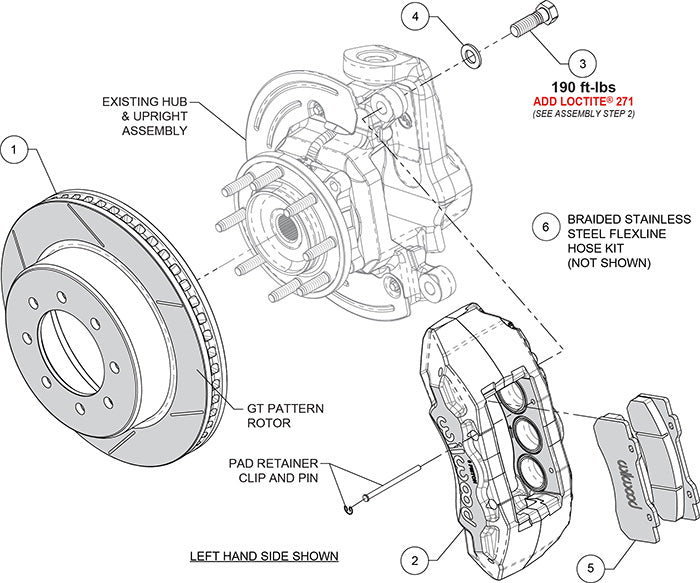

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Ram:
  • 2014-2023 2500 Big Horn

  • 2014-2023 2500 Laramie

  • 2014-2021 2500 Laramie Limited

  • 2014-2021 2500 Laramie Longhorn

  • 2016-2023 2500 Limited

  • 2022-2023 2500 Limited Longhorn

  • 2014-2023 2500 Lone Star

  • 2014-2016 2500 Outdoorsman

  • 2014-2023 2500 Power Wagon

  • 2014-2018 2500 SLT

  • 2014-2023 2500 Tradesman

  • 2014-2023 3500 DRW (Dual Rear Wheels)

  • 2014-2023 3500 SRW (Single Rear Wheels)

Wilwood’s Tactical Extreme TX6-DM Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6-DM direct mount six-piston calipers and massive 15.00” GT slotted alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include all the necessary hardware to complete the installation. Braided stainless steel flex lines may need to be purchased for some applications if not included in kit.

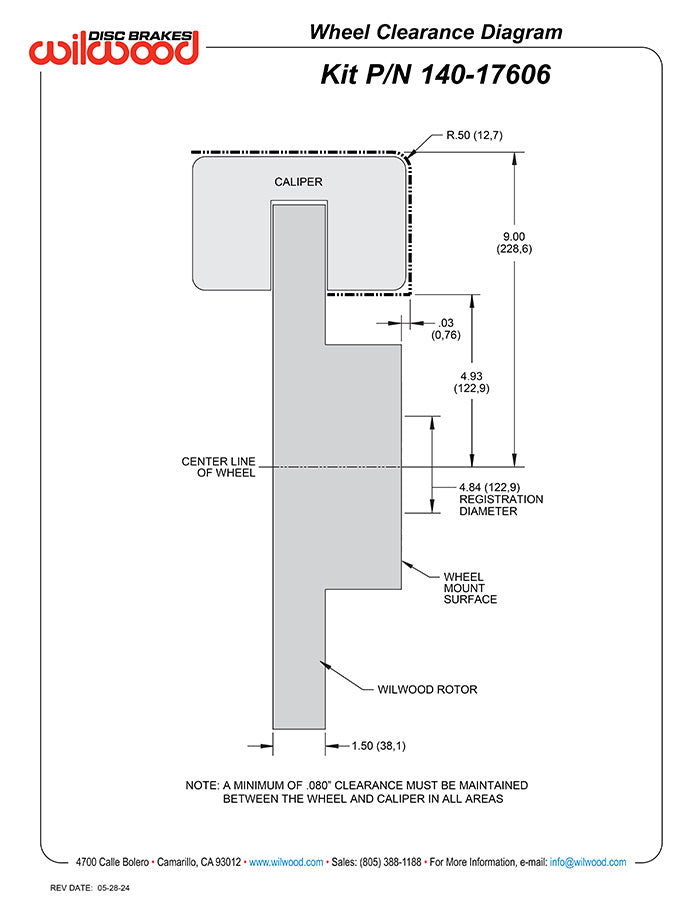

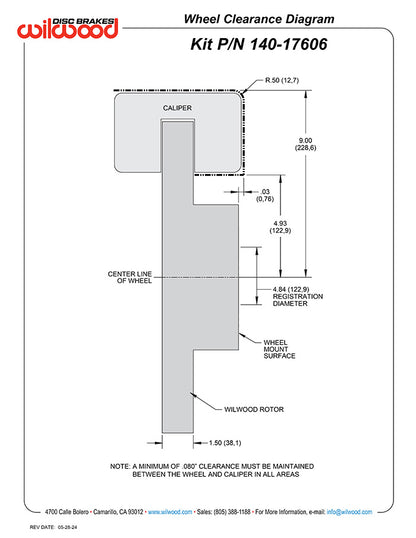

This kit require at least 20" diameter wheels.

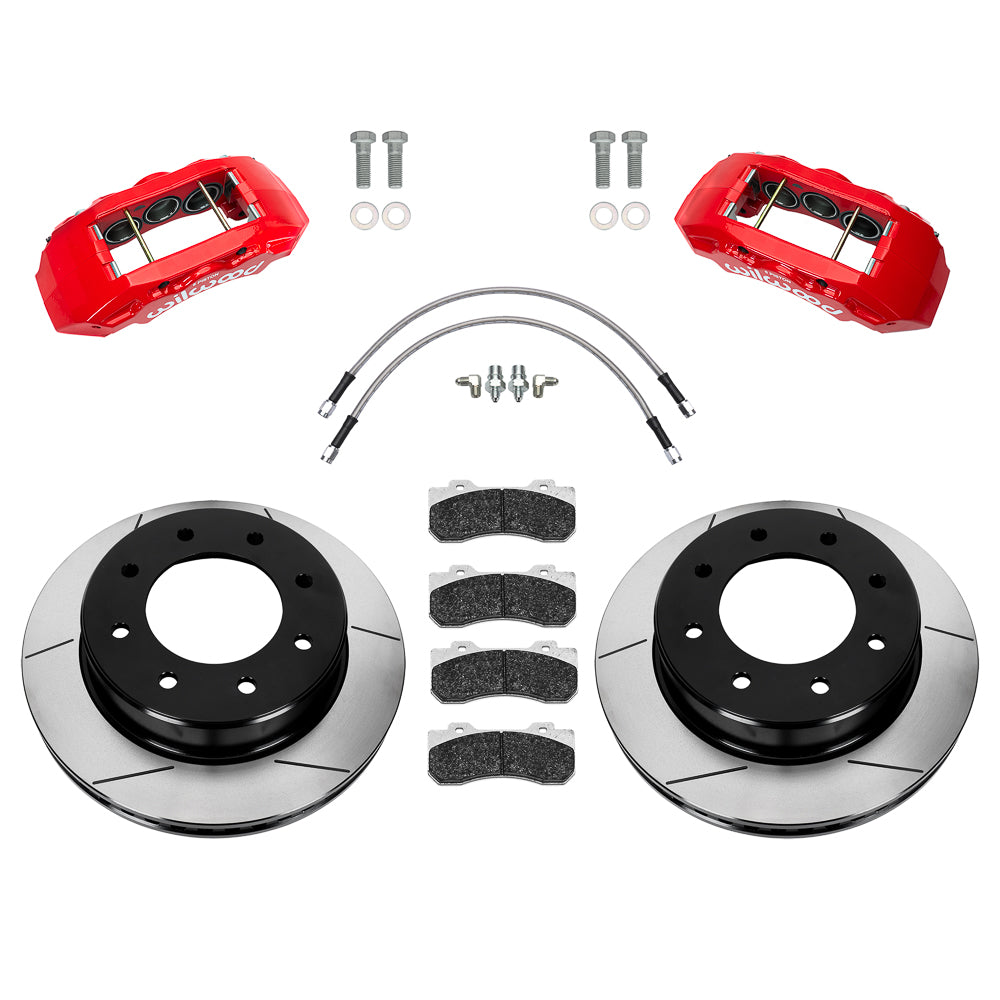

Kit includes parts for both front wheels:

• 6 Piston TX6-DM Calipers
• 1.50" Thick x 15.00" O.D. Rotors
• BP-Q Compound Brake Pads

• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 130 lbs.

You can view and download the assembly/instruction booklet here.
