22-23 POLARIS RZR,UTV,5-LUG,FRONT BRAKE KIT,11.25" ROTORS,BLACK CALIPERS

Brand New Wilwood NDPR Front UTV Brake Kit Featuring 11.25" Solid Rotors & Black Calipers For Both Front Wheels (Part #140-17568).

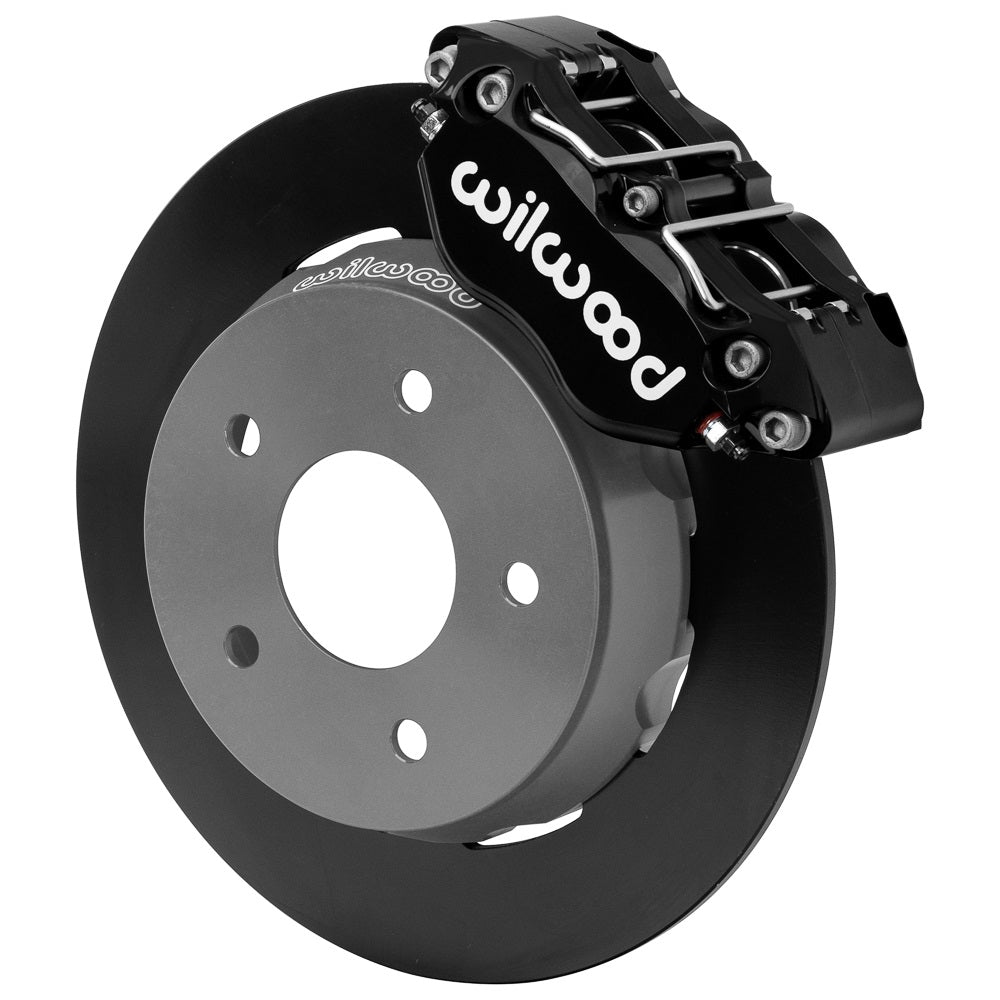

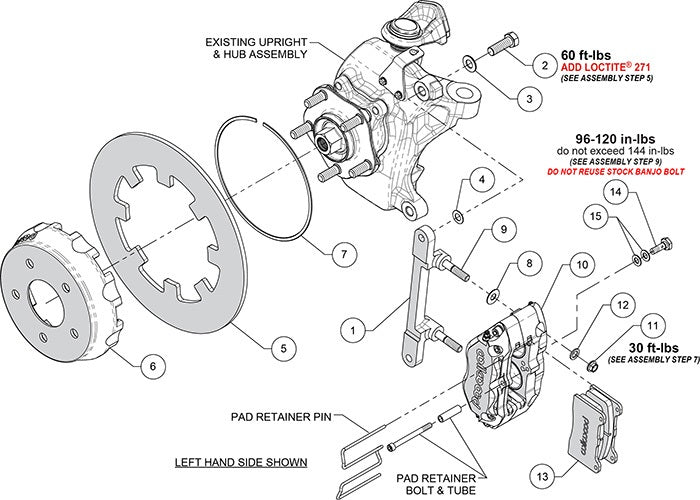

Only one side pictured. See the list and diagram for details of the parts included.

Compatible with:

• Polaris:
  • 2022-2023 RZR Turbo

Wilwood’s matched NDPR front and rear UTV brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs.

Forged aluminum four piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.

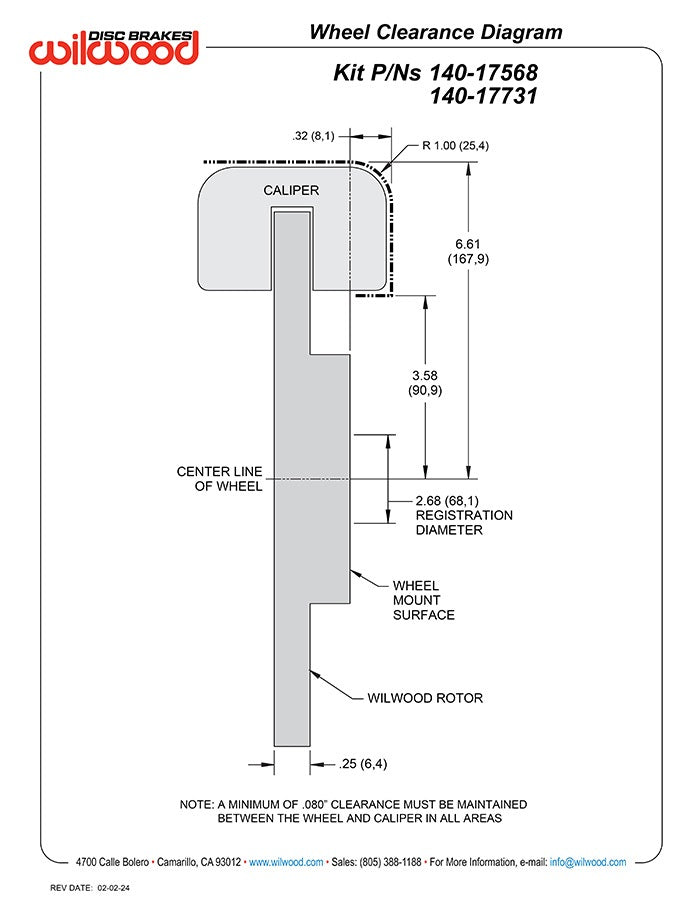

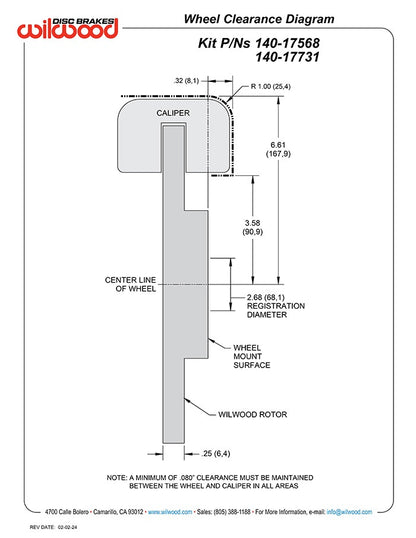

This brake kit require at least 14" diameter wheels.

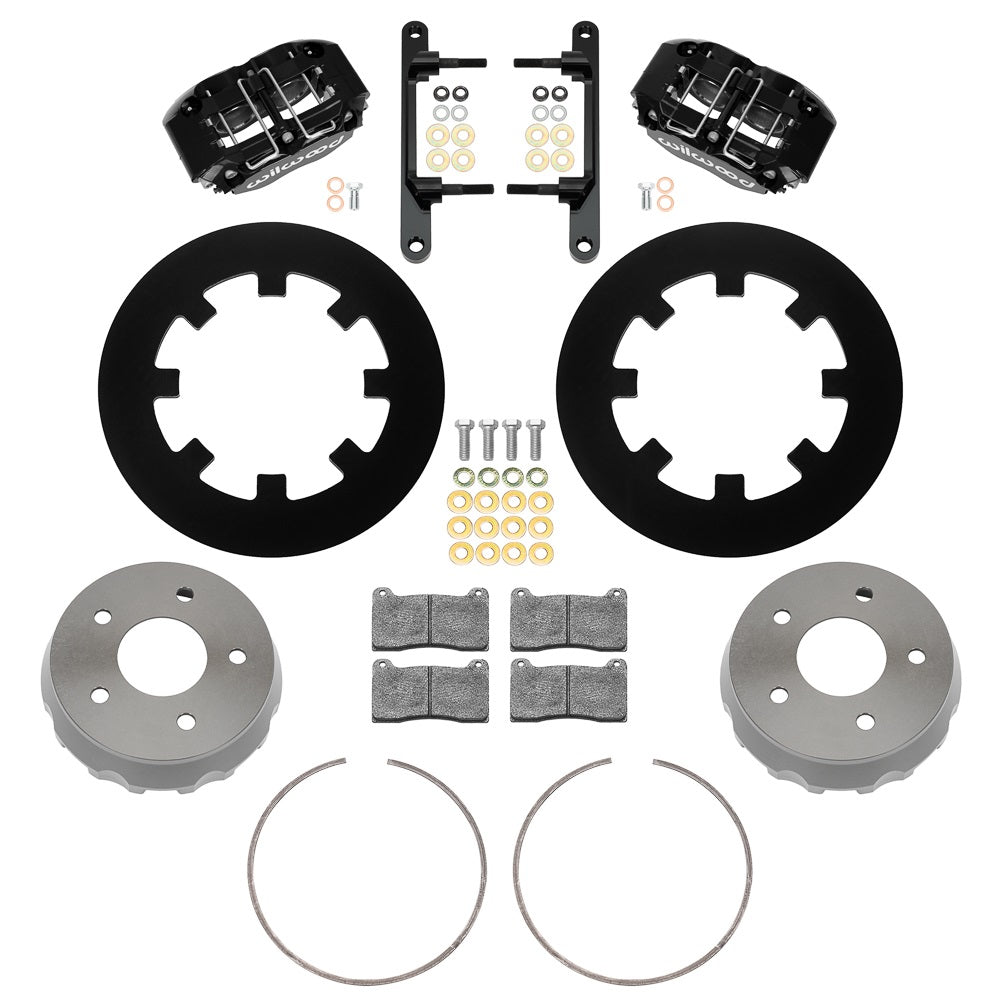

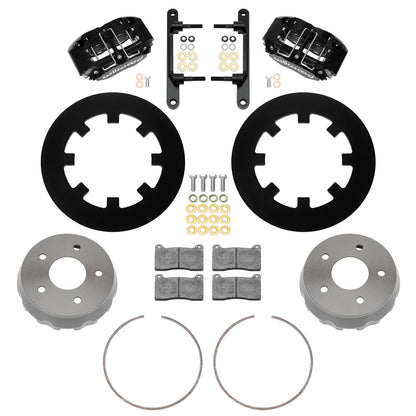

Kit includes parts for both front wheels:

• .25" Thick x 11.25" O.D. Rotors
• NDPR 4 Piston Calipers
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• All hardware necessary to install the complete braking system


Complete kit weighs approximately 25 lbs.

You can view and download the assembly or instruction booklet here.
