88-98 CHEVY C1500 REAR DISC BRAKE KIT WITH CABLES,13" ROTORS,RED CALIPERS

Brand New Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kit Featuring 12.88" Slotted Rotors with Red Calipers For Both Rear Wheels (Part #140-17542-R).

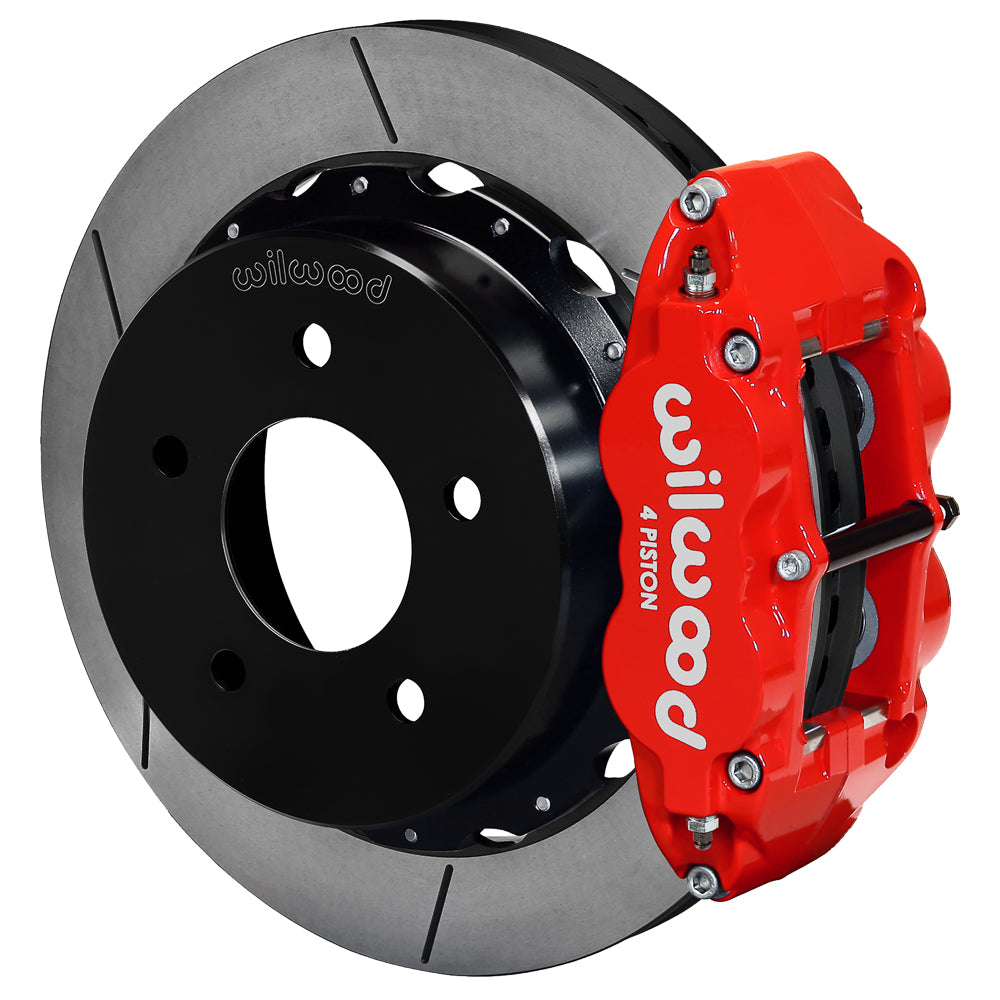

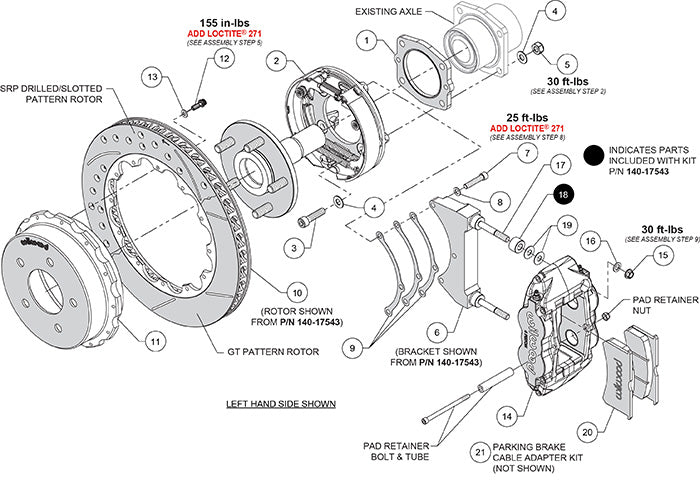

Only one side pictured. See the list and diagram for details of the parts included.

Compatible with:

• Chevrolet:
  • 1988-1991 C1500 Pickup with 4 x 2 w/ 1.00" Wide Front Rotor

  • 1992-1998 C1500 Pickup with 5 Lug - 4 x 2
  • 1988-1991 C1500 Pickup with 5 Lug - 4 x 2, w/ 1.25" wide rotor, HD Chassis (F44)

  • 1988-1998 C1500 Pickup with Wilwood Iron ProSpindles
• GMC:
  • 1988-1991 C1500 Pickup with 4 x 2 w/ 1.00" Wide Front Rotor
  • 1992-1998 C1500 Pickup with 5 Lug - 4 x 2

  • 1988-1991 C1500 Pickup with 5 Lug - 4 x 2, w/ 1.25" wide rotor, HD Chassis (F44)

  • 1988-1998 C1500 Pickup with Wilwood Iron ProSpindles

Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.

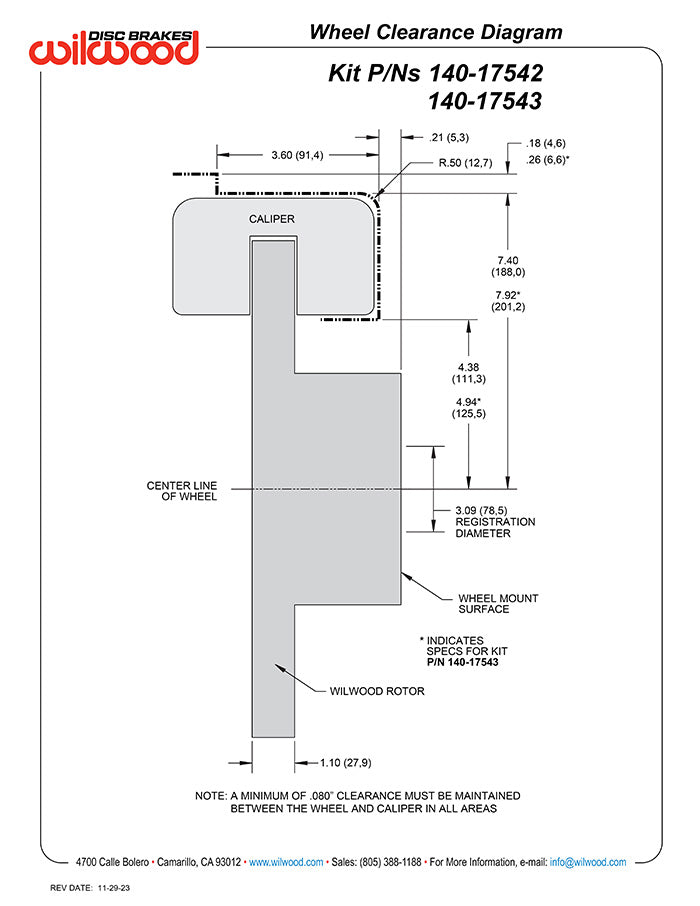

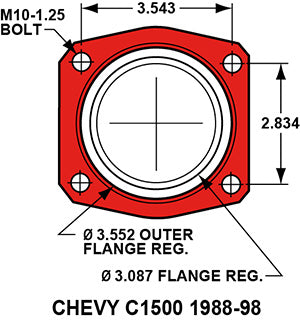

This kit require at least 17" diameter wheels. Kit uses the OEM parking brake cable with modification. Use included Cable End kit 330-17540. Axle offset is 3.25.

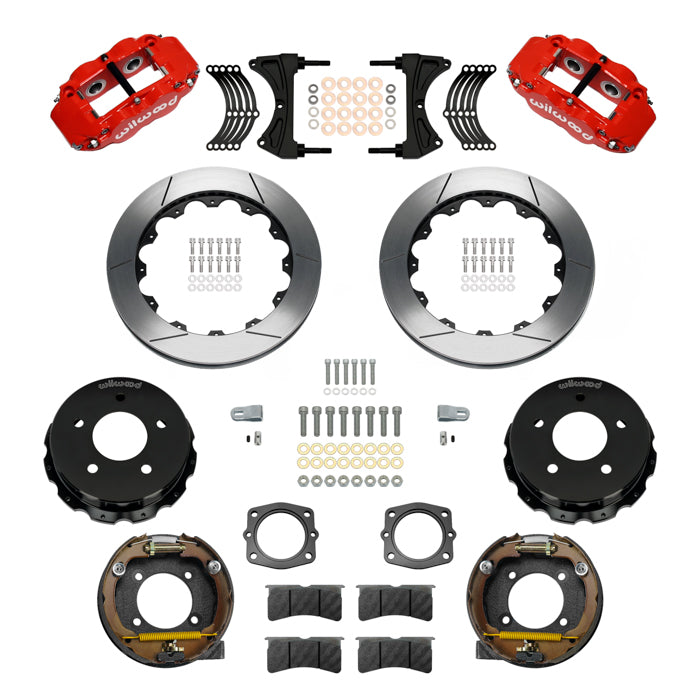

Kit includes:

• 4 Piston Forged Narrow Superlite 4R Calipers

• BP-10 Compound Brake Pads

• 1.10" Thick x 12.88" O.D. Rotors

• Rotor Hat
• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 65 lbs.

You can view and download the assembly or instruction booklet here.
