88-98 CHEVY C1500 REAR DISC BRAKE KIT WITH CABLES,12" DRILLED ROTORS,BLACK

Brand New Wilwood Forged Dynalite 12.19" Rear Brake Kit with Parking Brake Featuring Drilled Rotors & Black Calipers for Both Rear Wheels (Part #140-17541-D).

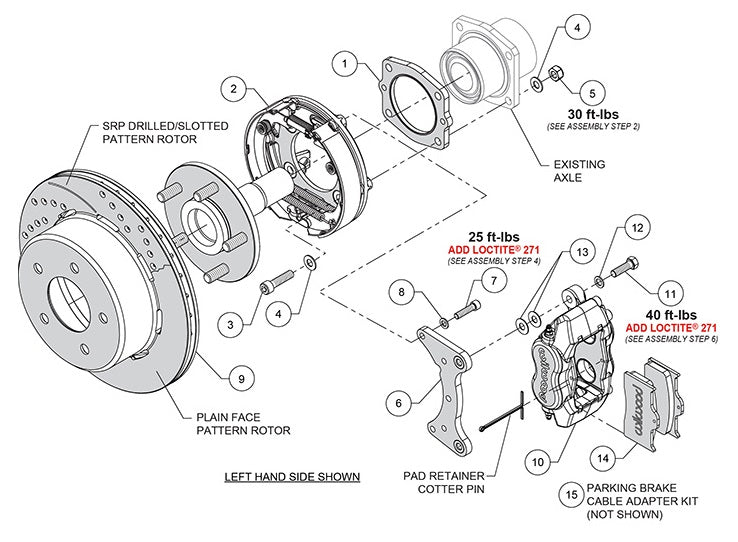

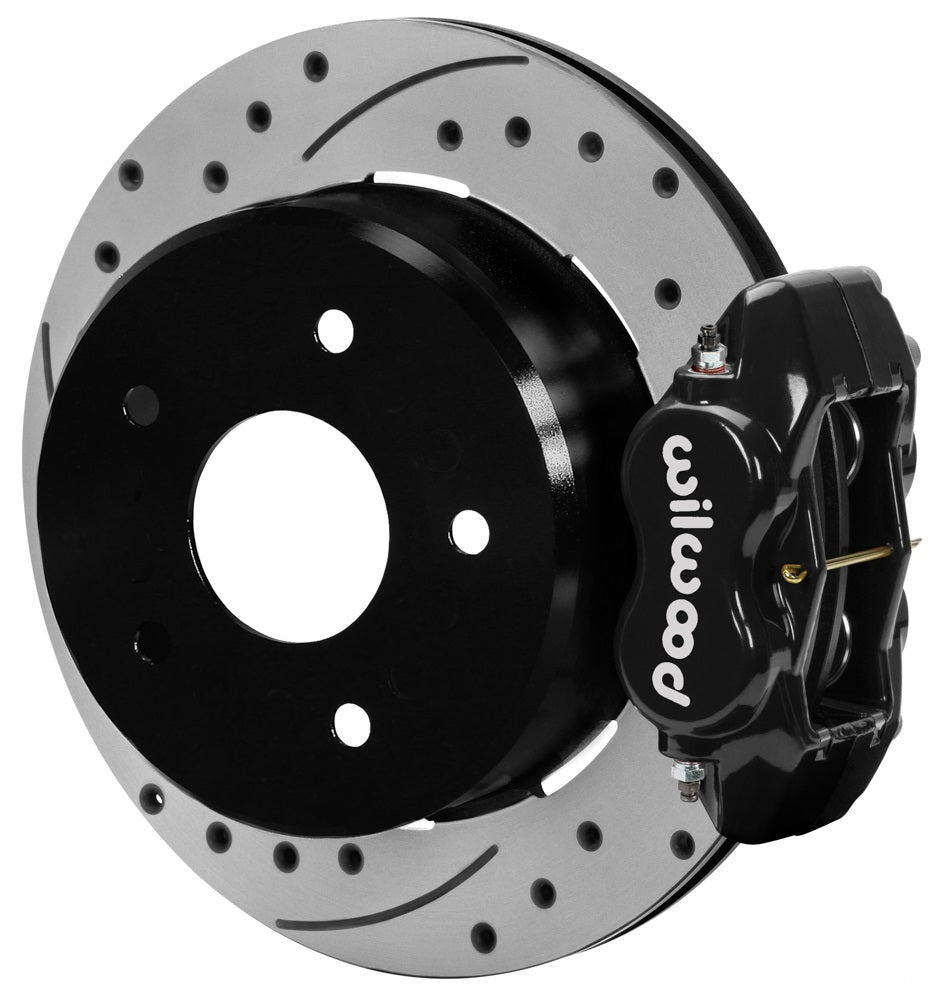

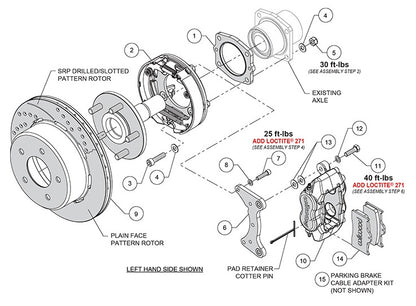

Only one side pictured. See the list and diagram for details of the parts included.

Fits:

• Chevrolet:
  • 1988-1991 C1500 Pickup with 4 x 2 w/ 1.00" Wide Front Rotor

  • 1992-1998 C1500 Pickup with 5 Lug - 4 x 2
  • 1988-1991 C1500 Pickup with 5 Lug - 4 x 2, w/ 1.25" wide rotor, HD Chassis (F44)

  • 1988-1998 C1500 Pickup with Wilwood Iron ProSpindles
• GMC:
  • 1988-1991 C1500 Pickup with 4 x 2 w/ 1.00" Wide Front Rotor
  • 1992-1998 C1500 Pickup with 5 Lug - 4 x 2

  • 1988-1991 C1500 Pickup with 5 Lug - 4 x 2, w/ 1.25" wide rotor, HD Chassis (F44)

  • 1988-1998 C1500 Pickup with Wilwood Iron ProSpindles

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

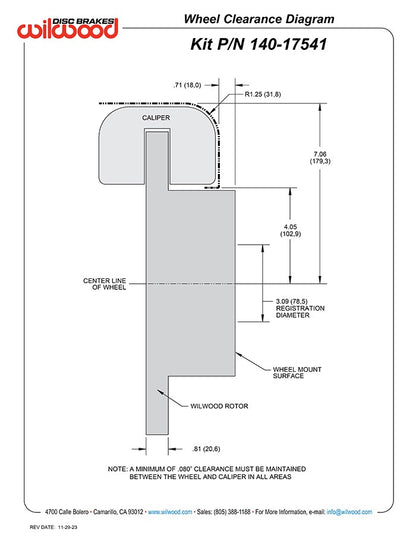

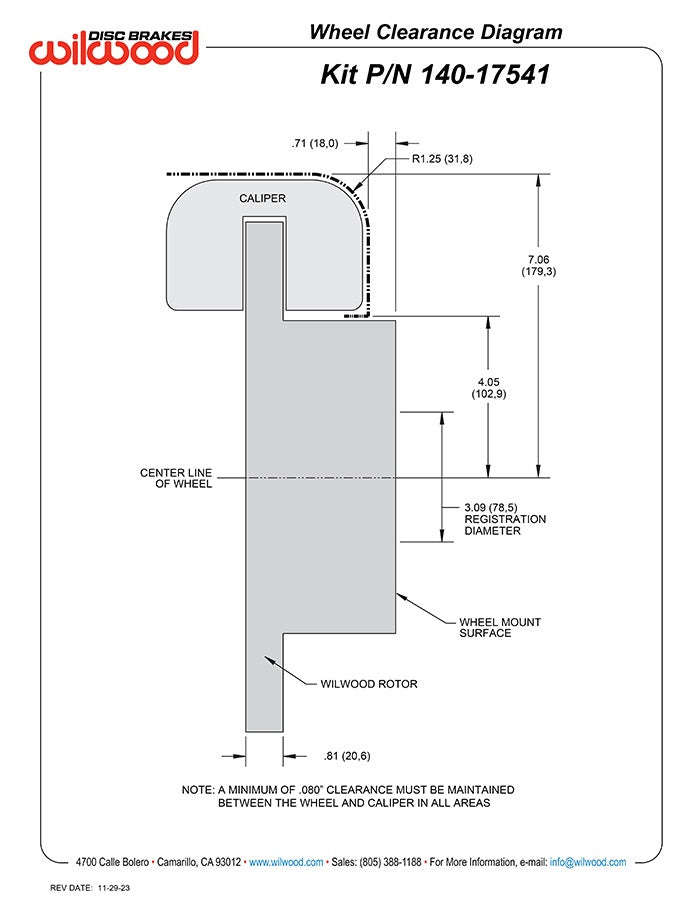

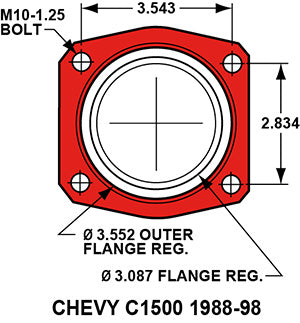

This kit require at least 15" diameter wheels. Kit uses the OEM parking brake cable with modification. Use included Cable End kit 330-17540. Axle offset is 3.25.

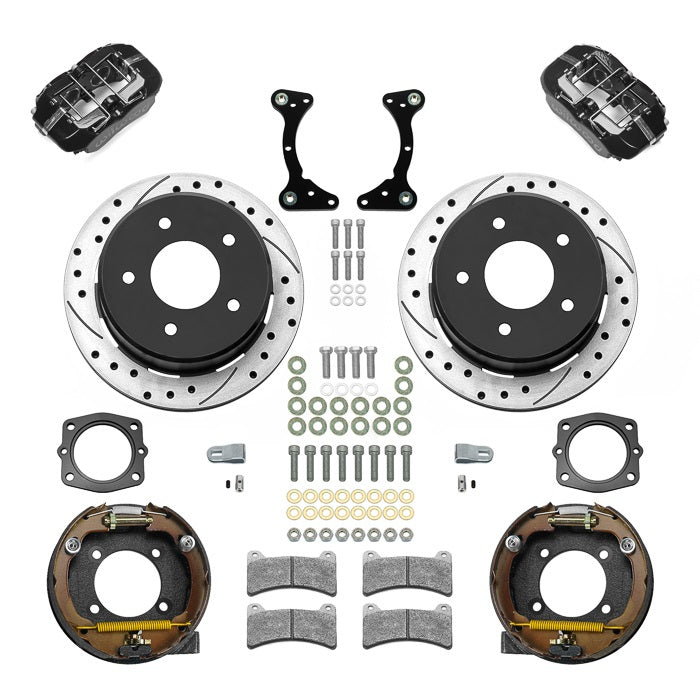

Kit includes parts for both rear wheels:

• .810" Thick x 12.19" O.D. Rotors
• Forged Dynalite 4 Piston Calipers
• Caliper Mounting Brackets
• Drum Parking Brake Assemblies

• BP-10 Smart Compound Brake Pads
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 54 lbs.

You can view and download the complete assembly instruction booklet for this kit here.
