22-24 TOYOTA TUNDRA,FRONT,AERO6-DM,13.56" DRILLED ROTORS,RED CALIPERS

Brand New Wilwood AERO6-DM Brake Kit Featuring 13.56" Drilled Rotors & Red Calipers for Both Front Wheels (Part #140-17528-DR).

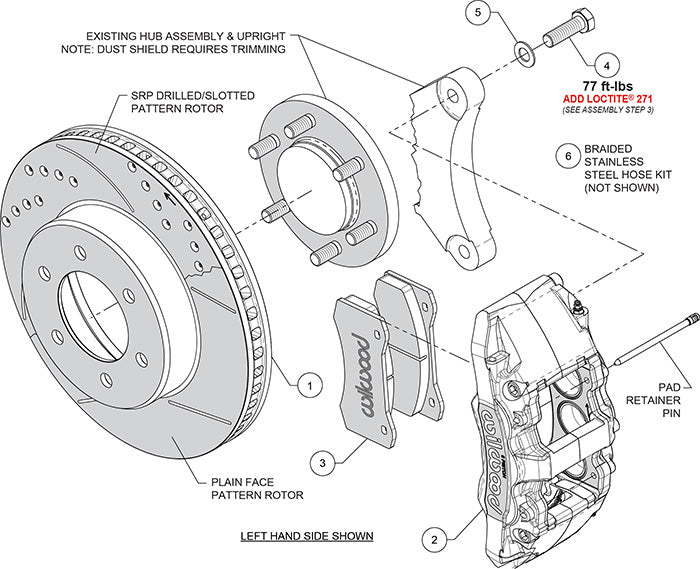

Only one side pictured. See the list and diagram for details of the parts included.

Compatible with:

• Toyota:
  • 2023-2024 Sequoia Capstone

  • 2023-2024 Sequoia Limited

  • 2023-2024 Sequoia Platinum

  • 2023-2024 Sequoia SR5

  • 2023-2024 Sequoia TRD Pro

  • 2022-2024 Tundra 1794 Edition

  • 2024 Tundra Capstone

  • 2022-2024 Tundra Limited

  • 2022-2024 Tundra Platinum

  • 2022-2024 Tundra SR

  • 2022-2024 Tundra SR5

  • 2022-2024 Tundra TRD Pro

AERODM Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.56" diameter rotors provide maximum cooling for sustained high heat durability.

This kit require at least 17" diameter wheels.

Kit includes:

• 1.30" Thick x 13.56" O.D. Rotors
• 6 Piston AERO6-DM Calipers
• BP-Q Compound Brake Pads

• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 91 lbs.

You can view and download the assembly or instruction booklet here.
