21-24 FORD BRONCO,FRONT,AERO6-DM,13.38" ROTORS,RED CALIPERS

Brand New Wilwood AERO6-DM Brake Kit Featuring 13.38" Slotted Rotors & Red Calipers for Both Front Wheels (Part #140-17512-R).

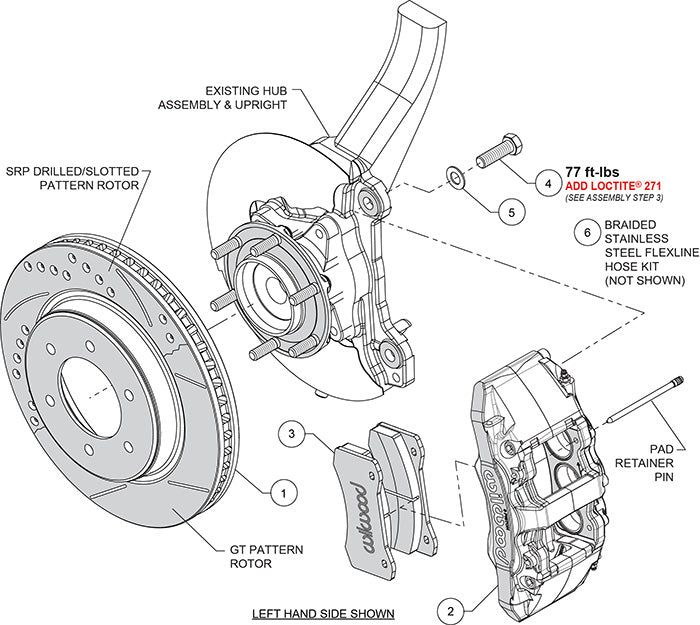

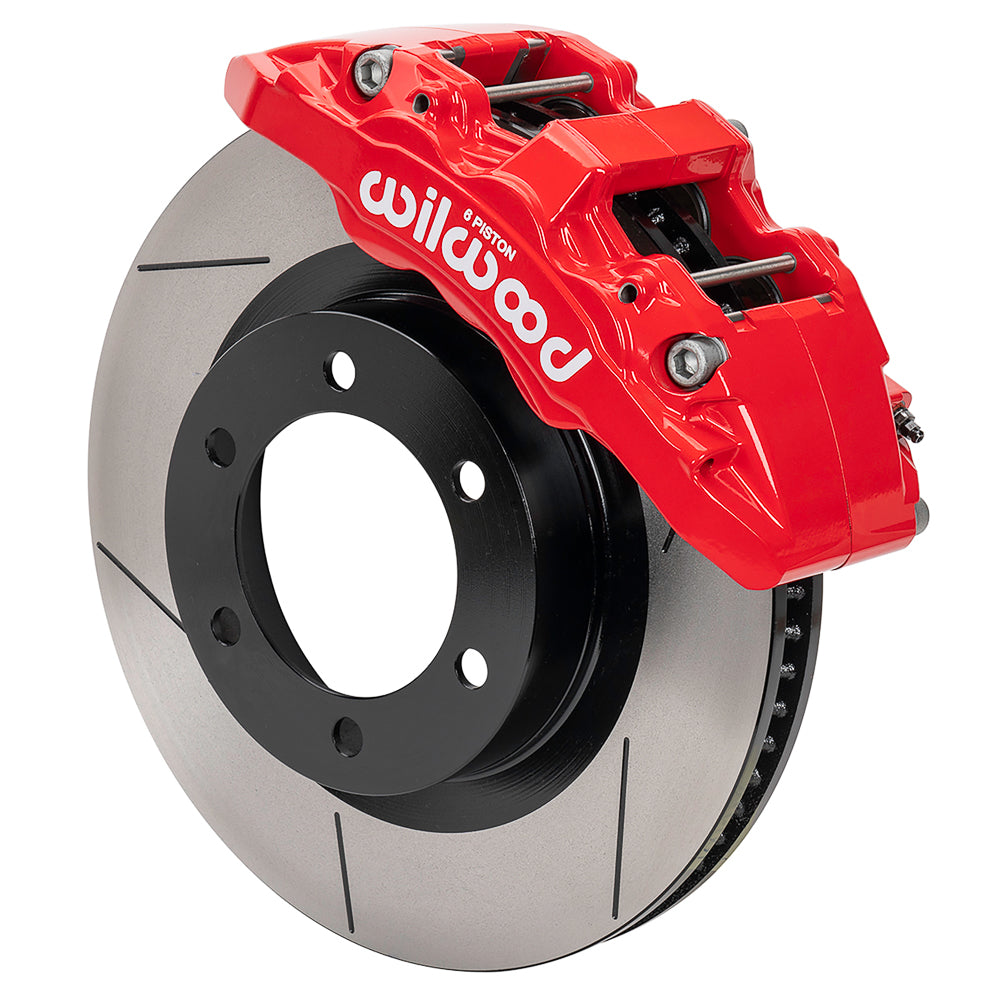

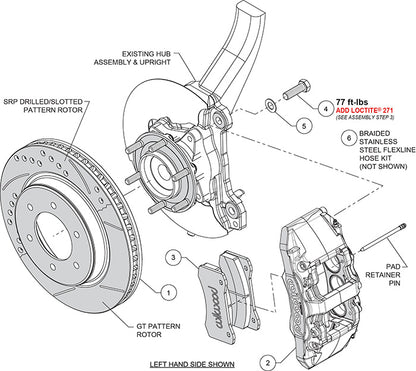

Only one side pictured. See the list and diagram for details of the parts included.

Compatible with:

• Ford:
  • 2021-2024 Bronco Badlands

  • 2021-2024 Bronco Base

  • 2021-2024 Bronco Big Bend

  • 2021-2024 Bronco Black Diamond

  • 2021 Bronco First Edition

  • 2024 Bronco Heritage Edition

  • 2024 Bronco Heritage Limited Edition

  • 2021-2024 Bronco Outer Banks

  • 2021-2024 Bronco Wildtrak

AERODM Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.38" diameter rotors provide maximum cooling for sustained high heat durability.

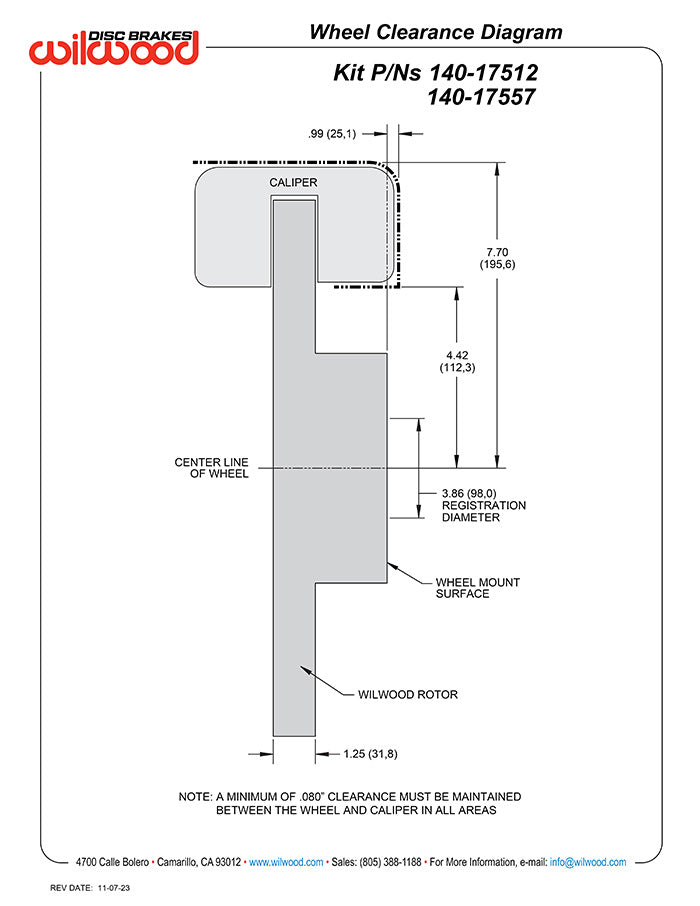

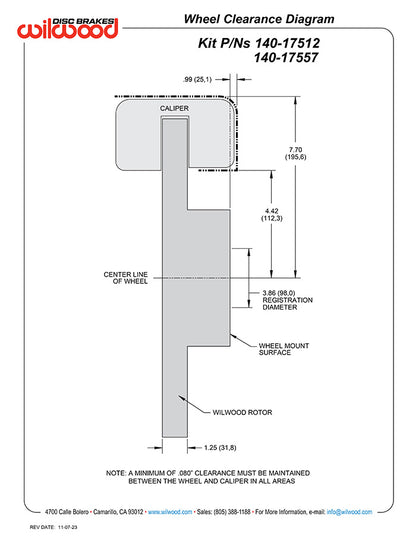

This kit require at least 17" diameter wheels.

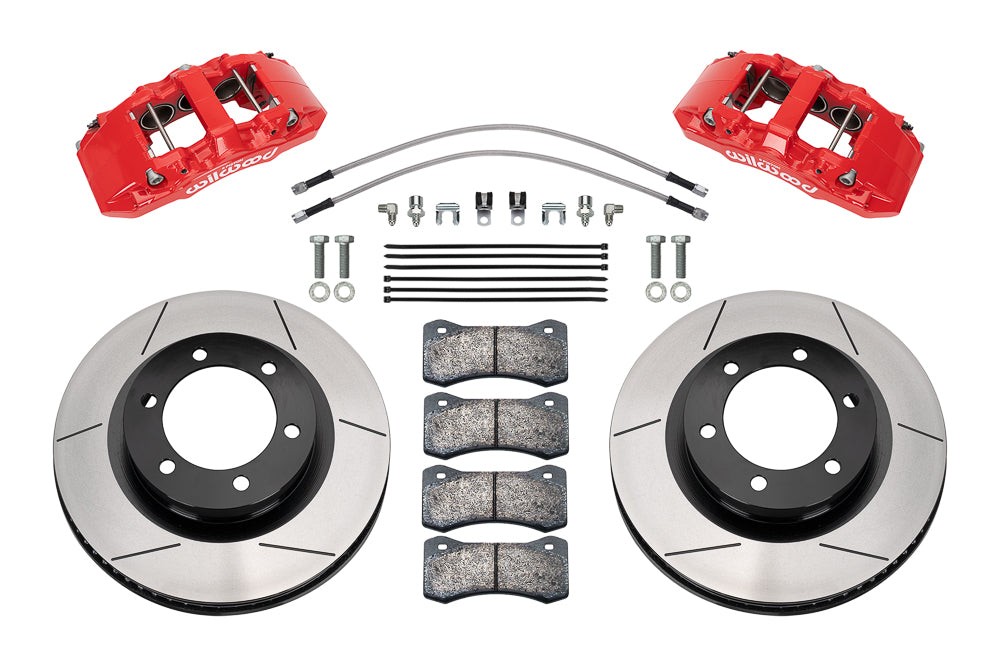

Kit includes:

• 1.25" Thick x 13.38" O.D. Rotors
• 6 Piston AERO6-DM Calipers
• BP-Q Compound Brake Pads

• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 82 lbs.

You can view and download the assembly or instruction booklet here.
