73-83 CDP A,B,E,F,J-BODY,W/DISC SPINDLES,DP6,12" DRILLED,RED

Brand New Wilwood Forged Dynapro 6 Bolt-On Front Hub & 12.19" Disc Brake Kit (Part #140-17321-DR) for Both Front Wheels.

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.

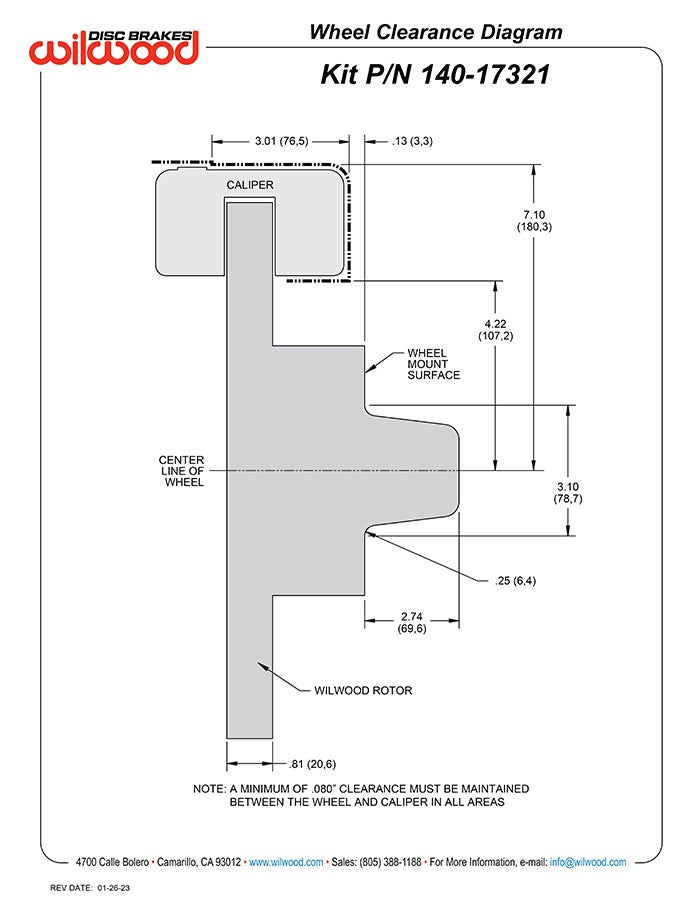

NOTE: These kits require at least 16" diameter wheels.

Fits:

• Dodge:
  • 1973-1976 A-Body with Disc Brake Spindles
  • 1976-1980 Aspen with Disc Brake Spindles
  • 1973-1979 B-Body with Disc Brake Spindles
  • 1973-1974 Challenger with Disc Brake Spindles
  • 1973-1978 Charger with Disc Brake Spindles
  • 1973-1976 Coronet with Disc Brake Spindles
  • 1973-1976 Dart with Disc Brake Spindles
  • 1973-1976 Demon with Disc Brake Spindles
  • 1977-1989 Diplomat with Disc Brake Spindles
  • 1973-1974 E-Body with Disc Brake Spindles
  • 1976-1980 F-Body with Disc Brake Spindles
  • 1980-1983 J-Body with Disc Brake Spindles
  • 1978-1979 Magnum with Disc Brake Spindles
  • 1980-1983 Mirada with Disc Brake Spindles
  • 1977-1978 Monaco with Disc Brake Spindles, except Royal
  • 1976-1978 R/T with Disc Brake Spindles
  • 1979-1981 St Regis with Disc Brake Spindles
• Chrysler:
  • 1975-1983 Cordoba with Disc Brake Spindles
  • 1983-1989 Fifth Avenue with Disc Brake Spindles
  • 1981-1983 Imperial with Disc Brake Spindles
  • 1977-1981 Lebaron with Disc Brake Spindles
  • 1979-1982 New Yorker with Disc Brake Spindles
  • 1979-1981 Newport with Disc Brake Spindles
• Plymouth:
  • 1973-1976 A-Body with Disc Brake Spindles
  • 1973-1979 B-Body with Disc Brake Spindles
  • 1973-1974 Barracuda with Disc Brake Spindles
  • 1982-1984 Caravelle with Disc Brake Spindles
  • 1985 Caravelle with Disc Brake Spindles, RWD only
  • 1973-1974 Cuda with Disc Brake Spindles
  • 1973-1976 Duster with Disc Brake Spindles
  • 1973-1974 E-Body with Disc Brake Spindles
  • 1976-1980 F-Body with Disc Brake Spindles
  • 1975-1978 Fury with Disc Brake Spindles, except Gran Fury
  • 1973-1975 GTX with Disc Brake Spindles
  • 1980-1983 J-Body with Disc Brake Spindles
  • 1973-1980 Road Runner with Disc Brake Spindles
  • 1973-1974 Satellite with Disc Brake Spindles
  • 1973-1976 Scamp with Disc Brake Spindles
  • 1973-1976 Valiant with Disc Brake Spindles
  • 1976-1980 Volare with Disc Brake Spindles

Kit includes parts for both front wheels:

• Drilled & Slotted, .810" Thick x 12.19" O.D. Rotors
• Dynapro 6 Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs, Bearings, Seals &
• All Hardware necessary to install the complete braking system on both front wheels

Complete kit weighs approximately 48 lbs.

You can view and download the complete assembly instruction booklet here.
