15-21 TOYOTA 4RUNNER,FRONT,AERO6-DM,13.31" DRILLED ROTORS,RED CALIPERS

Brand New Wilwood AERO6-DM Brake Kit Featuring 13.31" Drilled Rotors & Red Calipers For Both Front Wheels (Part #140-17284-DR).

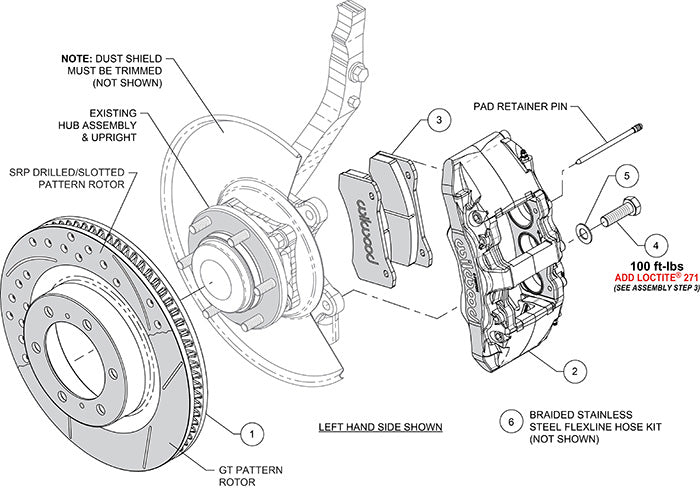

Only one side pictured. See the list and diagram for details of the parts included.

Compatible with:

• Lexus:
  • 2015-2021 GX460 Base

  • 2015-2021 GX460 Luxury

  • 2015-2021 GX460 Premium
• Toyota:
  • 2018-2021 4Runner Base

  • 2015-2021 4Runner Limited

  • 2021 4Runner Nightshade

  • 2015-2021 4Runner SR5

  • 2018-2021 4Runner SR5 Premium

  • 2015-2021 4Runner Trail

  • 2017-2021 4Runner TRD Off-Road

  • 2018-2021 4Runner TRD Off-Road Premium

  • 2015-2021 4Runner TRD Pro

  • 2021 4Runner Venture

AERODM Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades.

This kit require at least 17" diameter wheels.

Kit includes:

• 1.26" Thick x 13.31" O.D. Rotors
• 6 Piston AERO6-DM Calipers
• BP-Q Compound Brake Pads

• Brake Lines
• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 78 lbs.

You can view and download the assembly or instruction booklet here.
