07-18 JEEP JK WRANGLER,FRONT,AERO 6 PISTON,13.38" ROTORS,RED CALIPERS

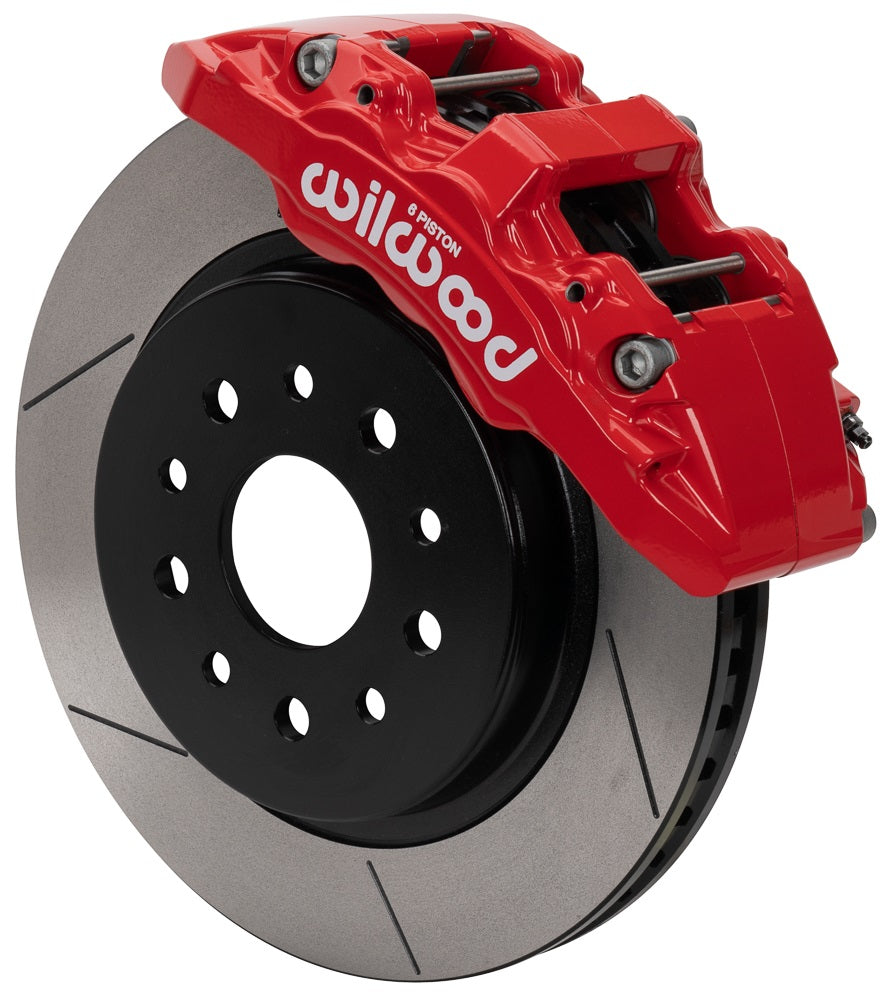

Brand New Wilwood AERO6-DM Brake Kit Featuring 13.38" Slotted Rotors & Red Calipers for Both Front Wheels (Part #140-17274-R).

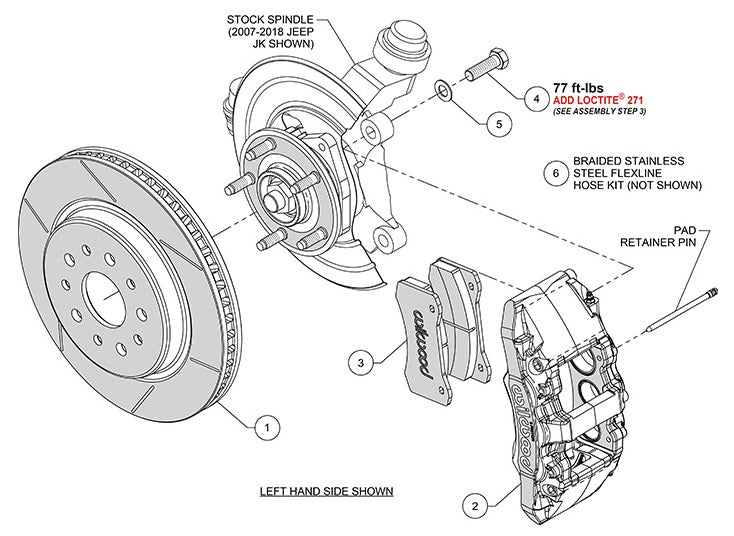

Only one side pictured. See the list and diagram for details of the parts included.

Fits:

• Jeep:
  • 2007-2013 Wrangler 4 x 2 & 4 x 4 Left Hand Drive
  • 2007-2013 Wrangler 4 x 4 Right Hand Drive
  • 2014 Wrangler Unlimited Willys Wheeler
  • 2014 Wrangler Willys Wheeler
  • 2014-2017 Wrangler Rubicon
  • 2014-2017 Wrangler Sahara
  • 2014-2017 Wrangler Sport
  • 2014-2017 Wrangler Unlimited Rubicon
  • 2014-2017 Wrangler Unlimited Sahara
  • 2014-2017 Wrangler Unlimited Sport
  • 2016 Wrangler 75th Anniversary
  • 2016 Wrangler Sport S
  • 2016 Wrangler Unlimited 75th Anniversary
  • 2016 Wrangler Unlimited Sport S
  • 2018 Wrangler JK Rubicon
  • 2018 Wrangler JK Sahara
  • 2018 Wrangler JK Sport
  • 2018 Wrangler JK Unlimited Rubicon
  • 2018 Wrangler JK Unlimited Sahara
  • 2018 Wrangler JK Unlimited Sport

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

AERODM Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.38" diameter rotors provide maximum cooling for sustained high heat durability.

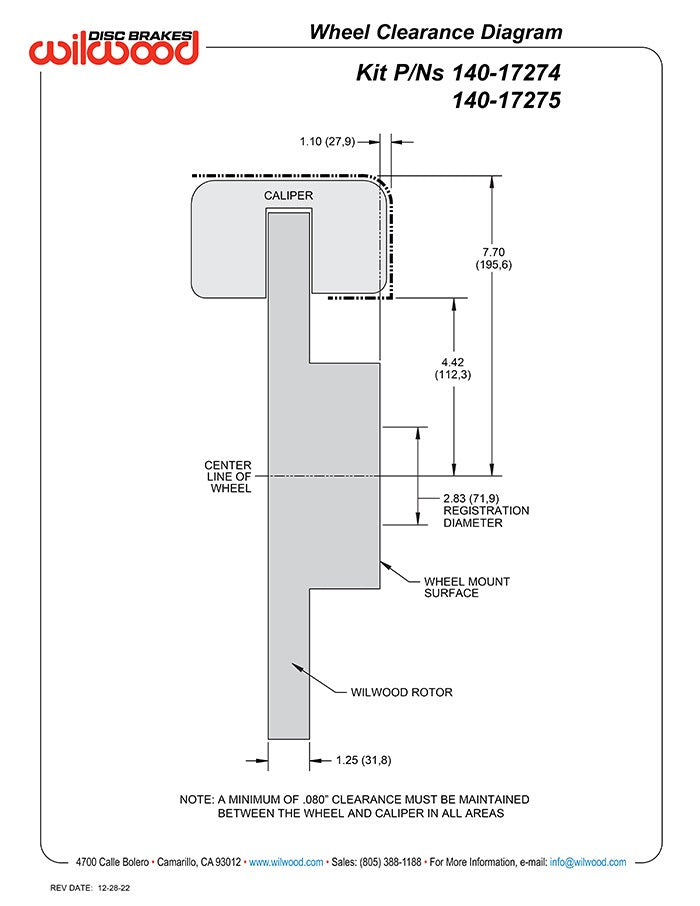

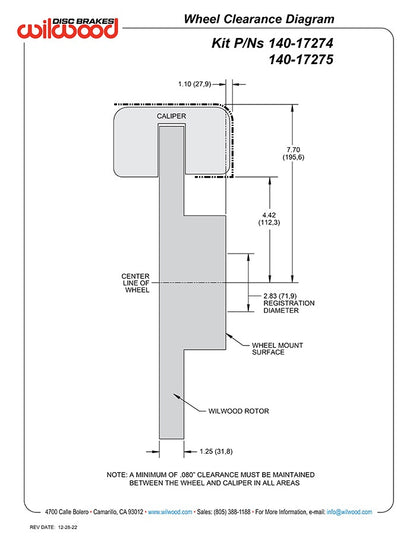

These Big Brake kits require at least 17" diameter wheels.

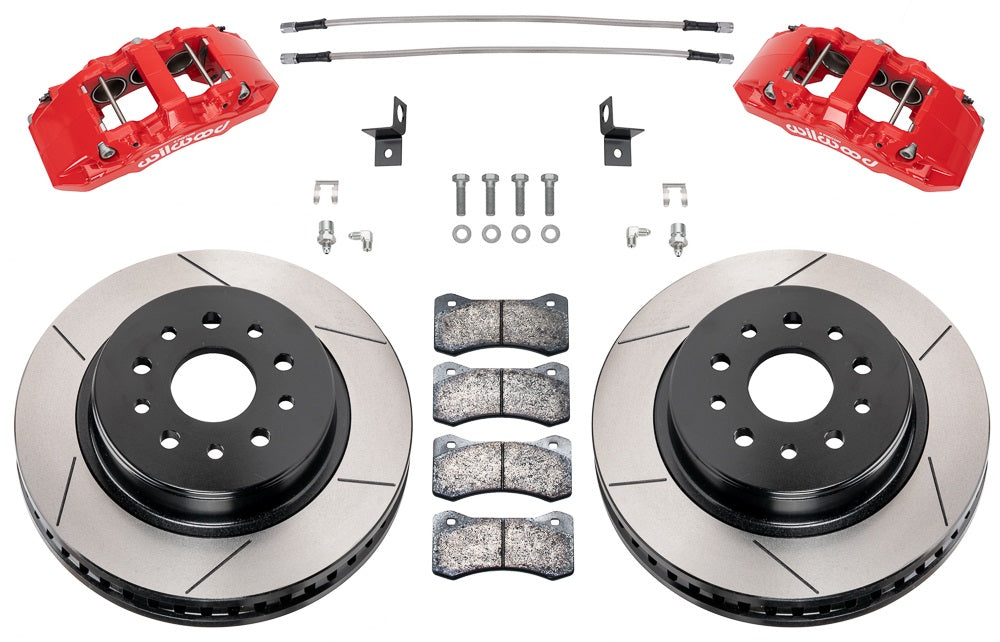

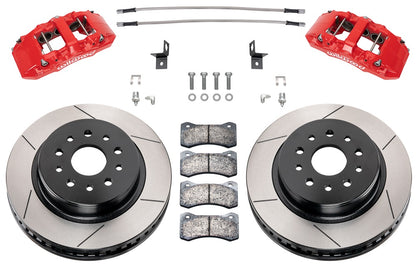

Kit includes parts for both front wheels:

• 1.25" Thick x 13.38" O.D. Rotors
• AERO6-DM 6 Piston Calipers
• Polymatrix Q Brake Pads
• Steel Braided Lines with Fittings
• All bolts, washers, and hardware necessary to install the complete kit

Complete kit weighs approximately 82 lbs.

You can download the complete assembly instruction booklet for this kit here.
