14-23 POLARIS RZR-XP1000,UTV,RACING FRONT BRAKE KIT,11.25" ROTORS

Brand New Wilwood UTV6 Brake Kit For Both Front Wheels Featuring 11.25" Dynamically-Mounted Rotors & Anodized Calipers (Part #140-17044).

Wilwood’s matched front and rear UTV Race brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, BP-28 (High Friction) brake pads and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs.

Forged aluminum differential-bore four and six piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.

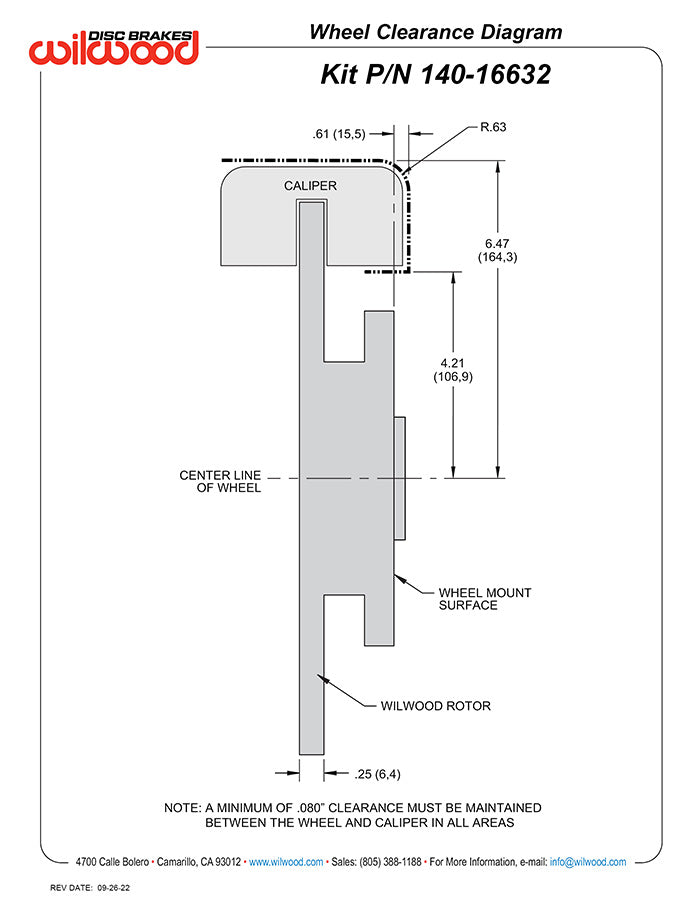

NOTE: This kit require at least 14" diameter wheels. Check wheel clearance diagram for proper fitment. Brake kits are designed for factory spindles.

Compatible with:

• Polaris:
  • 2020-2021 RZR RS1 Base

  • 2020-2021 RZR S 1000 EPS Base

  • 2019-2020 RZR S4 1000 EPS Base

  • 2020-2021 RZR XP 1000 Base

  • 2014-2019 RZR XP 1000 EPS Base

  • 2015 RZR XP 1000 EPS Desert Edition Base

  • 2019 RZR XP 1000 EPS DYNAMIX Edition Base

  • 2015 RZR XP 1000 EPS Fox Edition Base

  • 2017 RZR XP 1000 EPS Gold Matte Metallic LE Base

  • 2015-2019 RZR XP 1000 EPS High Lifter Edition Base

  • 2018-2019 RZR XP 1000 EPS Ride Command Edition Base

  • 2018-2019 RZR XP 1000 EPS Trails and Rock Edition Base

  • 2017 RZR XP 1000 EPS Velocity Blue LE Base

  • 2022 RZR XP 1000 High Lifter Base

  • 2020-2021 RZR XP 1000 High Lifter Edition Base

  • 2020 RZR XP 1000 Limited Edition Base

  • 2020-2023 Polaris RZR XP 1000 Premium Base

  • 2022-2023 RZR XP 1000 Sport Base

  • 2021-2022 RZR XP 1000 Trails & Rocks Base

  • 2020 RZR XP 1000 Trails and Rock Edition Base

  • 2023 RZR XP 1000 Ultimate Base

  • 2020-2021 RZR XP 4 1000 Base

  • 2014-2019 RZR XP 4 1000 EPS Base

  • 2019 RZR XP 4 1000 EPS DYNAMIX Edition Base

  • 2017-2019 RZR XP 4 1000 EPS High Lifter Edition Base

  • 2018-2019 RZR XP 4 1000 EPS Ride Command Edition Base

  • 2022 RZR XP 4 1000 High Lifter Base

  • 2020-2021 RZR XP 4 1000 High Lifter Edition Base

  • 2020 RZR XP 4 1000 Limited Edition Base

  • 2020-2023 RZR XP 4 1000 Premium Base

  • 2022-2023 RZR XP 4 1000 Sport Base

  • 2023 RZR XP 4 1000 Ultimate Base

Kit includes:

• .25" Thick x 11.25" O.D. Rotors
• 6 Piston UTV6 Calipers - Anodized
• BP-28 Compound Brake Pads

• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 24 lbs.

You can view and download the assembly/instruction booklet here.
