17-21 CAN-AM,X3RS,UTV,RACING FRONT BRAKE KIT,11.25" ROTORS,BLACK CALIPERS

Brand New Wilwood UTV6 Brake Kit For Both Front Wheels Featuring 11.25" Dynamically-Mounted Rotors & Anodized Calipers (Part #140-17040).

Wilwood’s matched front and rear UTV Race brake kits feature dynamically-mounted rotors and upgraded calipers for popular side-by-side machines. Kits combine fixed mount multi-piston calipers with greater clamping force, BP-28 (High Friction) brake pads and larger diameter floating rotors for more brake torque, improving braking on higher-powered UTVs.

Forged aluminum differential-bore four and six piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel. High-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion. Dynamically mounted rotors reduce thermal stress and prevent piston knockback from rough terrain.

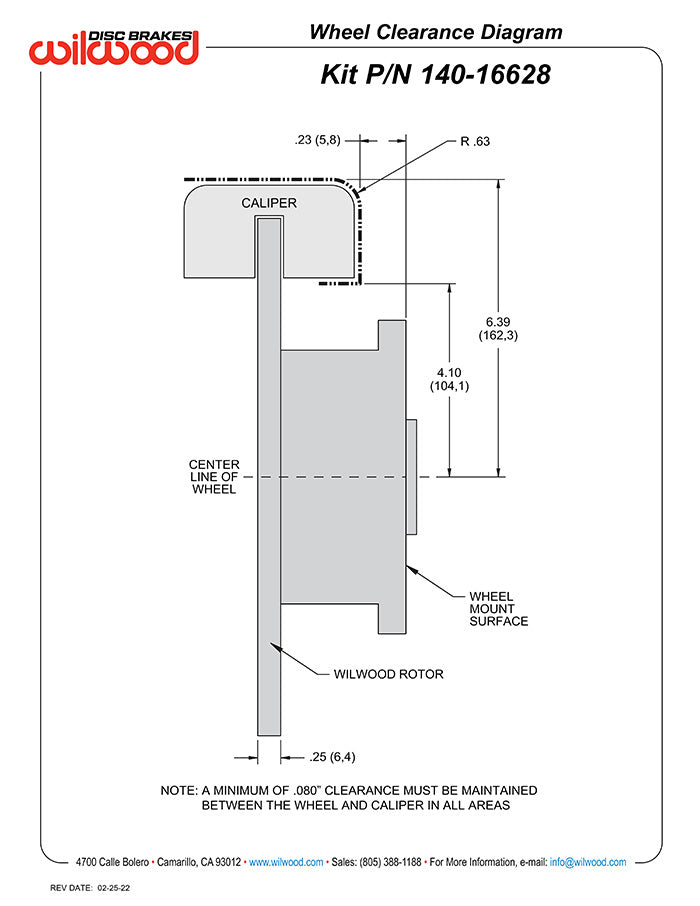

NOTE: This kit require at least 14" diameter wheels. Check wheel clearance diagram for proper fitment. Brake kits are designed for factory spindles.

Compatible with:

• Can-Am:
  • 2018 Maverick X3 900 HO Base

  • 2021-2023 Maverick X3 DS Turbo Base

  • 2020-2021 Maverick X3 DS Turbo R Base

  • 2022-2023 Maverick X3 DS Turbo RR Base

  • 2021-2023 Maverick X3 Max DS Turbo Base

  • 2020-2021 Maverick X3 Max DS Turbo R Base

  • 2022-2023 Maverick X3 Max DS Turbo RR Base

  • 2020-2021 Maverick X3 Max RS Turbo R Base

  • 2022-2023 Maverick X3 Max RS Turbo RR Base

  • 2018-2020 Maverick X3 Max Turbo Base

  • 2017-2019 Maverick X3 Max Turbo R Base

  • 2017-2019 Maverick X3 Max X ds Turbo R Base

  • 2020-2023 Maverick X3 Max X ds Turbo RR Base

  • 2020-2023 Maverick X3 Max X mr Turbo RR Base

  • 2017-2019 Can-Am Maverick X3 Max X rs Turbo R Base

  • 2020-2023 Maverick X3 Max X rs Turbo RR Base

  • 2021-2023 Maverick X3 Max X rs Turbo RR Smart-Sho Base

  • 2020-2021 Maverick X3 RS Turbo R Base

  • 2022-2023 Maverick X3 RS Turbo RR Base

  • 2018-2020 Maverick X3 Turbo Base

  • 2017-2019 Maverick X3 Turbo R Base

  • 2017-2019 Maverick X3 X ds Turbo R Base

  • 2020-2023 Maverick X3 X ds Turbo RR Base

  • 2018-2021 Maverick X3 X mr Turbo Base

  • 2018-2019 Maverick X3 X mr Turbo R Base

  • 2020-2021 Maverick X3 X mr Turbo RR Base

  • 2022-2023 Maverick X3 X mr Turbo RR 64 Base

  • 2022-2023 Maverick X3 X mr Turbo RR 72 Base

  • 2018-2021 Maverick X3 X rc Turbo Base

  • 2018-2019 Maverick X3 X rc Turbo R Base

  • 2020-2021 Maverick X3 X rc Turbo RR Base

  • 2022-2023 Maverick X3 X rc Turbo RR 64 Base

  • 2022-2023 Maverick X3 X rc Turbo RR 72 Base

  • 2017-2019 Maverick X3 X rs Turbo R Base

  • 2020-2023 Maverick X3 X rs Turbo RR Base

  • 2021-2023 Maverick X3 X rs Turbo RR Smart-Shox Base

Kit includes:

• .25" Thick x 11.25" O.D. Rotors
• 6 Piston UTV6 Calipers - Anodized
• BP-28 Compound Brake Pads

• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 24 lbs.

You can view and download the assembly/instruction booklet here.
