20-23 CORVETTE C8,REAR,AERO4,15" DRILLED ROTORS,BLACK CALIPERS

Brand New Wilwood AERO4 Big Brake Kit Featuring 15" Drilled & Slotted Rotors with Black Calipers & Electronic Parking Brake For Both Rear Wheels (Part #140-17009-D).

AERO4 Big Brake Dynamic Rear Electronic Parking Brake Kits provide the ultimate Big Brake solution for Super Car rear axles an integrated electronic parking brake. Aero4 four piston calipers, 15” Dynamic Lug Mount rotors, and high performance BP compound pads, provide optimized and balanced braking to compliment front big brake upgrades. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

NOTE: This kit require at least 19" diameter wheels. Check wheel clearance diagram for proper fitment. Brake kits are designed for factory spindles.

Compatible with:

• Chevrolet:
  • 2020-2023 Corvette Stingray

  • 2023 Corvette Z06

Kit includes:

• 1.25" Thick x 15.00" O.D. Rotors
• 4 Piston AERO4 Calipers
• Electronic Parking Brake Kit with Control Unit & Harness
• BP-10 Compound Brake Pads

• Brake Lines
• All brackets, bolts, washers, and nuts necessary to install the kit.


Complete kit weighs approximately 91 lbs.

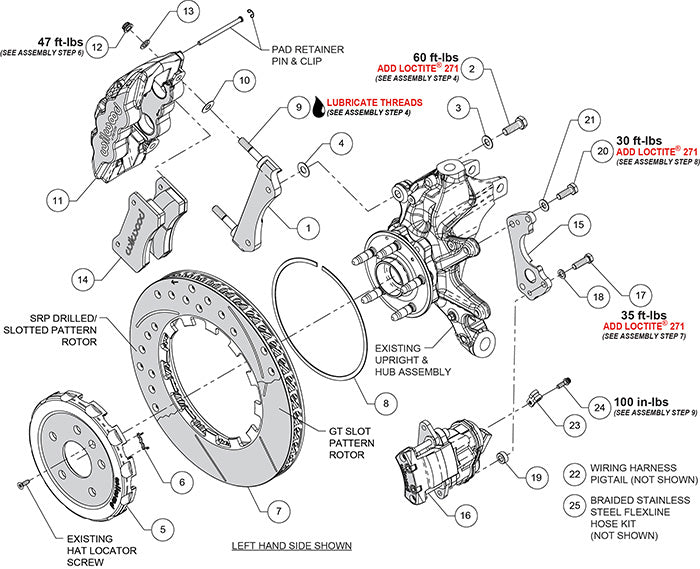

You can view and download the assembly/instruction booklet here.
