20-23 CORVETTE FULL DISC BRAKE KIT,15" ROTORS,BLACK CALIPERS

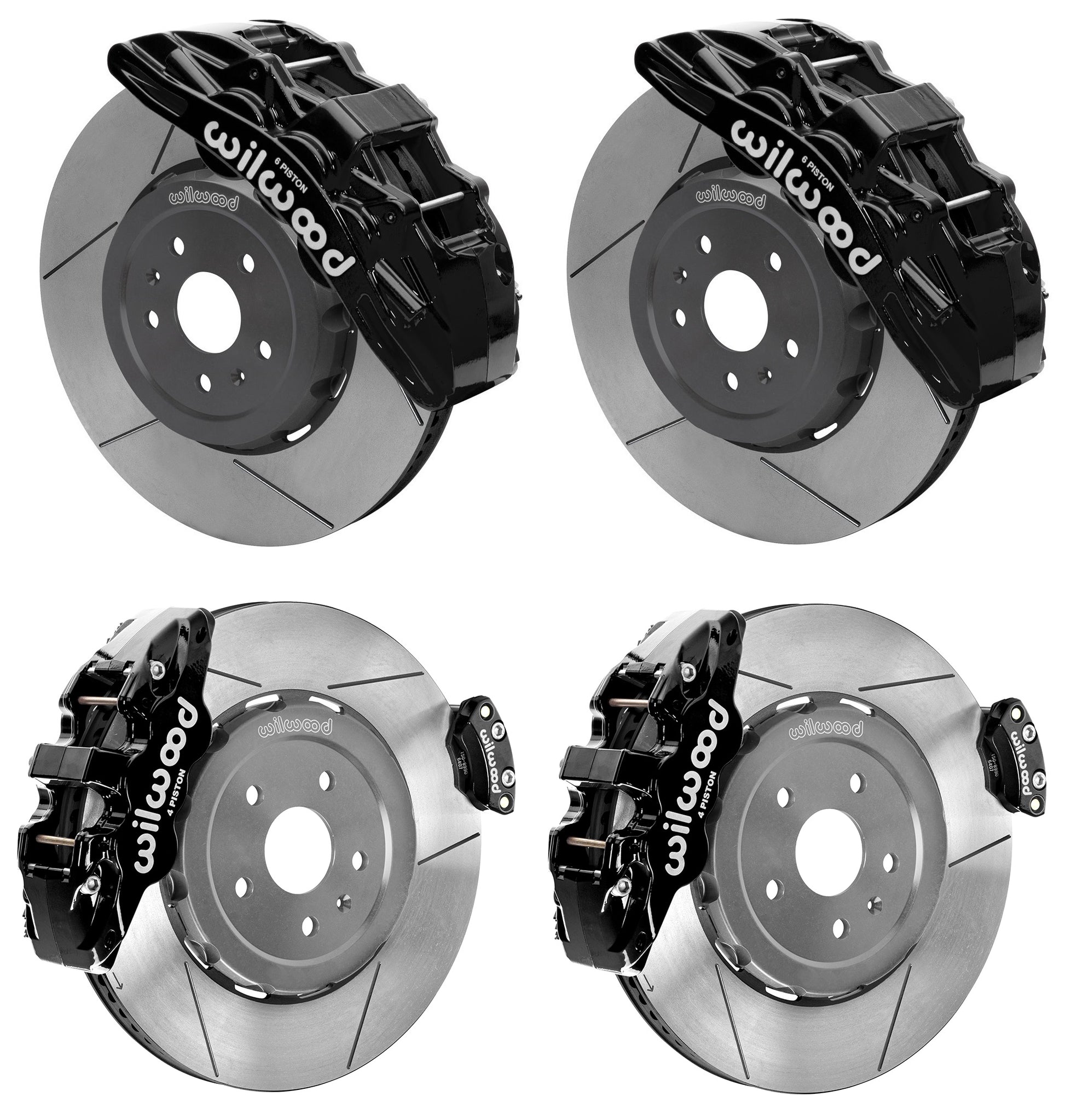

Brand New Wilwood Big Brake Kit Featuring 15" Rotors & Electronic Parking Brake. Kit For Both Front & Rear Wheels.

Complete Kit Includes:

• SX6R 6 Piston Bolt-On Front 15" Disc Brake Kit (Part #140-17004) for Both Front Wheels
• AERO 4 Piston Bolt-On Rear 15" Disc Brake Kit (Part #140-17009) for Both Rear Wheels

Compatible with:

• Chevrolet:
  • 2020-2023 Corvette Stingray

  • 2023 Corvette Z06

SX6R calipers were designed for the specific purpose of providing high capacity braking with large diameter rotors for extreme duty and race vehicles. It is the largest dual purpose caliper Wilwood has produced, providing big brake performance for show and dual purpose street and track vehicles. Offering additional enhanced braking with wheel and tire upgrades. Kits are fully compatible with OE master cylinder output and ABS function. Directional 72 staggered vane 15.00" rotors provide maximum cooling for sustained high heat durability.

AERO4 Big Brake Dynamic Rear Electronic Parking Brake Kits provide the ultimate Big Brake solution for Super Car rear axles an integrated electronic parking brake. Aero4 four piston calipers, 15” Dynamic Lug Mount rotors, and high performance BP compound pads, provide optimized and balanced braking to compliment front big brake upgrades. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

NOTE: This kit require at least 19" diameter wheels. Check wheel clearance diagram for proper fitment. Brake kits are designed for factory spindles.

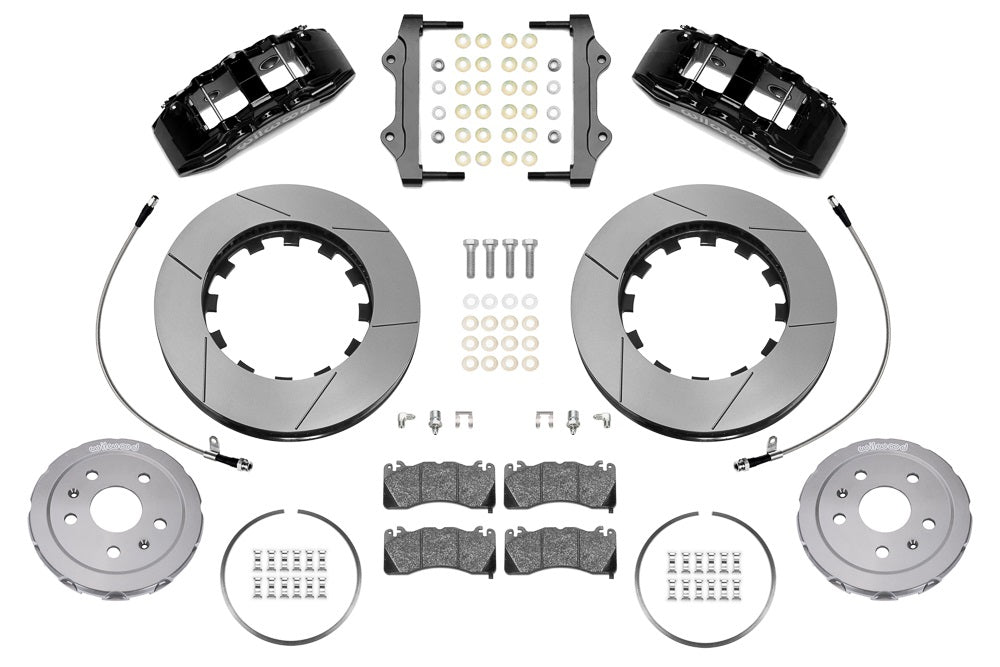

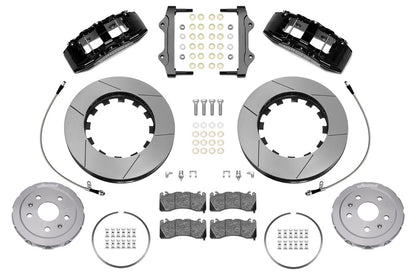

Front Kit includes:

• 1.25" Thick x 15.00" O.D. Rotor
• SX6R 6 Piston Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Steel Braided Lines with Fittings
• All bolts, washers, and nuts necessary to install the front kit.

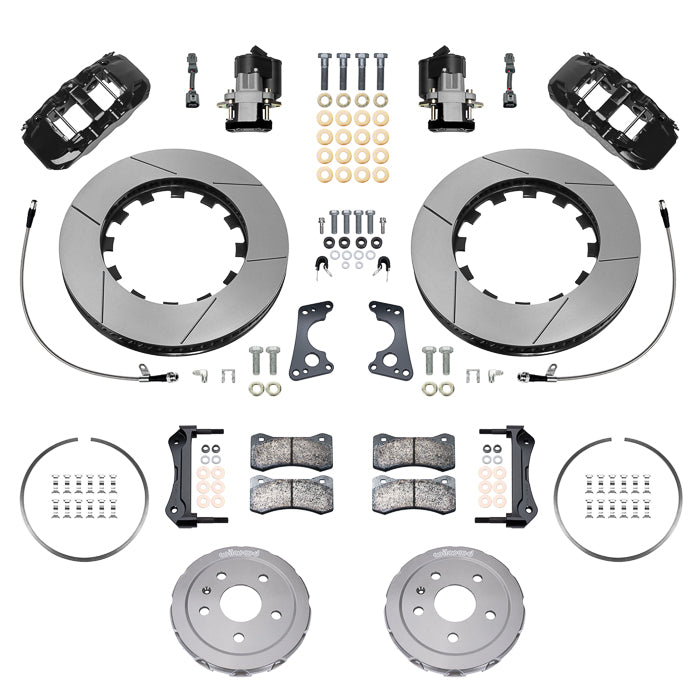

Rear Kit includes:

• 1.25" Thick x 15.00" O.D. Rotors
• 4 Piston AERO4 Calipers - Black
• Electronic Parking Brake Kit with Control Unit & Harness
• BP-10 Compound Brake Pads

• Steel Braided Brake Lines & Fittings
• All brackets, bolts, washers, shims, and nuts necessary to install the rear kit.


Complete kit weighs approximately 187 lbs.

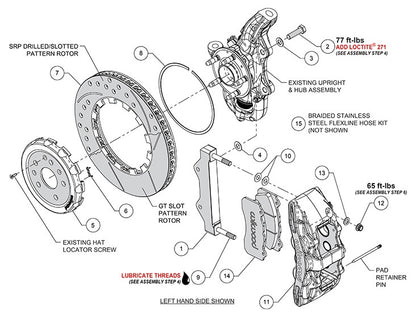

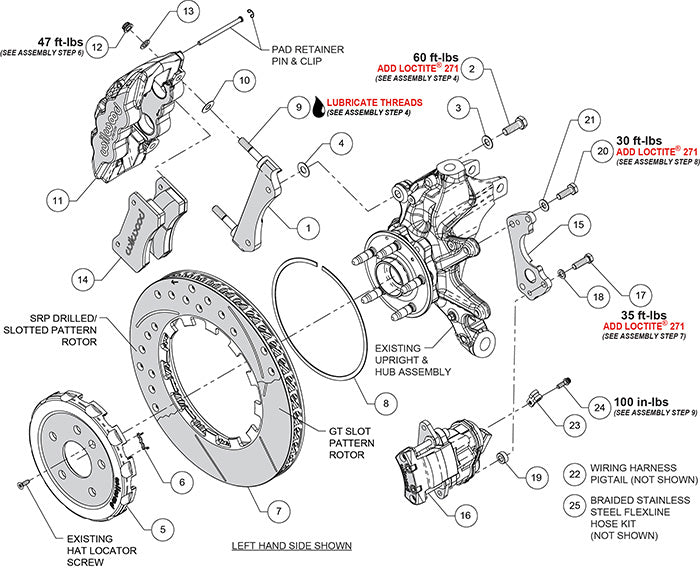

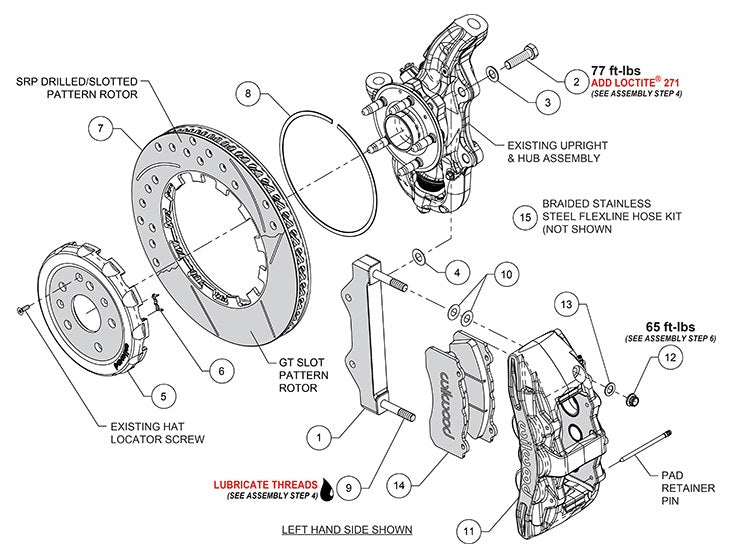

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
