55-57 CHEVY FRONT DISC BRAKE KIT & 2" DROP SPINDLES,12.19",RED

Brand New Wilwood Dynapro Radial Big Brake Kit with WWE 2" Drop ProSpindles (Part #140-16907-R & 831-16660) for Both Front Wheels.

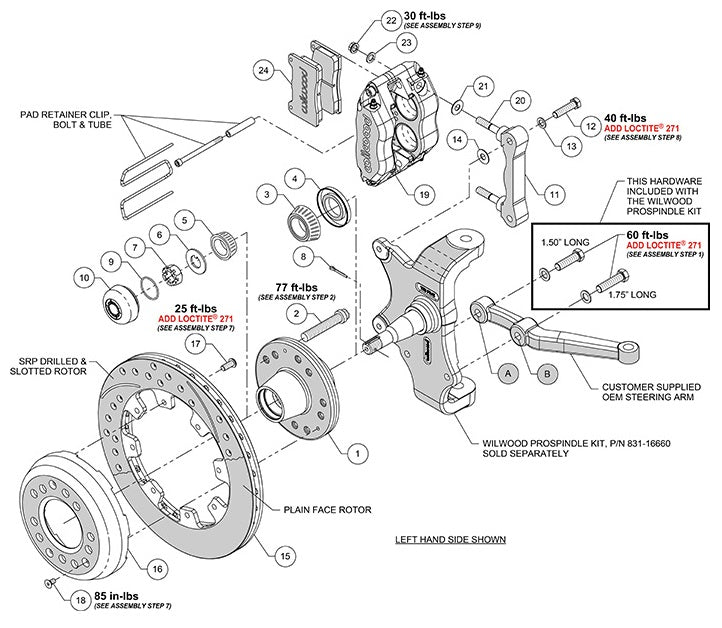

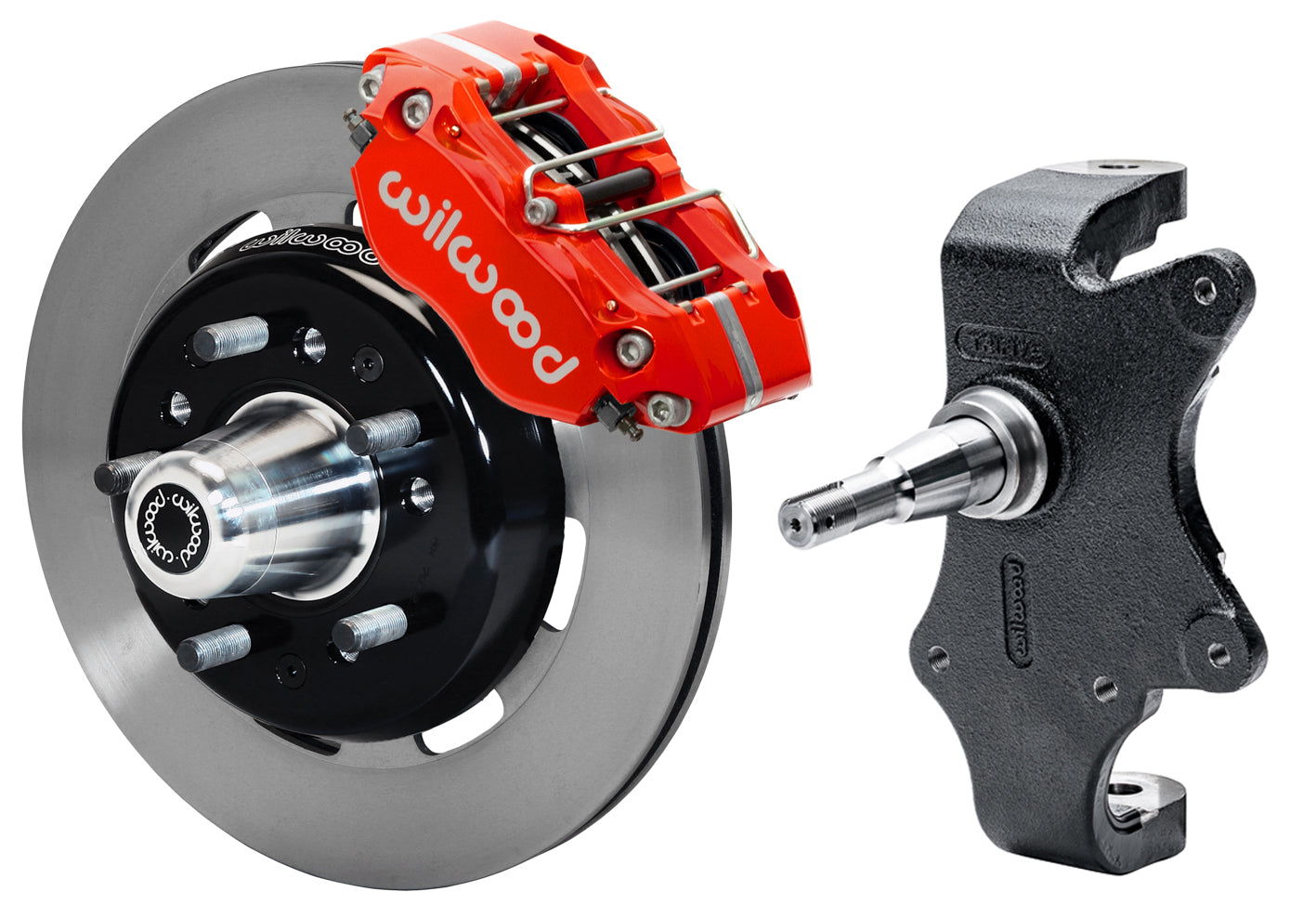

Only one side pictured.  See the list, the diagram, & the assembly booklet below for a detail of the parts included.

Fitment:

• Chevrolet:
• 1955-1957 Bel Air
• 1955-1957 Nomad
• 1955-1957 One-Fifty Series
• 1955-1957 Two-Ten Series
• 1955-1957 Sedan Delivery
• 1957 Del Ray

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

This NDPR Big Brake Kit is designed for the Wilwood's Tri-Five Pro spindles. Tri-Five Pro Spindles fit 55-57 full size Chevrolet vehicles. NDPR Brake Kits feature Aluminum Hub assemblies, Forged Narrow Dynapro 4-piston radial mount calipers and two piece 12.19" SRP drilled or HD plain face rotors with aluminum rotor adapters to deliver the ultimate combination for braking power. Built exclusively for most 16" and larger wheels, NDPR kits enhance tire and suspension upgrades on street and track machines. Verify fitment on the Wilwood website.

Precision engineered 2" drop ProSpindle for 1955-1957 Chevy Bell Air, Nomad 210 and other full size models make installing Wilwood brakes easy. The Steel ProSpindle is lighter and stronger then the factory cast iron, while lowering the car for a better look and improved handling. Designed with reinforced attachment for a variety of Wilwood disc brake kits. The Pro Spindles use OE ball joints and steering arms, lowering the car with no changes to the suspension or steering geometry.

These kits require at least 16" diameter wheels.

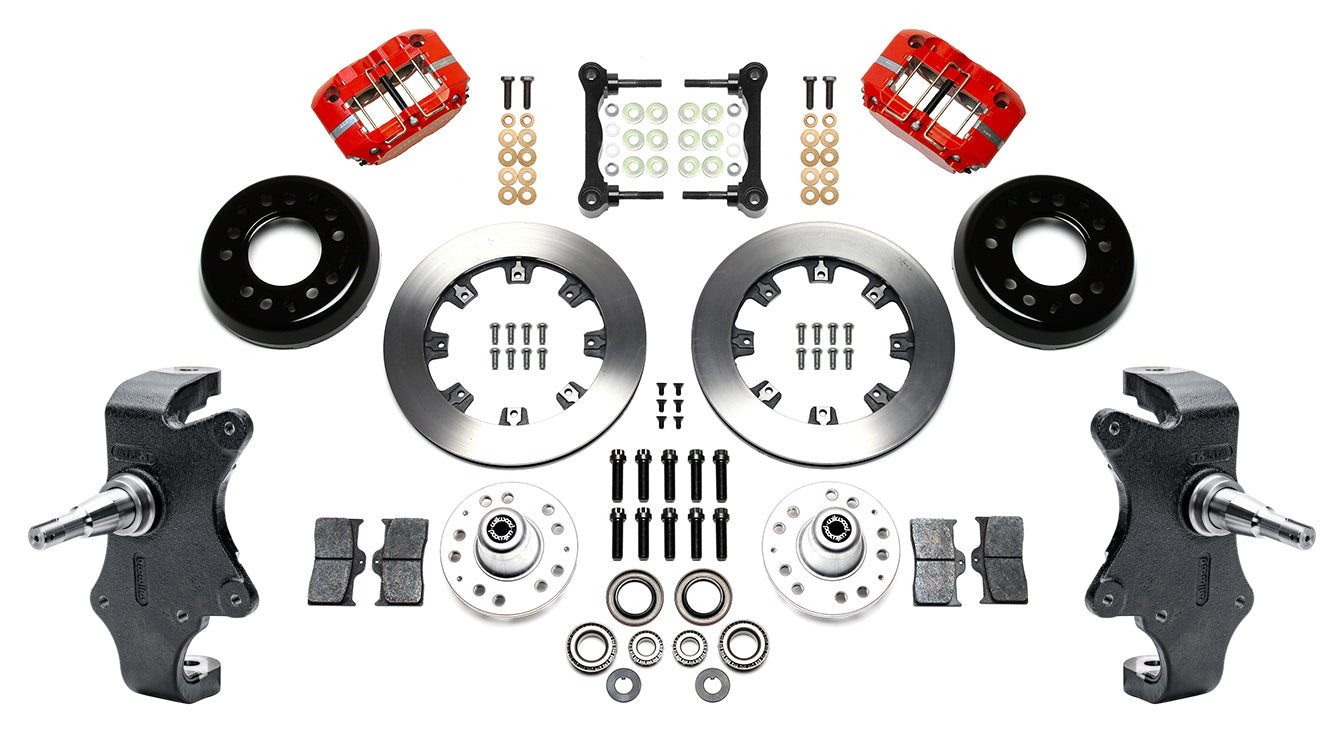

Kit includes parts for both front wheels:

• WWE 2" Drop ProSpindles
• .810" Thick x 12.19" O.D. Rotors
• Dynapro Radial 4-Piston Calipers - Red
• BP-10 Smart Compound Brake Pads
• Bearings
• Seals
• All Hardware necessary to install the complete braking system on both front wheels

Complete kit weighs approximately 46 lbs.

You can view and download the complete assembly instruction booklet for this kit here.
