99-18 GM 1500 TRUCK/SUV,REAR,TX4R 4 PISTON RED CALIPERS,16" DRILLED ROTORS

Brand New Wilwood TX4R Big Brake Truck Kit Featuring 16" Drilled Rotors with Red Calipers For Both Rear Wheels (Part #140-16861-DR).

Wilwood’s Tactical Extreme TX4R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX4R radial mount six-piston calipers and massive 16.00”, 1 piece, GTB alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation.

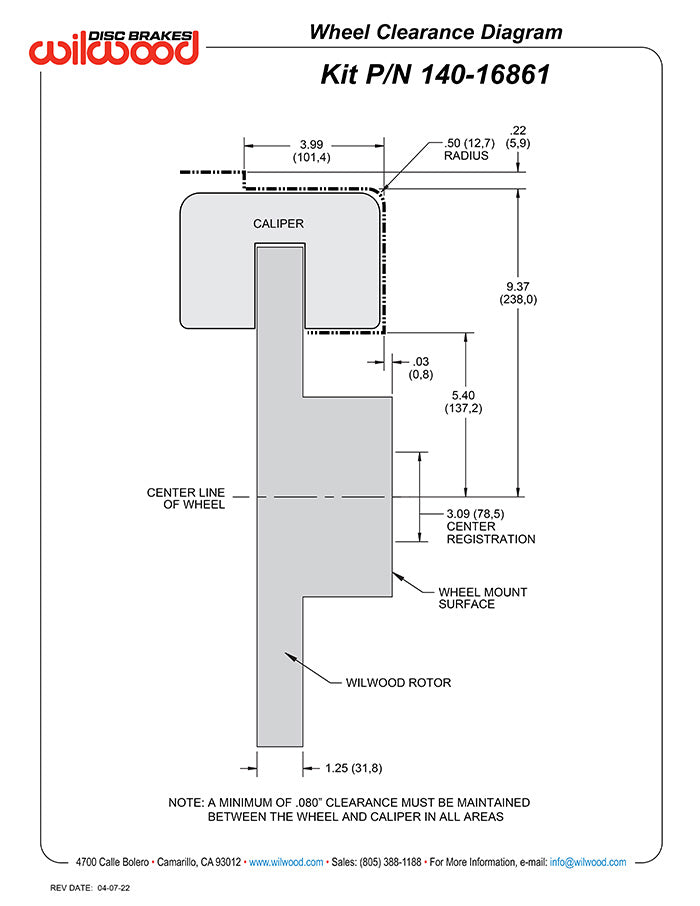

NOTE: This kit require at least 20" diameter wheels. Check wheel clearance diagram for proper fitment. Brake kits are designed for factory spindles. For OE rears with single piston calipers.

Compatible with:

• Cadillac
  • 2006-2012 Escalade 6 Lug - 4 x 2

  • 2002-2005 Escalade 6 Lug - 4 x 2 w/ out 4 Wheel Steering

  • 2006-2013 Escalade 6 Lug - 4 x 4

  • 2002-2005 Escalade 6 Lug - 4 x 4 w/ out 4 Wheel Steering

  • 2007 Escalade 6 Lug - All

  • 2008 Escalade 6 Lug - All (w/ finger clip front pad)

  • 2008 Escalade 6 Lug - All (w/o finger clip front pad)

  • 2009 Escalade 6 Lug -All

  • 2014-2020 Escalade Base

  • 2014-2020 Escalade Luxury

  • 2014-2020 Escalade Platinum

  • 2014-2017 Escalade Premium

  • 2018-2020 Escalade Premium Luxury

  • 2010-2012 Escalade ESV 6 Lug - 4 x 2

  • 2010-2013 Escalade ESV 6 Lug - 4 x 4

  • 2007 Escalade ESV 6 Lug - All

  • 2008 Escalade ESV 6 Lug - All (w/ finger clip front pad)

  • 2009 Cadillac Escalade ESV 6 Lug -All

  • 2008 Escalade ESV 6 Lug -All (w/o finger clip front pad)

  • 2014-2020 Escalade ESV Base

  • 2014-2020 Escalade ESV Luxury

  • 2014-2020 Escalade ESV Platinum

  • 2014-2017 Escalade ESV Premium

  • 2018-2020 Escalade ESV Premium Luxury

  • 2010-2012 Escalade EXT 6 Lug - 4 x 2

  • 2002-2004 Cadillac Escalade EXT 6 Lug - 4 x 2 w/ out 4 Wheel Steering

  • 2010-2013 Escalade EXT 6 Lug - 4 x 4

  • 2002-2004 Escalade EXT 6 Lug - 4 x 4 w/ out 4 Wheel Steering

  • 2007 Escalade EXT 6 Lug - All

  • 2008 Escalade EXT 6 Lug - All (w/ finger clip front pad)

  • 2008 Escalade EXT 6 Lug - All (w/o finger clip front pad)

  • 2009 Escalade EXT 6 Lug -All
• Chevrolet

  • 2010-2013 Avalanche 6 Lug - 4 x 2

  • 2008 Avalanche 6 Lug - 4 x 2 (w/ finger clip front pad)

  • 2008 Avalanche 6 Lug - 4 x 2 (w/o finger clip front pad)

  • 2010-2013 Avalanche 6 Lug - 4 x 4

  • 2008 Avalanche 6 Lug - 4 x 4 (w/ finger clip front pad)

  • 2008 Avalanche 6 Lug - 4 x 4 (w/o finger clip front pad)

  • 2007 Avalanche 6 Lug - All

  • 2009 Avalanche 6 Lug -All

  • 2017-2018 Silverado 1500 Custom

  • 2015-2018 Silverado 1500 High Country

  • 2016-2018 Silverado 1500 LS

  • 2015-2018 Silverado 1500 LT

  • 2015-2018 Silverado 1500 LTZ

  • 2016-2018 Silverado 1500 SSV

  • 2015-2018 Silverado 1500 WT

  • 2019 Silverado 1500 LD LT

  • 2019 Silverado 1500 LD WT

  • 2002-2006 Silverado 1500 Pickup 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake

  • 2002-2006 Silverado 1500 Pickup 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake

  • 2014 Silverado 1500 Pickup 6 Lug - All

  • 2008-2010 Silverado 1500 Pickup 6 Lug - All w/ Disc Rear, except Police Package

  • 1999-2001 Silverado 1500 Pickup 6 Lug - All w/ OE Single Piston Rear Brake

  • 2011-2013 Silverado 1500 Pickup 6 Lug - All w/ Rear Disc Brake

  • 2007 Silverado 1500 Pickup 6 Lug - Classic Style w/ OE Single Piston Rear

  • 2007 Silverado 1500 Pickup 6 Lug - New Style w/ Disc Rear

  • 2008-2010 Silverado 1500 Pickup 6 Lug - Police Package w/ Disc Rear

  • 2000 Silverado 1500 Pickup All w/ OE Single Piston Rear Brake

  • 2015-2020 Suburban LS

  • 2015-2020 Suburban LT

  • 2015-2016 Suburban LTZ

  • 2017-2020 Suburban Premier

  • 2009-2013 Suburban 1500 6 Lug - 4 x 2

  • 2008 Suburban 1500 6 Lug - 4 x 2 (w/ finger clip front pad)

  • 2008 Suburban 1500 6 Lug - 4 x 2 (w/o finger clip front pad)

  • 2009-2013 Suburban 1500 6 Lug - 4 x 4

  • 2008 Suburban 1500 6 Lug - 4 x 4 (w/ finger clip front pad)

  • 2008 Suburban 1500 6 Lug - 4 x 4 (w/o finger clip front pad)

  • 2007 Suburban 1500 6 Lug - All

  • 2014 Suburban 1500 LS

  • 2014 Suburban 1500 LT

  • 2014 Suburban 1500 LTZ

  • 2009-2013 Tahoe 6 Lug - 4 x 2 All w/ Rear Disc Brake

  • 2009-2013 Tahoe 6 Lug - 4 x 4 All w/ Rear Disc Brake

  • 2008 Tahoe 6 Lug - All except Police (w/o finger clip front pad)

  • 2007 Tahoe 6 Lug - All except Police

  • 2008 Tahoe 6 Lug - All including Police (w/ finger clip front pad)

  • 2001 Tahoe 6 Lug - All w/ OE Single Piston Rear Brake

  • 2007 Tahoe 6 Lug - Police package

  • 2008 Tahoe 6 Lug - Police package (w/o finger clip front pad)

  • 2014-2020 Tahoe LS

  • 2014-2020 Tahoe LT

  • 2014-2016 Tahoe LTZ

  • 2016-2020 Tahoe PPV

  • 2017-2020 Tahoe Premier

  • 2016-2020 Tahoe SSV
• GMC
  • 2015-2018 Sierra 1500 Base

  • 2015-2018 Sierra 1500 Denali

  • 2015-2018 Sierra 1500 SLE

  • 2015-2018 Sierra 1500 SLT

  • 2019 Sierra 1500 Limited Base

  • 2019 Sierra 1500 Limited SLE

  • 2002-2006 Sierra 1500 Pickup 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake

  • 2002-2006 Sierra 1500 Pickup 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake

  • 2014 Sierra 1500 Pickup 6 Lug - All

  • 2008-2010 Sierra 1500 Pickup 6 Lug - All w/ Disc Rear, except Police Package

  • 1999-2001 Sierra 1500 Pickup 6 Lug - All w/ OE Single Piston Rear Brake

  • 2011-2013 Sierra 1500 Pickup 6 Lug - All w/ Rear Disc Brake

  • 2007 Sierra 1500 Pickup 6 Lug - Classic Style w/ OE 2 Piston Rear

  • 2007 Sierra 1500 Pickup 6 Lug - Classic Style w/ OE Single Piston Rear

  • 2007 Sierra 1500 Pickup 6 Lug - New Style w/ Disc Rear

  • 2008-2010 Sierra 1500 Pickup 6 Lug - Police Package w/ Disc Rear

  • 2000 Sierra 1500 Pickup All w/ OE Single Piston Rear Brake

  • 2009-2012 Yukon 6 Lug - 4 x 2

  • 2008 Yukon 6 Lug - 4 x 2 (w/ finger clip front pad)

  • 2008 Yukon 6 Lug - 4 x 2 (w/o finger clip front pad)

  • 2002 Yukon 6 Lug - 4 x 2 w/ OE Single Piston Rear Brake

  • 2009-2013 Yukon 6 Lug - 4 x 4

  • 2008 Yukon 6 Lug - 4 x 4 (w/ finger clip front pad)

  • 2008 Yukon 6 Lug - 4 x 4 (w/o finger clip front pad)

  • 2002 Yukon 6 Lug - 4 x 4 w/ OE Single Piston Rear Brake

  • 2007 Yukon 6 Lug - All

  • 2001 Yukon 6 Lug - All w/ OE Single Piston Rear Brake

  • 2014-2020 Yukon Denali

  • 2014-2020 Yukon SLE

  • 2014-2020 Yukon SLT

  • 2015-2020 Yukon XL Denali

  • 2015-2020 Yukon XL SLE

  • 2015-2020 Yukon XL SLT

  • 2009-2012 Yukon XL 1500 6 Lug - 4 x 2

  • 2008 Yukon XL 1500 6 Lug - 4 x 2 (w/ finger clip front pad)

  • 2008 Yukon XL 1500 6 Lug - 4 x 2 (w/o finger clip front pad)

  • 2009-2013 Yukon XL 1500 6 Lug - 4 x 4

  • 2008 Yukon XL 1500 6 Lug - 4 x 4 (w/ finger clip front pad)

  • 2008 Yukon XL 1500 6 Lug - 4 x 4 (w/o finger clip front pad)

  • 2007 Yukon XL 1500 6 Lug - All

  • 2014 Yukon XL 1500 Denali

  • 2014 Yukon XL 1500 SLE

  • 2014 Yukon XL 1500 SLT

Kit includes:

• 4 Piston TX4R Calipers

• BP-Q Compound Brake Pads

• 16" O.D. x 1.25" Thick Rotors

• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 124 lbs.

You can view and download the assembly/instruction booklet here.
