17-20 FORD F-150 RAPTOR,FRONT,AERO 6 PISTON,13.38" DRILLED ROTORS,BLACK CALIPERS

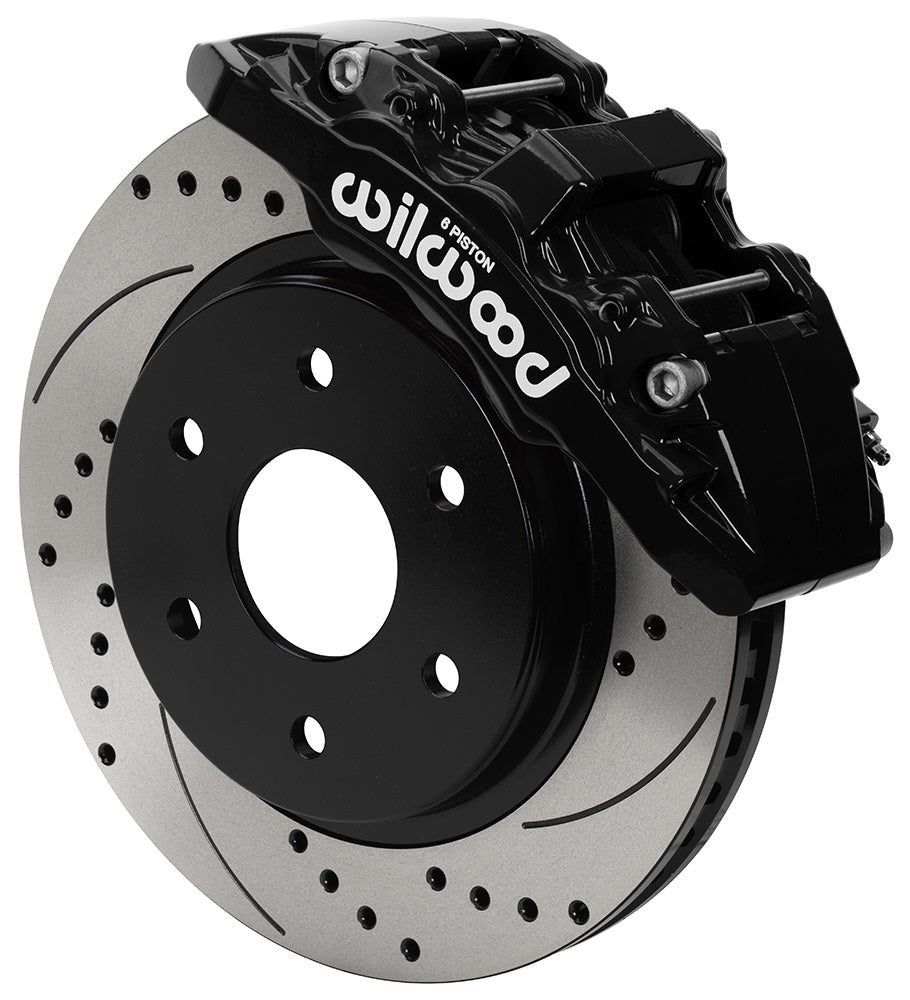

Brand New Wilwood AERO6-DM Brake Kit Featuring 13.38" Drilled Rotors with Black Calipers for Both Front Wheels (Part #140-16808-DR).

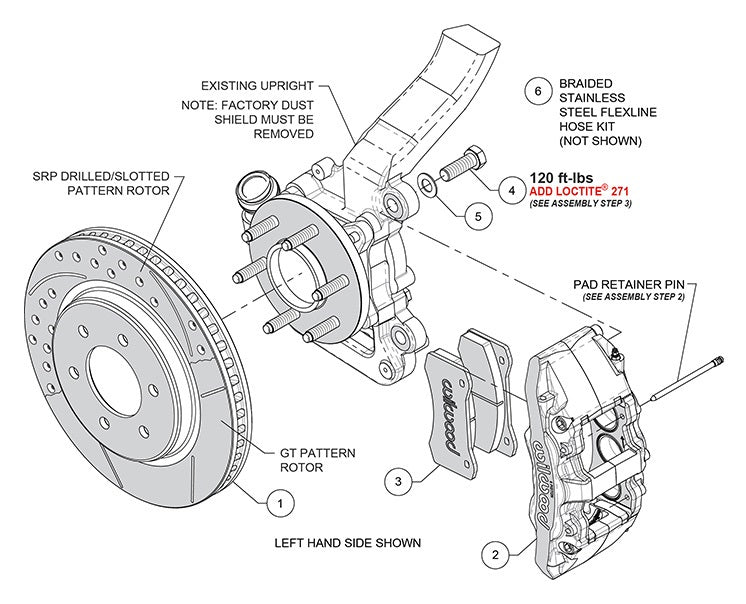

Only one side pictured above. See the list and diagram for details of the parts included.

Fits:

• Ford:
  • 2017-2020 F-150 Raptor

AERODM Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.38" diameter rotors provide maximum cooling for sustained high heat durability.

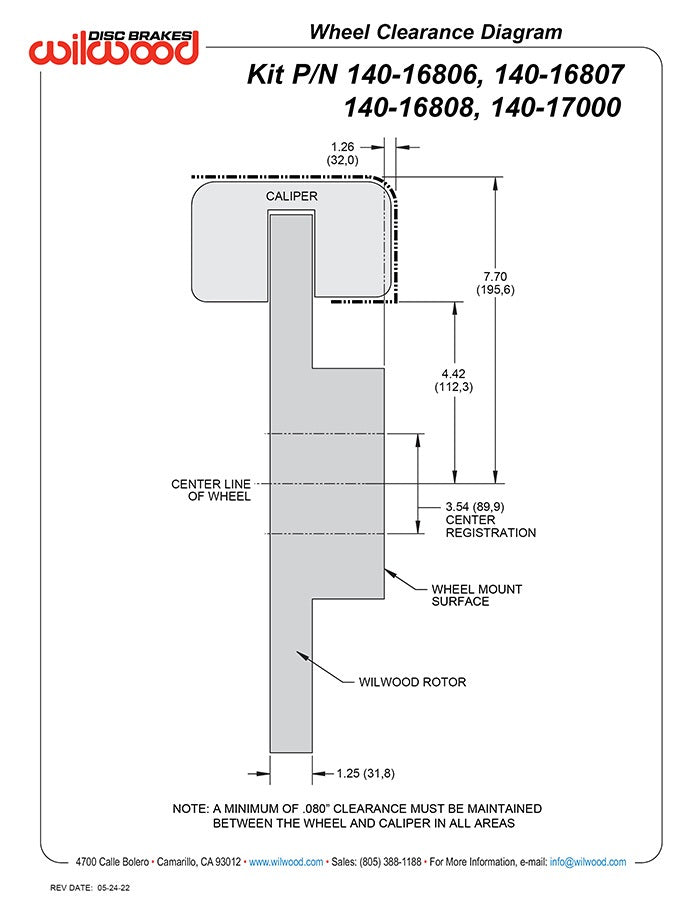

These Big Brake kits require at least 17" diameter wheels.

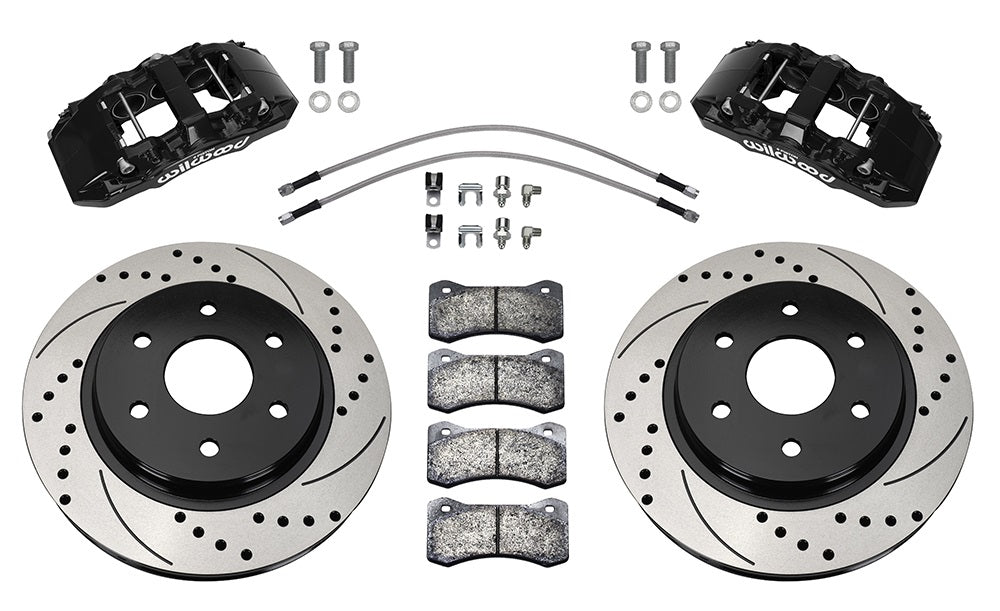

Kit includes parts for both front wheels:

• 1.25" Thick x 13.38" O.D. Rotors
• AERO6-DM 6 Piston Calipers
• Polymatrix Q Brake Pads
• Steel Braided Lines with Fittings
• All bolts, washers, and hardware necessary to install the complete braking system on both front wheels

Complete kit weighs approximately 78 lbs.

You can view and download the assembly or instruction booklet here.
