10-18 FORD F-150,EXPEDITION,NAVIGATOR,FRONT,AERO 6 PISTON,13.38" DRILLED,RED

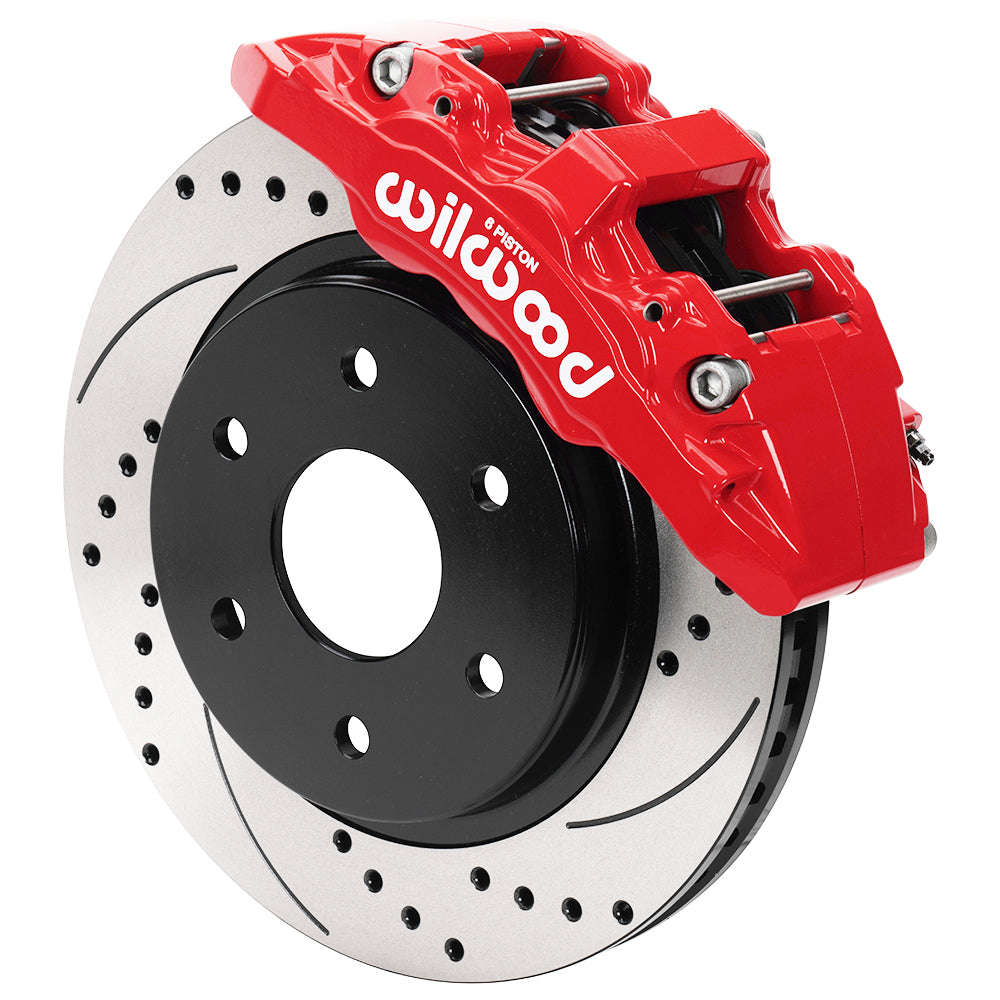

Brand New Wilwood AERO6-DM Brake Kit Featuring 13.38" Drilled Rotors with Red Calipers for Both Front Wheels (Part #140-16806-DR).

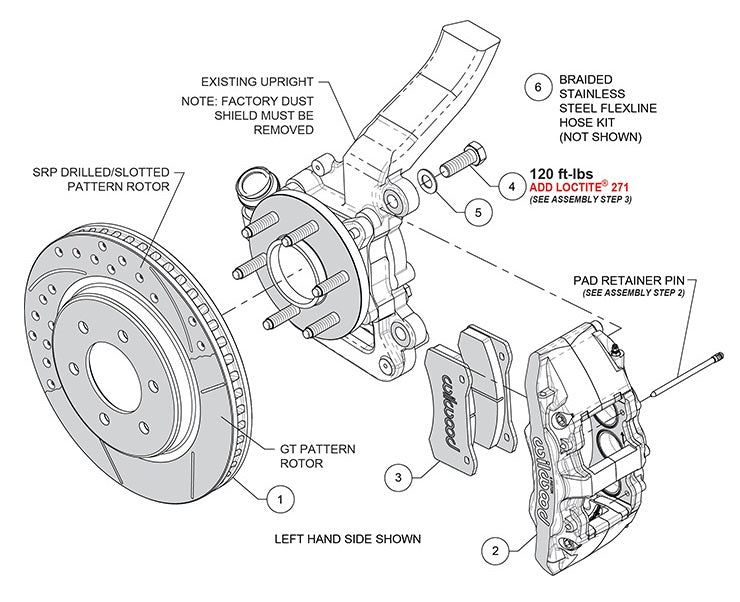

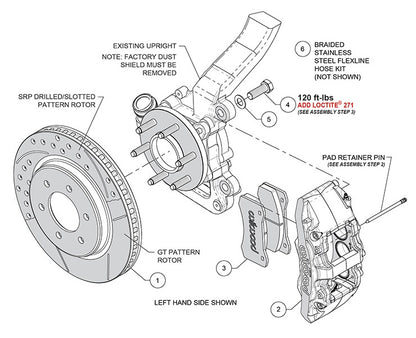

Only one side pictured above. See the list and diagram for details of the parts included.

Compatible with:

• Ford:
  • 2010-2015 Expedition 4 x 2
  • 2010-2015 Expedition 4 x 4
  • 2010-2014 F-150 FX2 4x2 (6-Lug)
  • 2014 F-150 FX2 4x4 (6-Lug)
  • 2010-2013 F-150 FX4 4x4 (6-Lug)
  • 2010-2012 F-150 Harley-Davidson Edition 4x2 (6-Lug)
  • 2010-2012 F-150 Harley-Davidson Edition 4x4 (6-Lug)
  • 2010-2014 F-150 King Ranch 4x2 (6-Lug)
  • 2010-2014 F-150 King Ranch 4x4 (6-Lug)
  • 2015-2018 F-150 King Ranch w/ Electronic Park Brake
  • 2015-2018 F-150 King Ranch w/ Manual Park Brake
  • 2010-2014 F-150 Lariat 4x2 (6-Lug)
  • 2010-2014 F-150 Lariat 4x4 (6-Lug)
  • 2011 F-150 Lariat Limited 4x2 (6-Lug)
  • 2011 F-150 Lariat Limited 4x4 (6-Lug)
  • 2015-2018 F-150 Lariat w/ Electronic Park Brake
  • 2015-2018 F-150 Lariat w/ Manual Park Brake
  • 2013-2014 F-150 Limited 4x2 (6-Lug)
  • 2013-2014 F-150 Limited 4x4 (6-Lug)
  • 2016-2018 F-150 Limited w/ Electronic Park Brake
  • 2016-2018 F-150 Limited w/ Manual Park Brake
  • 2010-2014 F-150 Platinum 4x2 (6-Lug)
  • 2010-2014 F-150 Platinum 4x4 (6-Lug)
  • 2015-2018 F-150 Platinum w/ Electronic Park Brake
  • 2015-2018 F-150 Platinum w/ Manual Park Brake
  • 2016-2018 F-150 SSV w/ Electronic Park Brake
  • 2016-2018 F-150 SSV w/ Manual Park Brake
  • 2010-2014 F-150 STX 4x2 (6-Lug)
  • 2010-2014 F-150 STX 4x4 (6-Lug)
  • 2010-2014 F-150 XL 4x2 (6-Lug)
  • 2010-2014 F-150 XL 4x4 (6-Lug)
  • 2015-2018 F-150 XL w/ Electronic Park Brake
  • 2015-2018 F-150 XL w/ Manual Park Brake
  • 2010-2014 F-150 XLT 4x2 (6-Lug)
  • 2010-2014 F-150 XLT 4x4 (6-Lug)
  • 2015-2018 F-150 XLT w/ Electronic Park Brake
  • 2015-2018 F-150 XLT w/ Manual Park Brake

• Lincoln:

  • 2010-2015 Navigator 4 x 2

  • 2010-2015 Navigator 4 x 4

AERODM Six Piston calipers were designed for the specific purpose of providing a direct mount, large capacity braking solution with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. OEM style 1 piece 13.38" diameter rotors provide maximum cooling for sustained high heat durability.

This kit require at least 17" diameter wheels.

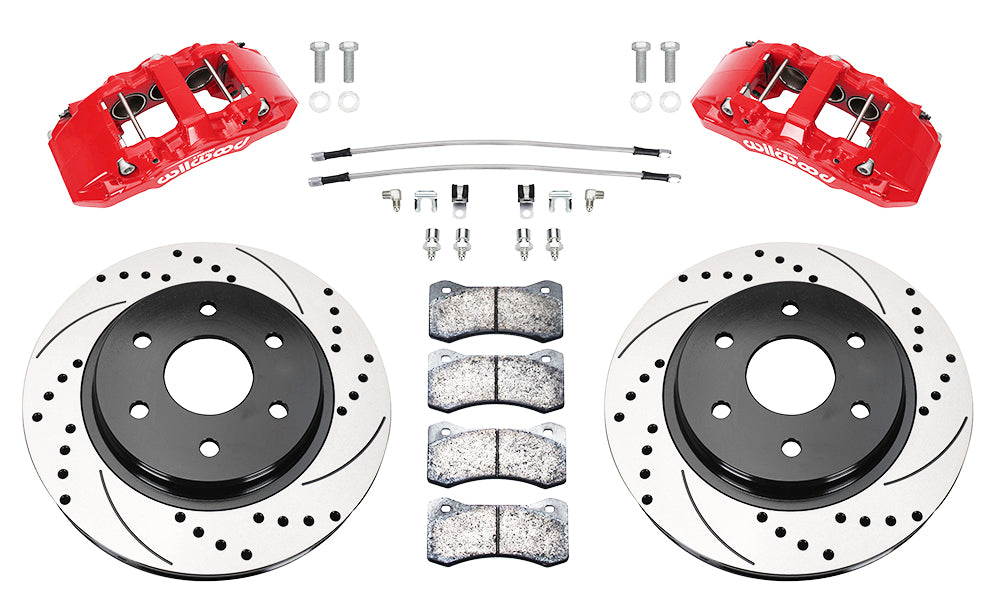

Kit includes parts for both front wheels:

• AERO6-DM 6 Piston Calipers
• 1.25" Thick x 13.38" O.D. Rotors

• BP-Q Brake Pads
• Steel Braided Brake Lines with Fittings
• All brackets, bolts, washers, shims, and nuts necessary to install the kit


Complete kit weighs approximately 78 lbs.

You can view and download the assembly or instruction booklet here.
