GM C-10 C-KIT,2.42",REAR PB,6-LUG,12.19" ROTORS,BLACK CALIPERS

BRAND NEW WILWOOD FORGED DYNALITE, BOLT-ON 12.19" DISC BRAKE KIT WITH 6 X 5.50" BOLT PATTERN (PART #140-16712) FOR BOTH REAR WHEELS.

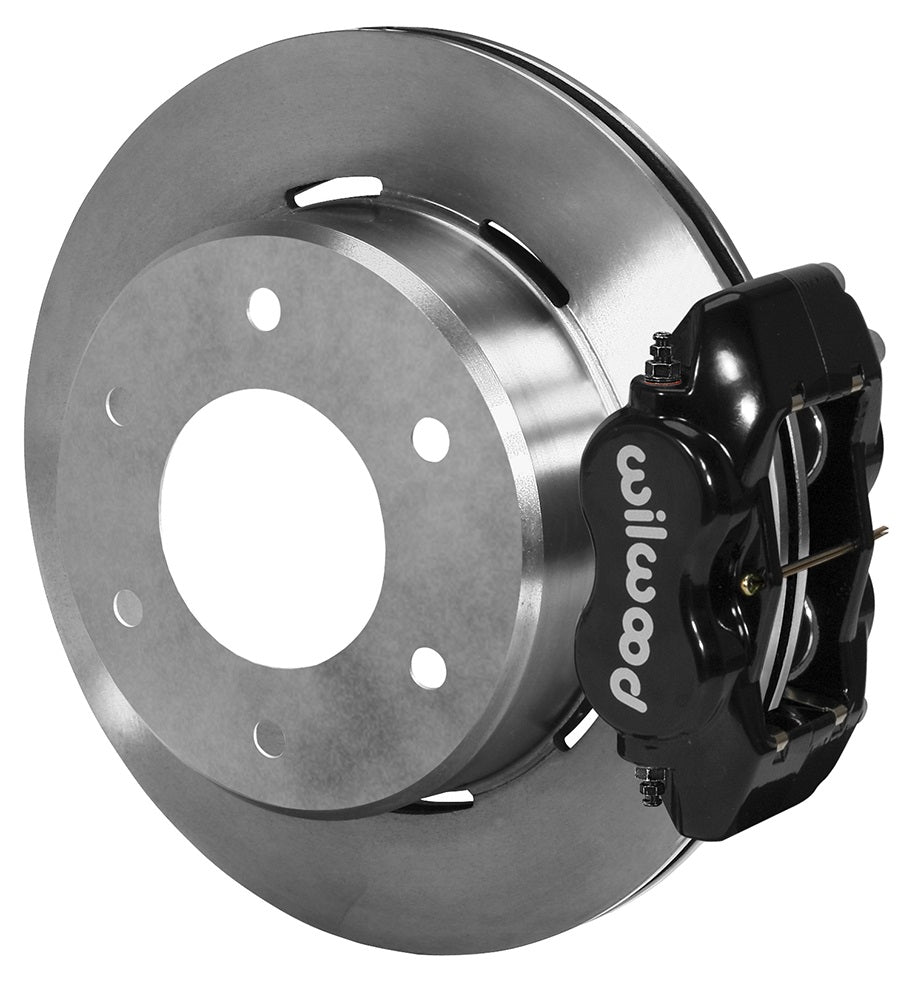

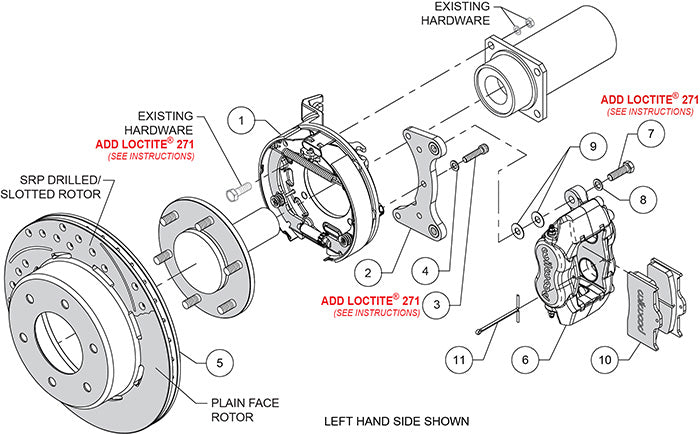

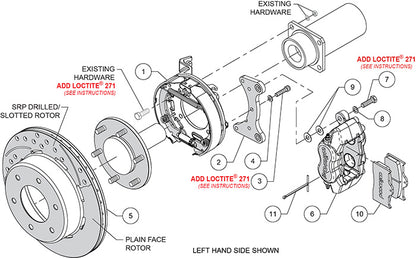

ONLY ONE SIDE PICTURED ABOVE. SEE THE LIST & DIAGRAM FOR A DETAIL OF THE PARTS INCLUDED.

FITS:

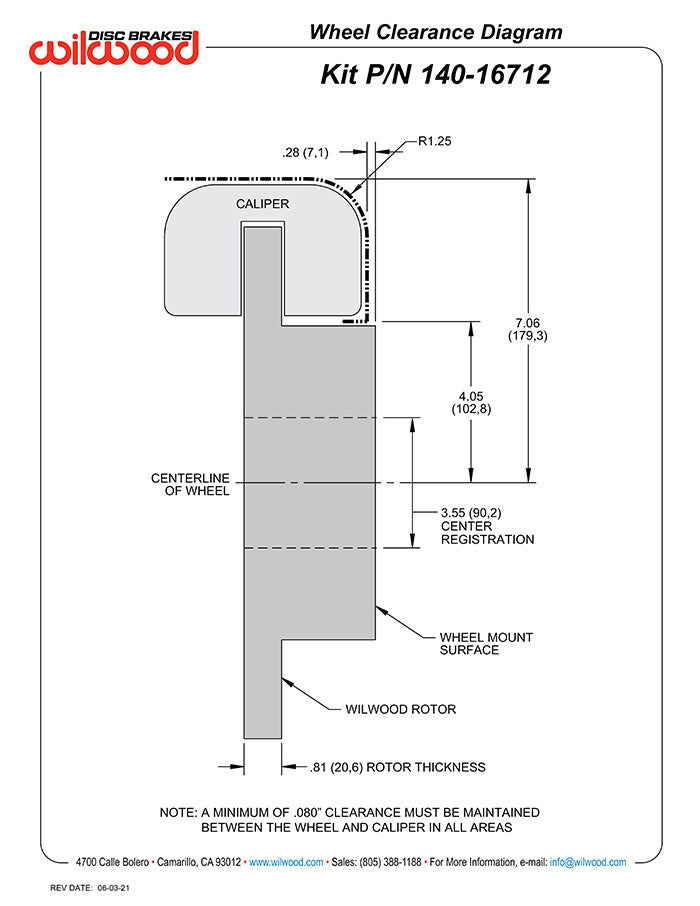

• C10 / C15 TRUCK REAR ENDS WITH 6 LUGS, "LARGE CHEVY C10" AXLE FLANGE, AND A 2.46" FLANGE OFFSET (SEE DIAGRAM)

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THIS GROUP OF FDL PRO-SERIES REAR DISC KITS PROVIDES A COMPLETE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FORGED BILLET DYNALITE FOUR PISTON CALIPERS, 12.19" ONE-PIECE DRUM/ROTORS, AND HIGH FRICTION PADS PROVIDE OPTIMIZED AND BALANCED BRAKING FOR ALL TYPES OF CUSTOM PERFORMANCE STREET/STRIP AND SHOW MACHINES. THE NEATLY HIDDEN INTERNAL SHOE SYSTEM PROVIDES A CLEAN INSTALLATION WITH SUPERIOR STATIC HOLDING POWER FOR PARKING. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS ENABLE THE BUILDER TO PERSONALIZE THE STYLE AND OPTIMIZE BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• .810" THICK X 12.19" O.D. 1-PIECE ROTORS & HATS
• FORGED DYNALITE 4 PISTON CALIPERS - BLACK
• DRUM PARKING BRAKE ASSEMBLIES
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
