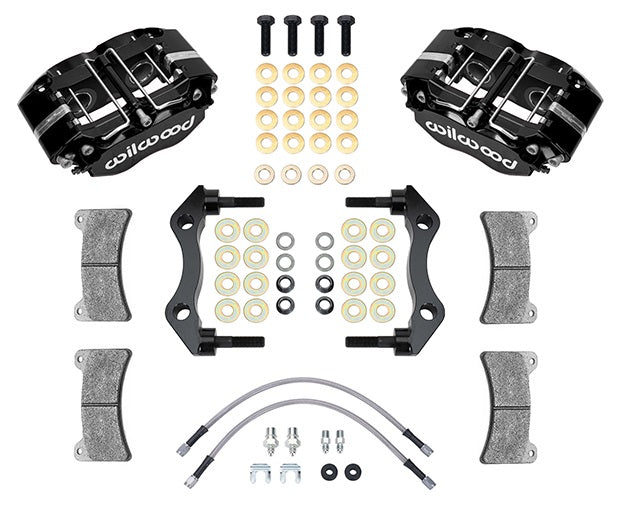

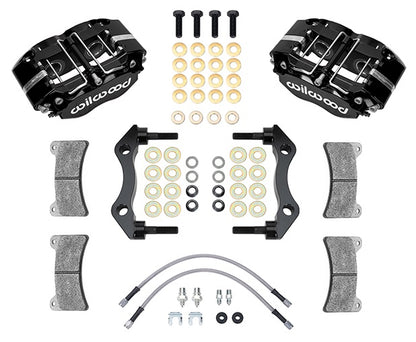

84-89 PORSCHE 911 DYNAPRO CALIPER SET,REAR,WITH LINES,BLACK

BRAND NEW WILWOOD FORGED DYNAPRO-P RADIAL REAR CALIPER & BRACKET KIT (PART #140-16678).

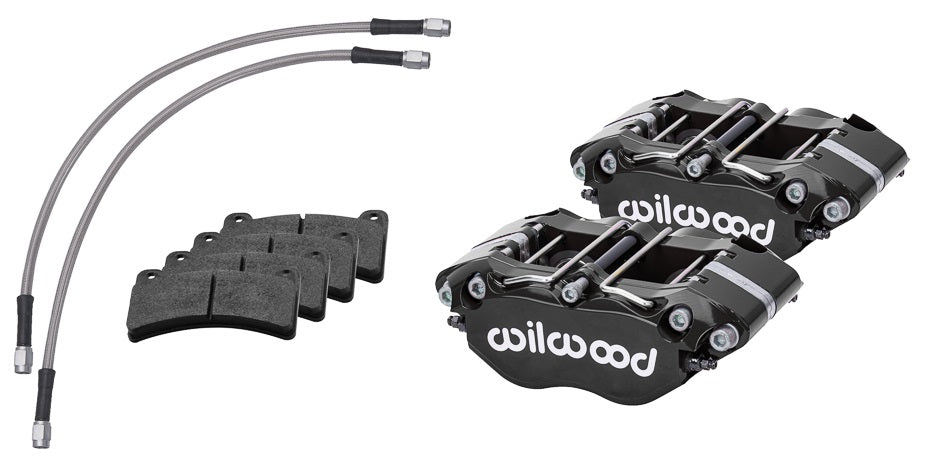

FORGED NARROW DYNAPRO RADIAL CALIPER, PAD, AND BRACKET KITS ARE ENGINEERED AS HIGH PERFORMANCE STREET AND RACE FOR 1984-1989 PORSCHE 911S WITH 3.50" CALIPER MOUNTS. THESE KITS COMBINE THE HIGH-TECH STYLING AND SUPERIOR PERFORMANCE OF THE NDPR-P CALIPERS AND THE POSITIVE RESPONSE, LONG WEAR, HIGH FADE RESISTANCE, AND EASY CLEAN PROPERTIES OF THE BP-10 COMPOUND SMART PADS. THESE KITS BOLT DIRECTLY TO THE FRONT STRUT WITHOUT THE NEED FOR ADDITIONAL BRACKETS OR ADAPTERS. BRAIDED STAINLESS FLEXLINES ARE INCLUDED.

COMPATIBLE WITH:

• 1984-1987 PORSCHE 911 BASE
• 1984-1989 PORSCHE 911 CARRERA
• 1989 PORSCHE 911 CARRERA 4
• 1989 PORSCHE 911 SPEEDSTER
• 1986-1989 PORSCHE 911 TURBO CARRERA

SPECS:

• PISTON COUNT: 4
• PISTON 1 BORE (IN): 1.12
• PISTON 2 BORE (IN): 1.12
• TOTAL PISTON AREA (IN^2): 1.98
• PISTON TYPE: STAINLESS
• FINISH: BLACK POWDER COAT
• MOUNT TYPE: RADIAL
• BRAKE PAD PLATE: 4812
• BRAKE PAD AREA (IN^2): 5.1
• BRAKE PAD VOLUME (IN^3): 1.71
• PAD COMPOUND: BP-10

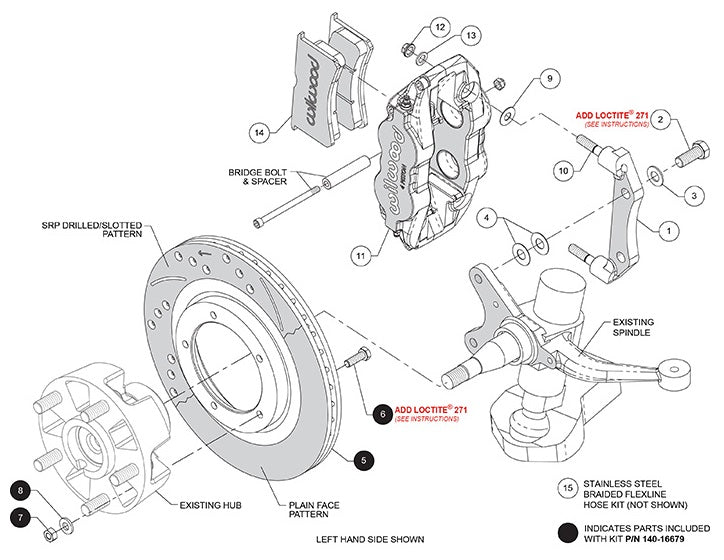

YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
