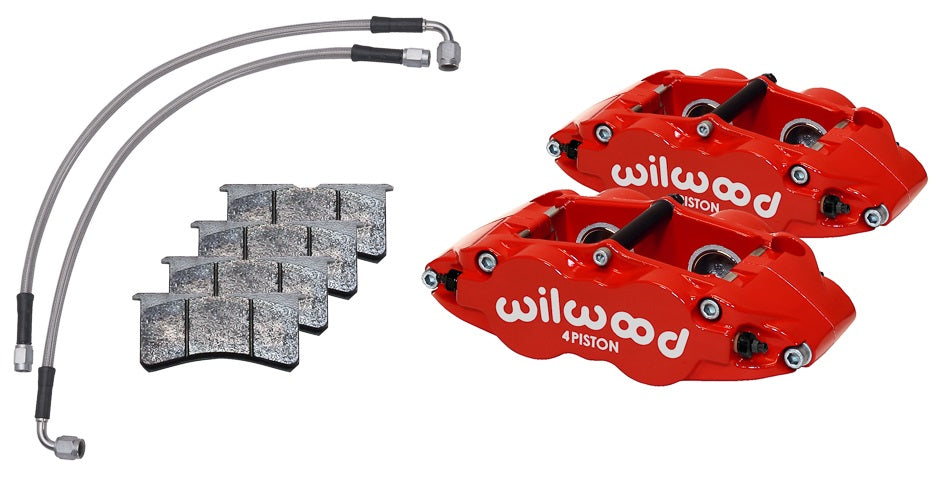

69-83 PORSCHE 911 SUPERLITE CALIPER SET,FRONT,WITH LINES,RED

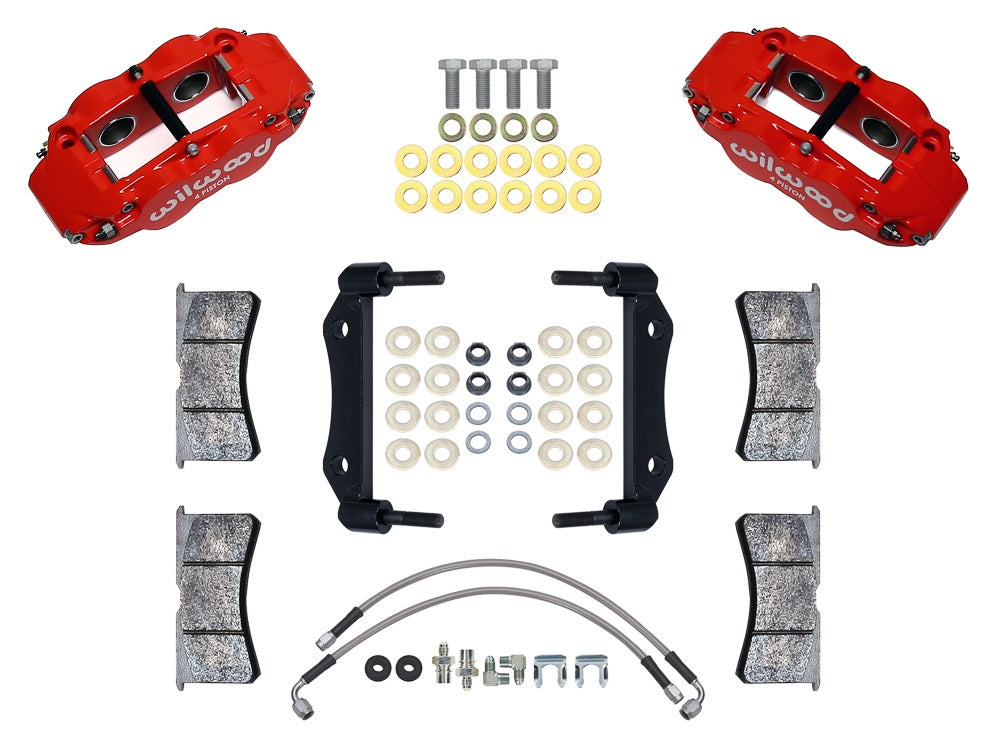

BRAND NEW WILWOOD FORGED NARROW SUPERLITE 4R FRONT CALIPER & BRACKET KIT (PART #140-16675-R).

FORGED NARROW SUPERLITE RADIAL CALIPER, PAD, AND BRACKET KITS ARE ENGINEERED AS HIGH PERFORMANCE STREET AND RACE FOR 1969-1983 PORSCHE 911S WITH "S" OR "A" STRUTS WITH 3.50" CALIPER MOUNTS. THESE KITS COMBINE THE HIGH-TECH STYLING AND SUPERIOR PERFORMANCE OF THE FNSL6R CALIPERSAND THE POSITIVE RESPONSE, LONG WEAR, HIGH FADE RESISTANCE, AND EASY CLEAN PROPERTIES OF THE BP-10 COMPOUND SMART PADS. THESE KITS BOLT DIRECTLY TO THE FRONT STRUT WITHOUT THE NEED FOR ADDITIONAL BRACKETS OR ADAPTERS. BRAIDED STAINLESS FLEXLINES ARE INCLUDED.

COMPATIBLE WITH:

• 1969-1974 PORSCHE 911 "S" STRUT (3.50" CALIPER MOUNT)
• 1981-1983 PORSCHE 911 BASE
• 1975 PORSCHE 911 CARRERA
• 1975-1977 PORSCHE 911 S
• 1978-1983 PORSCHE 911 SC
• 1976-1977 PORSCHE 911 TURBO CARRERA

SPECS:

• PISTON COUNT: 4
• PISTON 1 BORE (IN): 1.38
• PISTON 2 BORE (IN): 1.38
• TOTAL PISTON AREA (IN^2): 3.00
• PISTON TYPE: STAINLESS
• FINISH: RED POWDER COAT
• MOUNT TYPE: RADIAL
• BRAKE PAD PLATE: 7416
• BRAKE PAD AREA (IN^2): 8.2
• BRAKE PAD VOLUME (IN^3): 3.8
• PAD COMPOUND: BP-10

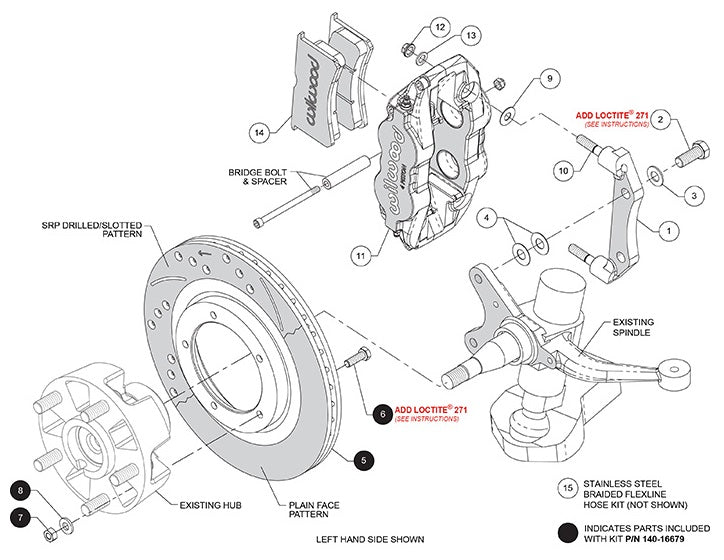

YOU CAN DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE
