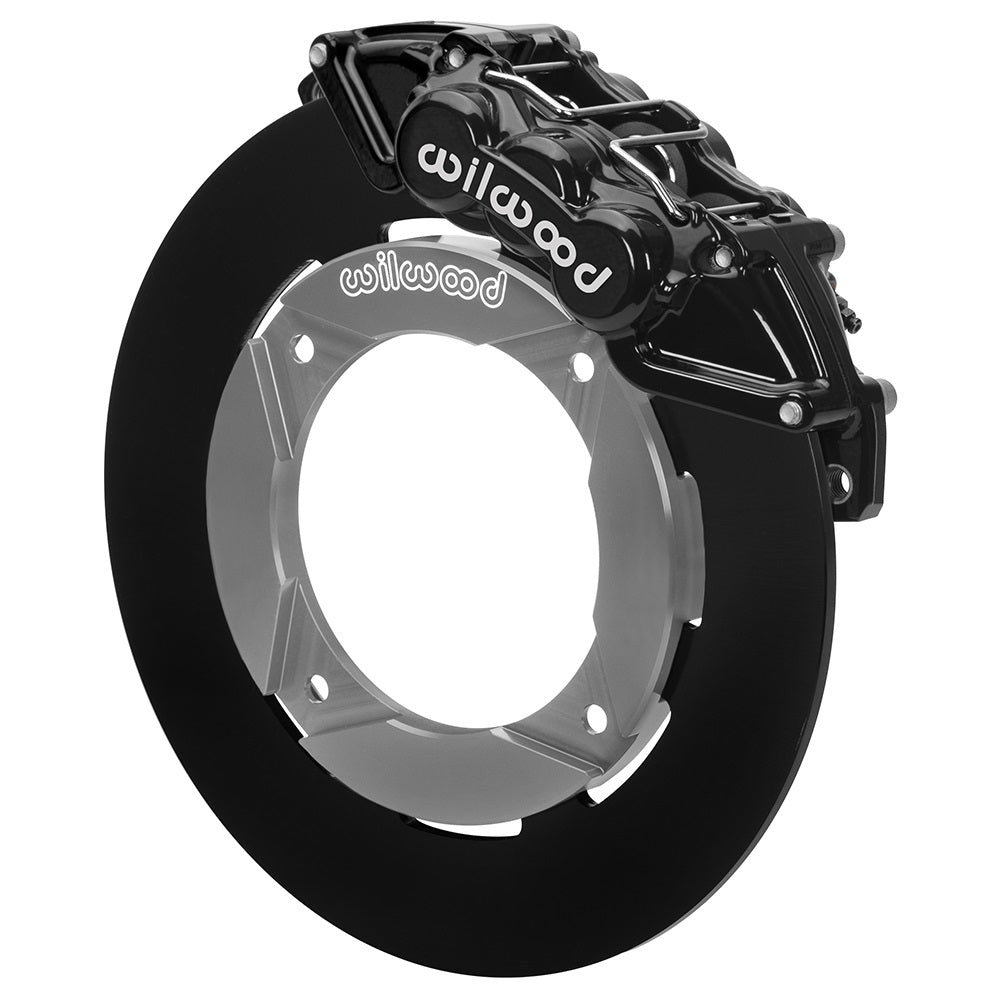

14-23 POLARIS RZR-XP1000,UTV,FRONT BRAKE KIT,11.25" ROTORS,BLACK CALIPERS

BRAND NEW WILWOOD UTV6 11.25" DISC BRAKE KIT (PART #140-16632) FOR BOTH FRONT WHEELS.

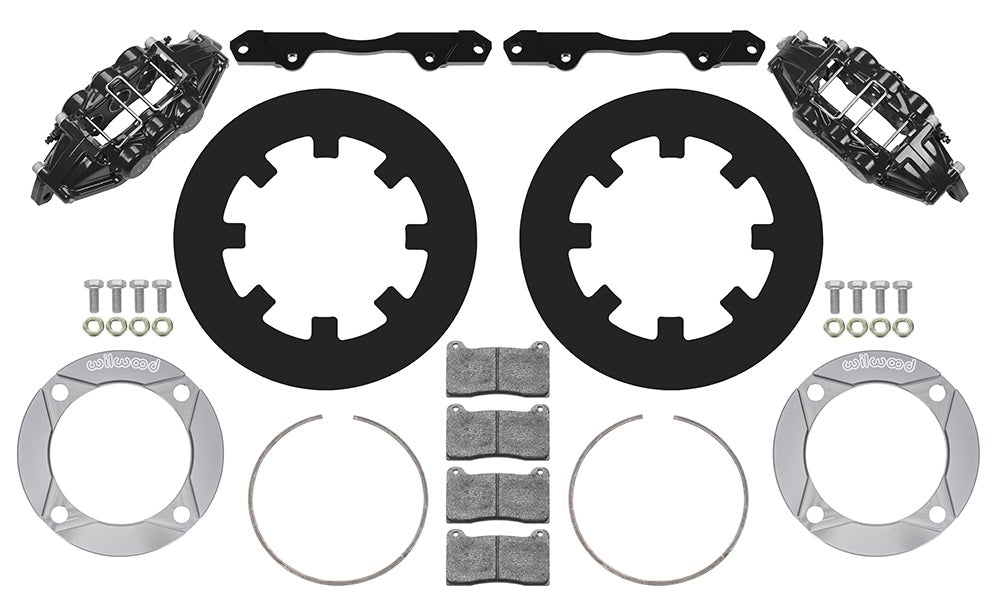

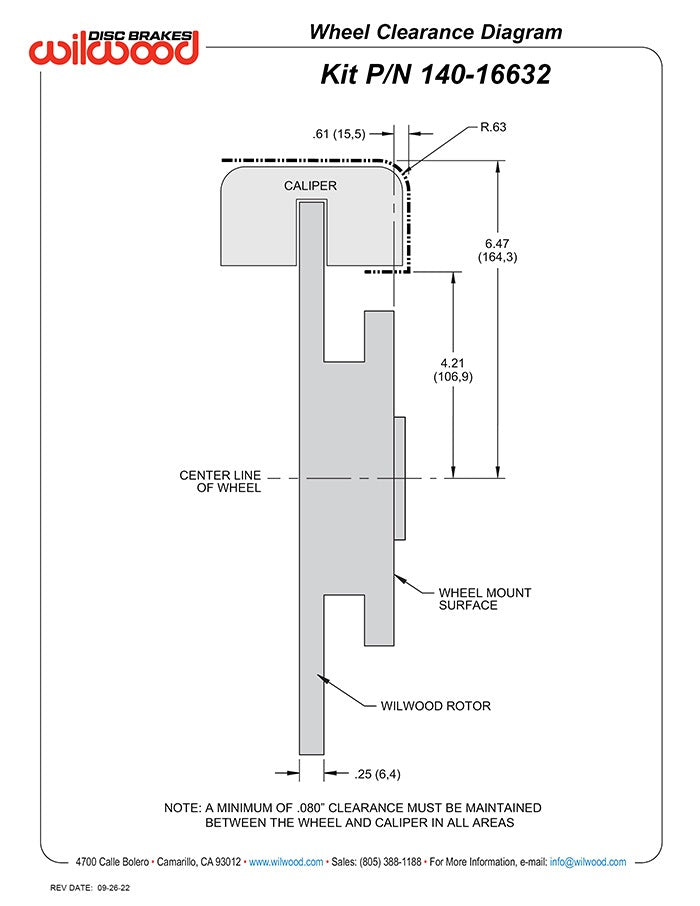

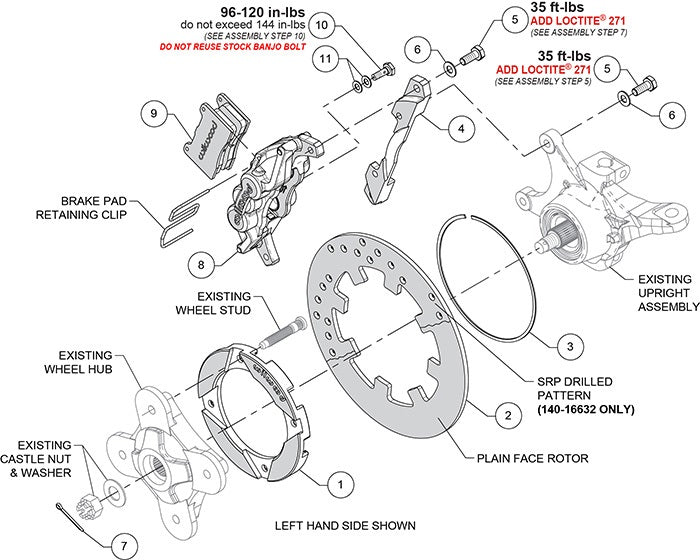

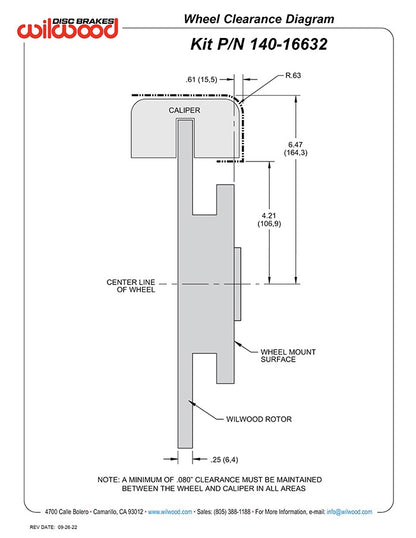

ONLY ONE SIDE PICTURED. SEE THE LIST & DIAGRAM BELOW FOR A DETAIL OF THE PARTS INCLUDED. FEATURES BLACK CALIPERS.

COMPATIBLE WITH:

• POLARIS:
• 2020-2021 RZR RS1 BASE
• 2020-2021 RZR S 1000 EPS BASE
• 2019-2020 RZR S4 1000 EPS BASE
• 2020-2021 RZR XP 1000 BASE
• 2014-2019 RZR XP 1000 EPS BASE
• 2015 RZR XP 1000 EPS DESERT EDITION BASE
• 2019 RZR XP 1000 EPS DYNAMIX EDITION BASE
• 2015 RZR XP 1000 EPS FOX EDITION BASE
• 2017 RZR XP 1000 EPS GOLD MATTE METALLIC LE BASE
• 2015-2019 RZR XP 1000 EPS HIGH LIFTER EDITION BASE
• 2018-2019 RZR XP 1000 EPS RIDE COMMAND EDITION BASE
• 2018-2019 RZR XP 1000 EPS TRAILS AND ROCK EDITION BASE
• 2017 RZR XP 1000 EPS VELOCITY BLUE LE BASE
• 2022 RZR XP 1000 HIGH LIFTER BASE
• 2020-2021 RZR XP 1000 HIGH LIFTER EDITION BASE
• 2020 RZR XP 1000 LIMITED EDITION BASE
• 2020-2022 RZR XP 1000 PREMIUM BASE
• 2022 RZR XP 1000 SPORT BASE
• 2021-2022 RZR XP 1000 TRAILS & ROCKS BASE
• 2020 RZR XP 1000 TRAILS AND ROCK EDITION BASE
• 2020-2021 RZR XP 4 1000 BASE
• 2014-2019 RZR XP 4 1000 EPS BASE
• 2019 RZR XP 4 1000 EPS DYNAMIX EDITION BASE
• 2017-2019 RZR XP 4 1000 EPS HIGH LIFTER EDITION BASE
• 2018-2019 RZR XP 4 1000 EPS RIDE COMMAND EDITION BASE
• 2022 RZR XP 4 1000 HIGH LIFTER BASE
• 2020-2021 RZR XP 4 1000 HIGH LIFTER EDITION BASE
• 2020 RZR XP 4 1000 LIMITED EDITION BASE
• 2020-2022 RZR XP 4 1000 PREMIUM BASE
• 2022 RZR XP 4 1000 SPORT BASE

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOOD MATCHED FRONT AND REAR UTV BRAKE KITS FEATURE DYNAMICALLY-MOUNTED ROTORS AND UPGRADED CALIPERS FOR POPULAR SIDE-BY-SIDE MACHINES. KITS COMBINE FIXED MOUNT MULTI-PISTON CALIPERS WITH GREATER CLAMPING FORCE, AND LARGER DIAMETER FLOATING ROTORS FOR MORE BRAKE TORQUE, IMPROVING BRAKING ON HIGHER-POWERED UTVS.

FORGED ALUMINUM DIFFERENTIAL-BORE UTV6 PISTON CALIPERS REDUCE DEFLECTION AND PROVIDE MORE UNIFORM ENGAGEMENT TO INCREASE BRAKING FORCE AND IMPROVE FEEL. HIGH-FRICTION STEEL ROTORS, ARE UP TO 20% GREATER IN DIAMETER AND THICKER FOR LESS DISTORTION. DYNAMICALLY MOUNTED ROTORS REDUCE THERMAL STRESS AND PREVENT PISTON KNOCKBACK FROM ROUGH TERRAIN.

THESE BIG BRAKE KITS REQUIRE AT LEAST 14" DIAMETER WHEELS.

BRAKE KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• .25" THICK X 11.25" O.D. ROTORS
• UTV6 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 24 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS KIT HERE.
