SMALL FORD KIT,2.50",ELECTRIC PB,13" ROTORS,RED CALIPERS

Brand New Wilwood Forged Narrow Superlite 4R Electronic Parking Big Brake Kit Featuring 14" Slotted Rotors with Red Calipers For Both Rear Wheels (Part #140-16151-R).

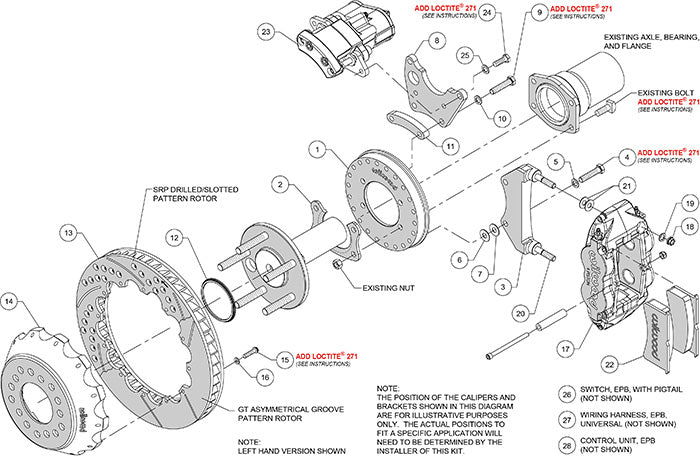

Only one side pictured. See the list, the diagram, and the assembly booklet for the details of the parts included.

Compatible with:

• Small Ford - Rear Kit with 2.50" Axle Offset (See Diagram Pictures)

Forged Narrow Superlite 4R Rear Electronic Parking Brake Kits provide the ultimate Big Brake solution for popular muscle car rear axles that require a parking brake. FNSL4R four piston calipers, 13” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades on all types of custom, show and high performance street machines. The unique Electronic Parking Brake caliper provides a static high torque static holding power for parking without mechanical cabling. Supplied with control unit and harness assembly, it simplifies installation and use. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

This kit require at least 17" diameter wheels.

Kit includes parts for both rear wheels:

• 4 Piston Forged Narrow Superlite 4R Calipers

• BP-10 Compound Brake Pads

• 12.88" O.D. x 1.10" Thick Rotors

• Rotor Hat

• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 68 lbs.

You can view and download the assembly/instruction booklet here and here.
