06-15 MAZDA MX-5 MIATA ROAD RACE KIT,FRONT,13"

Brand New Wilwood Superlite 6R Big Brake Race Kit Featuring 12.88" Slotted Rotors with Type III Anodized Grey Calipers For Both Front Wheels (Part #140-16093).

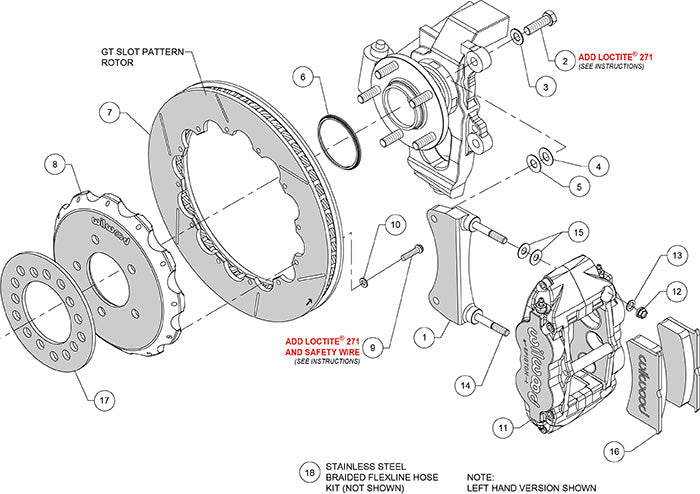

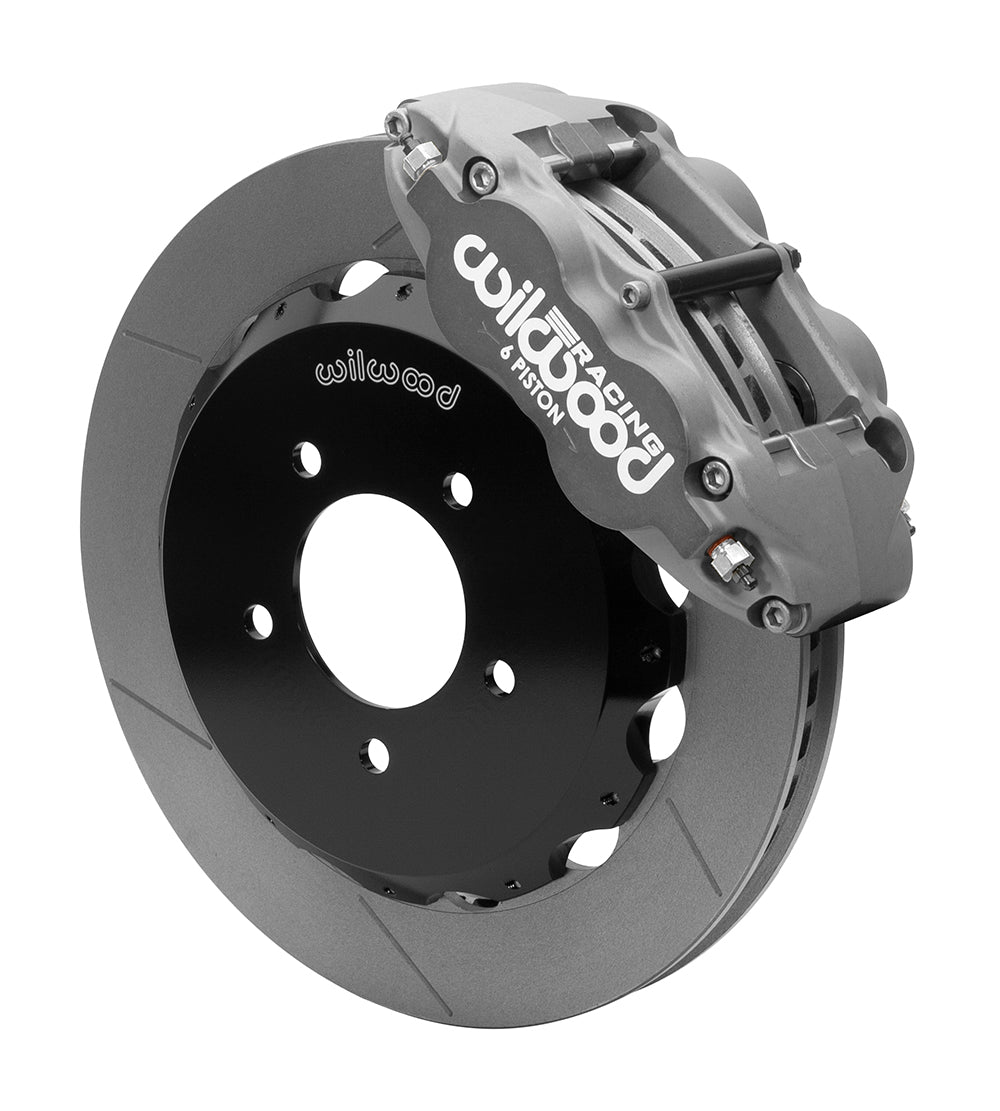

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Mazda:
  • 2015 MX-5 Miata 25th Anniversary Edition

  • 2006-2014 MX-5 Miata All

  • 2015 MX-5 Miata Club

  • 2015 MX-5 Miata Grand Touring

  • 2015 MX-5 Miata Sport

This kit is configured for dedicated road racing on all 2006-2015 Mazda MX-5 Miatas and requires 17” or larger wheels designed with additional inside clearance to accommodate the larger than stock brake package. The six piston FNSL6R/ST radial mount calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Spec37 alloy, GT competition series 12.88” diameter directional vane rotors are fixed mounted to the OE hubs with weight saving forged aluminum hats. Un-sprung and rotating weight are minimized while providing high cooling efficiency and rugged durability with thermal stability in sustained high heat competition. Mounting brackets, including all premium grade fasteners, secure the calipers in the stock location without modifications. This race winning system is completed with high temperature, high friction, endurance compound race pads selected specifically by application. Stainless steel braided flexlines are included for the installation.

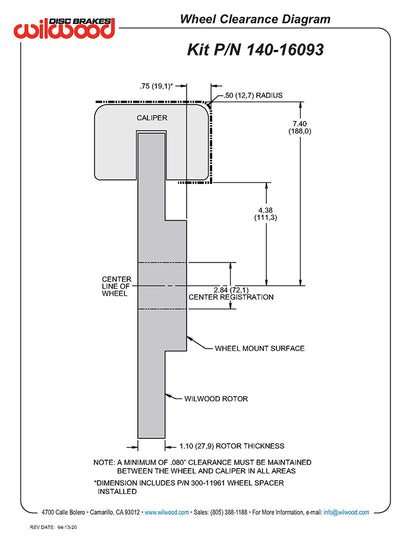

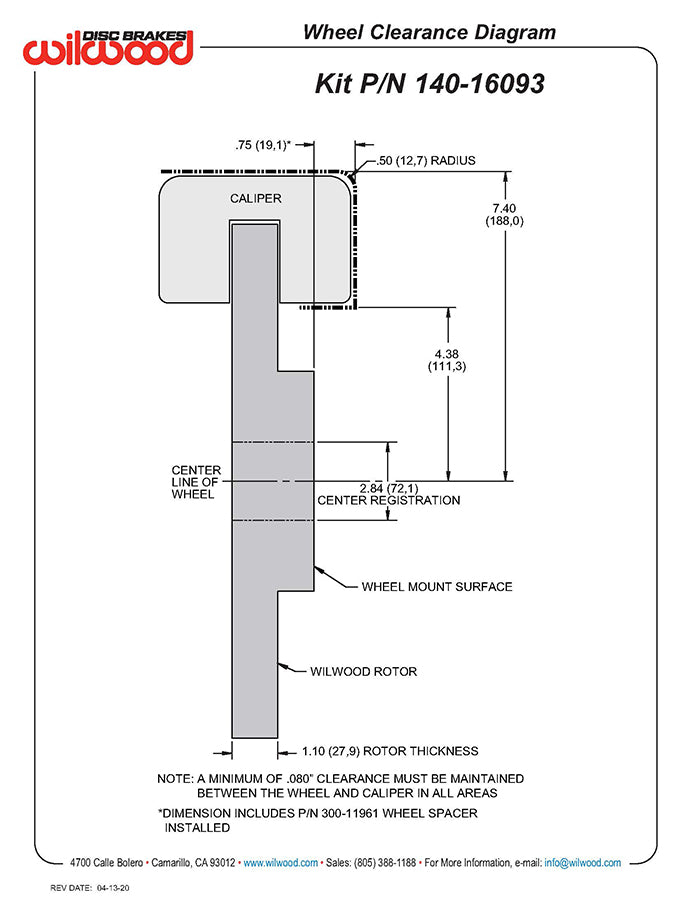

This kit require at least 17" diameter wheels.

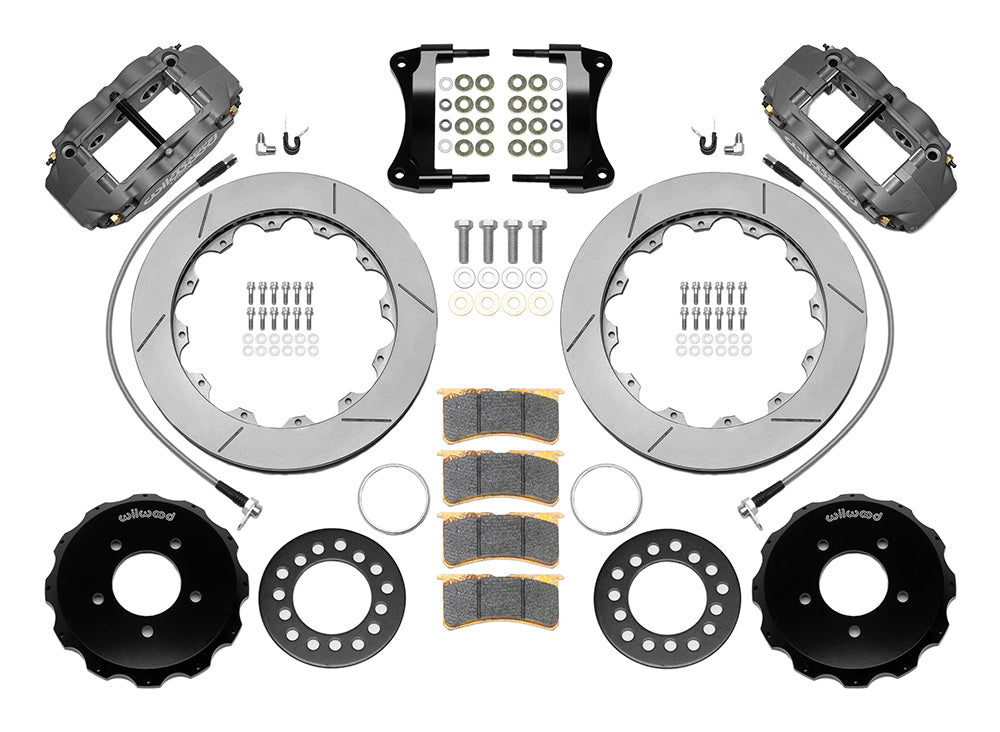

Kit includes parts for both front wheels:

• 6 Piston Superlite Calipers
• 1.10" Thick x 12.88" O.D. Rotors
• BP-35 Compound Brake Pads
• Rotor Hat
• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.

Complete kit weighs approximately 68 lbs.

You can view and download the assembly/instruction booklet here.
