2013-2018 DODGE RAM 1500,REAR,AERO4 4 PISTON,15" ROTORS,RED CALIPERS

Brand New Wilwood TX6R Big Brake Kit Featuring 15" Slotted Rotors with Red Calipers For Both Rear Wheels (Part #140-16026-R).

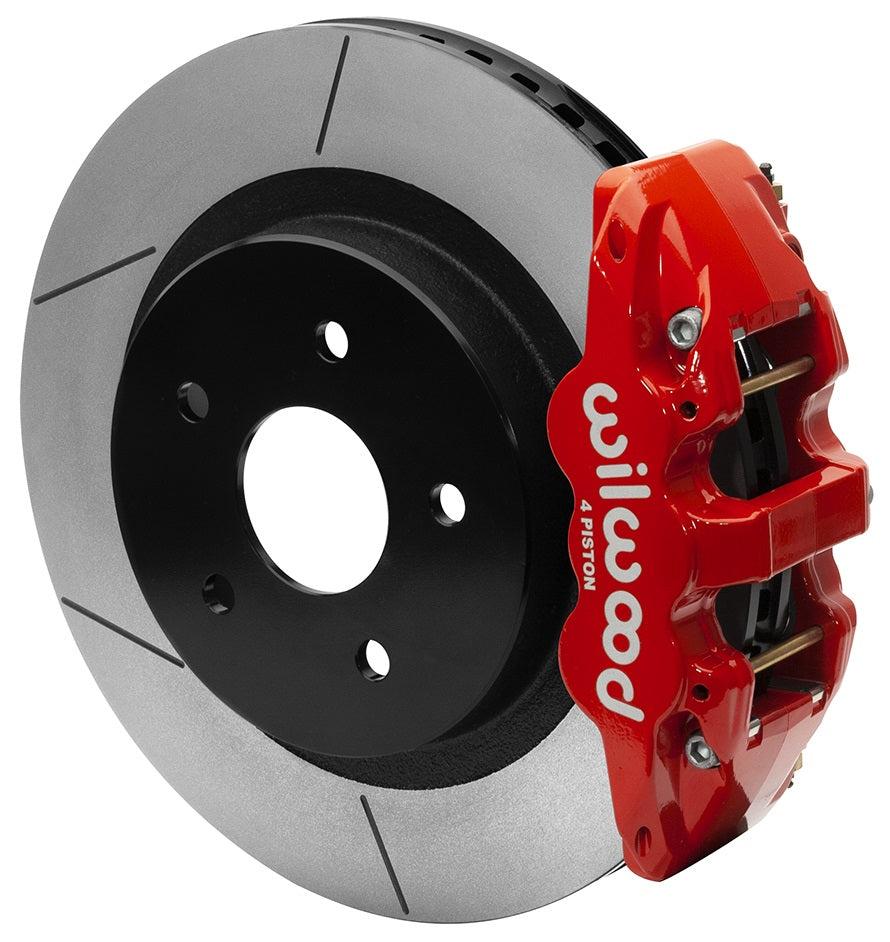

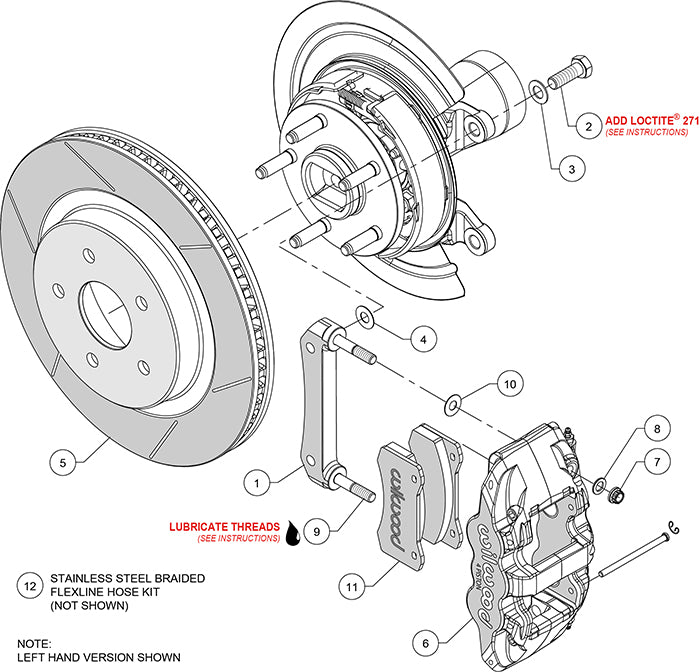

Only one side pictured. See the list, the diagram, and the assembly booklet for the details of the parts included.

Compatible with:

• Ram:
  • 2014-2018 1500 Big Horn - 4WD & RWD

  • 2013-2018 1500 Express - 4WD & RWD

  • 2013-2017 1500 HFE - RWD

  • 2013-2018 1500 Laramie - 4WD & RWD

  • 2014-2018 1500 Laramie Limited - 4WD & RWD

  • 2013-2018 1500 Laramie Longhorn - 4WD & RWD

  • 2016-2018 1500 Limited - 4WD & RWD

  • 2014-2018 1500 Lone Star - 4WD & RWD

  • 2014-2018 1500 Outdoorsman - 4WD & RWD

  • 2013 1500 R/T - RWD

  • 2015-2018 1500 Rebel - 4WD & RWD

  • 2013-2018 1500 SLT - 4WD & RWD

  • 2014-2018 1500 Special Service - 4WD

  • 2013-2018 1500 Sport - 4WD & RWD

  • 2013-2018 1500 ST - 4WD & RWD

  • 2013-2018 1500 SXT - 4WD & RWD

  • 2013-2018 1500 Tradesman - 4WD & RWD


AERO4 Big Brake rear axle kits for 2013 to 2017 for Ram 1500 Trucks replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrade kit. High capacity braking from the Aero4 calipers, BP-20 compound pads, and oversized 15.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on vehicles with increased brake requirements from high GVW. Kit comes complete with stainless braided flex lines.

This kit require at least 19" diameter wheels.

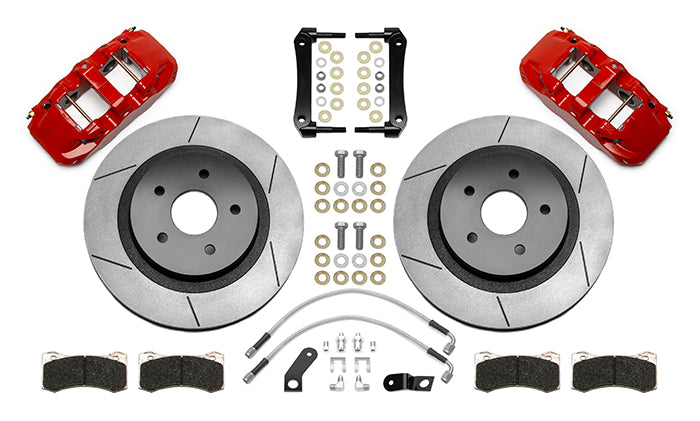

Kit includes parts for both rear wheels:

• 4 Piston AERO4 Calipers
• 1.25" Thick x 15.00" O.D. Rotors
• BP-20 Compound Brake Pads

• Rotor Hat
• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 96 lbs.

You can view and download the assembly/instruction booklet here.
