73-77 A,70-81 F,75-79 X,2GEN PROSPINDLE,FRONT,FDL-M,11"

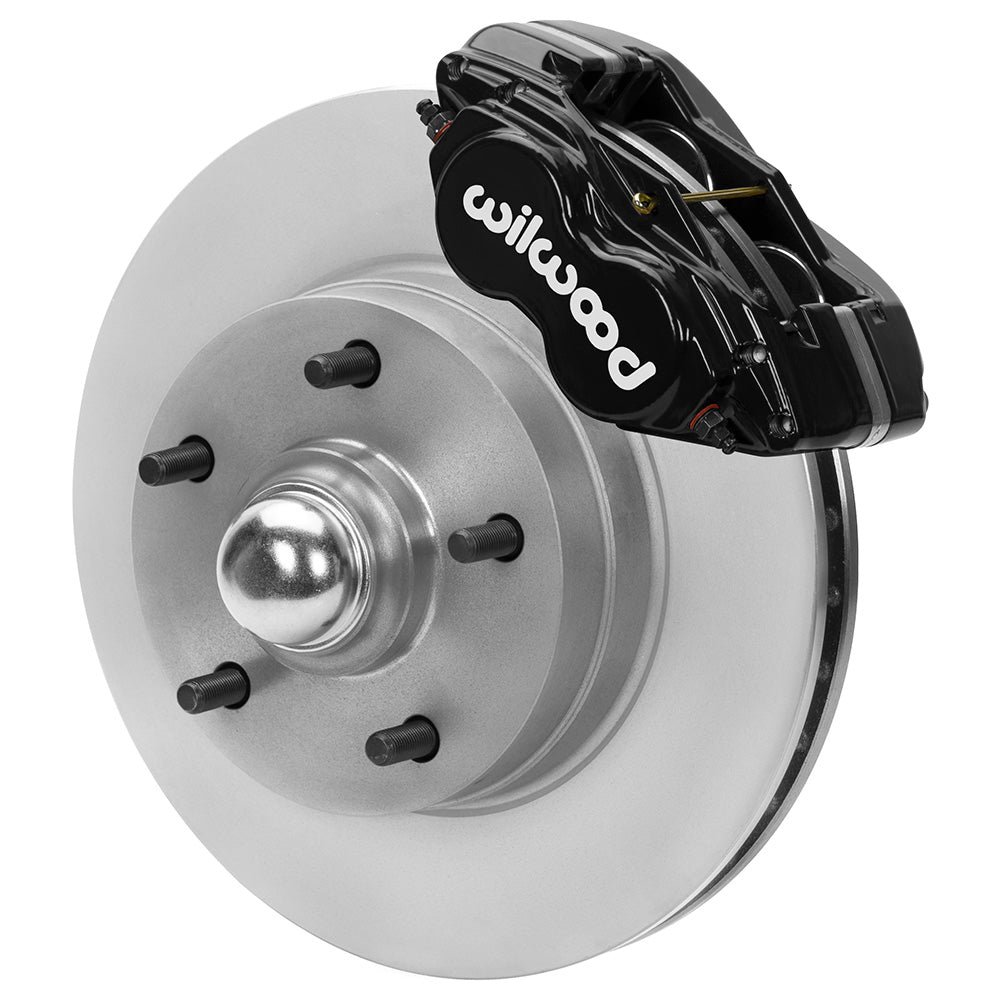

BRAND NEW WILWOOD CLASSIC SERIES BOLT-ON FRONT 11.00" DISC BRAKE KIT (PART #140-15980) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THIS FDL-M CLASSIC STYLE KIT IS DESIGNED FOR THE AFX PRO SPINDLES. AFX PRO SPINDLES FIT 1973-1977 GM A BODY, 1970-1981 GM F BODY, 1975-1979 GM X BODY, AND 1979-90 B-BODY (ORIGINALLY EQUIPPED WITH 11" ROTORS) VEHICLES. FDL-M CLASSIC STYLE KITS FEATURE 11.00", 1 PIECE IRON ROTOR AND HUB ASSEMBLIES, FORGED DYNALITE-M 4-PISTON CALIPERS TO DELIVER THE ULTIMATE COMBINATION FOR BRAKING POWER. BUILT EXCLUSIVELY FOR 15" AND LARGER WHEELS, FDL-M CLASSIC STYLE ENHANCE TIRE AND SUSPENSION UPGRADES ON STREET AND TRACK MACHINES.

NOTE: THESE BRAKE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

COMPATIBLE WITH:

• CADILLAC:
• 1976 SEVILLE WITH WILWOOD 2" DROP AFX PROSPINDLES
• CHEVROLET:
• 1970-1981 CAMARO WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1979-1990 CAPRICE (ORIGINALLY EQUIPPED WITH 11" ROTORS) WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1977 CHEVELLE WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1977 EL CAMINO WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1977-1985 IMPALA (ORIGINALLY EQUIPPED WITH 11" ROTORS) WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1976 LAGUNA WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1977 MALIBU WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1977 MONTE CARLO WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1975-1979 NOVA WITH WILWOOD 2" DROP AFX PROSPINDLES
• BUICK:
• 1975 APOLLO WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1977 CENTURY WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1977-1983 ESTATE WAGON (ORIGINALLY EQUIPPED WITH 11" ROTORS) WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1977-1985 LESABRE (ORIGINALLY EQUIPPED WITH 11" ROTORS) WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1977 REGAL WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1975-1979 SKYLARK WITH WILWOOD 2" DROP AFX PROSPINDLES
• GMC:
• 1973-1977 SPRINT WITH WILWOOD 2" DROP AFX PROSPINDLES
• OLDSMOBILE:
• 1977-1985 CUSTOM CRUISER (ORIGINALLY EQUIPPED WITH 11" ROTORS) WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1977 442 WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1977 CUTLASS WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1977 CUTLASS SUPREME WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1977-1985 DELTA 88 (ORIGINALLY EQUIPPED WITH 11" ROTORS) WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1975-1979 OMEGA WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1975 VISTA CRUISER WITH WILWOOD 2" DROP AFX PROSPINDLES
• PONTIAC:
• 1977-1981 BONNEVILLE WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1977-1981 CATALINA WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1970-1981 FIREBIRD WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1975 GRAND AM WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1977 GRAND PRIX WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973 GTO WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1973-1977 LEMANS WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1980-1986 PARISIENNE (ORIGINALLY EQUIPPED WITH 11" ROTORS) WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1977-1979 PHOENIX (ORIGINALLY EQUIPPED WITH 11" ROTORS) WITH WILWOOD 2" DROP AFX PROSPINDLES
• 1975-1977 VENTURA WITH WILWOOD 2" DROP AFX PROSPINDLES

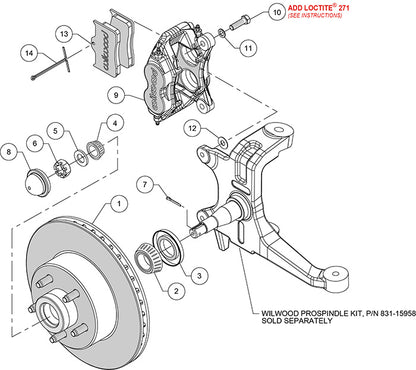

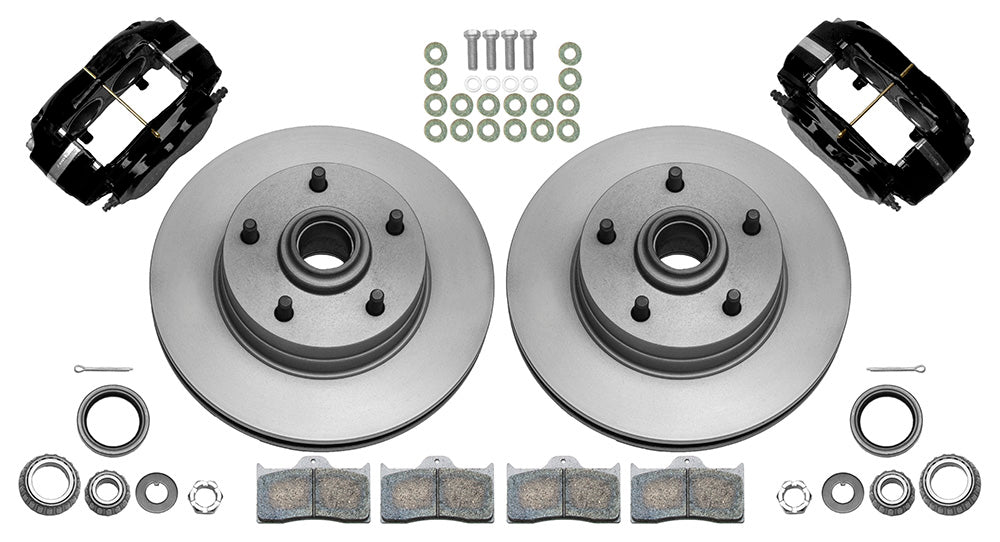

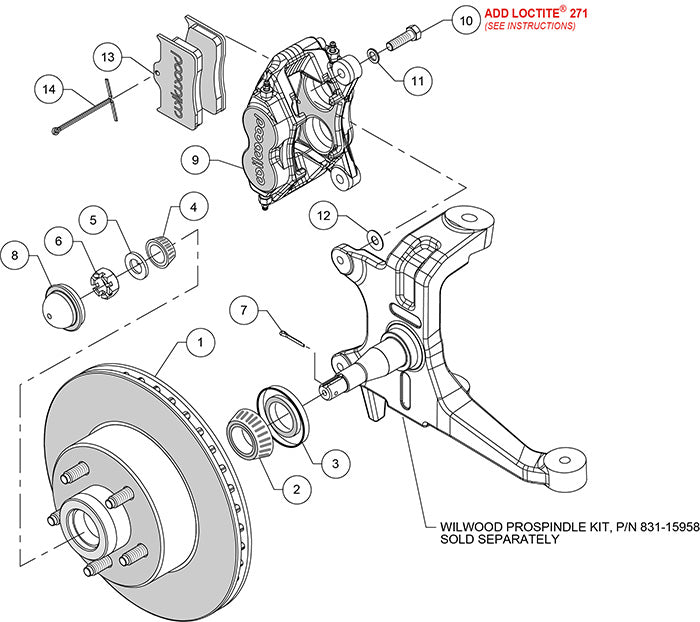

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.00" THICK X 11.00" O.D. 1-PIECE HUBS & ROTORS
• FORGED DYNALITE FDL-M 4 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• BEARINGS
• SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 58 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
