88-99 CHEVY C1500 FRONT DISC BRAKE KIT FOR WILWOOD DROP SPINDLES,13" DRILLED,BLK

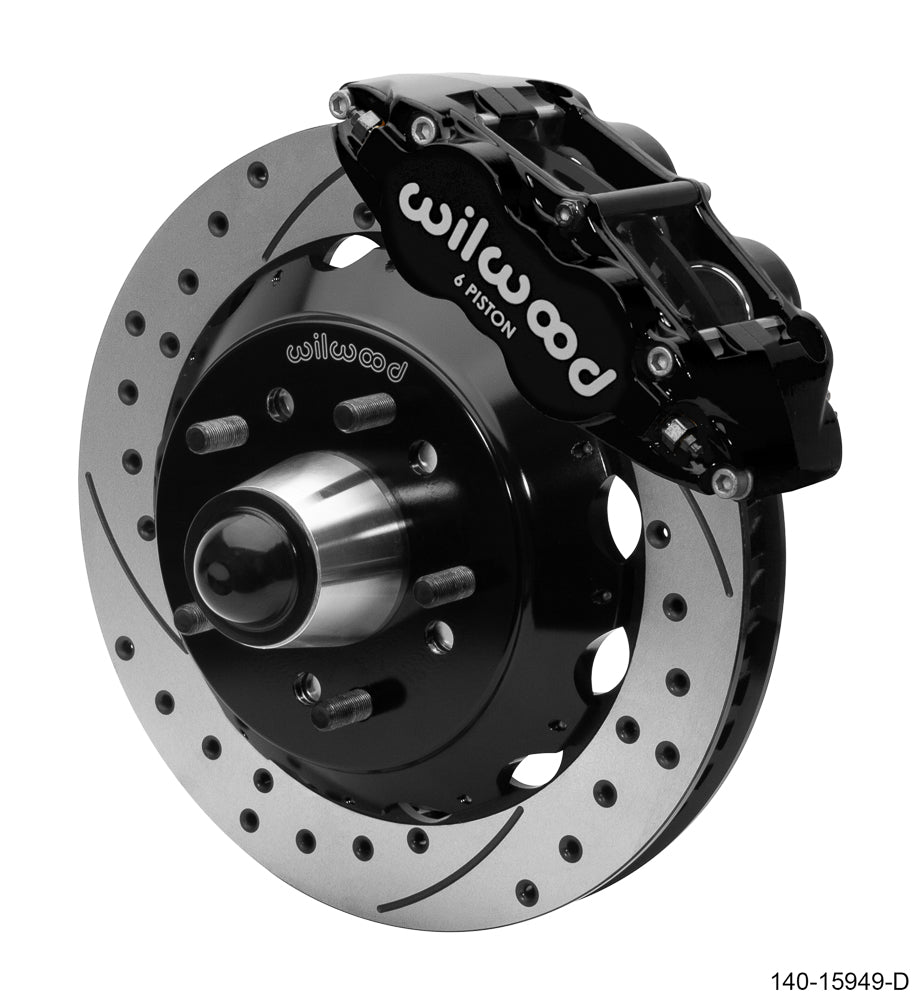

Brand New Wilwood Superlite Brake Kit Featuring 13.06" Drilled Rotors with Black Calipers For Both Front Wheels (Part #140-15949-D).

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13” big rotor kits for the popular 1988 thru 1998 Chevrolet & GMC C1500 & C2500 Trucks using Wilwood’s new 1 Piece Iron Drop Pro Spindles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show trucks and high performance street or track applications. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application. This kit contains hubs with 5 x 4.75” and 5 x 5.00” bolt circles.

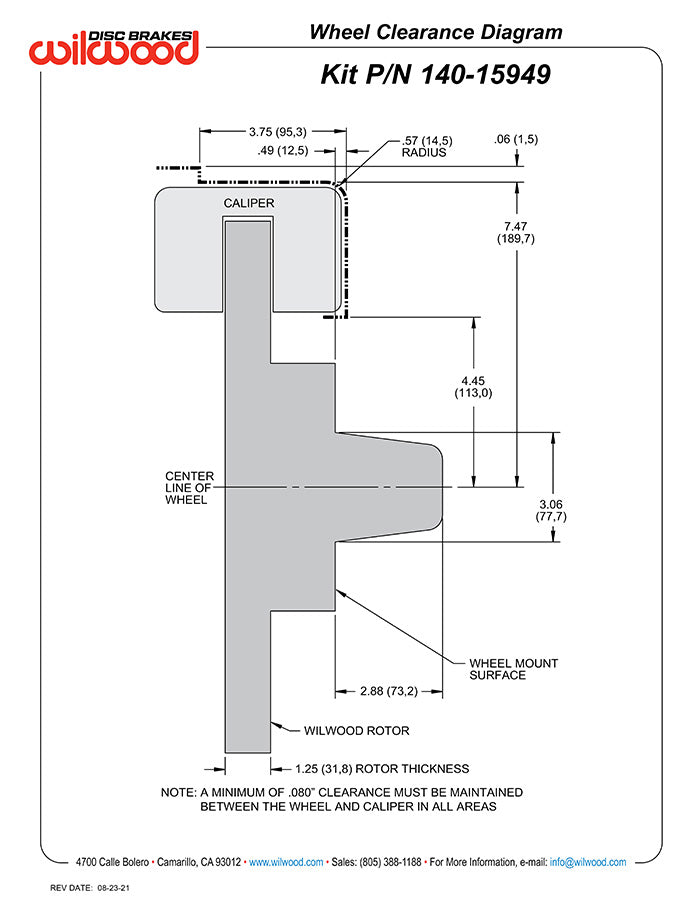

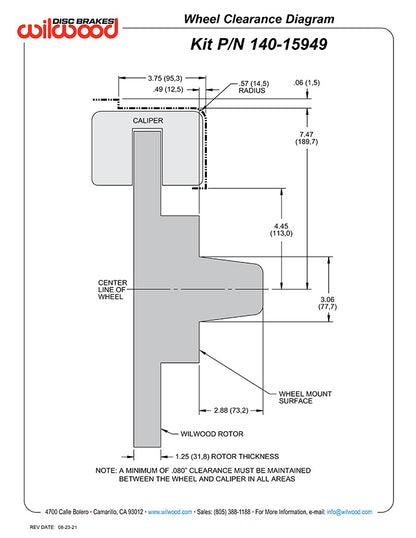

NOTE: This kit fits the following vehicles ONLY when used with the Wilwood ProSpindles. 2" drop spindles are available here. This kit require at least 17" diameter wheels. Check wheel clearance diagram for proper fitment. Axle offset +0.04.

• Chevrolet:

  • 1988-1999 C1500 Pickup using Wilwood Iron ProSpindles

  • 1992-1999 C1500 Suburban Vehicles using Wilwood Iron ProSpindles

  • 1996-2002 Express 1500 Vehicles using Wilwood Iron ProSpindles

  • 1995-1999 Tahoe Vehicles using Wilwood Iron ProSpindles

• GMC:

  • 1988-1999 C1500 Pickup Vehicles using Wilwood Iron ProSpindles

  • 1992-1999 C1500 Suburban Vehicles using Wilwood Iron ProSpindles

  • 1996-2002 Savana 1500 Vehicles using Wilwood Iron ProSpindles
  • 1995-1999 Yukon Vehicles using Wilwood Iron ProSpindles

• Wilwood

  • Wilwood Iron Pro Spindles, 5 & 6 Lug

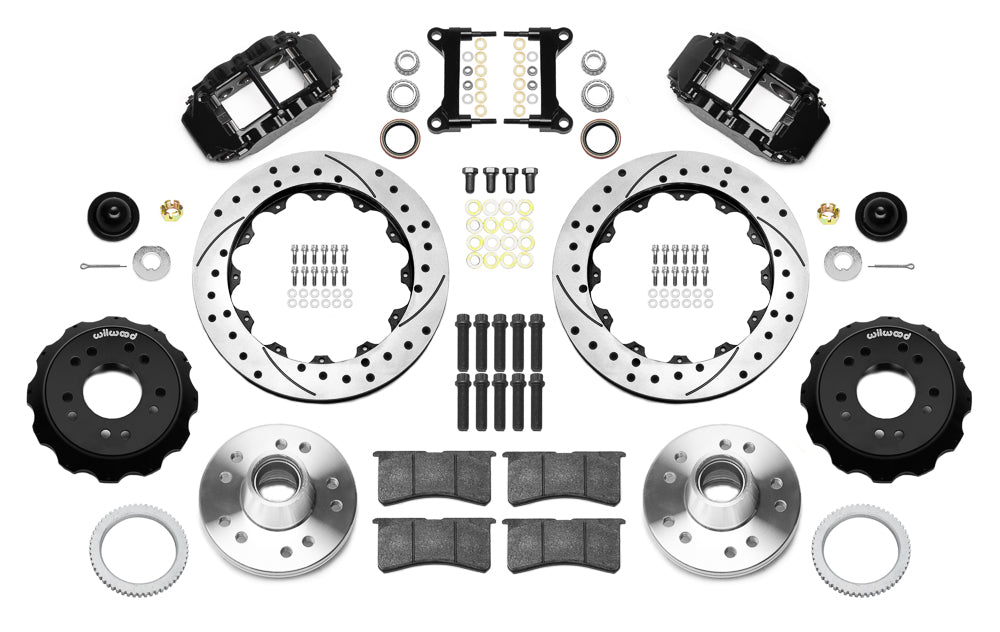

Kit includes:

• 6 Piston Superlite Calipers

• BP-20 Compound Brake Pads

• 13.06" O.D. x 1.25" Thick Rotors

• Rotor Hat
• Hub - Hat Mount
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 64 lbs.

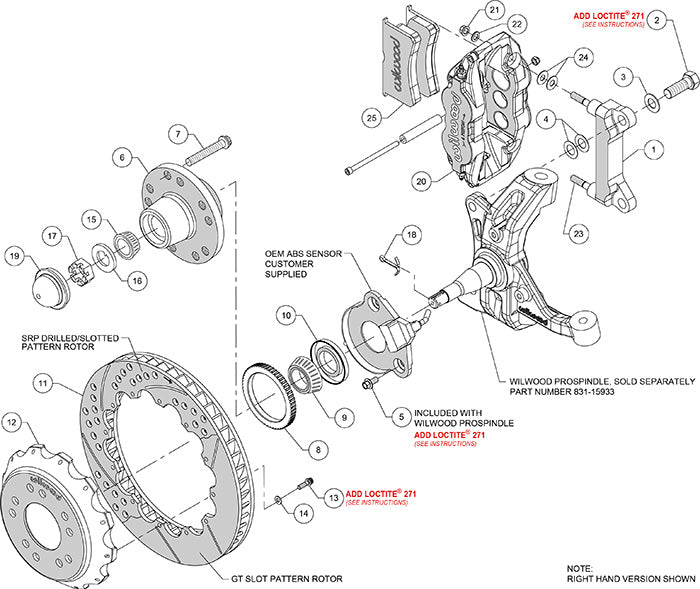

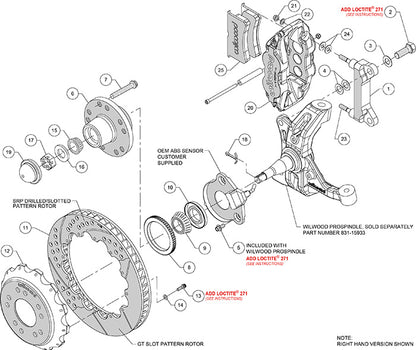

You can view and download the assembly/instruction booklet here.
