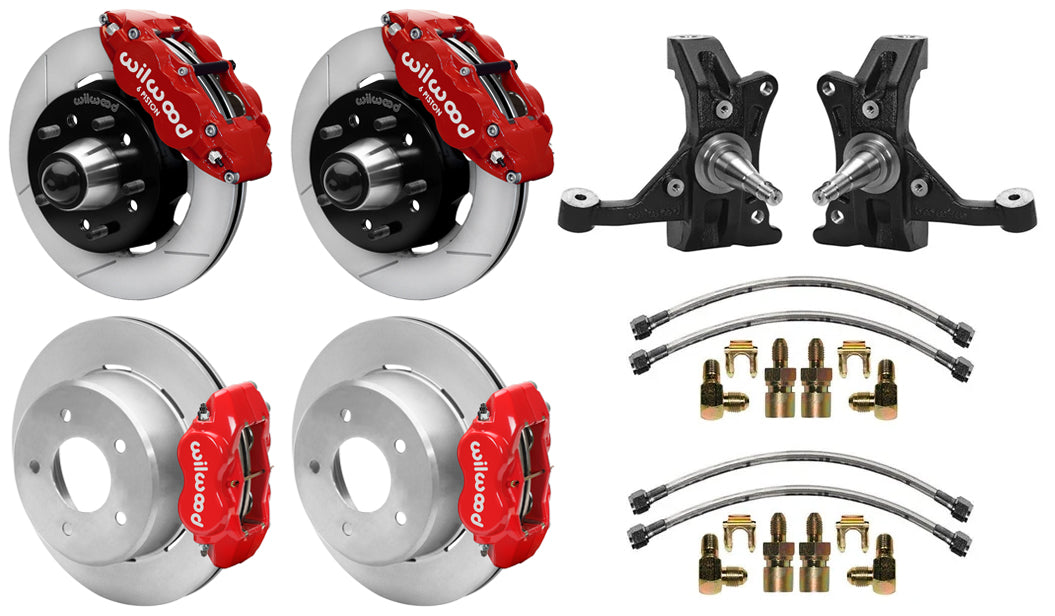

88-99 CHEVY C1500 FULL DISC BRAKE KIT & WILWOOD DROP SPINDLES,12" ROTORS,RED

Brand New Wilwood Big Brake Bolt-On Front & Rear Disc Brake Kit with 2" Drop ProSpindles.

Complete Kit Includes:

• 6 Piston, Bolt-On 12.19" Disc Brake Kit (Part #140-15948-R) for Both Front Wheels
• Forged 2" Drop ProSpindles with Steering Arms (Part #831-15933) for Both Front Wheels

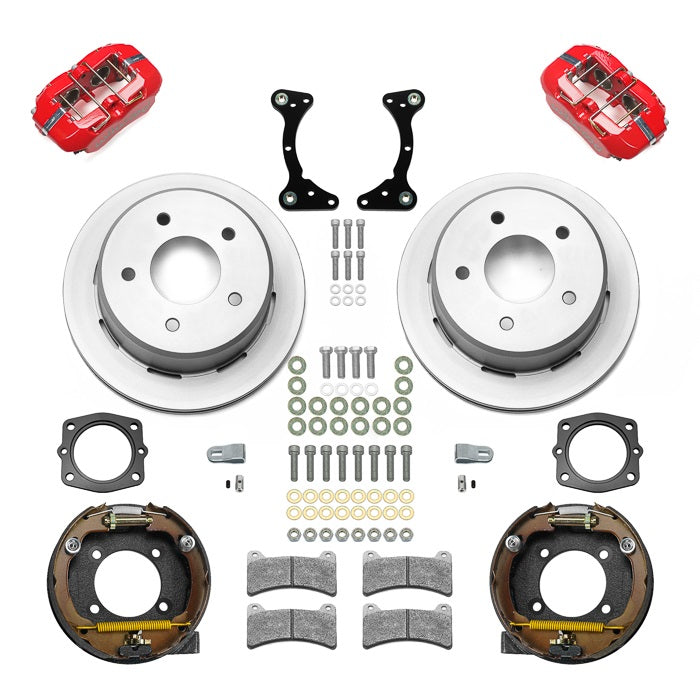

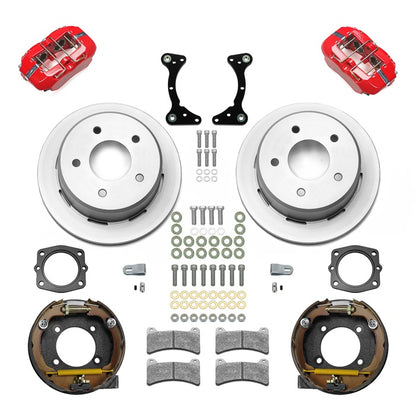

• 4 Piston, Bolt-On 12.19" Disc Brake Kit with Parking Brake Assemblies (Part #140-17541-R) for Both Rear Wheels
• Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

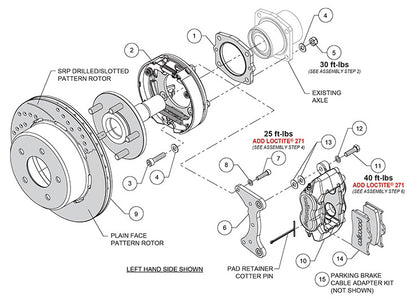

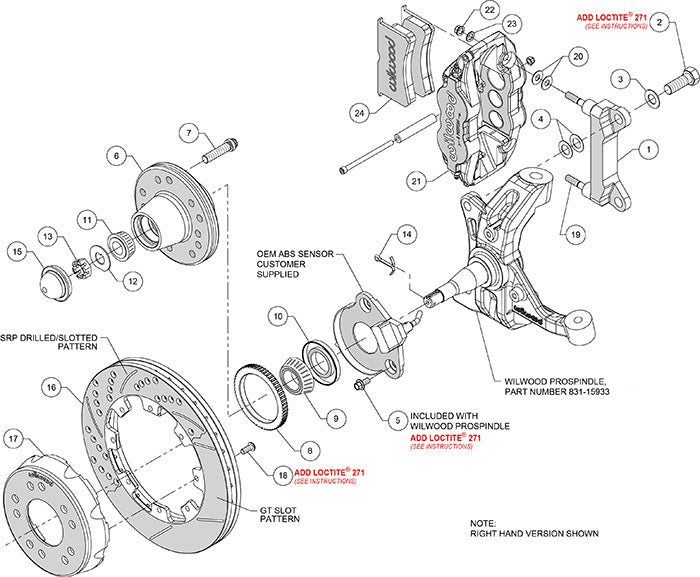

See the list & diagrams below for a detail of the parts included.

Compatible with:

• Chevrolet:
• 1988-1998 C1500 Pickup 2WD with 1988-1998 C1500 Rear Axle Flange & 5-Lug Rear
• GMC:
• 1988-1998 C1500 Pickup 2WD with 1988-1998 C1500 Rear Axle Flange & 5-Lug Rear

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this 12.19” big rotor kit for the popular 1988 thru 1998 Chevrolet & GMC C1500 Trucks using Wilwood's new 1 Piece Iron Drop Pro Spindles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application. This kit contains hubs with 5 x 4.75” and 5 x 5.00” bolt circle.

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Wilwood's C1500 Steel ProSpindle Kits contain a pair of one piece spindles and integrated steering arms for Chevrolet & GMC 2WD C1500 Pickups, Tahoes/Yukons and Suburbans. Specifically designed for use with Wilwood's disc brake kits and with a 2.00” drop without affecting steering geometry. Constructed from a proprietary grade of cast steel with a traditional bearing snout that supports Wilwood kit specific hubs in both 5 x 4.75” and 5 x 5.00” wheel bolt circles.

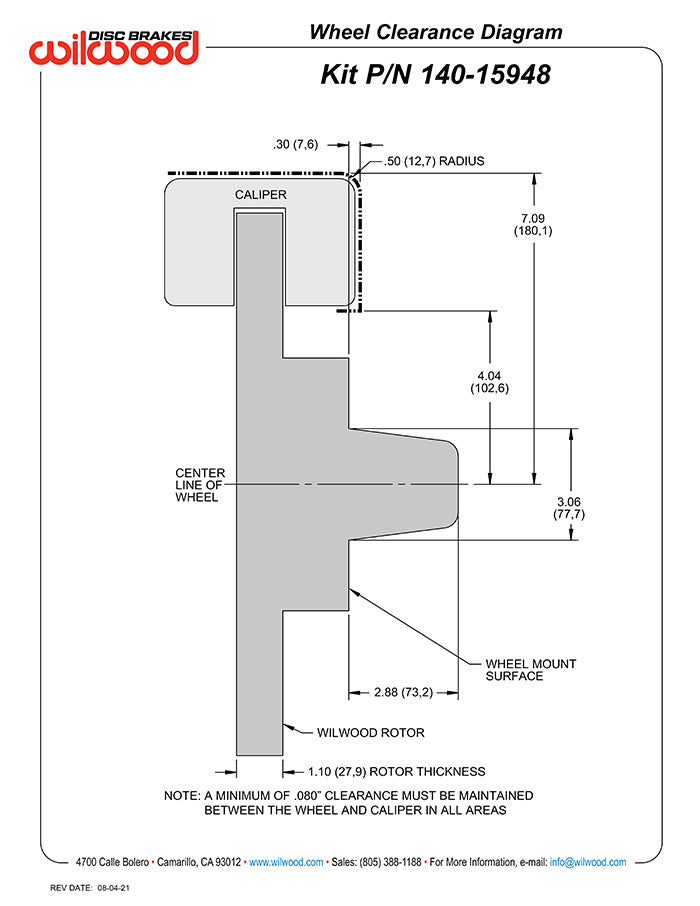

These Brake kits require at least 16" diameter wheels.

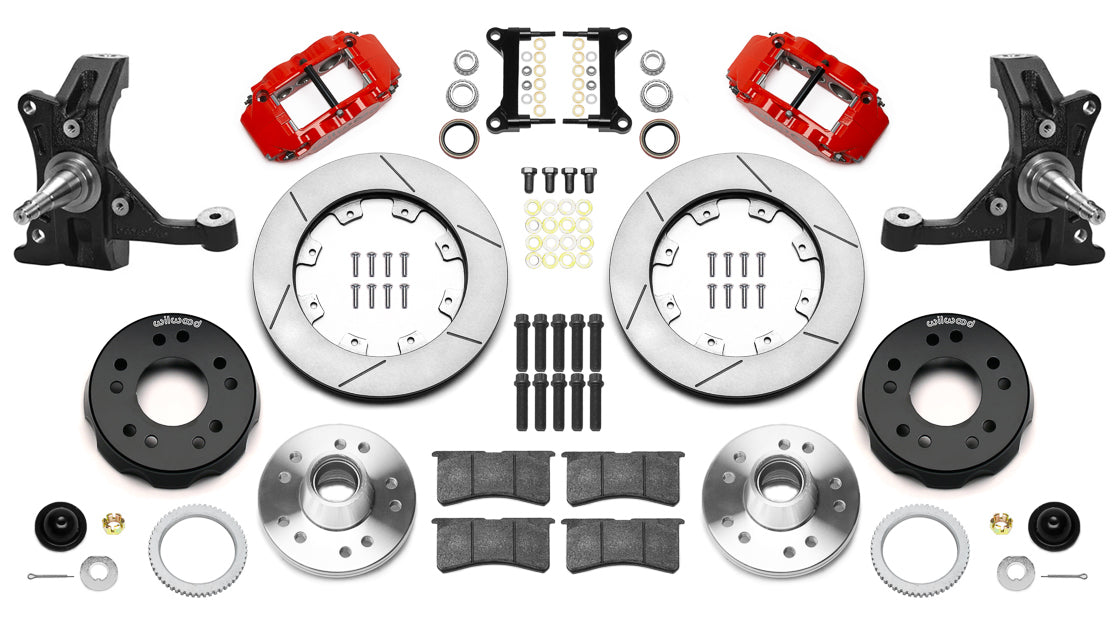

Kit includes parts for both front wheels:

• 2" Drop ProSpindles
• 1.10" Thick x 12.19" O.D. Rotors & Hats
• Forged Narrow Superlite 6R 6 Piston Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs, Bearings, Seals
• All necessary hardware to install the complete braking system on both front wheels

Complete kit weighs approximately 155 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
