63-70 CHEVY C10 FRONT DISC BRAKE KIT & WILWOOD IRON DROP SPINDLES,13" ROTORS,BLK

BRAND NEW WILWOOD PREMIUM BIG BRAKE SUPERLITE BOLT-ON FRONT 13" DISC BRAKE KIT (PART #140-15941-D) WITH WILWOOD 2 1/2" DROP CAST STEEL PRO SPINDLES (PART #831-15931).

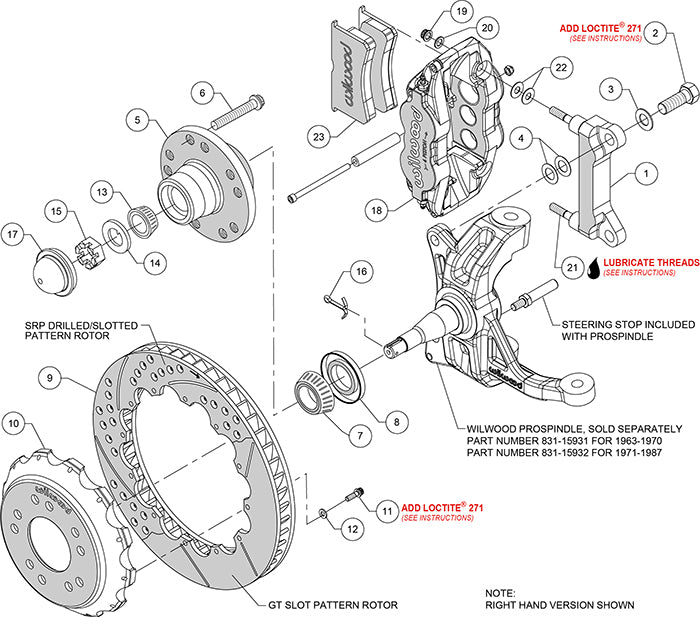

SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED WITH THIS BRAKE KIT.

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

• 1963-1970 CHEVY C10 AND GMC C15 2WD TRUCKS AND SUBURBANS

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THE UNSURPASSED BRAKING CAPACITY OF THE FORGED NARROW SUPERLITE 6R SIX-PISTON CALIPER SERVES AS THE BASE OF THIS 13" BIG ROTOR KIT WITH WILWOODS NEW 1 PIECE IRON DROP PRO SPINDLES. SL6 KITS ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED. BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES. THIS KIT CONTAINS HUBS WITH 5 X 4.75" AND 5 X 5.00" BOLT CIRCLE

WILWOODS C10 STEEL PROSPINDLE KITS CONTAIN A PAIR OF ONE PIECE SPINDLES AND INTEGRATED STEERING ARMS FOR CHEVROLET & GMC 2WD C10/C15 PICKUPS AND SUBURBANS. SPECIFICALLY DESIGNED FOR USE WITH THESE WILWOODS DISC BRAKE KITS AND WITH A 2.50" DROP FOR A MORE AGGRESSIVE STANCE WITHOUT AFFECTING STEERING GEOMETRY. CONSTRUCTED FROM A PROPRIETARY GRADE OF CAST STEEL WITH A TRADITIONAL BEARING SNOUT TO SUPPORT THE LARGE BRAKES.

THESE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

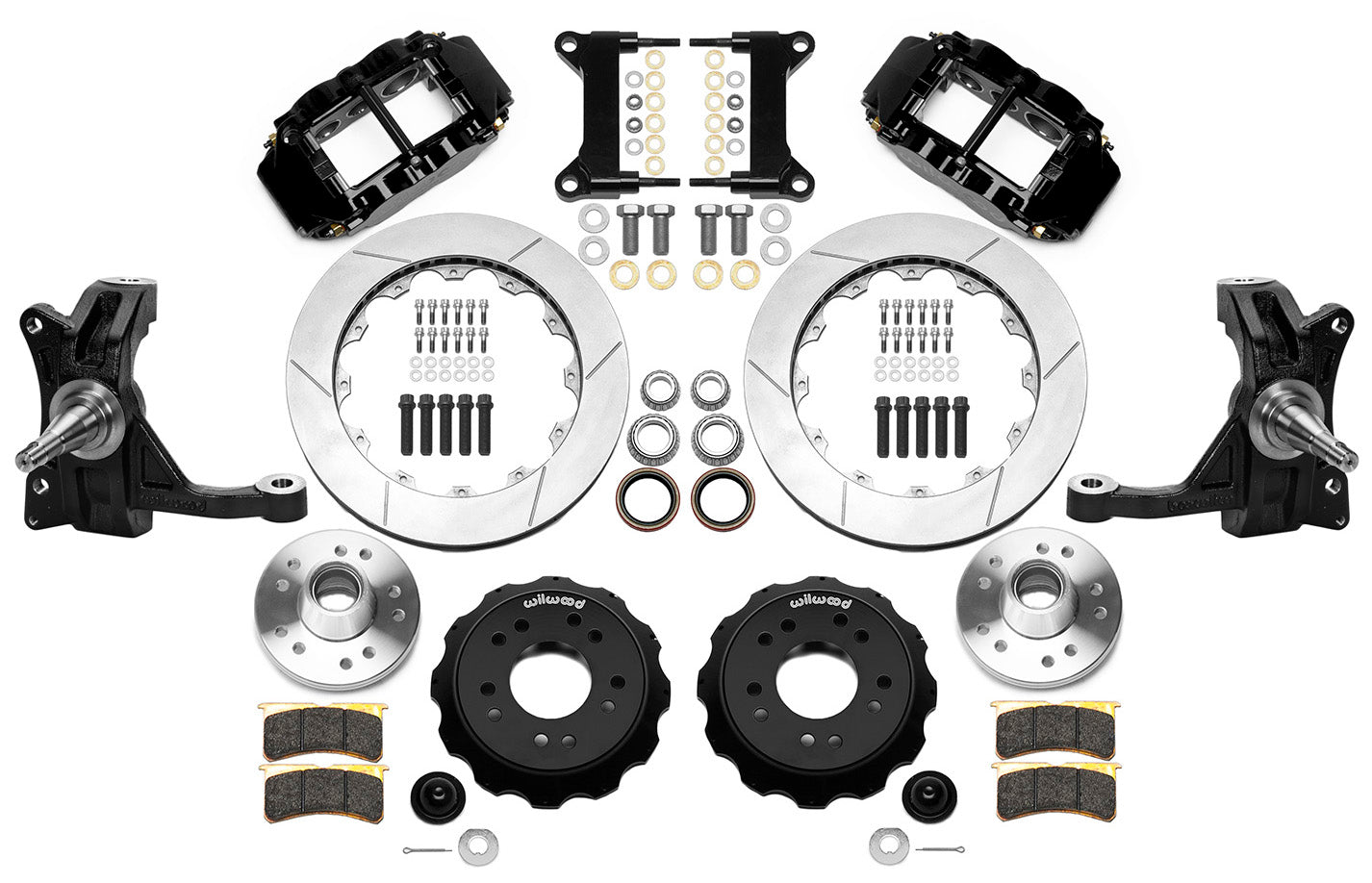

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• WILWOOD 2 1/2" DROP SPINDLES
• 1.25" THICK X 13.06" O.D. ROTORS
• FORGED NARROW SUPERLITE 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-20 SMART COMPOUND BRAKE PADS
• BRAKE HATS, HUBS, BEARINGS, SEALS
• ALL BOLTS, WASHERS, AND SHIMS NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 99 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
