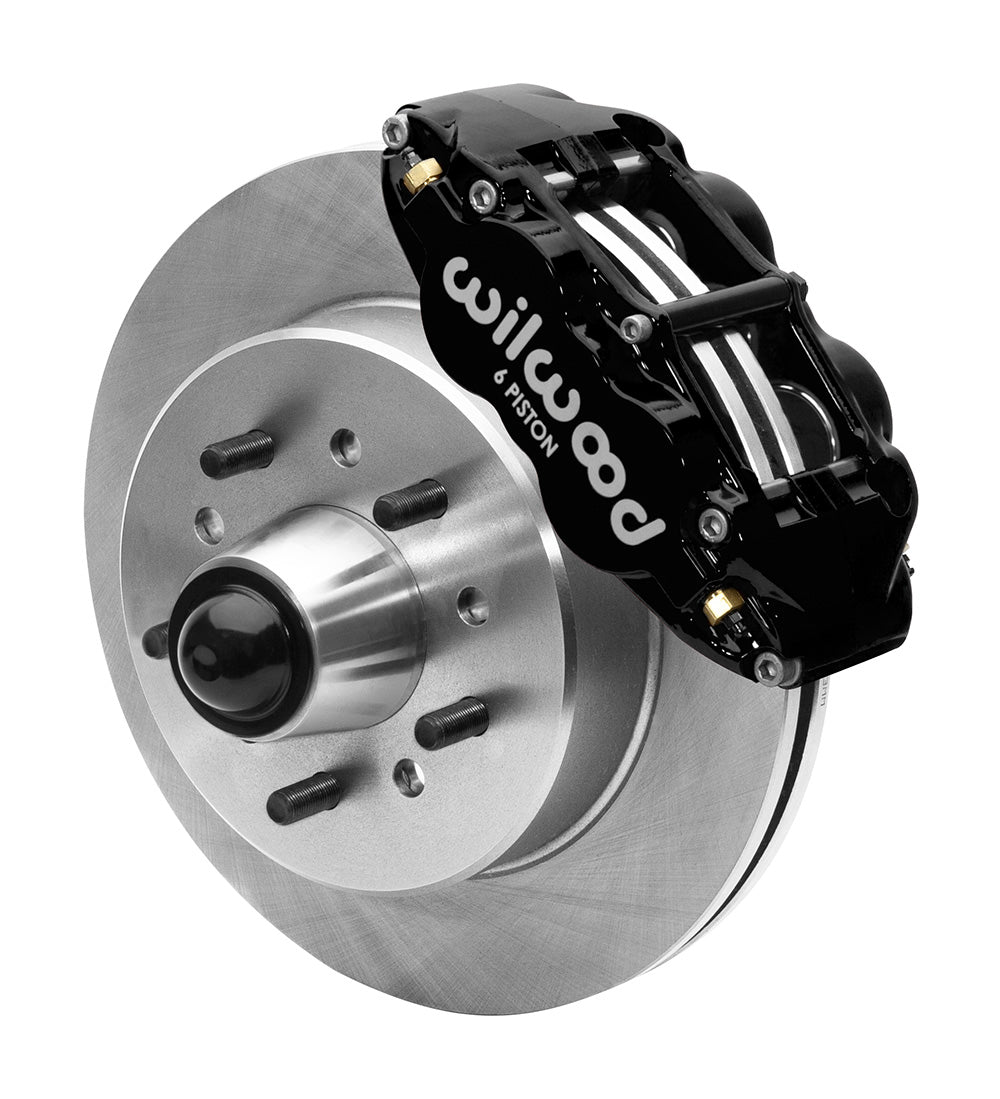

63-87 CHEVY C10 FRONT DISC BRAKE KIT FOR WILWOOD IRON SPINDLES,12" ROTORS,BLACK

BRAND NEW WILWOOD FORGED NARROW SUPERLITE 6R BIG BRAKE FRONT 12.19" DISC BRAKE KIT (PART #140-15940) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THE UNSURPASSED BRAKING CAPACITY OF THE FORGED NARROW SUPERLITE 6R SIX-PISTON CALIPER SERVES AS THE BASE OF THIS 12.19" BIG ROTOR KIT FOR THE POPULAR 1963 THRU 1987 CHEVROLET & GM C10 / C15 TRUCKS WITH WILWOODS NEW 1 PIECE IRON DROP PRO SPINDLES. SL6 KITS ARE ENGINEERED APPLICATION SPECIFIC FOR SIMPLIFIED INSTALLATION AND FULL COMPATIBILITY WITH OE MASTER CYLINDER OUTPUT AND ABS FUNCTIONS WHERE USED. BIG BRAKE KITS PROVIDE INCREASED BRAKE CAPACITY AND COMPLIMENTARY STYLE WITH WHEEL, TIRE, AND SUSPENSION UPGRADES. OPTIONAL CALIPER FINISHES AND ROTOR DESIGNS SIMPLIFY PERSONALIZING THE STYLE AND BRAKING REQUIREMENTS OF ANY APPLICATION. THIS KIT CONTAINS HUBS WITH 5 X 4.75" AND 5 X 5.00" BOLT CIRCLE.

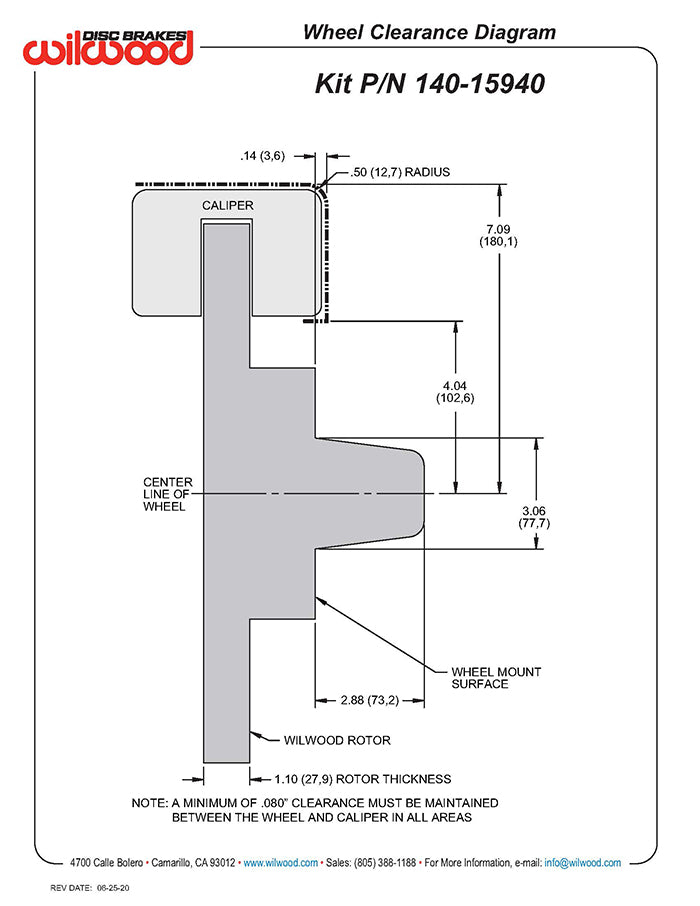

NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.

NOTE: THIS BRAKE KIT FITS THE FOLLOWING VEHICLES ONLY WHEN USED WITH THESE WILWOOD 2.5" DROP PROSPINDLES:

• 1963-1970 C10 / C15 2.5" DROP PROSPINDLES
• 1971-1987 C10 / C15 2.5" DROP PROSPINDLES

COMPATIBLE WITH:

• CHEVROLET:
• 1963-1986 C10 PICKUP, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• 1987 R10 PICKUP, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• 1963-1967 C10 PANEL, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• 1963-1966 SUBURBAN, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• 1967-1986 C10 SUBURBAN, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• 1987 R10 SUBURBAN, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• 1970-1982 BLAZER, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• GMC:
• 1963-1966 1000, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• 1967-1986 C15/C1500 PICKUP, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• 1987 R1500 PICKUP, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• 1963-1966 SUBURBAN, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• 1967-1986 C15/1500 SUBURBAN, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• 1987 R1500 SUBURBAN, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES
• 1970-1982 JIMMY, 2WD WITH WILWOOD 2.5" DROP PROSPINDLES

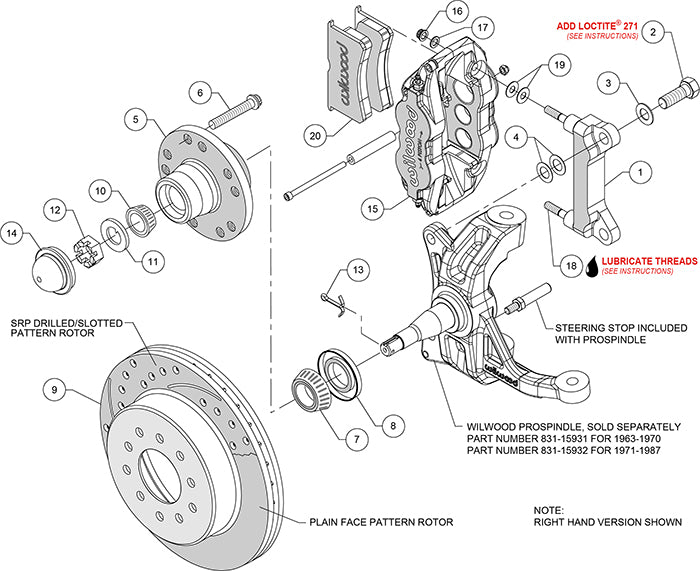

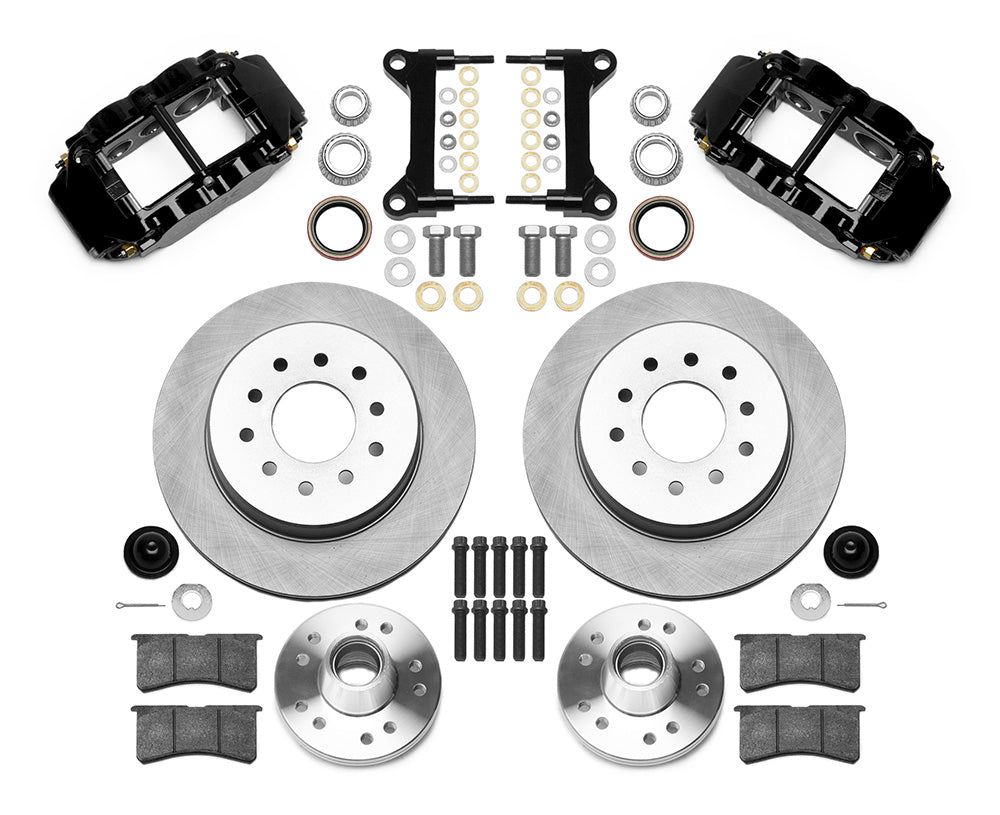

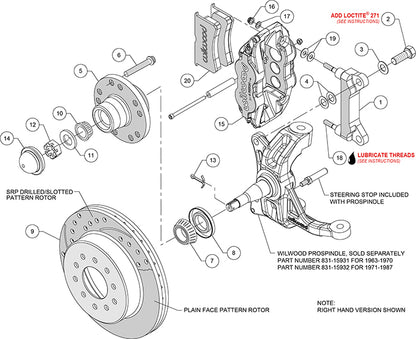

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• 1.10" THICK X 12.19" O.D. 1-PIECE ROTORS & HATS
• FORGED NARROW SUPERLITE 6R 6 PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HUBS, BEARINGS, SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 70 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
