64-74 GM FRONT DISC BRAKE KIT FOR WILWOOD PRO SPINDLES,13" DRILLED ROTORS,RED

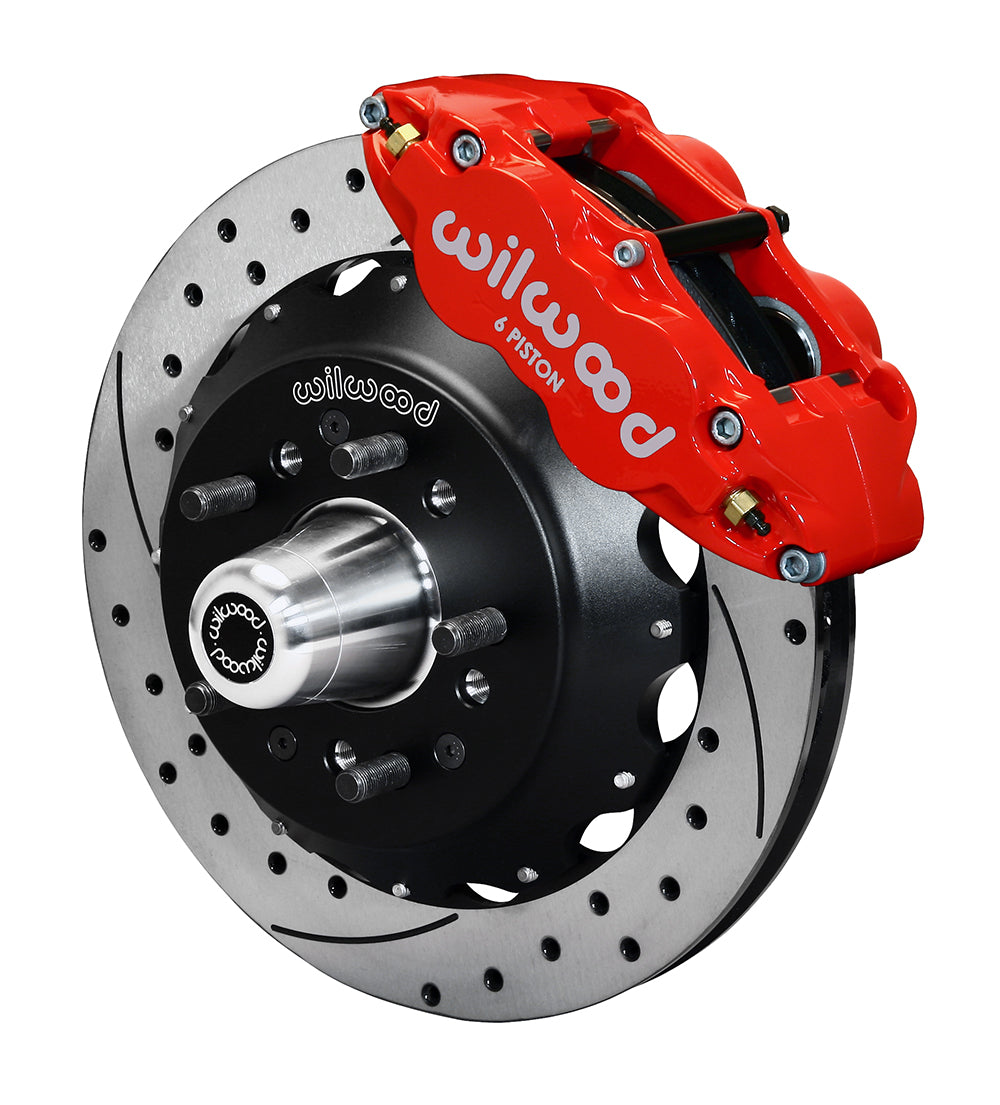

BRAND NEW WILWOOD FORGED NARROW SUPERLITE 6R BIG BRAKE BOLT-ON FRONT HUB & 12.88" DISC BRAKE KIT (PART #140-15910-DR) FOR BOTH FRONT WHEELS.

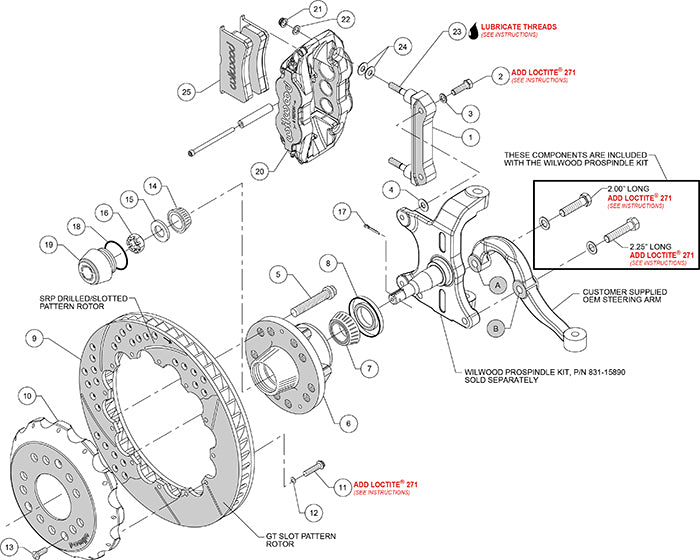

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED RED CALIPERS.

FITS:

• CHEVROLET:
• 1967-1969 CAMARO
• 1964-1972 CHEVELLE
• 1964-1972 EL CAMINO
• 1968-1974 CHEVY II / NOVA
• 1970-1972 MONTE CARLO

• BUICK:
• 1973-1974 APOLLO
• 1965-1972 GS / GRAN SPORT
• 1964-1972 SKYLARK
• 1964-1969 SPECIAL
• 1964-1972 SPORTWAGON

• GMC:
• 1971-1972 SPRINT TRUCK

• OLDSMOBILE:
• 1964-1971 442
• 1964-1972 CUTLASS / CUTLASS SUPREME
• 1964-1972 F85
• 1973-1974 OMEGA
• 1964-1972 VISTA CRUISER

• PONTIAC:
• 1967-1971 ACADIAN
• 1964-1969 BEAUMONT
• 1967-1969 FIREBIRD
• 1969-1972 GRAND PRIX
• 1964-1972 GTO
• 1967-1972 LEMANS
• 1964-1970 TEMPEST
• 1971-1974 VENTURA

• THIS BRAKE KIT IS DESIGNED TO BE USED ONLY WITH THESE SPINDLES:
• WWE AFX PRO SPINDLES

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FNSL6R BILLET FORGED SIX-PISTON CALIPERS WITH 12.88" ROTORS DELIVER THE ULTIMATE COMBINATION FOR BRAKING POWER AND STYLE RE DESIGNED FOR THE WWE AFX PRO SPINDLES. AFX PRO SPINDLES FIT 1964-1972 GM A BODY, 1967-1969 GM F BODY, 1968-1974 GM X BODY VEHICLES AND ARE BUILT EXCLUSIVELY FOR 17" AND LARGER WHEELS, FNSL6R KITS USED WITH WWE AFX PRO SPINDLES ENHANCE TIRE AND SUSPENSION UPGRADES ON ALL TYPES OF CUSTOM SHOW AND HIGH PERFORMANCE DUAL-PURPOSE STREET AND TRACK MACHINES. A FULL RANGE OF OPTIONS FOR CALIPER FINISHES AND ROTOR DESIGNS ARE GUARANTEED TO CATCH THE EYE OF THE MOST DISCRIMINATING ENTHUSIAST WHILE PROVIDING OPTIMIZED BRAKE PERFORMANCE FOR EVERY INDIVIDUAL APPLICATION.

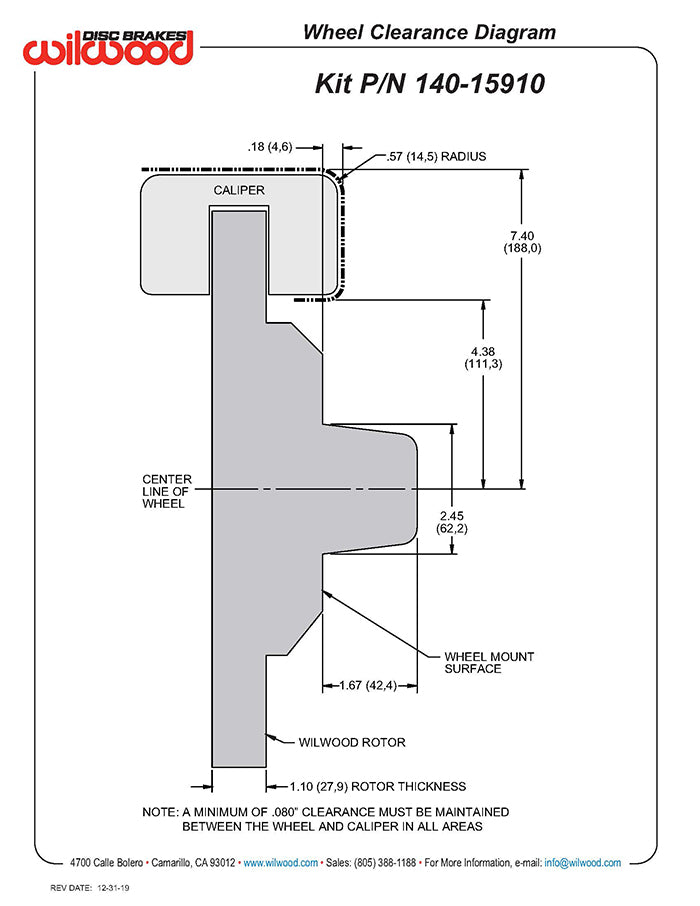

THESE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

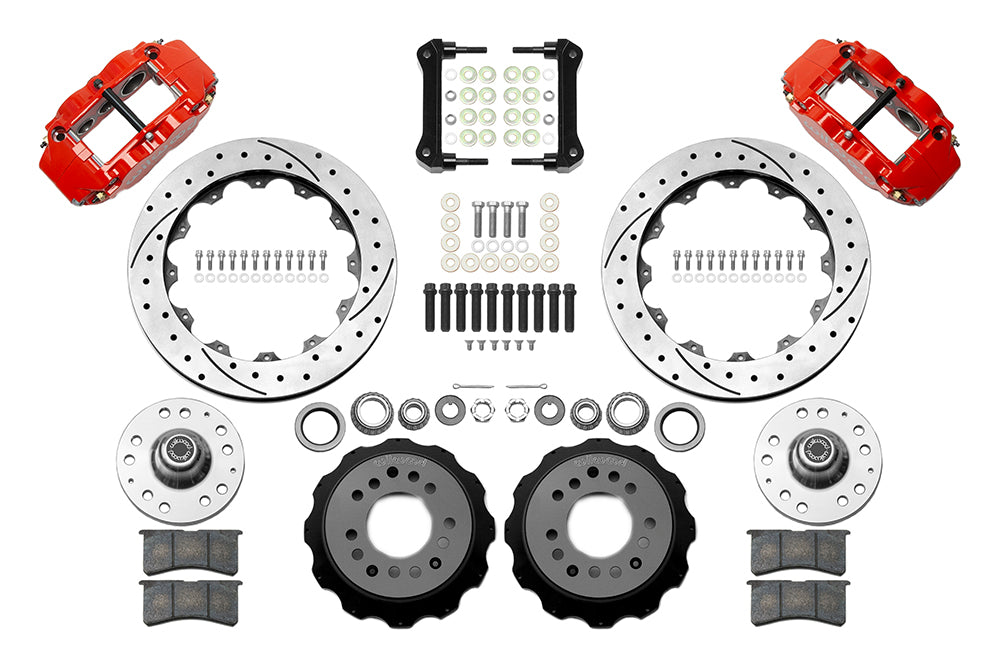

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, 1.10" THICK X 12.88" O.D. ROTORS
• FORGED NARROW SUPERLITE 6R CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-20 SMART COMPOUND BRAKE PADS
• HUBS
• BEARINGS
• SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 57 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
