64-74 GM FRONT DISC BRAKE KIT FOR WILWOOD PRO SPINDLES,11.75" DRILLED ROTORS,BLK

BRAND NEW WILWOOD DYNAPRO RADIAL BIG BRAKE BOLT-ON FRONT HUB & 11.75" DISC BRAKE KIT (PART #140-15909-D) FOR BOTH FRONT WHEELS.

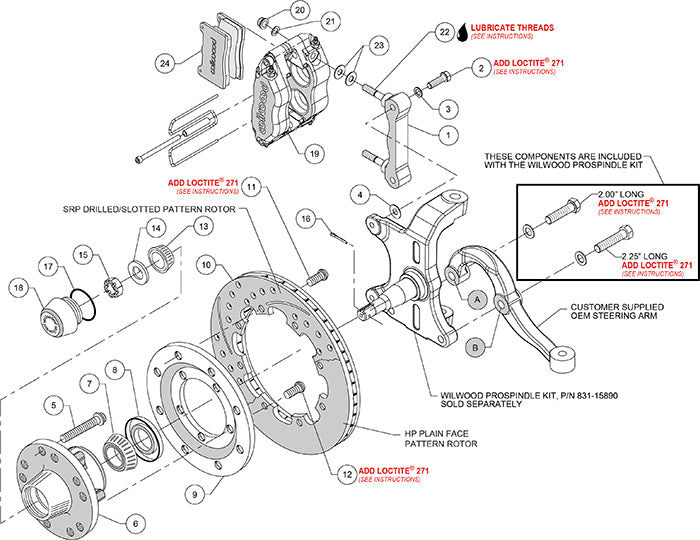

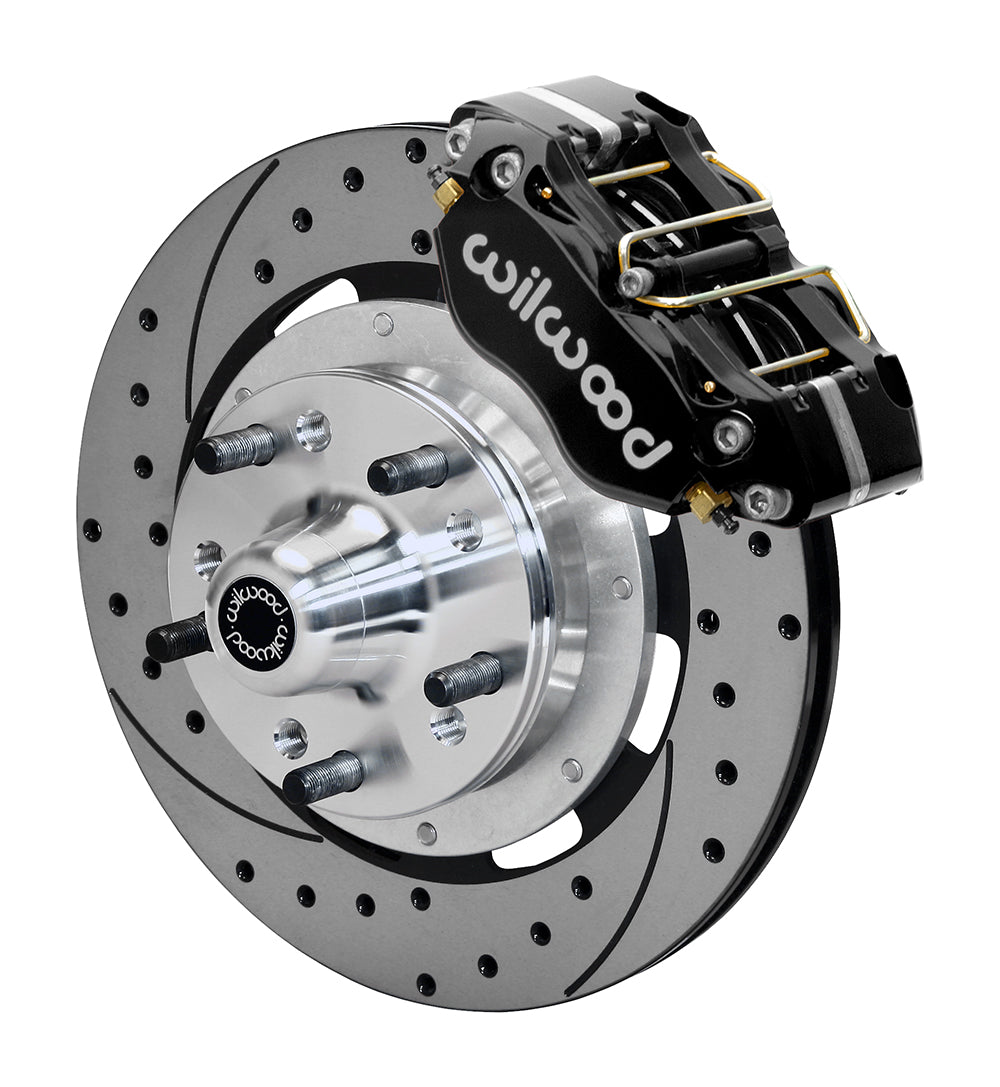

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES DRILLED & SLOTTED ROTORS, AS WELL AS POWDER-COATED BLACK CALIPERS.

FITS:

• CHEVROLET:
• 1967-1969 CAMARO
• 1964-1972 CHEVELLE
• 1964-1972 EL CAMINO
• 1968-1974 CHEVY II / NOVA
• 1970-1972 MONTE CARLO

• BUICK:
• 1973-1974 APOLLO
• 1965-1972 GS / GRAN SPORT
• 1964-1972 SKYLARK
• 1964-1969 SPECIAL
• 1964-1972 SPORTWAGON

• GMC:
• 1971-1972 SPRINT TRUCK

• OLDSMOBILE:
• 1964-1971 442
• 1964-1972 CUTLASS / CUTLASS SUPREME
• 1964-1972 F85
• 1973-1974 OMEGA
• 1964-1972 VISTA CRUISER

• PONTIAC:
• 1967-1971 ACADIAN
• 1964-1969 BEAUMONT
• 1967-1969 FIREBIRD
• 1969-1972 GRAND PRIX
• 1964-1972 GTO
• 1967-1972 LEMANS
• 1964-1970 TEMPEST
• 1971-1974 VENTURA

• THIS BRAKE KIT IS DESIGNED TO BE USED ONLY WITH THESE SPINDLES:
• WWE AFX PRO SPINDLES

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

THIS NDPR BIG BRAKE KIT IS DESIGNED FOR THE WWE AFX PRO SPINDLES. AFX PRO SPINDLES FIT 1964-1972 GM A BODY, 1967-1969 GM F BODY, 1968-1974 GM X BODY VEHICLES. NDPR BRAKE KITS FEATURE ALUMINUM HUB ASSEMBLIES, FORGED NARROW DYNAPRO 4-PISTON CALIPERS AND TWO PIECE 11.75" SRP DRILLED OR HD PLAIN FACE ROTORS WITH ALUMINUM ROTOR ADAPTERS TO DELIVER THE ULTIMATE COMBINATION FOR BRAKING POWER. BUILT EXCLUSIVELY FOR 15" AND LARGER WHEELS, NDPR KITS ENHANCE TIRE AND SUSPENSION UPGRADES ON STREET AND TRACK MACHINES.

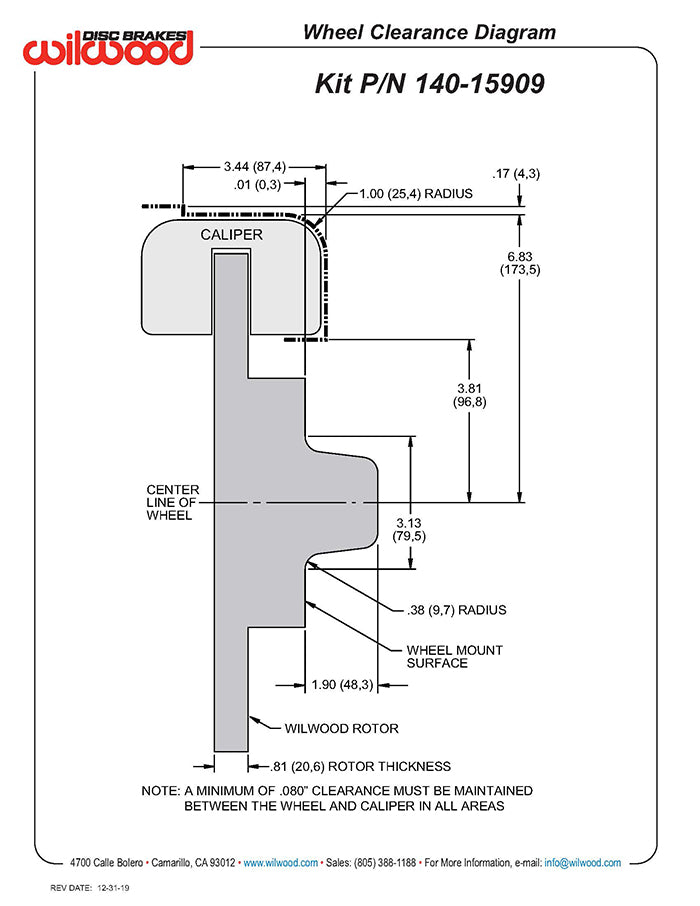

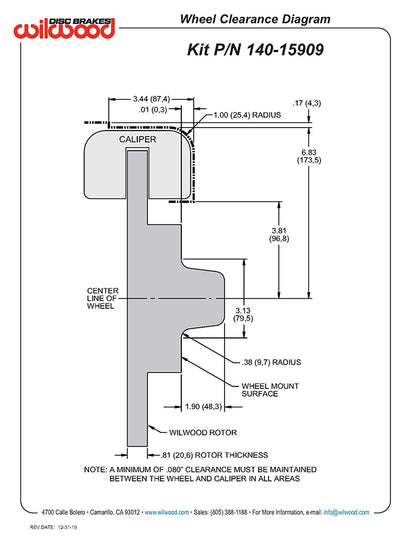

THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

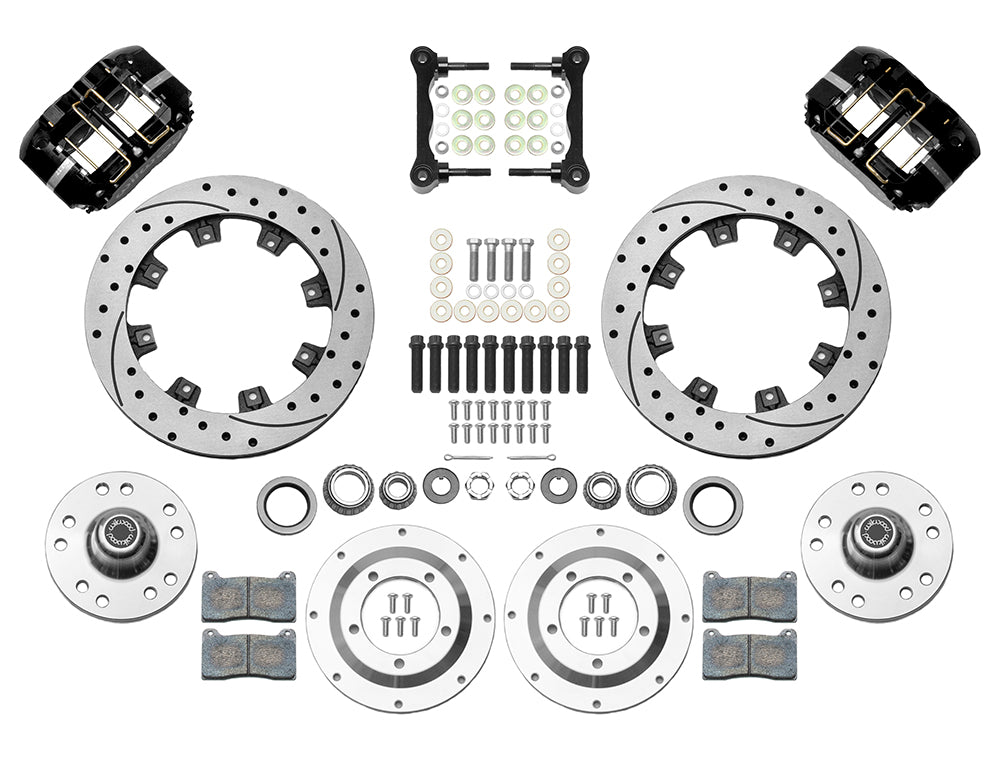

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, 0.81" THICK X 11.75" O.D. ROTORS
• FORGED NARROW DYNAPRO 4-PISTON CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HUBS
• BEARINGS
• SEALS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 42 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
