18-21 WRANGLER JL FULL DISC BRAKE KIT,14" ROTORS,RED CALIPERS

Brand New Wilwood Complete Premium Big Brake 14" Front and Rear Disc Brake Kit.

Complete Kit Includes:

• Aero 6 Piston Bolt-On Front Hat & 14.00" Disc Brake Kit (Part #140-15892-R) for Both Front Wheels
• Superlite 4 Piston Bolt-On Rear Hat & 14.00" Disc Brake Kit (Part #140-15930-R) for Both Rear Wheels
• Full Line Kit for the Front with Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

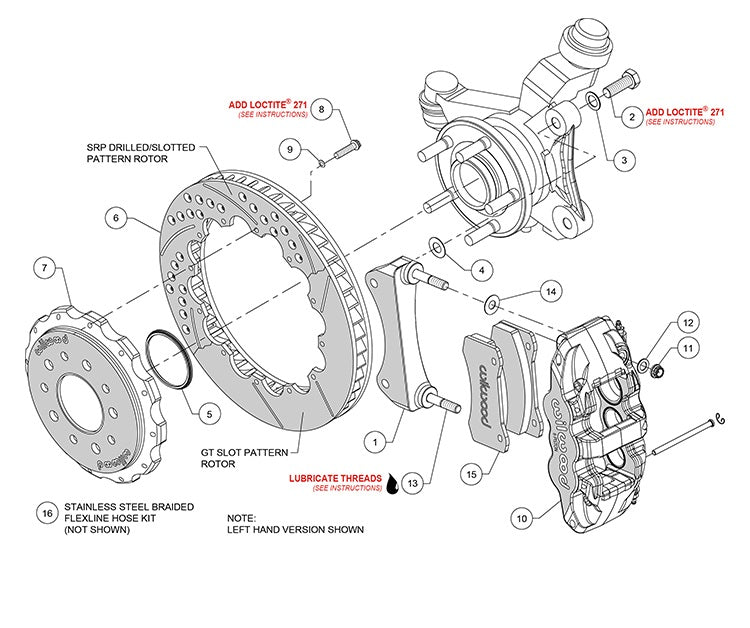

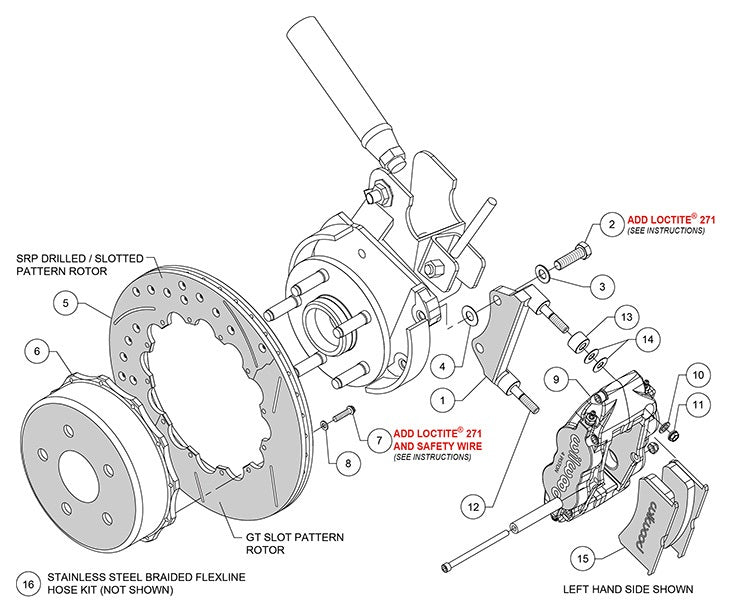

See the lists, the diagrams, & the assembly booklets below for a detail of the parts included.

Fits:

• Jeep:
  • 2018-2021 Wrangler JL


Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

Wilwood’s 140-15892 Aero6 Big Brake front kit is designed specifically for 2018-up Jeep Wrangler JL series. This big brake kit combines 14.00" two-piece GT slotted rotors or SRP drilled and slotted with lightweight aluminum hats, Aero6 six piston calipers, and BP-20 Smart Pads. AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. It’s the biggest of the big, providing big brake performance for show and dual purpose street and track vehicles. It provides big stopping power for enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00" to rotors provide maximum cooling for sustained high heat durability.

Wilwood’s 140-15930 kits use Forged Narrow Superlite 4R four piston calipers are combined with BP-20 compound pads and 14" rotors in this group of big brake kits that are designed for heavy weight and extreme duty vehicles. This group of specialized kits for Jeep Wrangler JL series retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 14" and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades.

These Big Brake kits require at least 18" diameter wheels.

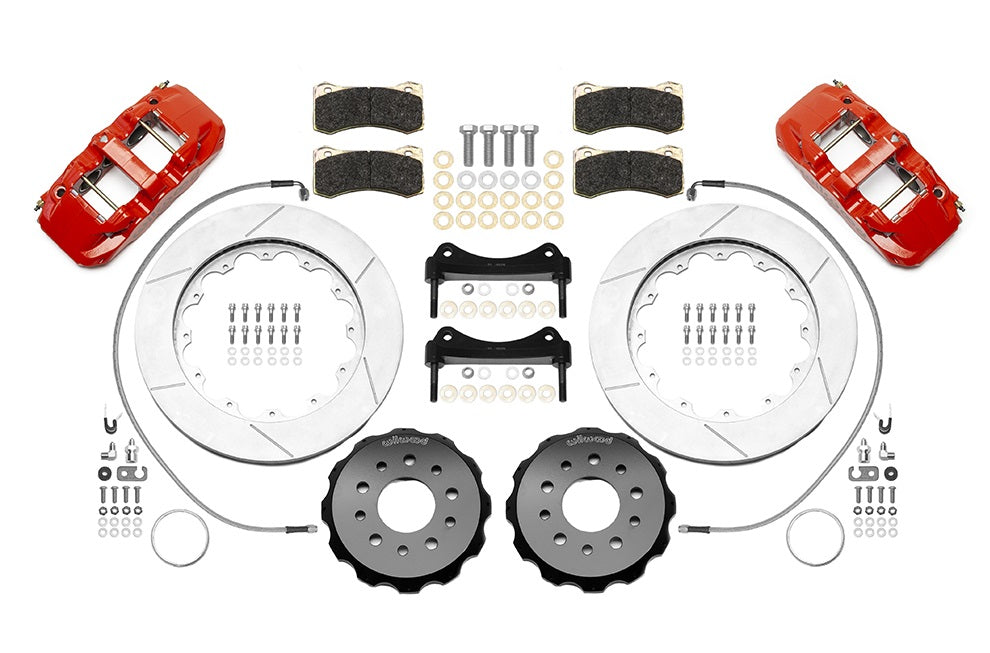

Front kit includes parts for both front wheels:

• 1.25" Thick x 14.00" O.D. Rotors
• AERO6 Calipers - Red
• Caliper Mounting Brackets
• BP-20 Smart Compound Brake Pads
• Brake Hats &
• All bolts, washers, shims, and nuts necessary to install the complete braking system on both front wheels

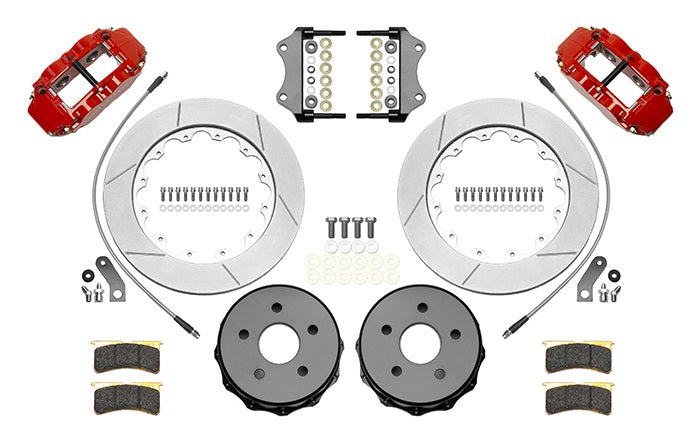

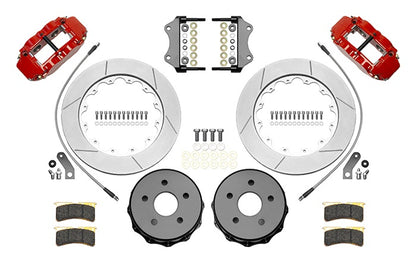

Rear kit includes parts for both rear wheels:

• 0.81" Thick x 14.00" O.D. Rotors
• Narrow Superlite 4R Calipers - Red
• Caliper Mounting Brackets
• BP-20 Smart Compound Brake Pads
• Brake Hats &
• All bolts, washers, shims, and nuts necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 129 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
