BIG FORD NEW KIT,2.50",ELECTRIC PB,13"

BRAND NEW WILWOOD BOLT-ON 12.88" DISC BRAKE KIT WITH SUPERLITE 4R CALIPERS & ELECTRONIC PARKING BRAKE (PART #140-15844) FOR BOTH REAR WHEELS.

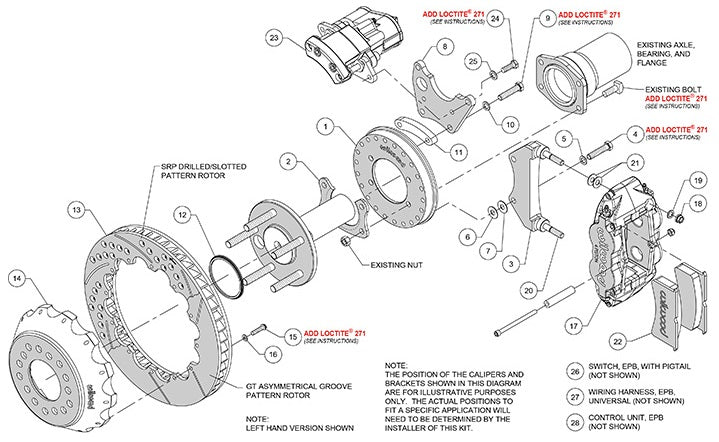

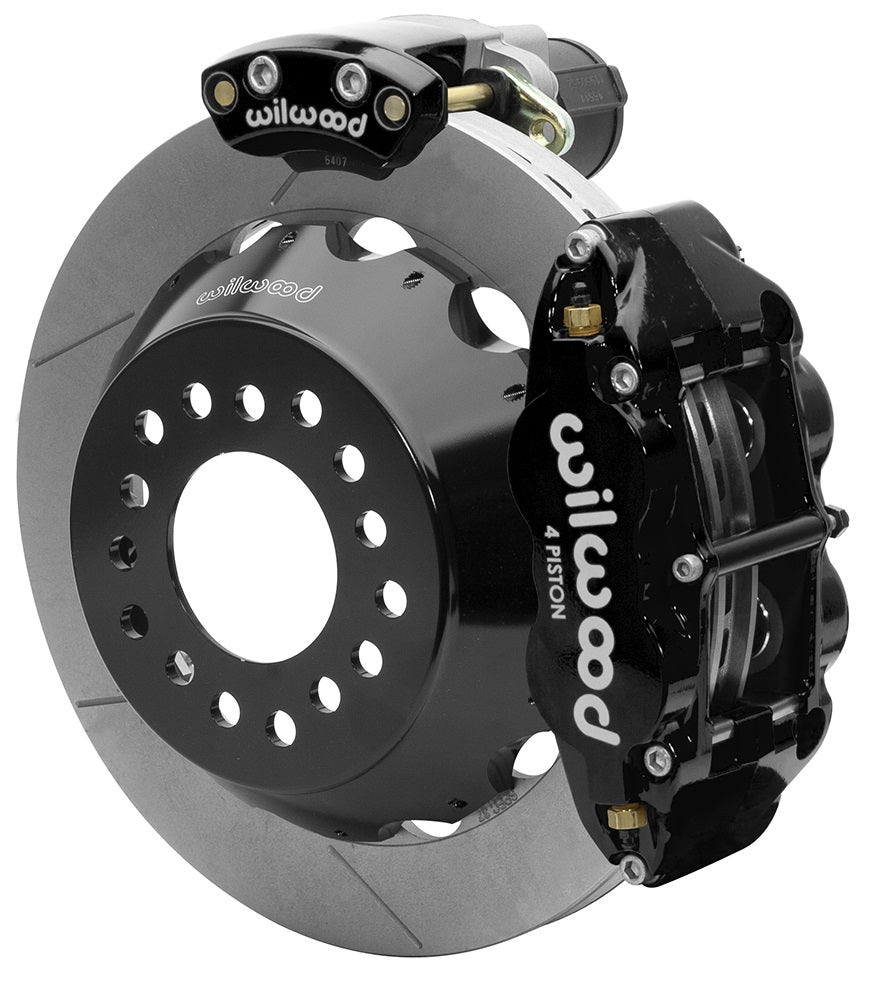

ONLY ONE SIDE PICTURED. SEE THE LIST, THE DIAGRAM, & THE ASSEMBLY BOOKLET BELOW FOR A DETAIL OF THE PARTS INCLUDED.

FEATURES POWDER-COATED BLACK CALIPERS.

FITS:

• BIG BEARING FORD (NEW STYLE) REAR ENDS WITH A 3.562" X 2.00" MOUNTING PATTERN ON THE AXLE FLANGE & WITH A 2.50" FLANGE OFFSET (SEE DIAGRAMS)

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

FORGED NARROW SUPERLITE 4R REAR ELECTRONIC PARKING BRAKE KITS PROVIDE THE ULTIMATE BIG BRAKE SOLUTION FOR POPULAR MUSCLE CAR REAR AXLES THAT REQUIRE A PARKING BRAKE. FNSL4R FOUR PISTON CALIPERS, 12.88 TWO-PIECE ROTORS, AND HIGH PERFORMANCE BP-10 COMPOUND PADS PROVIDE OPTIMIZED AND BALANCED BRAKING TO COMPLIMENT FRONT BIG BRAKE UPGRADES ON ALL TYPES OF CUSTOM, SHOW AND HIGH PERFORMANCE STREET MACHINES. THE UNIQUE ELECTRONIC PARKING BRAKE CALIPER PROVIDES A STATIC HIGH TORQUE STATIC HOLDING POWER FOR PARKING WITHOUT MECHANICAL CABLING. SUPPLIED WITH CONTROL UNIT AND HARNESS ASSEMBLY, IT SIMPLIFIES INSTALLATION AND USE.

THESE BRAKE KITS REQUIRE AT LEAST 17" DIAMETER WHEELS.

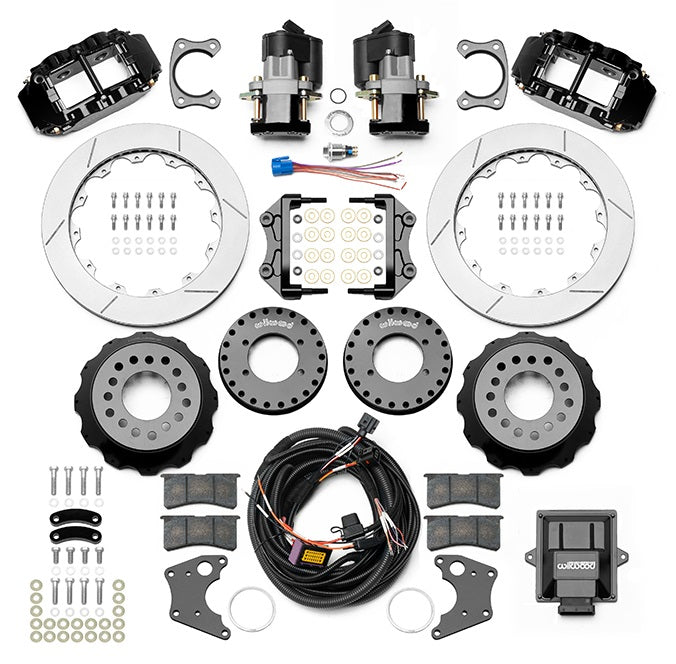

KIT INCLUDES PARTS FOR BOTH REAR WHEELS:

• 1.10" THICK X 12.88" O.D. ROTORS
• FORGED NARROW SUPERLITE 4R CALIPERS - BLACK
• CALIPER MOUNTING BRACKETS
• BRAKE HATS
• ELECTRONIC PARKING BRAKE ASSEMBLIES WITH CONTROL UNIT AND HARNESS ASSEMBLY
• BP-10 SMART COMPOUND BRAKE PADS
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH REAR WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 69 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
