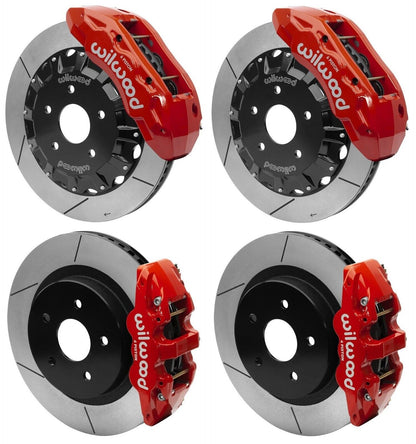

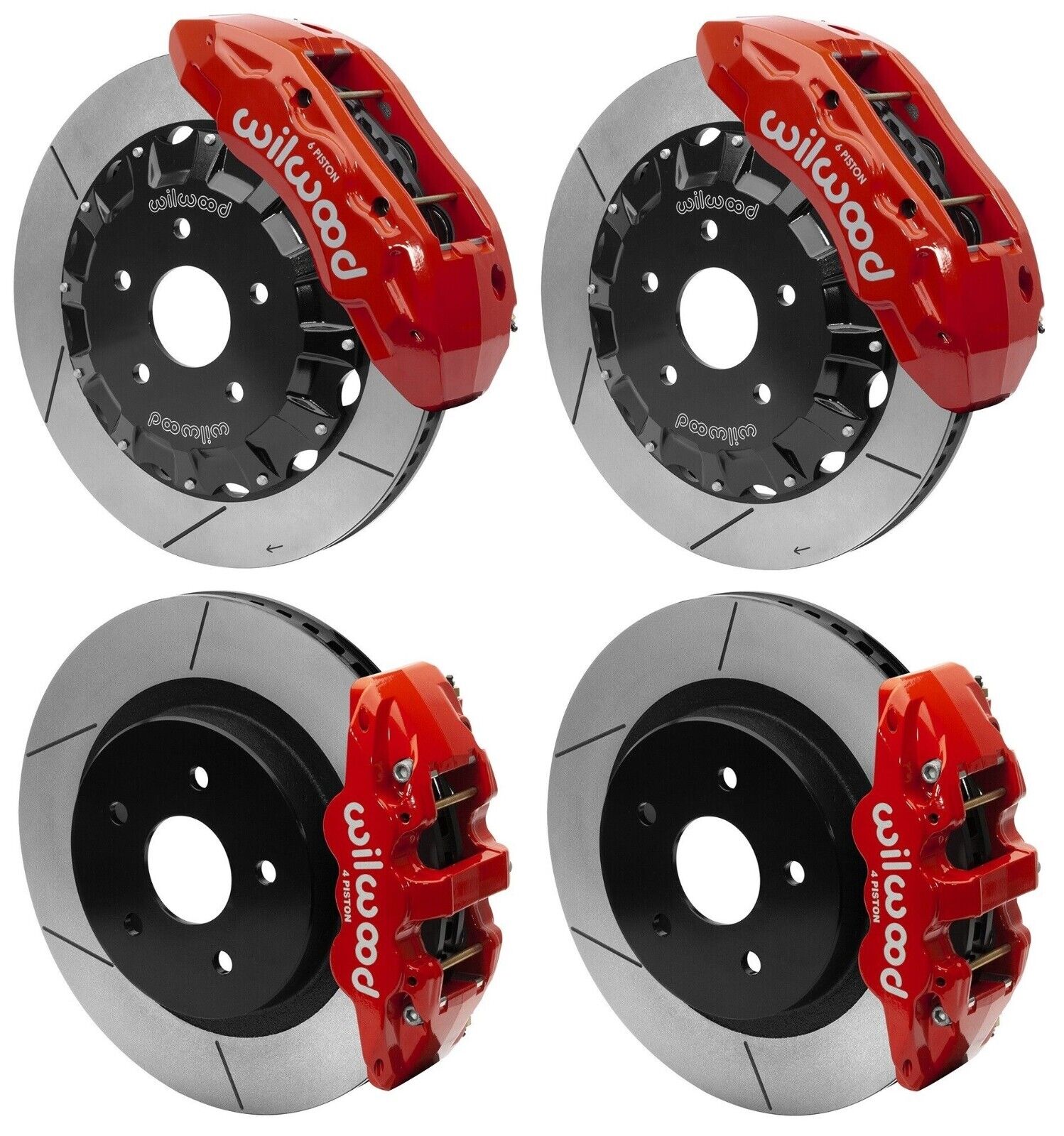

2013-2018 DODGE RAM 1500,FULL DISC BRAKE KIT,16"/15" ROTORS,RED CALIPERS

Brand New Wilwood Complete Big Brake Kit Featuring 16" Front & 15" Rear Slotted Rotors with Red Calipers For Both Front & Rear Wheels (Part #140-15807-R & 140-16026-R).

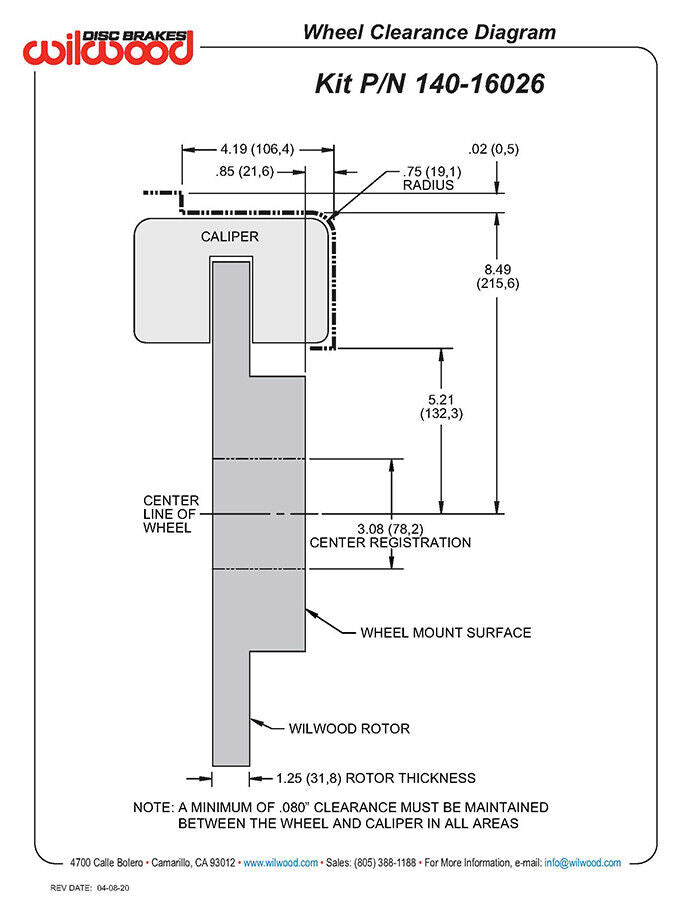

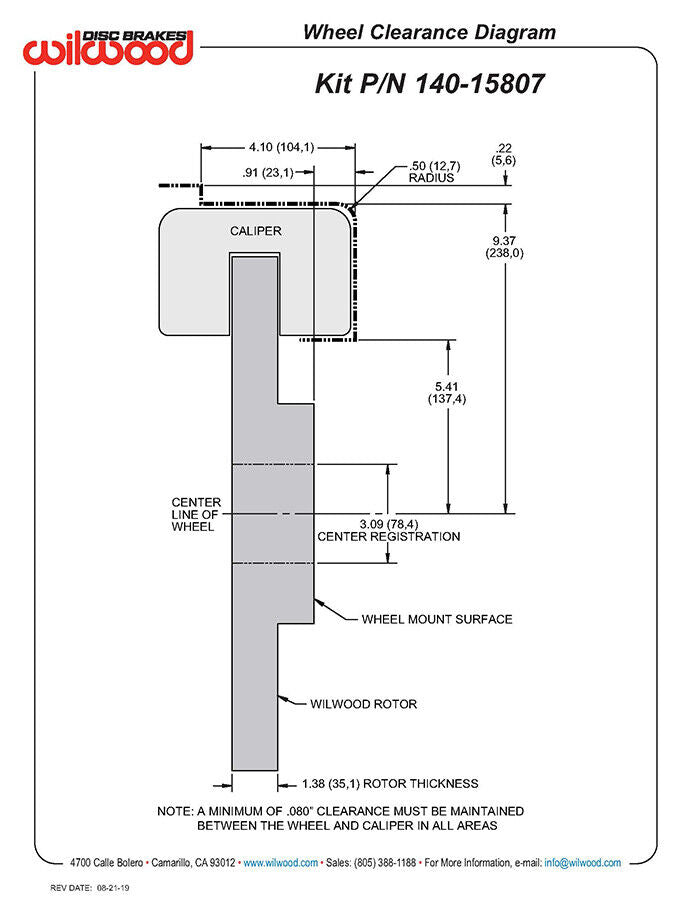

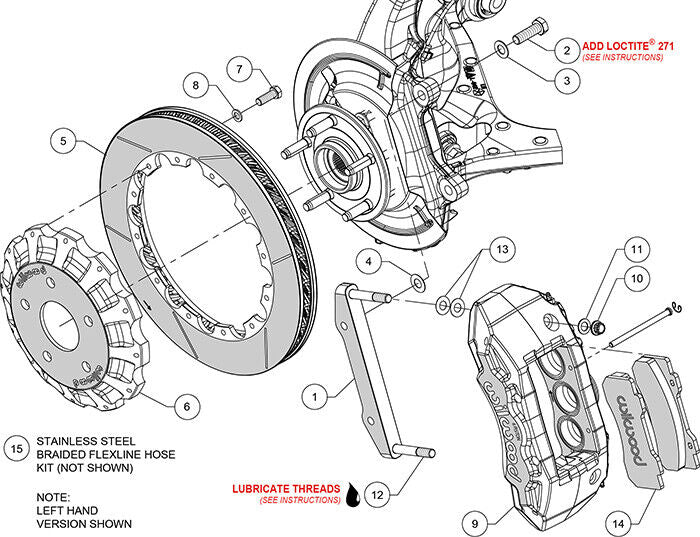

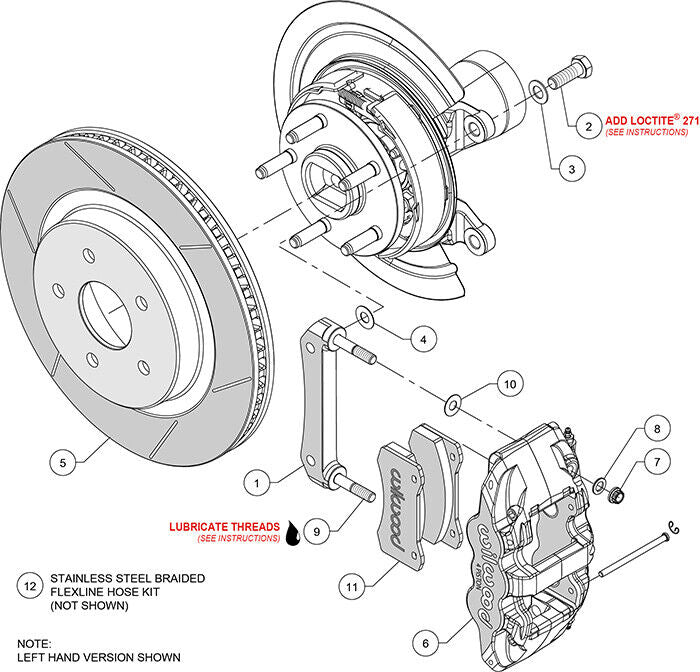

See the list, the diagram, and the assembly booklet for the details of the parts included.

Complete Kit Includes:

• TX6R 6 Piston Bolt-On Front 16" Disc Brake Kit for Both Front Wheels
• AERO4 4 Piston Bolt-On Rear 15" Disc Brake Kit for Both Rear Wheels
• Full Line Kit for the Front with Steel Braided Lines and necessary Fittings
• Full Line Kit for the Rear with Steel Braided Lines and necessary Fittings

Fits:

• Ram:
  • 2014-2018 1500 Big Horn - RWD

  • 2013-2018 1500 Express - RWD

  • 2013-2017 1500 HFE - RWD

  • 2013-2018 1500 Laramie - RWD
  • 2014-2018 1500 Laramie Limited - RWD

  • 2013-2018 1500 Laramie Longhorn - RWD

  • 2016-2018 1500 Limited - RWD

  • 2014-2018 1500 Lone Star - RWD

  • 2014-2018 1500 Outdoorsman - RWD

  • 2013 1500 R/T - RWD

  • 2015-2018 1500 Rebel - RWD

  • 2013-2018 1500 SLT - RWD

  • 2013-2018 1500 Sport - RWD

  • 2013-2018 1500 ST - RWD

  • 2013-2018 1500 SXT - RWD

  • 2013-2018 1500 Tradesman - RWD

Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 16.00" GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

AERO4 Big Brake rear axle kits for 2013 to 2018 Ram 1500 Trucks replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrade kit. High capacity braking from the Aero4 calipers, BP-20 compound pads, and oversized 15.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on vehicles with increased brake requirements from high GVW. Kit comes complete with stainless braided flex lines.

These Big Brake kits require at least 20" diameter wheels.

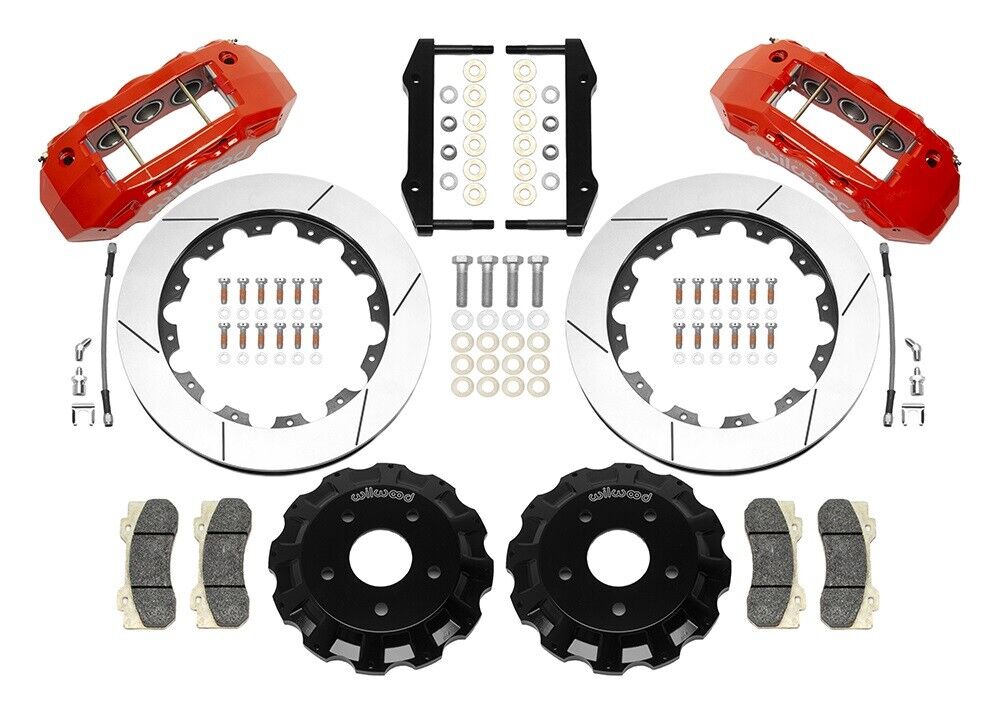

Kit includes parts for both front wheels:

• 1.38" Thick x 16.00" O.D. Rotor
• TX6R 6 Piston Calipers
• Caliper Mounting Brackets
• Brake Hats
• BP-Q Smart Compound Brake Pads
• Steel Braided Lines with Fittings
• All bolts, washers, and nuts necessary to install the complete braking system on both front wheels

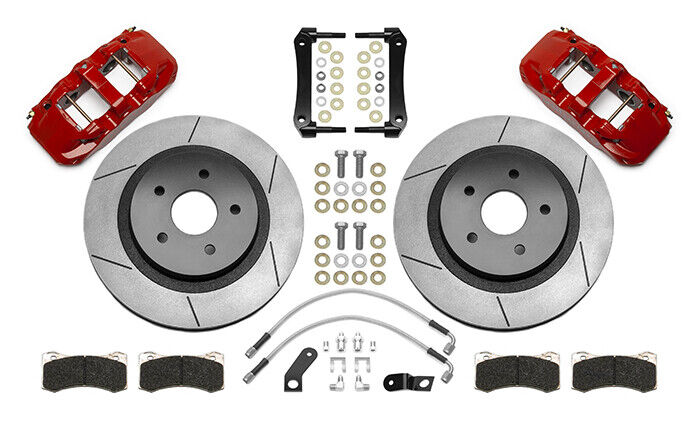

Kit includes parts for both rear wheels:

• 1.25" Thick x 15.00" O.D. 1-Piece Rotor & Hat
• AERO4 Calipers
• Caliper Mounting Brackets
• BP-Q Smart Compound Brake Pads
• Steel Braided Lines with Fittings
• All bolts, washers, and nuts necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 197 lbs.

You can view and download the assembly or instruction booklet for the front kit here and the rear kit here.
