2013-2018 DODGE RAM 1500,FRONT,TX6R 6 PISTON,16" ROTORS,BLACK CALIPERS

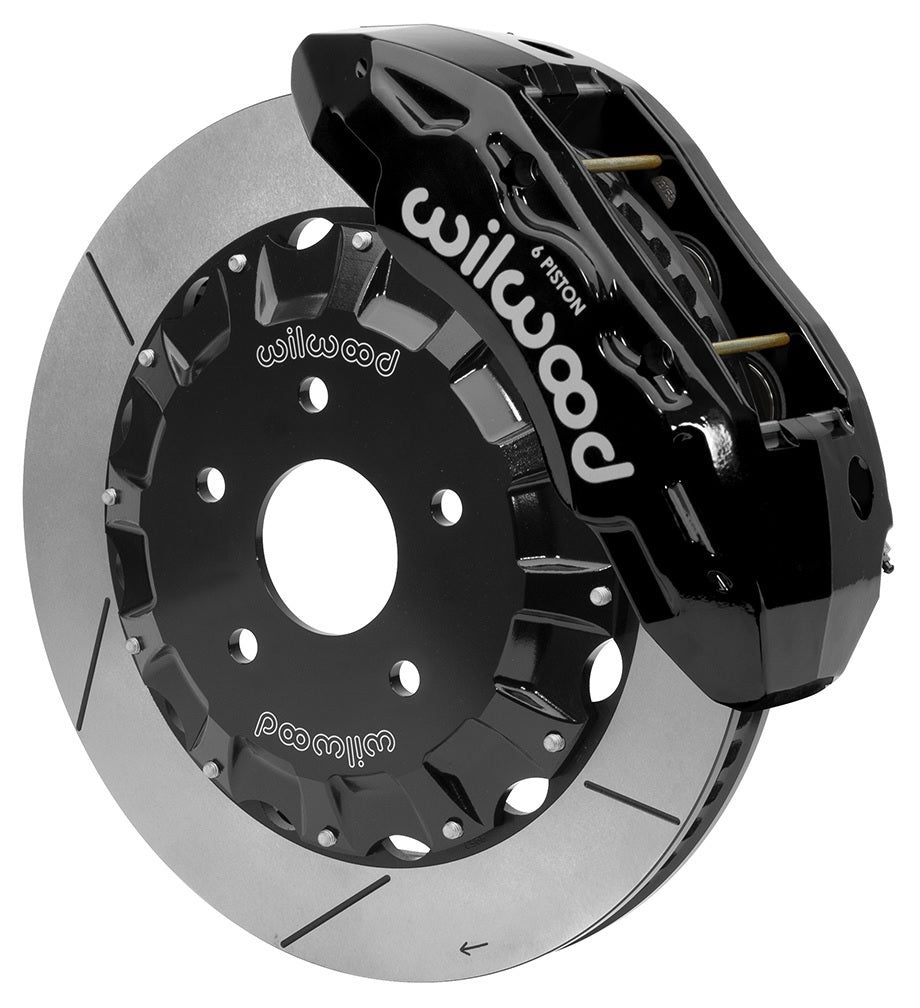

Brand New Wilwood TX6R Big Brake Kit Featuring 16" Slotted Rotors with Black Calipers For Both Front Wheels (Part #140-15807).

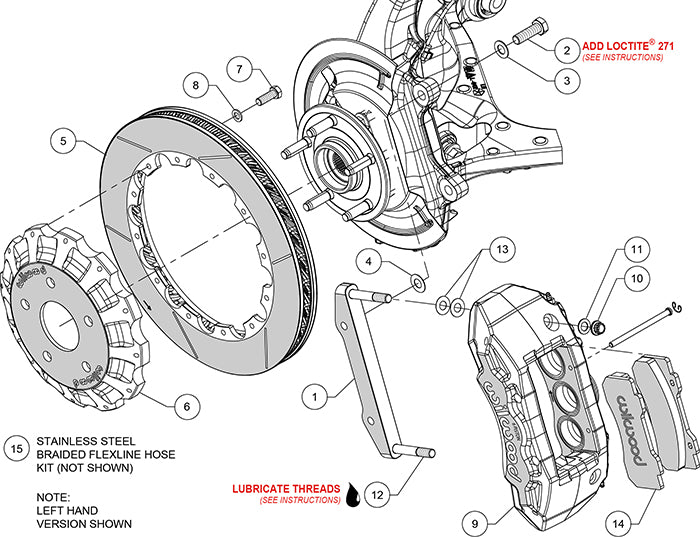

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Ram:
  • 2014-2018 1500 Big Horn - RWD

  • 2013-2018 1500 Express - RWD

  • 2013-2017 1500 HFE - RWD

  • 2013-2018 1500 Laramie - RWD
  • 2014-2018 1500 Laramie Limited - RWD

  • 2013-2018 1500 Laramie Longhorn - RWD

  • 2016-2018 1500 Limited - RWD

  • 2014-2018 1500 Lone Star - RWD

  • 2014-2018 1500 Outdoorsman - RWD

  • 2013 1500 R/T - RWD

  • 2015-2018 1500 Rebel - RWD

  • 2013-2018 1500 SLT - RWD

  • 2013-2018 1500 Sport - RWD

  • 2013-2018 1500 ST - RWD

  • 2013-2018 1500 SXT - RWD

  • 2013-2018 1500 Tradesman - RWD


Wilwood’s Tactical Extreme TX6R Big Brake kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

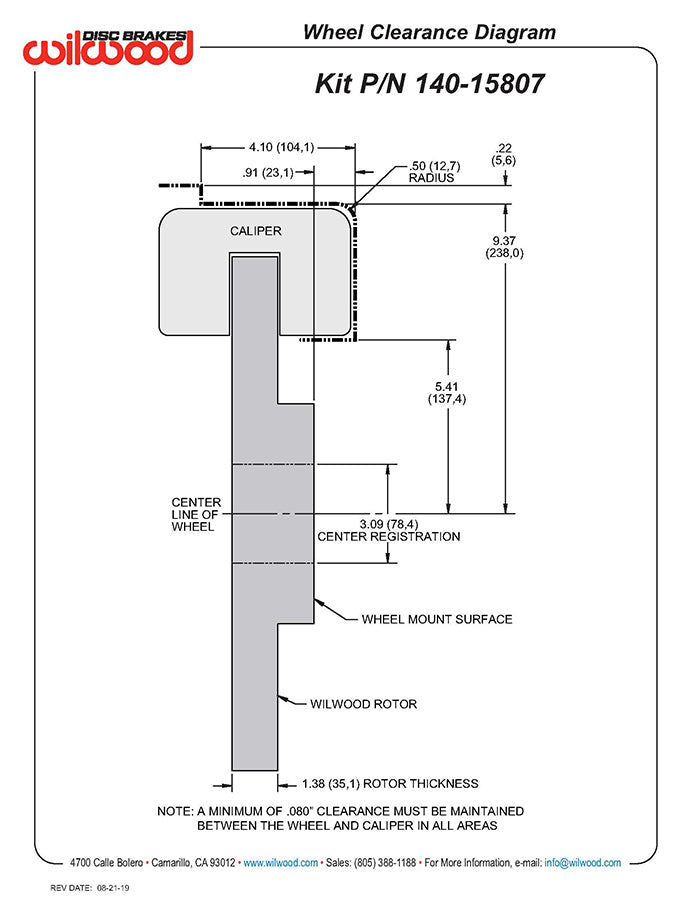

This kit require at least 20" diameter wheels.

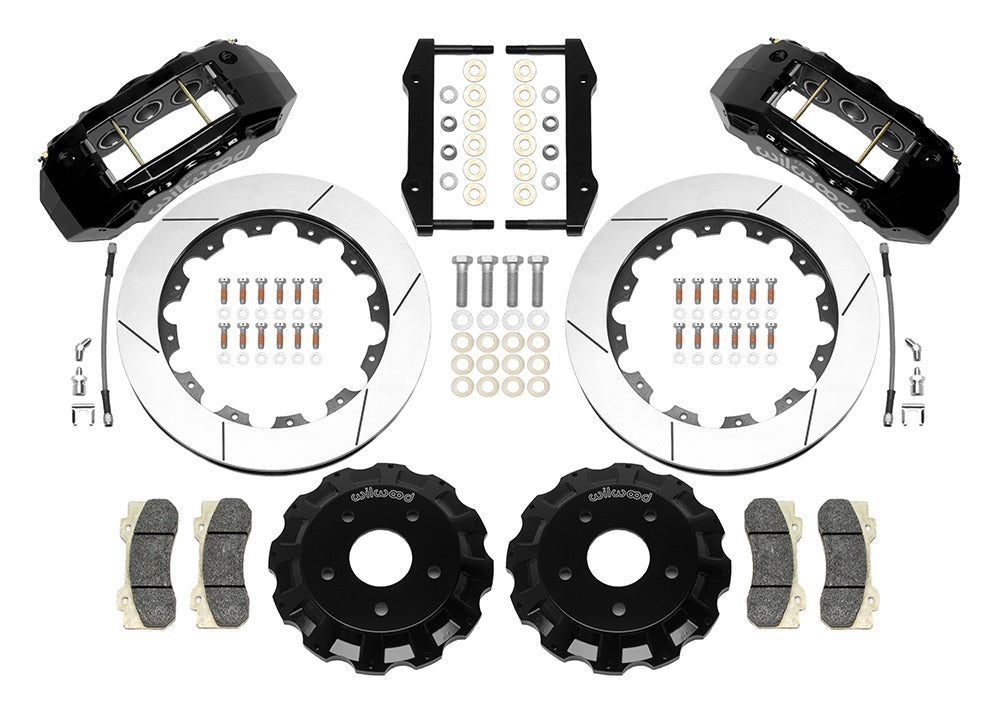

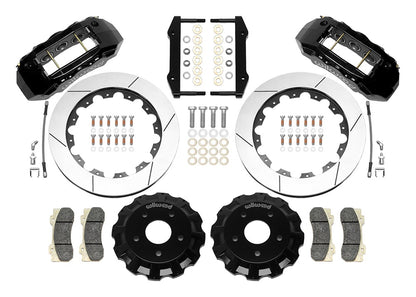

Kit includes parts for both front wheels:

• 6 Piston TX6R Calipers
• 1.38" Thick x 16.00" O.D. Rotors
• BP-Q Compound Brake Pads

• Rotor Hat
• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 101 lbs.

You can view and download the assembly/instruction booklet here.
