97-18 PATROL,REAR,14.25",BLACK,W/LINES

Brand New Wilwood AERO4 Big Brake Truck Rear Brake Kit Featuring 14.25" Slotted Rotors with Black Calipers For Both Rear Wheels (Part #140-15597).

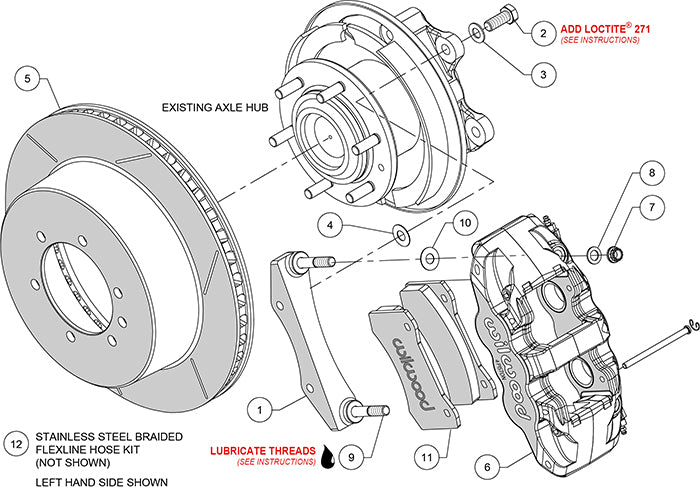

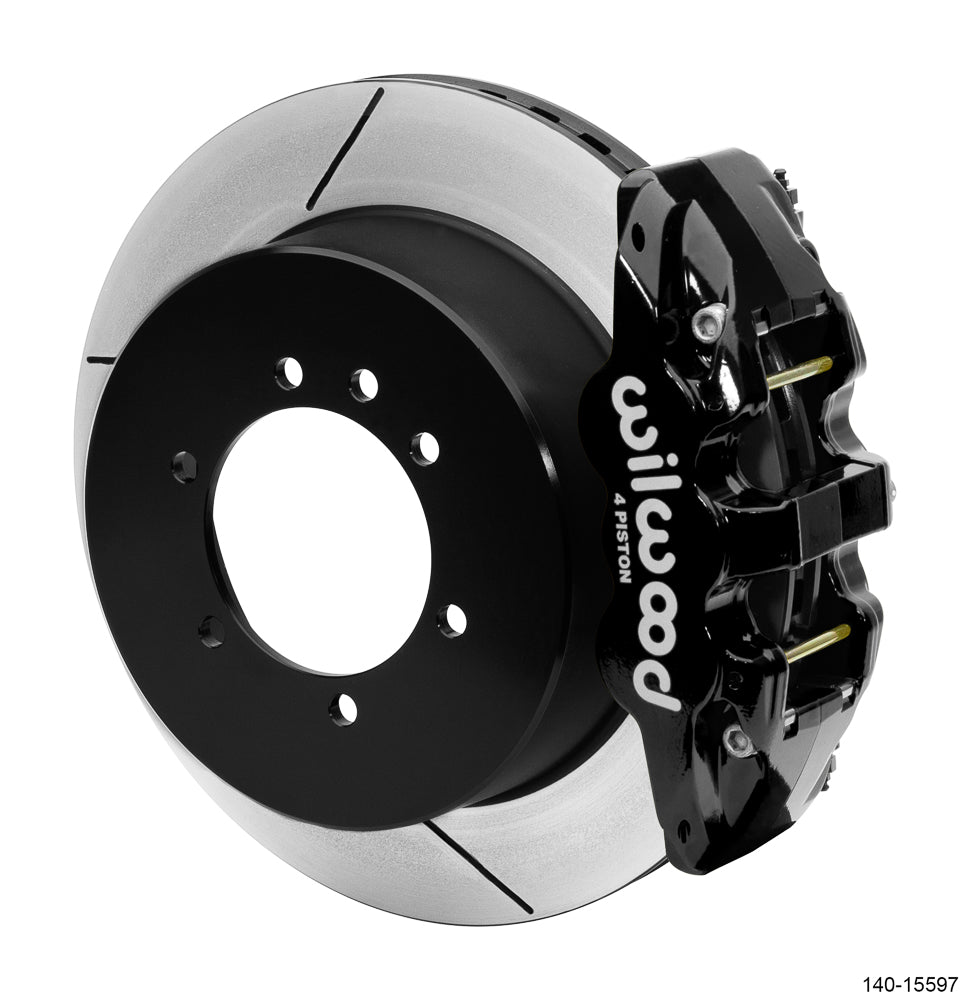

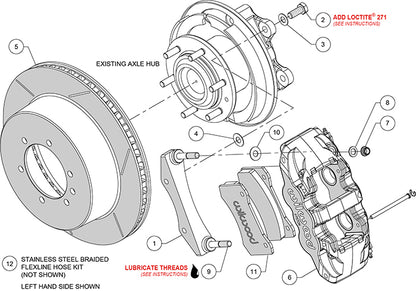

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Nissan:
  • 1997-2018 Patrol Y61 (Japan, Near East, Africa)


AERO4-DS Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model trucks and SUV’s. High capacity braking from the Aero4 Dust Boot calipers incorporate an exclusive dust wiper seal that further protects the piston bore from dust and corrosion. BP-20 compound pads, and oversized 14.25" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles, tow rigs, and all others with increased brake requirements from high GVW. Kit comes complete with stainless braided flex lines.

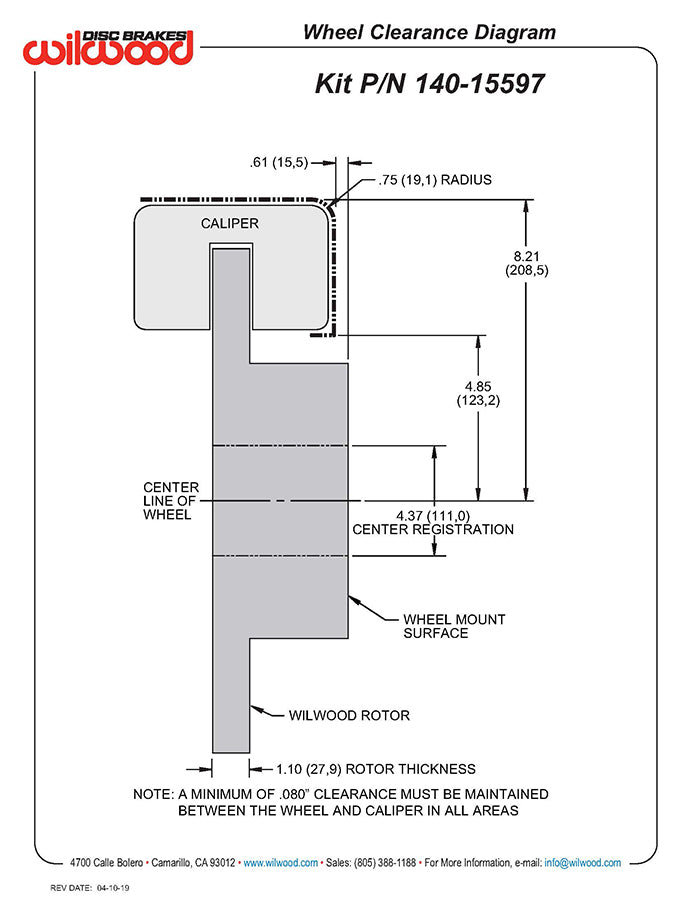

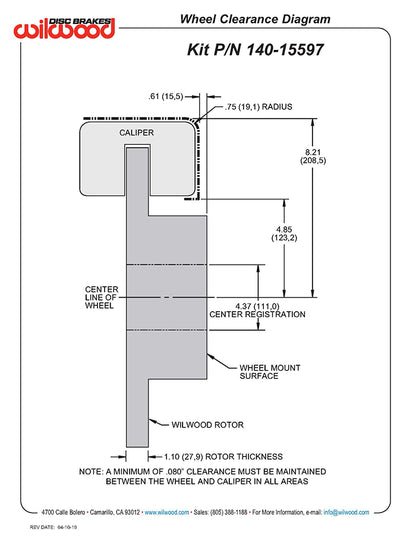

This kit require at least 18" diameter wheels.

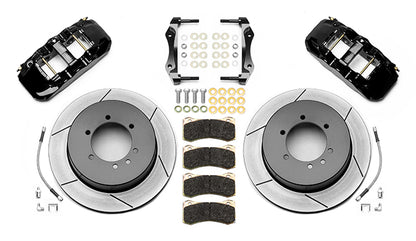

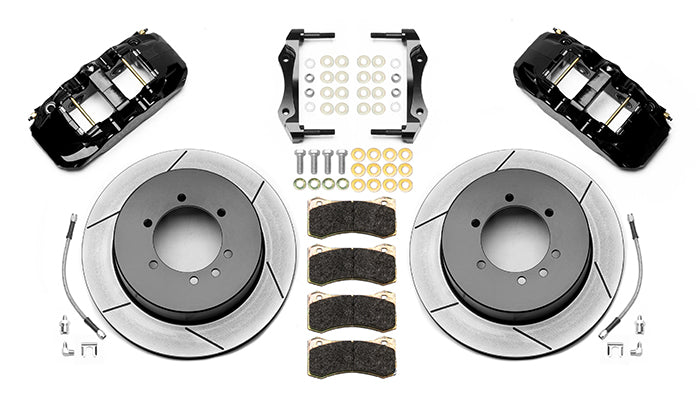

Kit includes parts for both rear wheels:

• 4 Piston AERO4-DS Calipers

• BP-20 Compound Brake Pads

• 14.25" O.D. x 1.10" Thick Rotors

• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 86 lbs.

You can view and download the assembly/instruction booklet here.
