97-18 PATROL,FRONT,14.25",BLACK,W/LINES

Brand New Wilwood AERO6 Big Brake Kit Featuring 14.25" Slotted Rotors with Black Calipers For Both Front Wheels (Part #140-15525).

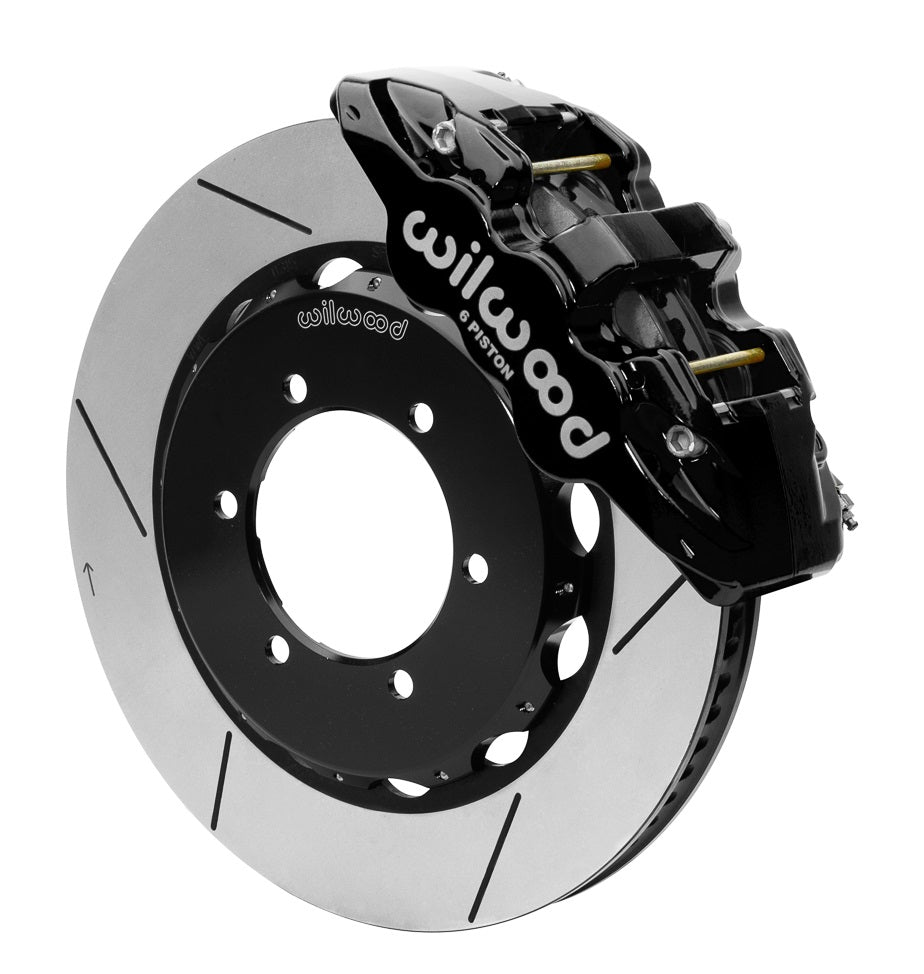

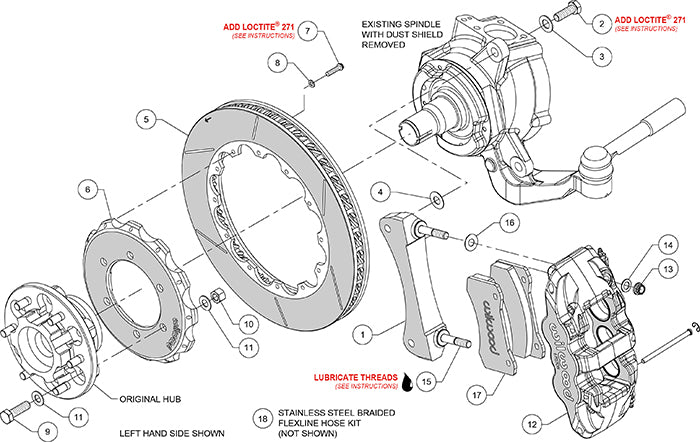

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Nissan:
  • 1997-2018 Patrol Y61 (Japan, Near East, Africa)

AERO6-DS calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.25” rotors provide maximum cooling for sustained high heat durability. AERO6 Dust Boot calipers incorporate an exclusive dust wiper seal that further protects the piston bore from dust and corrosion. Kit comes complete with stainless braided flex lines.

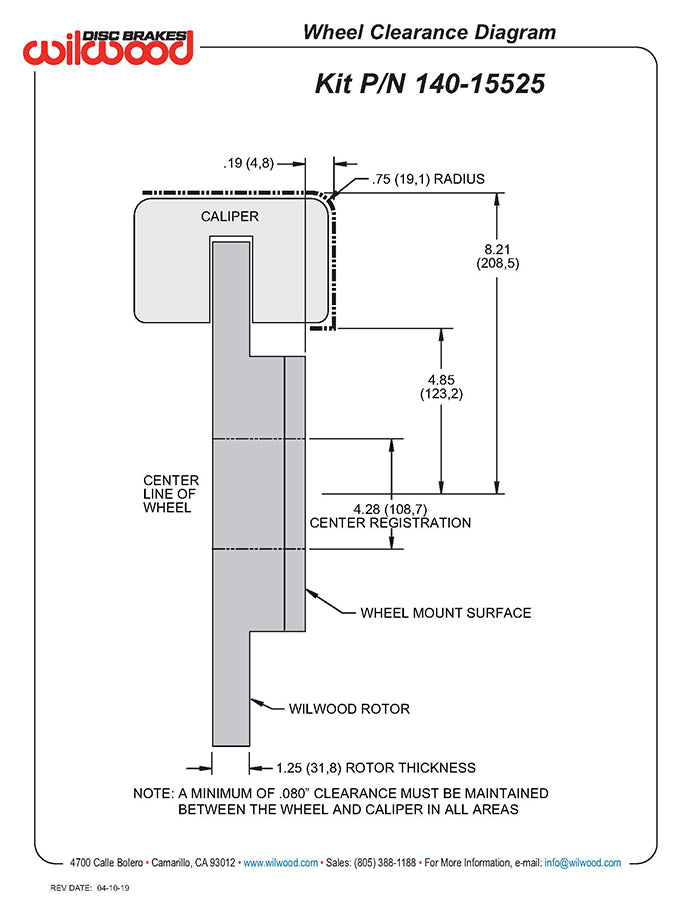

This kit require at least 18" diameter wheels.

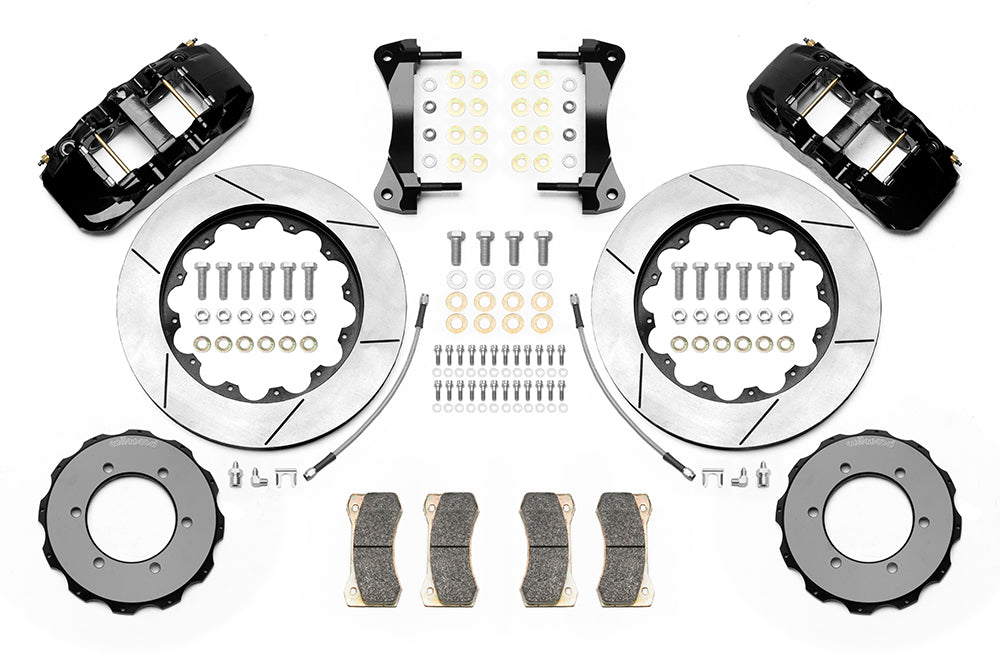

Kit includes parts for both front wheels:

• 6 Piston AERO6-DS Calipers

• BP-20 Compound Brake Pads

• 14.25" O.D. x 1.25" Thick Rotors

• Rotor Hat
• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 72 lbs.

You can view and download the assembly/instruction booklet here.
