73-83 CDP W/DISC SPINDLES FULL DISC BRAKE KIT,12" ROTORS,BLACK CALIPERS

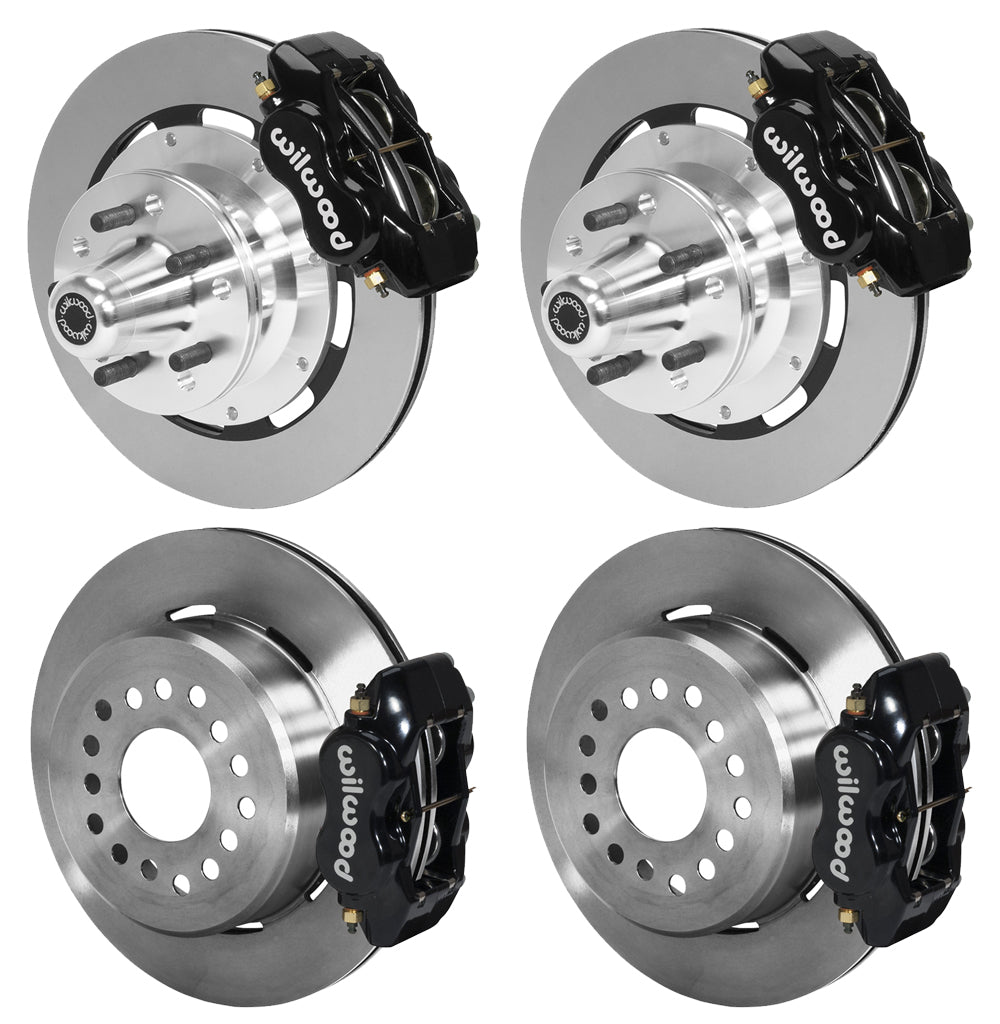

Brand New Wilwood Complete Front & Rear 12.19" Disc Brake Kit.

Complete Kit Includes:

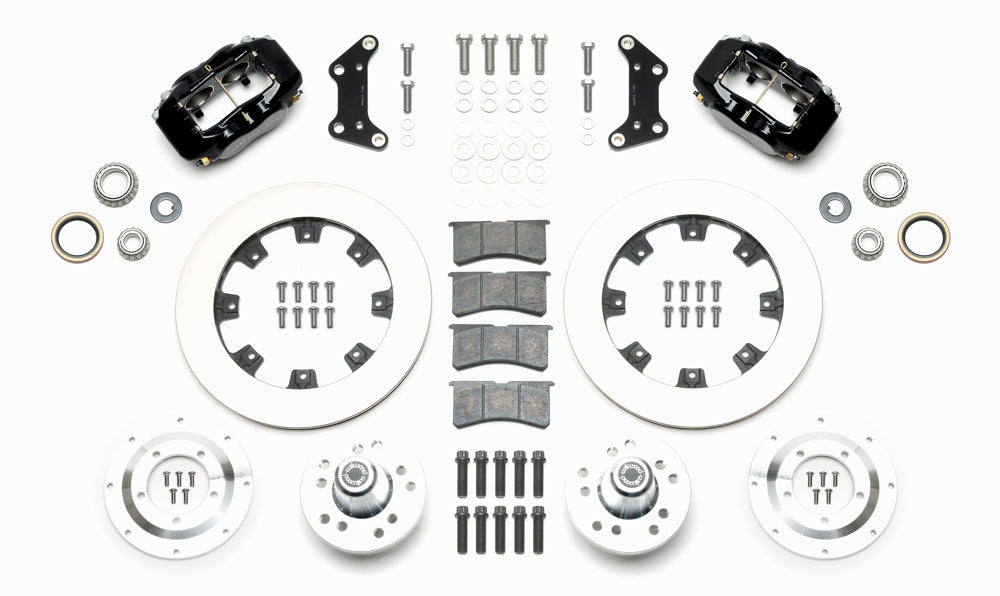

• Forged Dynalite Pro Series Bolt-On Front Hub & 12.19" Disc Brake Kit (Part #140-15468) for Both Front Wheels

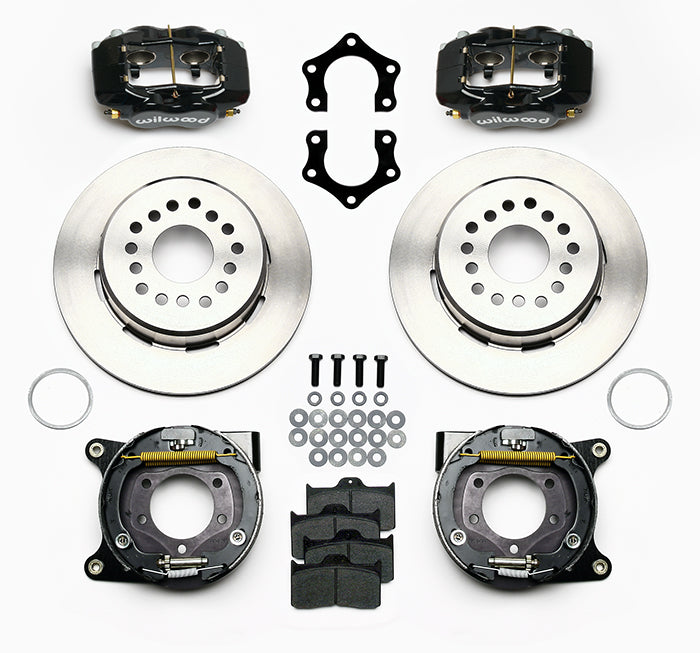

• Forged Dynalite Pro Series Bolt-On Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-7144) for Both Rear Wheels

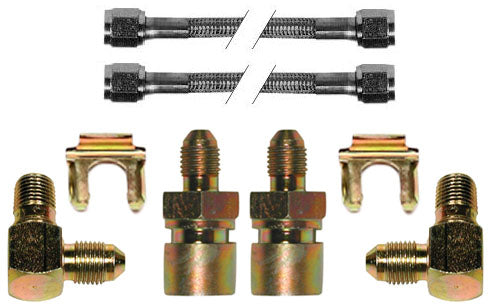

• Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

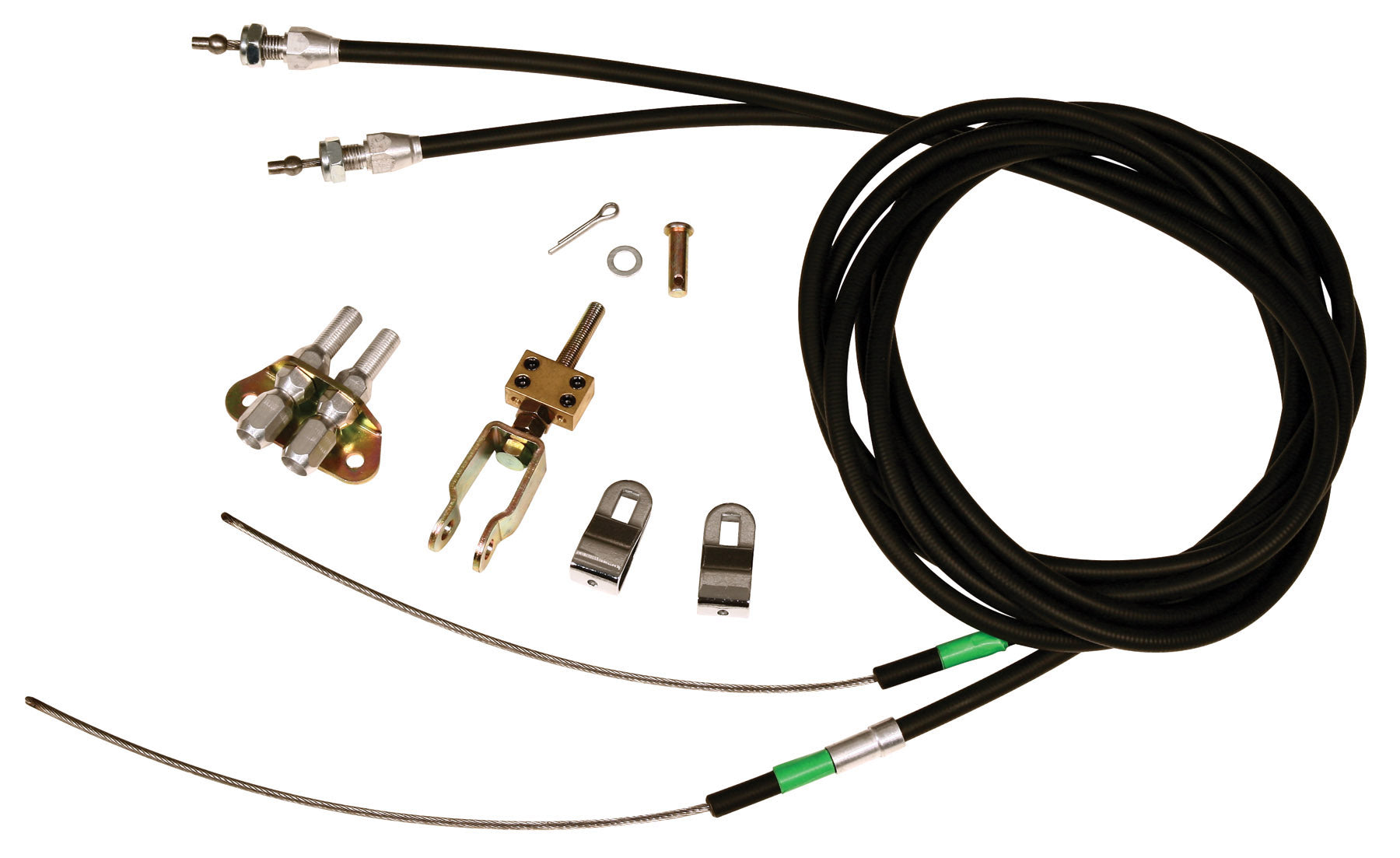

• Parking Brake Cable Kit that connects to the Wilwood parking brake assemblies, then comes together to join the stock cable behind the transmission

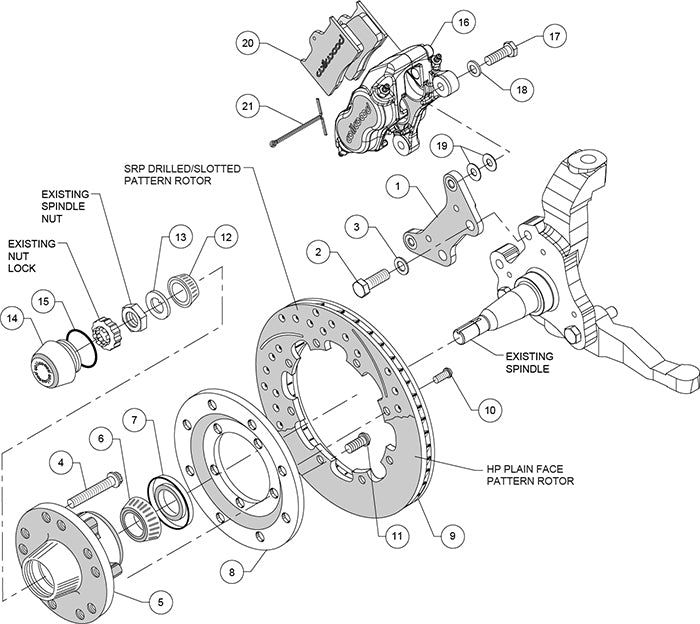

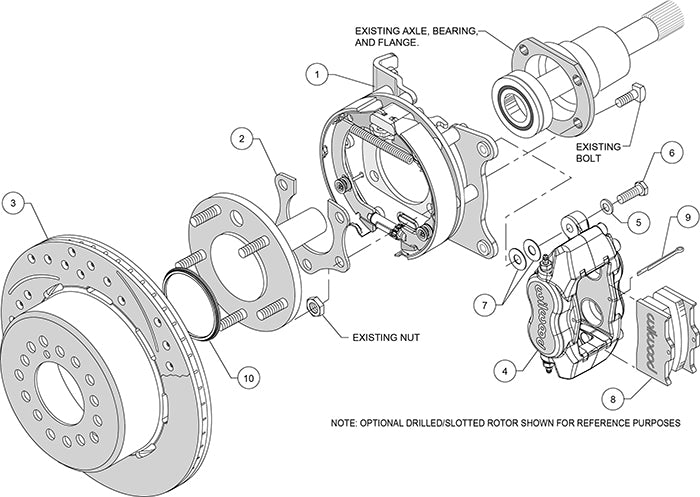

See the lists & diagrams below for a detail of the parts included.

Fits:

• **Make sure to see the notes about the rear kit fitment below the vehicle list**
• Dodge:
  • 1973-1976 A-Body with Disc Brake Spindles
  • 1976-1980 Aspen with Disc Brake Spindles
  • 1973-1979 B-Body with Disc Brake Spindles
  • 1973-1974 Challenger with Disc Brake Spindles
  • 1973-1978 Charger with Disc Brake Spindles
  • 1973-1976 Coronet with Disc Brake Spindles
  • 1973-1976 Dart with Disc Brake Spindles
  • 1973-1976 Demon with Disc Brake Spindles
  • 1977-1989 Diplomat with Disc Brake Spindles
  • 1973-1974 E-Body with Disc Brake Spindles
  • 1976-1980 F-Body with Disc Brake Spindles
  • 1980-1983 J-Body with Disc Brake Spindles
  • 1978-1979 Magnum with Disc Brake Spindles
  • 1980-1983 Mirada with Disc Brake Spindles
  • 1977-1978 Monaco with Disc Brake Spindles, except Royal
  • 1976-1978 R/T with Disc Brake Spindles
  • 1979-1981 St Regis with Disc Brake Spindles
• Chrysler:
  • 1975-1983 Cordoba with Disc Brake Spindles
  • 1983-1989 Fifth Avenue with Disc Brake Spindles
  • 1981-1983 Imperial with Disc Brake Spindles
  • 1977-1981 Lebaron with Disc Brake Spindles
  • 1979-1982 New Yorker with Disc Brake Spindles
  • 1979-1981 Newport with Disc Brake Spindles
• Plymouth:
  • 1973-1976 A-Body with Disc Brake Spindles
  • 1973-1979 B-Body with Disc Brake Spindles
  • 1973-1974 Barracuda with Disc Brake Spindles
  • 1982-1984 Caravelle with Disc Brake Spindles
  • 1985 Caravelle with Disc Brake Spindles, RWD only
  • 1973-1974 Cuda with Disc Brake Spindles
  • 1973-1976 Duster with Disc Brake Spindles
  • 1973-1974 E-Body with Disc Brake Spindles
  • 1976-1980 F-Body with Disc Brake Spindles
  • 1975-1978 Fury with Disc Brake Spindles, except Gran Fury
  • 1973-1975 GTX with Disc Brake Spindles
  • 1980-1983 J-Body with Disc Brake Spindles
  • 1973-1980 Road Runner with Disc Brake Spindles
  • 1973-1974 Satellite with Disc Brake Spindles
  • 1973-1976 Scamp with Disc Brake Spindles
  • 1973-1976 Valiant with Disc Brake Spindles
  • 1976-1980 Volare with Disc Brake Spindles

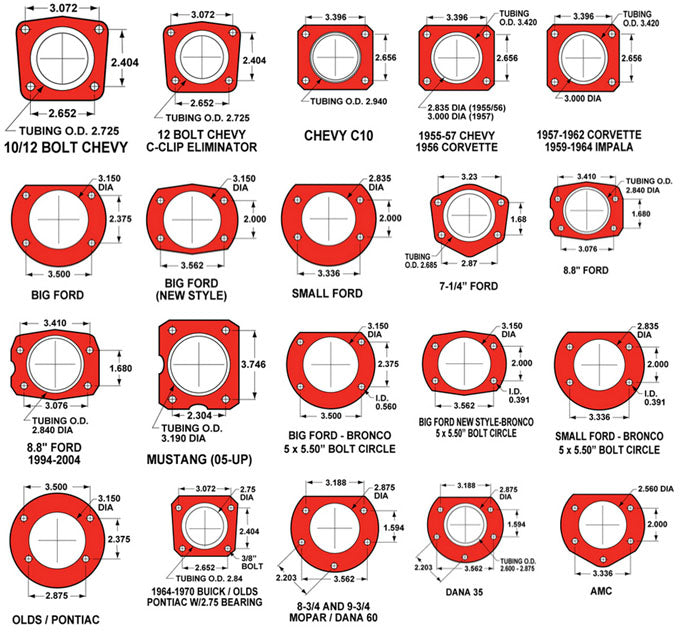

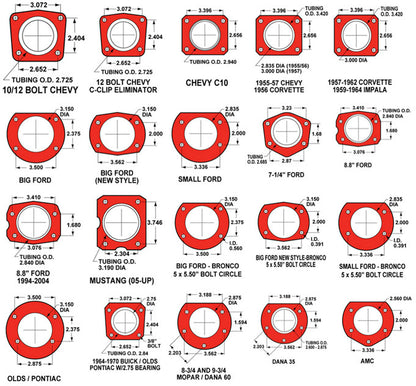

• **The rear kit fits 8 3/4" and 9 3/4" Mopar / Dana 60 rear ends with the Axle Flanges shown below and a 2.36" Axle Flange Offset (see diagram below to show how to measure that offset).  Approximately 90% of all these Chrysler, Dodge, and Plymouth cars came stock with these particular axle flanges with that offset.  However, it is always better to measure your Axle Flange and Axle Flange Offset to be sure your vehicle has them.**
• **Also, this rear kit requires the use of the snap ring style, non-adjustable Green Bearings (MO-400). **

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

Wilwood's new limited offset FDLI Pro-Series Front Hub Kits for 73-83 Chrysler, Dodge, Plymouth: A,B,E, F & J Body disc offer disc brake upgrade solutions for OEM Disc spindles. We have completely redesigned our Pro Series line of brake kits using a larger 12.19" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit does not widen the track from the original disc brake rotor assembly. Based on the venerable Forged Billet Dynalite (FDLI) caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation. FDLI Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Installation requires purchase of additional brake lines shown below.

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

These Brake kits require at least 16" diameter wheels.

Front kit includes parts for both front wheels:

• .810" Thick x 12.19" O.D. Rotors
• Forged Dynalite Calipers - Black
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs, Bearings, Seals, &
• All Hardware necessary to install the complete braking system on both front wheels

Rear kit includes parts for both rear wheels:

• .810" Thick x 12.19" O.D. Rotors with Hats
• Forged Dynalite Calipers - Black
• Caliper Mounting Brackets
• Drum Parking Brake Assemblies
• Bearing Retainers
• BP-10 Smart Compound Brake Pads
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 96 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
