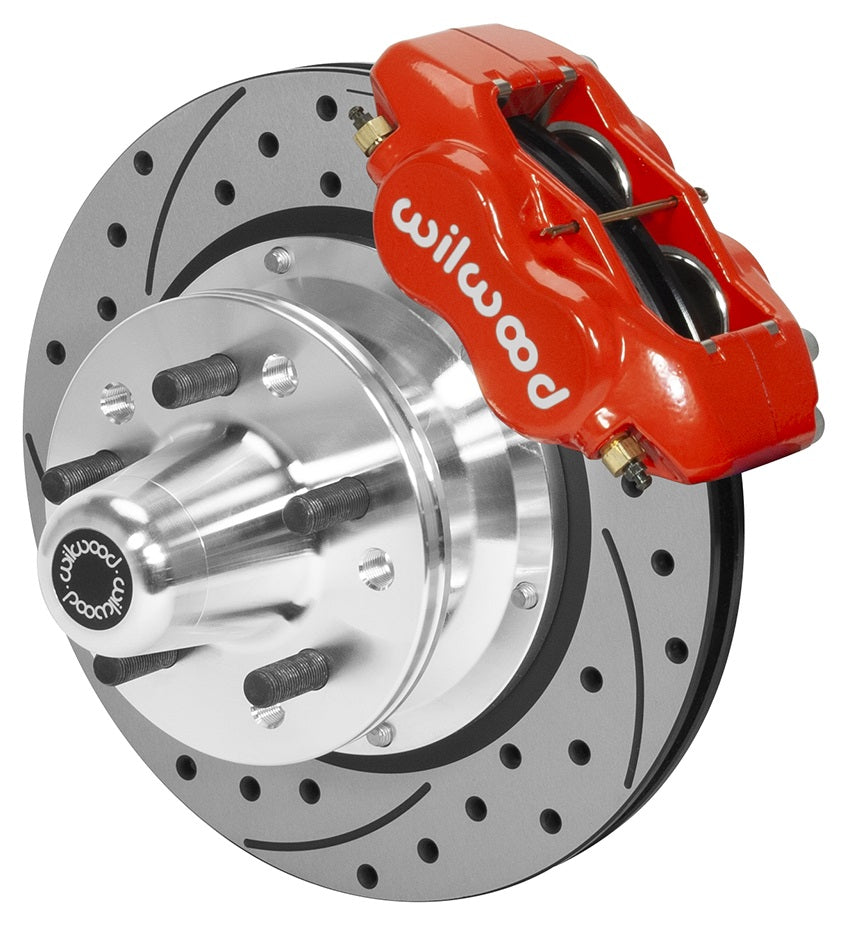

73-83 CDP A,B,E,F,J-BODY,W/DISC SPINDLES,11" DRILLED,RED

BRAND NEW WILWOOD FORGED DYNALITE PRO SERIES BOLT-ON FRONT HUB & 11.00" DISC BRAKE KIT (PART #140-15465-DR) FOR BOTH FRONT WHEELS.

WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.

WILWOODS NEW LIMITED OFFSET FDLI PRO-SERIES FRONT HUB KITS FOR 73-83 CHRYSLER, DODGE, PLYMOUTH: A,B,E, F & J BODY DISC OFFER DISC BRAKE UPGRADE SOLUTIONS FOR OEM DISC SPINDLES. WE HAVE COMPLETELY REDESIGNED OUR PRO SERIES LINE OF BRAKE KITS USING A LARGER 11" ROTOR AND NEW FORGED ALUMINUM HUBS WITH THE EXPRESS PURPOSE OF MAINTAINING THE FACTORY WHEEL POSITION. THIS NEW KIT DOES NOT WIDEN THE TRACK FROM THE ORIGINAL DISC BRAKE ROTOR ASSEMBLY. BASED ON THE VENERABLE FORGED BILLET DYNALITE (FDLI) CALIPER, THESE VERSATILE KITS ARE EASILY OPTIONED TO SUIT THE BRAKING REQUIREMENTS AND STYLE PREFERENCES FOR A DAILY DRIVER, SERIOUS COMPETITION, OR THE MOST DISCRIMINATING SHOW ENTHUSIAST. MOST VEHICLE APPLICATIONS REQUIRE NO MODIFICATIONS FOR INSTALLATION, AND PROVIDE PLENTY OF CLEARANCE INSIDE POPULAR 15" WHEELS. FDLI PRO-SERIES KITS CAN BE USED WITH EITHER MANUAL OR POWER BOOST MASTER CYLINDERS. KITS COME COMPLETE WITH CALIPERS, ROTORS, HUB ASSEMBLY, BRACKETS AND HARDWARE. INSTALLATION REQUIRES PURCHASE OF ADDITIONAL BRAKE LINES SHOWN BELOW.

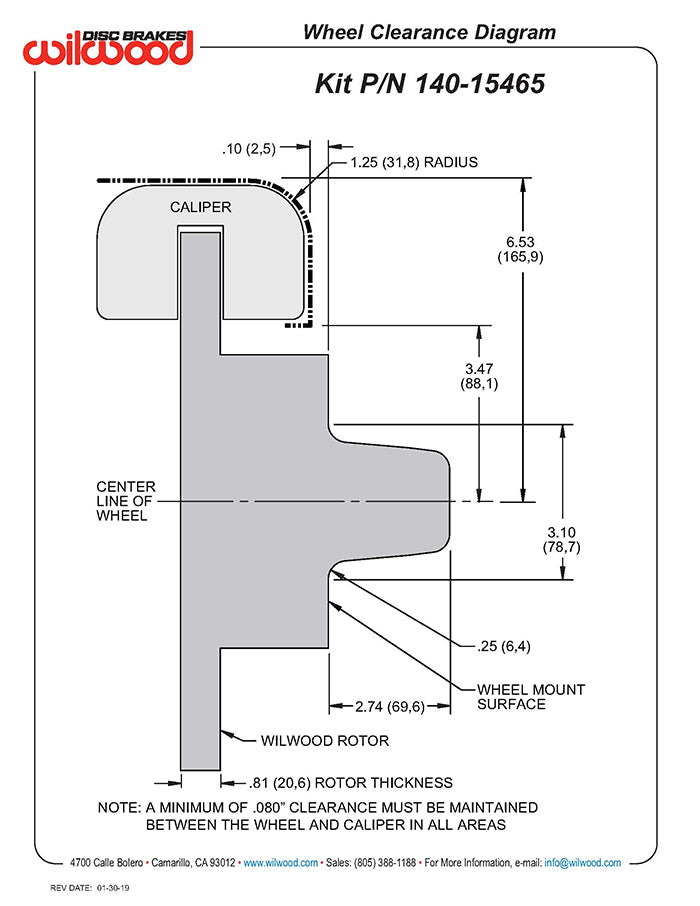

THESE KITS REQUIRE AT LEAST 15" DIAMETER WHEELS.

COMPATIBLE WITH:

• DODGE:
  • 1973-1976 A-BODY
  • 1976-1980 ASPEN
  • 1973-1979 B-BODY
  • 1973-1974 CHALLENGER
  • 1973-1978 CHARGER
  • 1973-1976 CORONET
  • 1973-1976 DART
  • 1973-1976 DEMON
  • 1977-1989 DIPLOMAT
  • 1973-1974 E-BODY
  • 1976-1980 F-BODY
  • 1980-1983 J-BODY
  • 1978-1979 MAGNUM
  • 1980-1983 MIRADA
  • 1977-1978 MONACO, EXCEPT ROYAL
  • 1976-1978 R/T
  • 1979-1981 ST REGIS
• CHRYSLER:
  • 1975-1983 CORDOBA
  • 1983-1989 FIFTH AVENUE
  • 1981-1983 IMPERIAL
  • 1977-1981 LEBARON
  • 1979-1982 NEW YORKER
  • 1979-1981 NEWPORT
• PLYMOUTH:
  • 1973-1976 A-BODY
  • 1973-1979 B-BODY
  • 1973-1974 BARRACUDA
  • 1982-1984 CARAVELLE
  • 1985 CARAVELLE, RWD ONLY
  • 1973-1974 CUDA
  • 1973-1976 DUSTER
  • 1973-1974 E-BODY
  • 1976-1980 F-BODY
  • 1975-1978 FURY, EXCEPT GRAN FURY
  • 1973-1975 GTX
  • 1980-1983 J-BODY
  • 1973-1980 ROAD RUNNER
  • 1973-1974 SATELLITE
  • 1973-1976 SCAMP
  • 1973-1976 VALIANT
  • 1976-1980 VOLARE

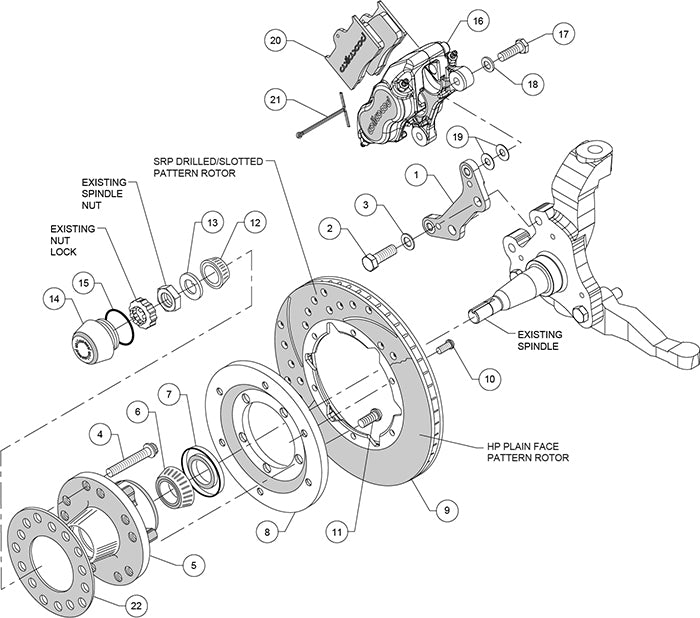

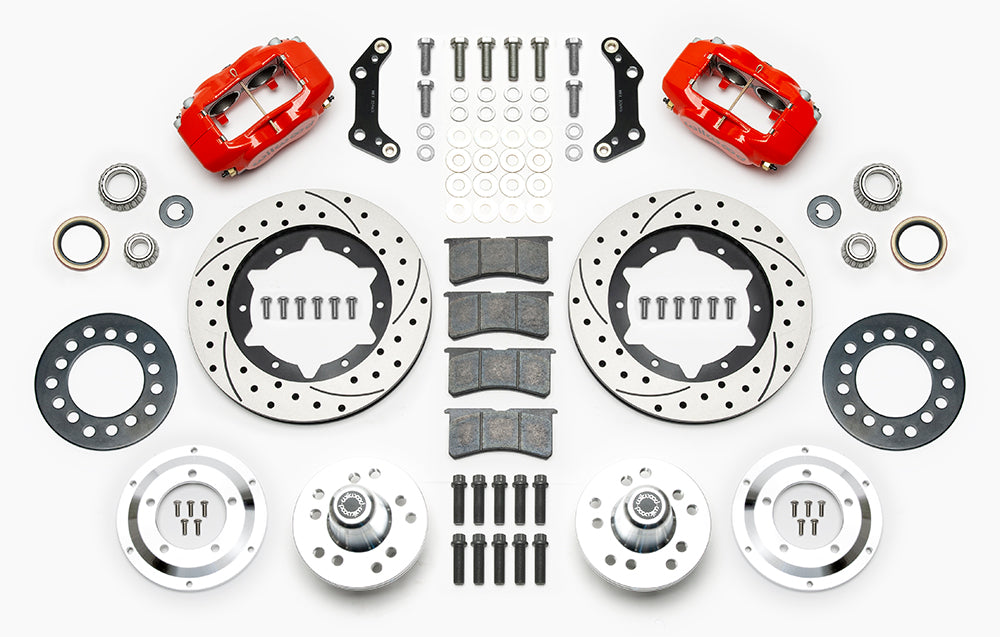

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:

• DRILLED & SLOTTED, .810" THICK X 11.00" O.D. ROTORS
• FORGED DYNALITE CALIPERS - RED
• CALIPER MOUNTING BRACKETS
• BP-10 SMART COMPOUND BRAKE PADS
• HUBS, BEARINGS, SEALS &
• ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS

COMPLETE KIT WEIGHS APPROXIMATELY 44 LBS.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
