65-72 CDP A-BODY W/DISC SPINDLES FULL DISC BRAKE KIT,12" DRILLED ROTORS,RED

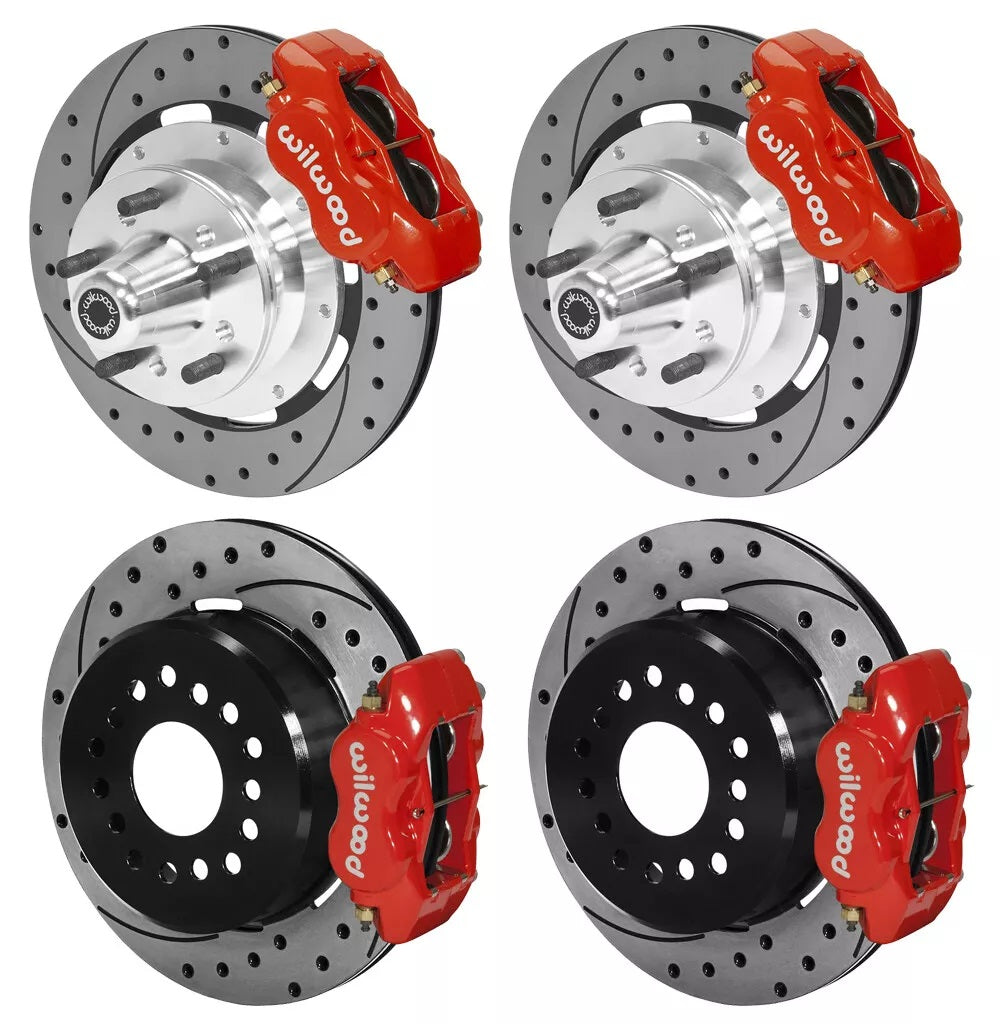

Brand New Wilwood Complete Premium Big Brake Front & Rear 12.19" Disc Brake Kit.

Complete Kit Includes:

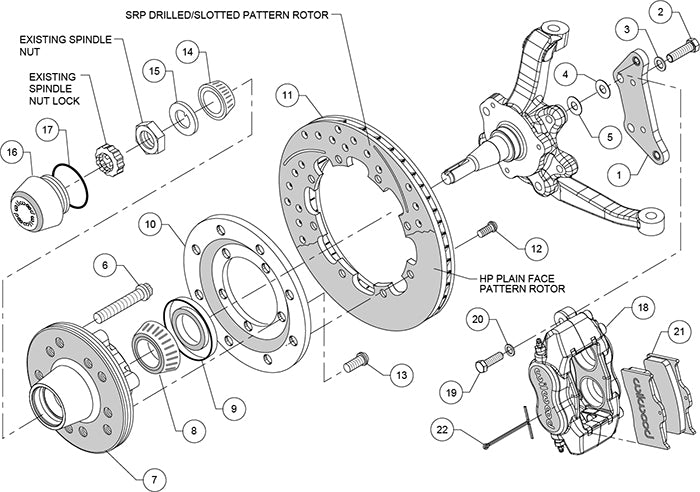

• Forged Dynalite 4 Piston Bolt-On Front Hub & 12.19" Disc Brake Kit (Part #140-15461-DR) for Both Front Wheels

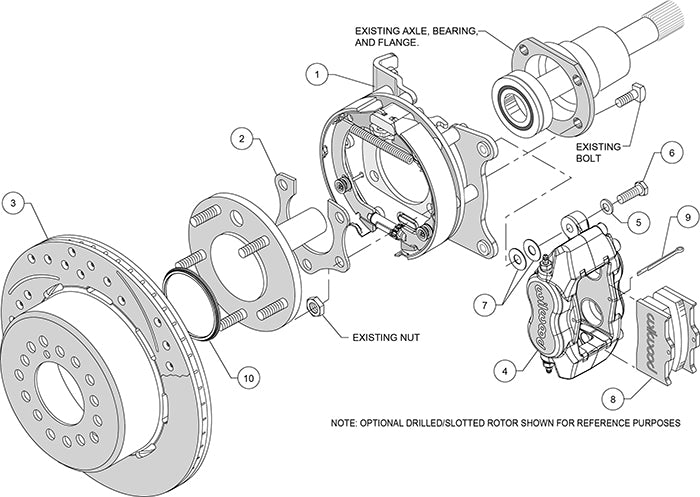

• Forged Dynalite 4 Piston Bolt-On Rear Hat & 12.19" Disc Brake Kit with Parking Brake (Part #140-7144-DR) for Both Rear Wheels

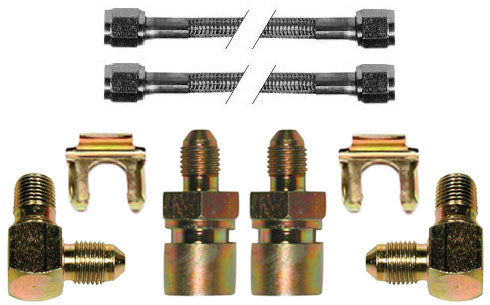

• Full Line Kit for the Front with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings
• Full Line Kit for the Rear with 18" Steel Braided Lines, Caliper Fittings, and Brake Line Fittings

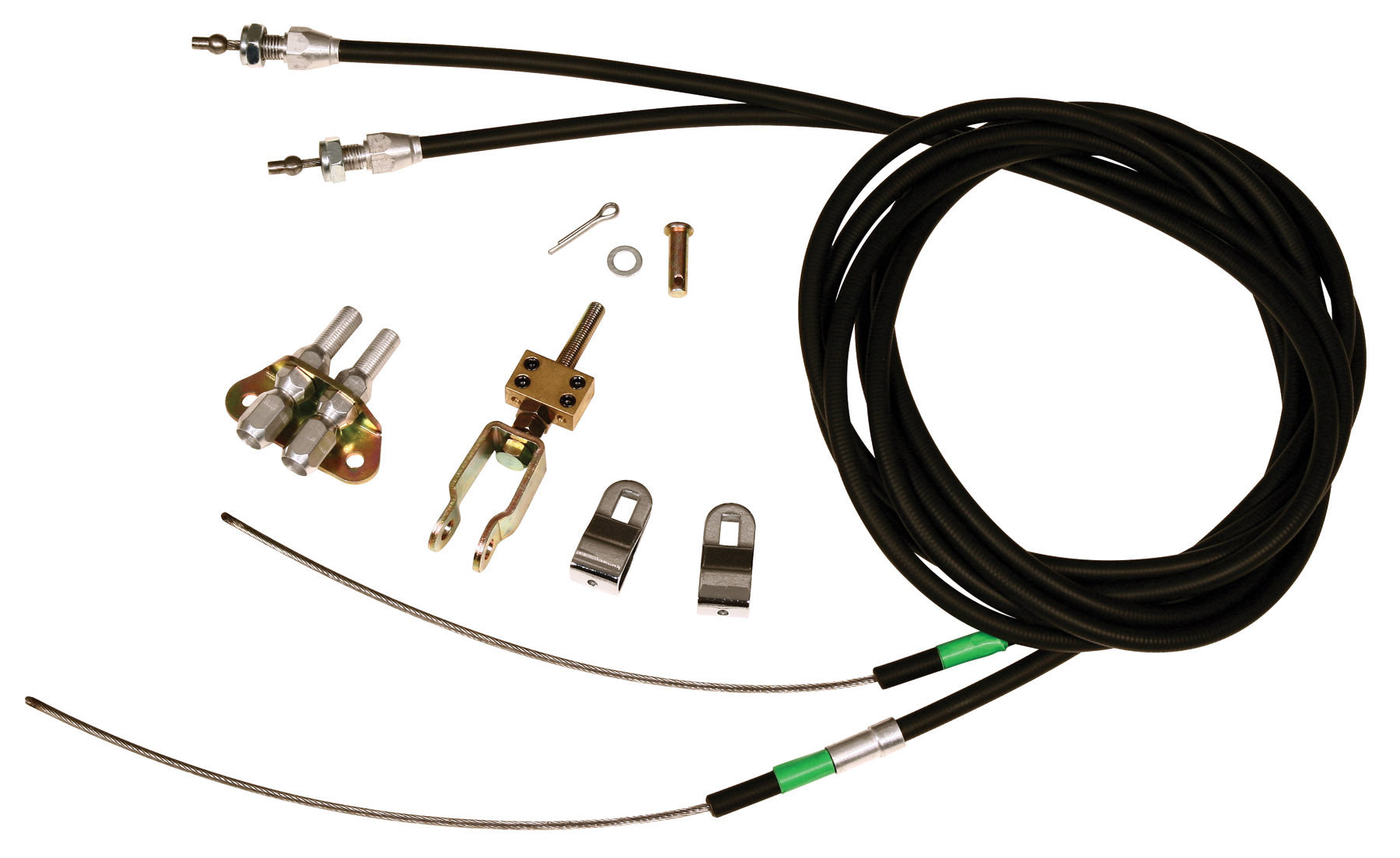

• Parking Brake Cable Kit that connects to the Wilwood parking brake assemblies, then comes together to join the stock cable behind the transmission

See the lists & diagrams below for a detail of the parts included.

Fits:

• **Make sure to see the notes about the rear kit fitment below the vehicle list**
• Dodge:
  • 1965-1972 A-Body with Disc Brake Spindles
  • 1965-1972 Dart with Disc Brake Spindles
  • 1971-1972 Dart Demon with Disc Brake Spindles
• Plymouth:
  • 1965-1972 A-Body with Disc Brake Spindles
  • 1965-1969 Barracuda with Disc Brake Spindles
  • 1970-1972 Duster with Disc Brake Spindles
  • 1971-1972 Scamp with Disc Brake Spindles
  • 1965-1972 Valiant with Disc Brake Spindles

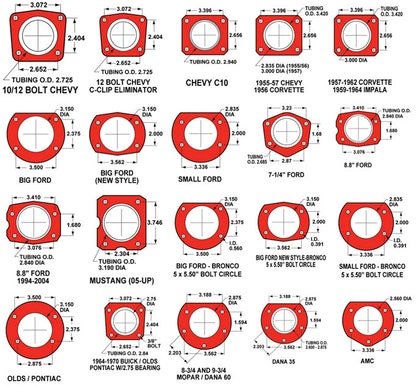

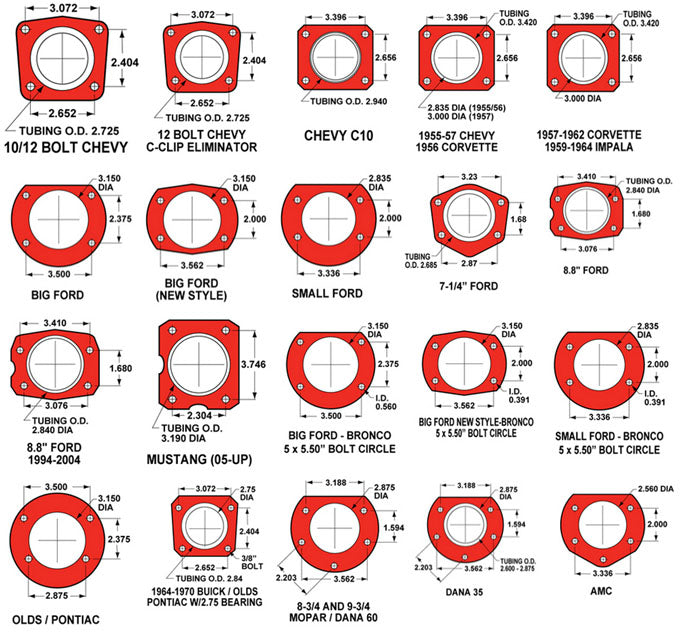

• **The rear kit fits 8 3/4" and 9 3/4" Mopar / Dana 60 rear ends with the Axle Flanges shown below and a 2.36" Axle Flange Offset (see diagram below to show how to measure that offset).  Approximately 90% of all these Dodge and Plymouth cars came stock with these particular axle flanges with that offset.  However, it is always better to measure your Axle Flange and Axle Flange Offset to be sure your vehicle has them.**
• **Also, this rear kit requires the use of the snap ring style, non-adjustable Green Bearings (MO-400).  For Wilwood's more detailed description of this bearing, you can see page 2 of the rear assembly instruction booklet.**

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications.

For the Front, FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19” diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

For the Rear, FDL Pro-Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

These kits are the perfect compliment wheel, tire, and suspension upgrades on all types of daily drivers, race vehicles, and ultra-styled show machines.

These Brake kits require at least 16" diameter wheels.

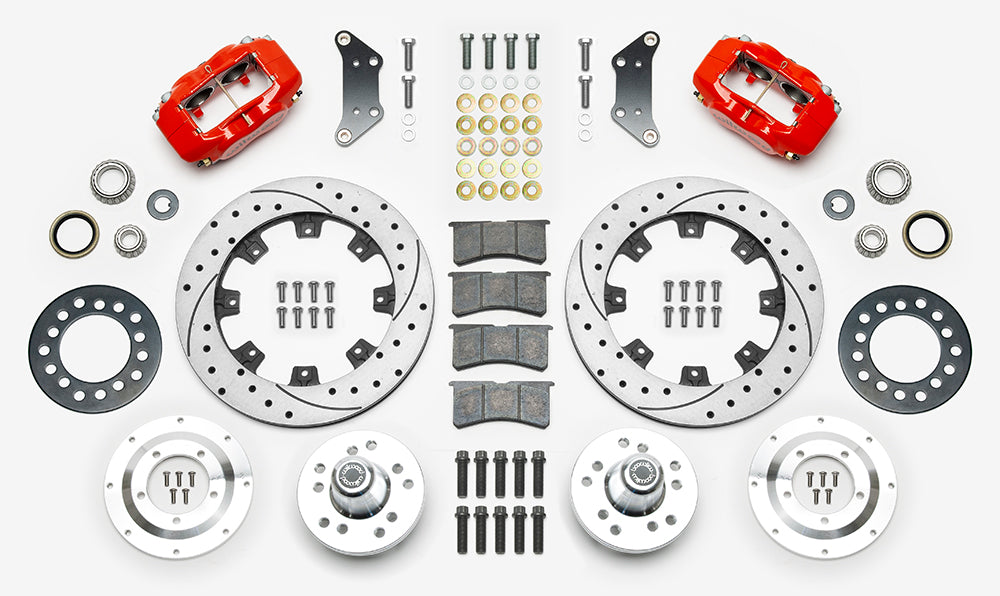

Front kit includes parts for both front wheels:

• Drilled & Slotted, .810" Thick x 12.19" O.D. Rotors
• Forged Dynalite 4 Piston Calipers - Red
• Caliper Mounting Brackets
• BP-10 Smart Compound Brake Pads
• Hubs, Bearings, Seals, &
• All Hardware necessary to install the complete braking system on both front wheels

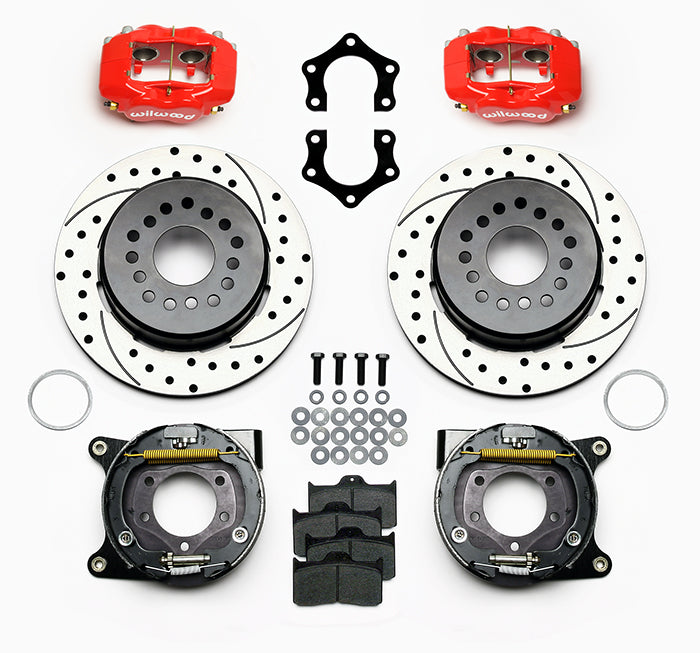

Rear kit includes parts for both rear wheels:

• Drilled & Slotted, .810" Thick x 12.19" O.D. Rotors with Hats
• Forged Dynalite 4 Piston Calipers - Red
• Caliper Mounting Brackets
• Drum Parking Brake Assemblies
• Bearing Retainers
• BP-10 Smart Compound Brake Pads
• All Hardware necessary to install the complete braking system on both rear wheels

Complete kit weighs approximately 96 lbs.

You can view and download the complete assembly instruction booklet for the Front Kit and the Rear Kit.
