70-73 FORD MUSTANG,FRONT,DPDB,12",DRILLED,BLACK
70-73 FORD MUSTANG,FRONT,DPDB,12",DRILLED,BLACK
SKU:WIL 140-15406-D

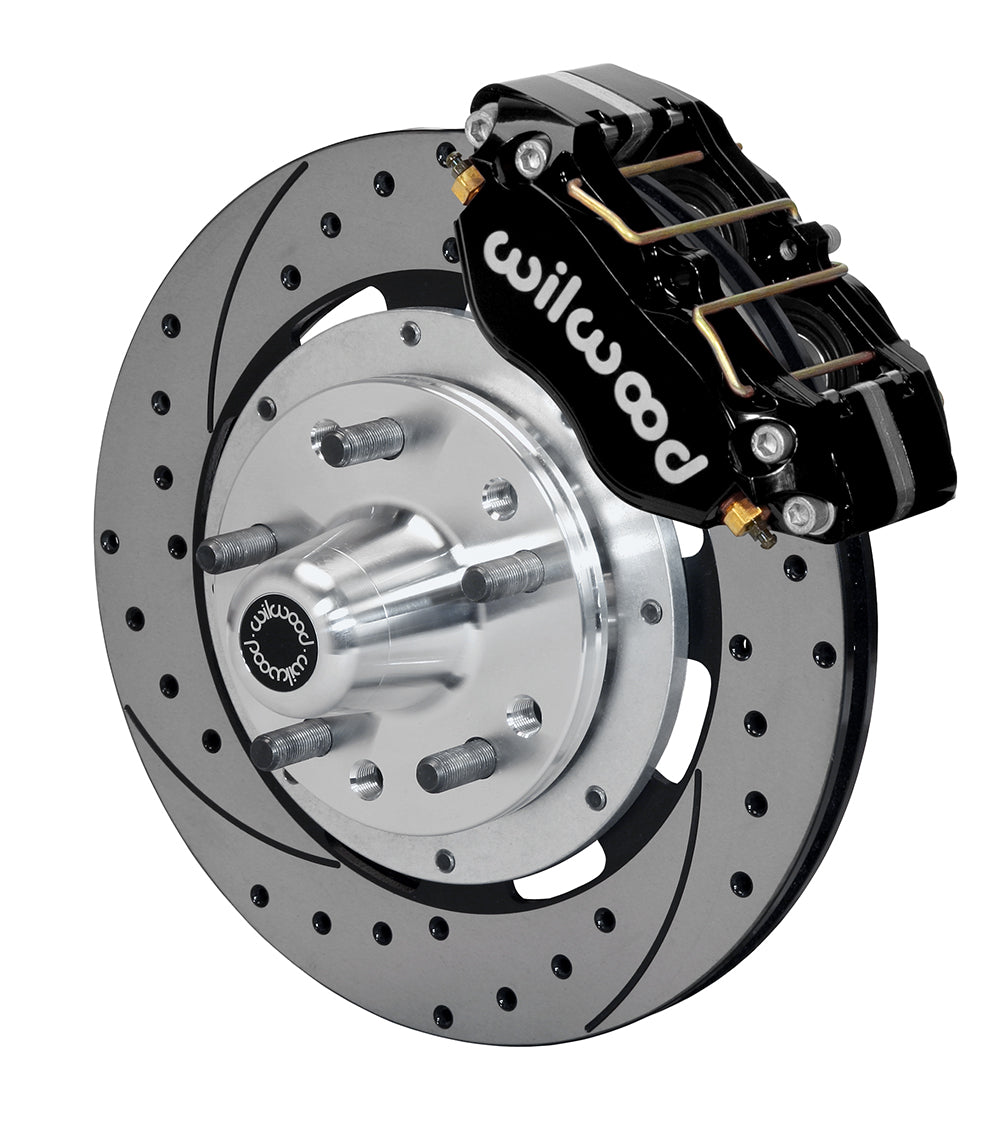

BRAND NEW WILWOOD DYNAPRO DUST-BOOT BIG BRAKE BOLT-ON FRONT HUB & 12.19" DRILLED DISC BRAKE KIT (PART #140-15406-D) FOR BOTH FRONT WHEELS.
WILWOOD BRAKE KITS CONSIST OF SPECIFICALLY ENGINEERED & MATCHED GROUPS OF COMPONENTS DESIGNED TO PROVIDE SUPERIOR BRAKE SYSTEM PERFORMANCE & CUSTOM APPEAL OVER A WIDE RANGE OF APPLICATIONS.
DP-DB BIG BRAKE FRONT HUB KITS PROVIDE THE ADDED ADVANTAGE OF LARGER DIAMETER BRAKE ROTORS FOR TRADITIONAL NON-ABS SPINDLES ON AMERICAN MUSCLE CARS AND VINTAGE RODS. DYNAPRO DUSTBOOT CALIPERS, 12.19" DIAMETER ROTORS, AND HIGH PERFORMANCE WILWOOD BRAKE PADS GENERATE BIG BRAKE STOPPING POWER. THESE KITS WERE DEVELOPED FOR APPLICATIONS OR LOCATIONS THAT REQUIRE OR PREFER A DUST-SEALED PISTON. DUST-BOOT SEALED ALUMINUM PISTONS PROVIDE ADDED PROTECTION AGAINST ROAD OR TRACK BORN DIRT AND DEBRIS ON LOW TO INTERMEDIATE TEMPERATURE RANGE APPLICATIONS THAT MAY ALSO OPERATE IN HARSH ENVIRONMENTS. A FULL RANGE OF OPTIONS FOR CALIPER FINISH AND ROTOR DESIGN PROVIDE CUSTOM BUILDERS WITH THE ABILITY TO PERSONALIZE THE STYLE AND PERFORMANCE REQUIREMENTS OF THE MILDEST TO THE WILDEST MACHINES.
NOTE: THESE BIG BRAKE KITS REQUIRE AT LEAST 16" DIAMETER WHEELS.
COMPATIBLE WITH:
- 1969 MUSTANG, BOSS 302/429 ONLY
- 1970-1973 MUSTANG, ALL
- 1970 FAIRLANE, ALL
- 1971 FAIRLANE WITH DISC BRAKE SPINDLES
- 1970 FALCON WITH DISC BRAKE SPINDLES
- 1970 FALCON WITH DRUM BRAKE SPINDLES (FROM 8/25/69 THROUGH 12/31/69)
- 1970 MAVERICK WITH DRUM BRAKE SPINDLES (FROM 8/25/69 THROUGH 12/31/69)
- 1971-1974 MAVERICK WITH DRUM BRAKE SPINDLES
- 1970 RANCHERO, ALL
- 1971 RANCHERO WITH DISC BRAKE SPINDLES
- 1970-1971 TORINO, ALL
- 1970-1971 COMET, ALL
- 1972-1973 COMET WITH DRUM BRAKE SPINDLES
- 1970-1972 COUGAR, ALL
- 1973 COUGAR WITH DISC BRAKE SPINDLES
- 1970 CYCLONE, ALL
- 1970-1971 MONTEGO, ALL

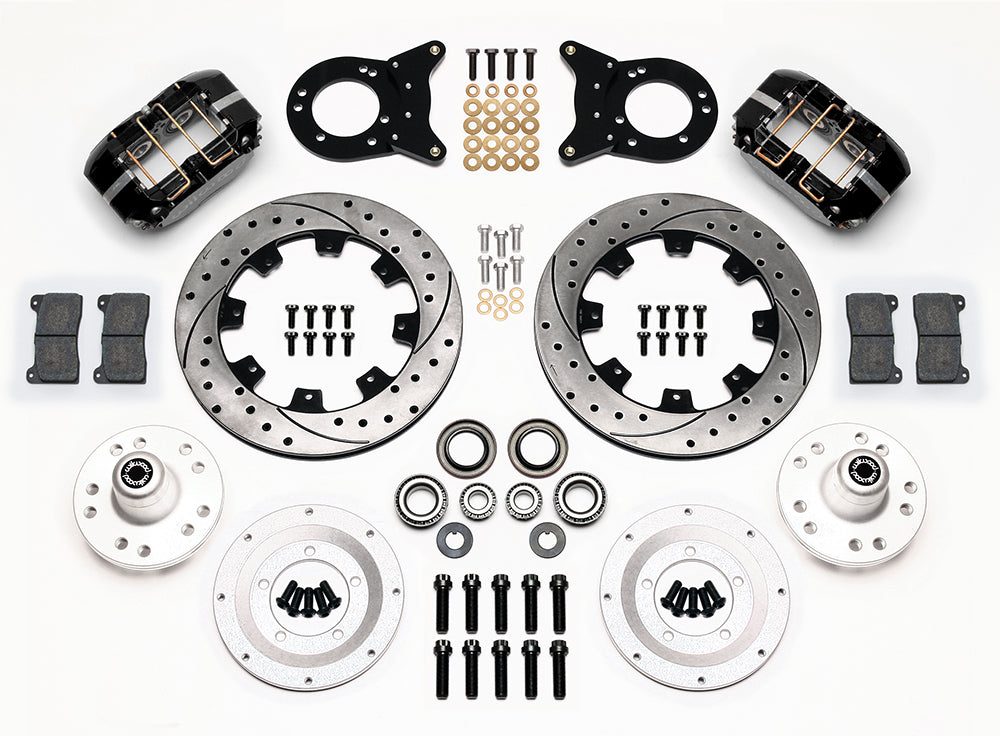

KIT INCLUDES PARTS FOR BOTH FRONT WHEELS:
- DRILLED & SLOTTED, .810" THICK X 12.19" O.D. ROTORS
- DYNAPRO DUST-BOOT 4 PISTON CALIPERS - BLACK
- CALIPER MOUNTING BRACKETS
- BP-10 SMART COMPOUND BRAKE PADS
- HUBS, BEARINGS, SEALS
- ALL HARDWARE NECESSARY TO INSTALL THE COMPLETE BRAKING SYSTEM ON BOTH FRONT WHEELS
COMPLETE KIT WEIGHS APPROXIMATELY 41 LBS.

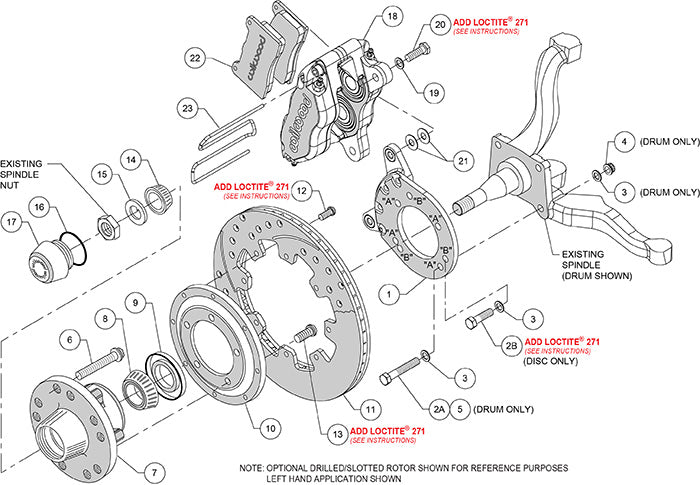

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
