2014-2018 DODGE RAM 2500,3500,REAR,TX6R 6 PISTON,16" ROTORS,BLACK CALIPERS

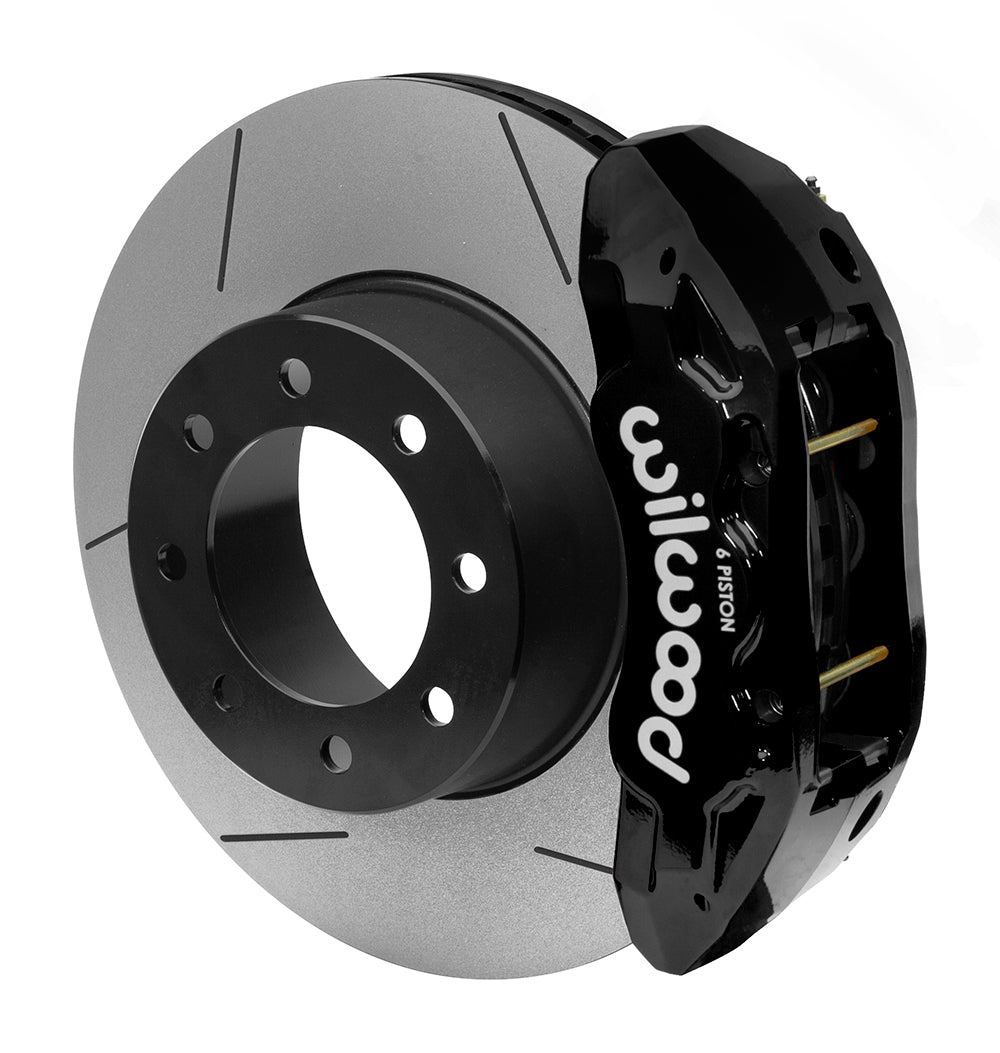

Brand New Wilwood TX6R Big Brake Kit Featuring 16" Slotted Rotors with Black Calipers For Both Rear Wheels (Part #140-15382).

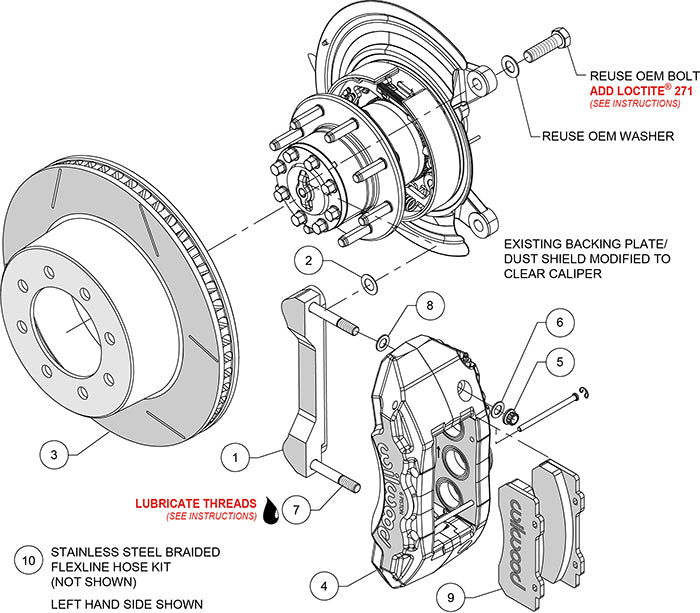

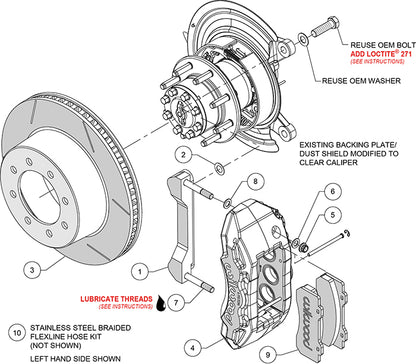

Only one side pictured. See the list, the diagram, & the assembly booklet for the details of the parts included.

Compatible with:

• Ram:
  • 2014-2018 2500 Big Horn

  • 2014-2018 2500 Laramie

  • 2014-2015 2500 Laramie Limited

  • 2014-2018 2500 Laramie Longhorn

  • 2016-2018 2500 Limited

  • 2014-2015 2500 Lone Star

  • 2014-2016 2500 Outdoorsman

  • 2014-2018 2500 Power Wagon

  • 2014-2018 2500 SLT

  • 2014-2018 2500 Tradesman

  • 2014-2018 3500 SRW (Single Rear Wheels)

Wilwood’s Tactical Extreme TX6R Big Brake rear kits are ultimate in braking performance for Truck, SUV and Armored Vehicles. Using TX6R radial mount six-piston calipers and massive 16.00” GT-60 directional vane Spec-37 alloy rotors, these kits deliver consistent stopping power and extreme duty durability under sustained high heat with this ready to bolt-on kit. The calipers are volume matched for compatibility with original equipment power brake system output. TX6R rear kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. Kits include radial mount caliper brackets, and all the necessary hardware to complete the installation. Braided stainless steel flex lines will need to be purchased for some applications.

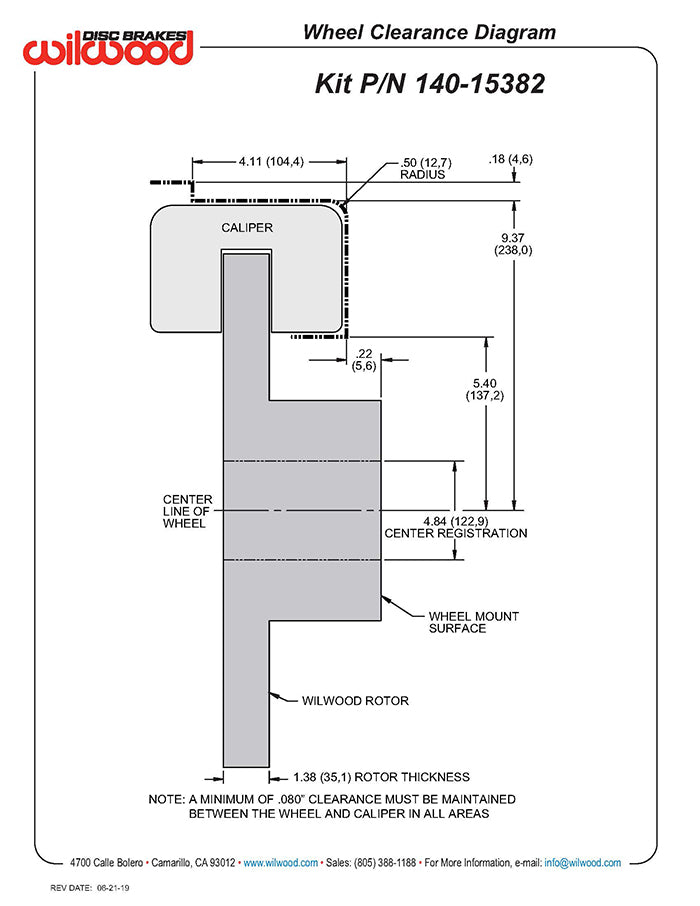

This kit require at least 20" diameter wheels.

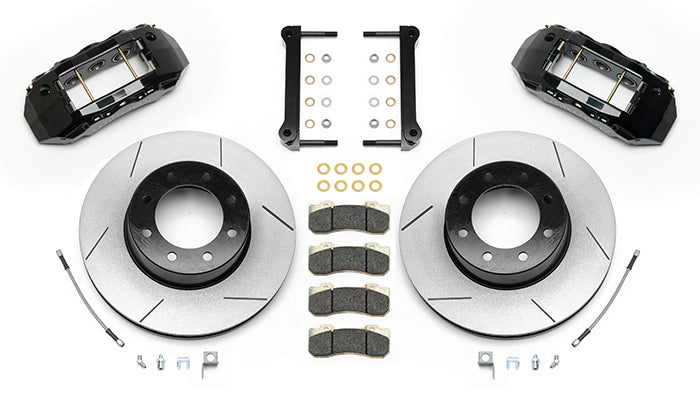

Kit includes parts for both rear wheels:

• 6 Piston TX6R Calipers
• 1.38" Thick x 16.00" O.D. Rotors
• BP-Q Compound Brake Pads

• Brake Lines
• All brackets, bolts, washers, shims, and nuts necessary to install the kit.


Complete kit weighs approximately 133 lbs.

You can view and download the assembly/instruction booklet here.
